GCHS-S-1207 / NSE-1207-M2-4 / Tornillos de plástico | Gecko Fastener GmbH

Serie GCHS-S-1207 - Tornillos ranurados de cabeza cilíndrica

Serie GCHS-S-1207 - Tornillos ranurados de cabeza cilíndrica

37,20 €

Impuestos excluidos Modificaciones y tarifas vigentes

Unidad de embalaje y precio: 1000

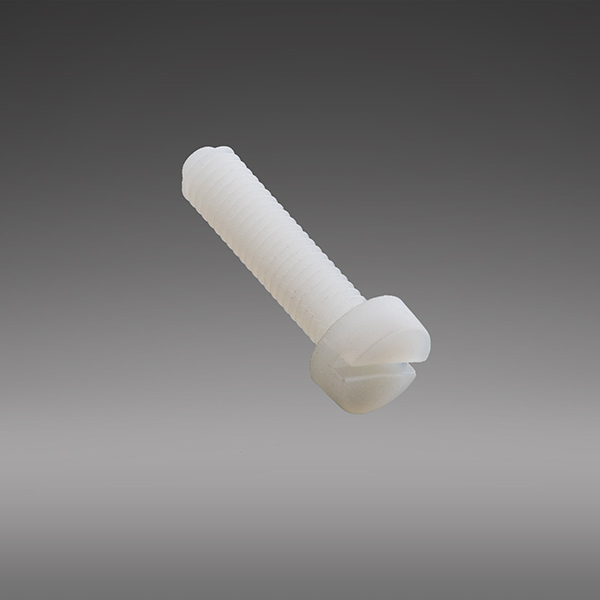

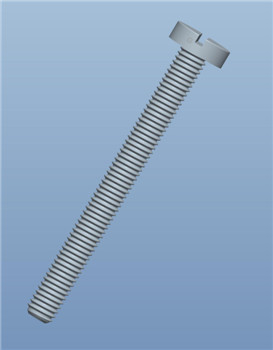

Tornillo de plástico (ranurado)

Color: natural
Material: PA66 UL 94 V2
Conforme a DIN EN 1207

GCHS-S-1207 Series

Unidades	Descuento	Ahorra	Precio/unidad
5	3%	5,58 €	36,08 €
10	6%	22,32 €	34,97 €
20	10%	74,40 €	33,48 €
30	15%	167,40 €	31,62 €

Añadir a la lista

Nota

Póngase en contacto con nosotros para solicitar pequeñas cantidades, muestras gratuitas y más datos técnicos.

Tornillo ranurado para queso, M2, M2.5, M3, M4, M5, M6, M8

Nº de artículo	Referencia cruzada.	Material	Color	A	B	C	L	Hilo	PU
GCHS-S-1207-M2-4	NSE-1207-M2-4	PA66 UL94V2	Natural	1,3	3,8	0,6	4,0	M2	1000
GCHS-S-1207-M2-5	NSE-1207-M2-5	PA66 UL94V2	Natural	1,3	3,8	0,6	5,0	M2	1000
GCHS-S-1207-M2-5B	NSE-1207-M2-5B	PA66 UL94V2	Negro	1,3	3,8	0,6	5,0	M2	1000
GCHS-S-1207-M2-5-POM	-	POM UL94HB	Natural	1,3	3,8	0,6	5,0	M2	1000
GCHS-S-1207-M2-6	NSE-1207-M2-6	PA66 UL94V2	Natural	1,3	3,8	0,6	6,0	M2	1000
GCHS-S-1207-M2-8	NSE-1207-M2-8	PA66 UL94V2	Natural	1,3	3,8	0,6	8,0	M2	1000
GCHS-S-1207-M2-10	NSE-1207-M2-10	PA66 UL94V2	Natural	1,3	3,8	0,6	10,0	M2	1000
GCHS-S-1207-M2-12	NSE-1207-M2-12	PA66 UL94V2	Natural	1,3	3,8	0,6	12,0	M2	1000
GCHS-S-1207-M2-16	NSE-1207-M2-16	PA66 UL94V2	Natural	1,3	3,8	0,6	16,0	M2	1000
GCHS-S-1207-M2-20	NSE-1207-M2-20	PA66 UL94V2	Natural	1,3	3,8	0,6	20,0	M2	1000
GCHS-S-1207-M2-25	NSE-1207-M2-25	PA66 UL94V2	Natural	1,3	3,8	0,6	25,0	M2	1000
GCHS-S-1207-M2.5-4	NSE-1207-M2.5-4	PA66 UL94V2	Natural	1,8	4,5	0,7	4,0	M2.5	1000
GCHS-S-1207-M2.5-4.5	NSE-1207-M2.5-4.5	PA66 UL94V2	Natural	1,8	4,5	0,7	4,5	M2.5	1000
GCHS-S-1207-M2.5-5	NSE-1207-M2.5-5	PA66 UL94V2	Natural	1,8	4,5	0,7	5,0	M2.5	1000
GCHS-S-1207-M2.5-6	NSE-1207-M2.5-6	PA66 UL94V2	Natural	1,8	4,5	0,7	6,0	M2.5	1000
GCHS-S-1207-M2.5-8	NSE-1207-M2.5-8	PA66 UL94V2	Natural	1,8	4,5	0,7	8,0	M2.5	1000
GCHS-S-1207-M2.5-10	NSE-1207-M2.5-10	PA66 UL94V2	Natural	1,8	4,5	0,7	10,0	M2.5	1000
GCHS-S-1207-M2.5-12	NSE-1207-M2.5-12	PA66 UL94V2	Natural	1,8	4,5	0,7	12,0	M2.5	1000
GCHS-S-1207-M2.5-16	NSE-1207-M2.5-16	PA66 UL94V2	Natural	1,8	4,5	0,7	16,0	M2.5	1000
GCHS-S-1207-M2.5-20	NSE-1207-M2.5-20	PA66 UL94V2	Natural	1,8	4,5	0,7	20,0	M2.5	1000
GCHS-S-1207-M2.5-25	NSE-1207-M2.5-25	PA66 UL94V2	Natural	1,8	4,5	0,7	25,0	M2.5	1000
GCHS-S-1207-M2.5-25-PC	-	PC UL94V2	Natural	1,8	4,5	0,7	25,0	M2.5	1000
GCHS-S-1207-M3-4	NSE-1207-M3-4 / 536009000002	PA66 UL94V2	Natural	2,0	5,5	0,9	4,0	M3	1000
GCHS-S-1207-M3-5	NSE-1207-M3-5 / 536009500002	PA66 UL94V2	Natural	2,0	5,5	0,9	5,0	M3	1000
GCHS-S-1207-M3-6	NSE-1207-M3-6 / 536010000002	PA66 UL94V2	Natural	2,0	5,5	0,9	6,0	M3	1000
GCHS-S-1207-M3-6-PC	-	PC UL94V2	Natural	2,0	5,5	0,9	6,0	M3	1000
GCHS-S-1207-M3-8	NSE-1207-M3-8 / 536010500002	PA66 UL94V2	Natural	2,0	5,5	0,9	8,0	M3	1000
GCHS-S-1207-M3-10	NSE-1207-M3-10 / 536011000002	PA66 UL94V2	Natural	2,0	5,5	0,9	10,0	M3	1000
GCHS-S-1207-M3-12	NSE-1207-M3-12 / 536011500002	PA66 UL94V2	Natural	2,0	5,5	0,9	12,0	M3	1000
GCHS-S-1207-M3-16	NSE-1207-M3-16 / 536012000002	PA66 UL94V2	Natural	2,0	5,5	0,9	16,0	M3	1000
GCHS-S-1207-M3-20	NSE-1207-M3-20 / 536012500002	PA66 UL94V2	Natural	2,0	5,5	0,9	20,0	M3	1000
GCHS-S-1207-M3-25	NSE-1207-M3-25 / 536013000002	PA66 UL94V2	Natural	2,0	5,5	0,9	25,0	M3	1000
GCHS-S-1207-M3-25-PC	-	PC UL94V2	Natural	2,0	5,5	0,9	25,0	M3	1000
GCHS-S-1207-M3-30	NSE-1207-M3-30 / 536013500002	PA66 UL94V2	Natural	2,0	5,5	0,9	30,0	M3	1000
GCHS-S-1207-M3-30B	NSE-1207-M3-30B / 536013500002	PA66 UL94V2	Negro	2,0	5,5	0,9	30,0	M3	1000
GCHS-S-1207-M3-35	NSE-1207-M3-35 / 536014000002	PA66 UL94V2	Natural	2,0	5,5	0,9	35,0	M3	1000
GCHS-S-1207-M3-40	NSE-1207-M3-40 / 536014500002	PA66 UL94V2	Natural	2,0	5,5	0,9	40,0	M3	1000
GCHS-S-1207-M4-4	NSE-1207-M4-4	PA66 UL94V2	Natural	2,6	7,0	1,3	4,0	M4	1000
GCHS-S-1207-M4-6	NSE-1207-M4-6 / 536015000002	PA66 UL94V2	Natural	2,6	7,0	1,3	6,0	M4	1000
GCHS-S-1207-M4-8	NSE-1207-M4-8 / 536015500002	PA66 UL94V2	Natural	2,6	7,0	1,3	8,0	M4	1000
GCHS-S-1207-M4-10	NSE-1207-M4-10 / 536016000002	PA66 UL94V2	Natural	2,6	7,0	1,3	10,0	M4	1000
GCHS-S-1207-M4-12	NSE-1207-M4-12 / 536016500002	PA66 UL94V2	Natural	2,6	7,0	1,3	12,0	M4	1000
GCHS-S-1207-M4-12B	NSE-1207-M4-12B	PA66 UL94V2	Negro	2,6	7,0	1,3	12,0	M4	1000
GCHS-S-1207-M4-15	NSE-1207-M4-15	PA66 UL94V2	Natural	2,6	7,0	1,3	15,0	M4	1000
GCHS-S-1207-M4-16	NSE-1207-M4-16 / 536017000002	PA66 UL94V2	Natural	2,6	7,0	1,3	16,0	M4	1000
GCHS-S-1207-M4-20	NSE-1207-M4-20 / 536017500002	PA66 UL94V2	Natural	2,6	7,0	1,3	20,0	M4	1000
GCHS-S-1207-M4-25	NSE-1207-M4-25 / 536018000002	PA66 UL94V2	Natural	2,6	7,0	1,3	25,0	M4	1000
GCHS-S-1207-M4-25B	NSE-1207-M4-25B	PA66 UL94V2	Negro	2,6	7,0	1,3	25,0	M4	1000
GCHS-S-1207-M4-30	NSE-1207-M4-30 / 536018500002	PA66 UL94V2	Natural	2,6	7,0	1,3	30,0	M4	1000
GCHS-S-1207-M4-40	NSE-1207-M4-40 / 536019000002	PA66 UL94V2	Natural	2,6	7,0	1,3	40,0	M4	1000
GCHS-S-1207-M5-6	NSE-1207-M5-6 / 536019500002	PA66 UL94V2	Natural	3,3	8,5	1,3	6,0	M5	1000
GCHS-S-1207-M5-8	NSE-1207-M5-8 / 536020000002	PA66 UL94V2	Natural	3,3	8,5	1,3	8,0	M5	1000
GCHS-S-1207-M5-10	NSE-1207-M5-10 / 536020500002	PA66 UL94V2	Natural	3,3	8,5	1,3	10,0	M5	1000
GCHS-S-1207-M5-12	NSE-1207-M5-12 / 536021000002	PA66 UL94V2	Natural	3,3	8,5	1,3	12,0	M5	1000
GCHS-S-1207-M5-16	NSE-1207-M5-16 / 536021500002	PA66 UL94V2	Natural	3,3	8,5	1,3	16,0	M5	1000
GCHS-S-1207-M5-20	NSE-1207-M5-20 / 536022000002	PA66 UL94V2	Natural	3,3	8,5	1,3	20,0	M5	1000
GCHS-S-1207-M5-25	NSE-1207-M5-25 / 536022500002	PA66 UL94V2	Natural	3,3	8,5	1,3	25,0	M5	1000
GCHS-S-1207-M5-30	NSE-1207-M5-30 / 536023000002	PA66 UL94V2	Natural	3,3	8,5	1,3	30,0	M5	1000
GCHS-S-1207-M5-40	NSE-1207-M5-40 / 536023500002	PA66 UL94V2	Natural	3,3	8,5	1,3	40,0	M5	1000
GCHS-S-1207-M5-50	NSE-1207-M5-50 /	PA66 UL94V2	Natural	3,3	8,5	1,3	50,0	M5	1000
GCHS-S-1207-M6-5	NSE-1207-M6-5	PA66 UL94V2	Natural	3,9	10,0	1,7	5,0	M6	1000
GCHS-S-1207-M6-6	NSE-1207-M6-6	PA66 UL94V2	Natural	3,9	10,0	1,7	6,0	M6	1000
GCHS-S-1207-M6-6,5	NSE-1207-M6-6.5 / 536025500002	PA66 UL94V2	Natural	3,9	10,0	1,7	6,5	M6	1000
GCHS-S-1207-M6-8	NSE-1207-M6-8 / 536026000002	PA66 UL94V2	Natural	3,9	10,0	1,7	8,0	M6	1000
GCHS-S-1207-M6-10	NSE-1207-M6-10 / 536026500002	PA66 UL94V2	Natural	3,9	10,0	1,7	10,0	M6	1000
GCHS-S-1207-M6-12	NSE-1207-M6-12 / 536027000002	PA66 UL94V2	Natural	3,9	10,0	1,7	12,0	M6	1000
GCHS-S-1207-M6-16	NSE-1207-M6-16 / 536027500002	PA66 UL94V2	Natural	3,9	10,0	1,7	16,0	M6	1000
GCHS-S-1207-M6-20	NSE-1207-M6-20 / 536028000002	PA66 UL94V2	Natural	3,9	10,0	1,7	20,0	M6	1000
GCHS-S-1207-M6-22	NSE-1207-M6-22	PA66 UL94V2	Natural	3,9	10,0	1,7	22,0	M6	1000
GCHS-S-1207-M6-25	NSE-1207-M6-25 / 536029000002	PA66 UL94V2	Natural	3,9	10,0	1,7	25,0	M6	1000
GCHS-S-1207-M6-30	NSE-1207-M6-30 / 536029500002	PA66 UL94V2	Natural	3,9	10,0	1,7	30,0	M6	1000
GCHS-S-1207-M6-40	NSE-1207-M6-40 / 536030000002	PA66 UL94V2	Natural	3,9	10,0	1,7	40,0	M6	1000
GCHS-S-1207-M6-50	NSE-1207-M6-50 / 536030500002	PA66 UL94V2	Natural	3,9	10,0	1,7	50,0	M6	1000
GCHS-S-1207-M6-60	NSE-1207-M6-60 / 536031000002	PA66 UL94V2	Natural	3,9	10,0	1,7	60,0	M6	1000
GCHS-S-1207-M8-8	-	PA66 UL94V2	Natural	4,9	12,8	2,2	8,0	M8	1000
GCHS-S-1207-M8-10	-	PA66 UL94V2	Natural	4,9	12,8	2,2	10,0	M8	1000
GCHS-S-1207-M8-12	-	PA66 UL94V2	Natural	4,9	12,8	2,2	12,0	M8	1000
GCHS-S-1207-M8-16	-	PA66 UL94V2	Natural	4,9	12,8	2,2	16,0	M8	1000
GCHS-S-1207-M8-20	-	PA66 UL94V2	Natural	4,9	12,8	2,2	20,0	M8	1000
GCHS-S-1207-M8-25	-	PA66 UL94V2	Natural	4,9	12,8	2,2	25,0	M8	1000
GCHS-S-1207-M8-30	-	PA66 UL94V2	Natural	4,9	12,8	2,2	30,0	M8	1000
GCHS-S-1207-M8-35	-	PA66 UL94V2	Natural	4,9	12,8	2,2	35,0	M8	1000
GCHS-S-1207-M8-40	-	PA66 UL94V2	Natural	4,9	12,8	2,2	40,0	M8	500
GCHS-S-1207-M8-45	-	PA66 UL94V2	Natural	4,9	12,8	2,2	45,0	M8	500
GCHS-S-1207-M8-50	-	PA66 UL94V2	Natural	4,9	12,8	2,2	50,0	M8	500

Idéntica a la serie Richco / Essentra: NSE-1207-Mx
Unidad de embalaje y precio: 1000

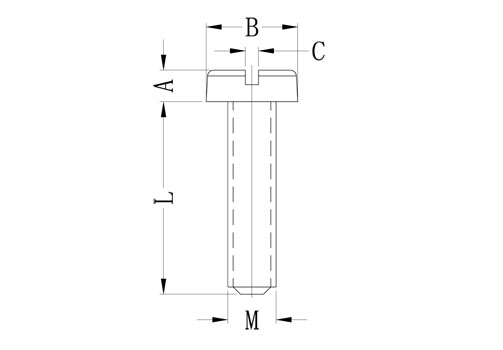

Dimensión funcional "A" o "L" (si está disponible): "L" ≙ mm - M2 (A≙1.3 / B≙3.8mm) / M2.5 (A≙1.8 / B≙4.5mm) / M3 (A≙2.0 / B≙5.5mm) / M4 (A≙2.6 / B≙7.0mm) / M5 (A≙1.3 / B≙8.5mm) / M6 (A≙3.9 / B≙10.0mm)

Referencia GCHS-S-1207 Series

GCHS-S-1207-L

Descargar (286.88KB)
