    Reverse Locking Circuit Board Support Reverse Locking Circuit Board Support Reverse Locking Circuit Board Support

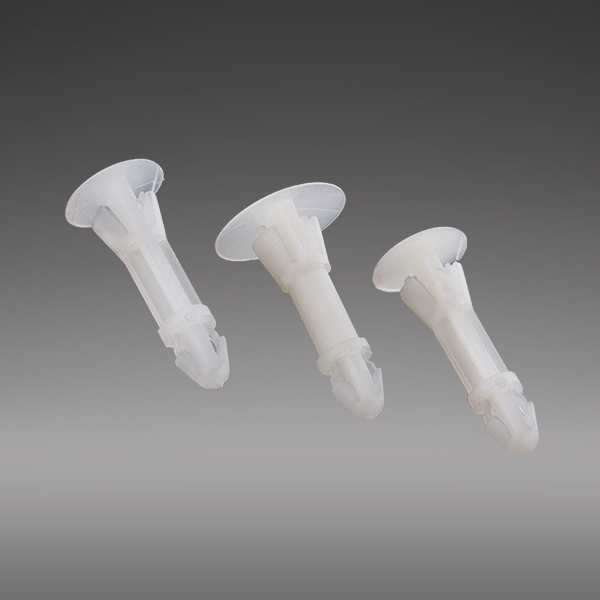

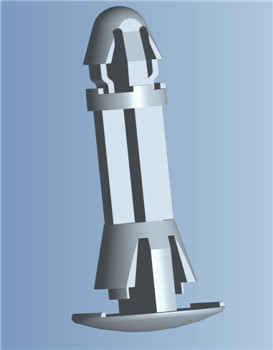

    GLCBSC Series - Support de carte de circuit imprimé à verrouillage inversé

    144,15 €
    HT Sous réserve de modifications et d'erreurs de prix

    Unité de conditionnement et de prix : 1000
    Entretoises à tête plate

    En longueurs de 6,0 - 14,0mm (autres sur demande)
    Épaisseur du circuit imprimé ≙ 1,6mm

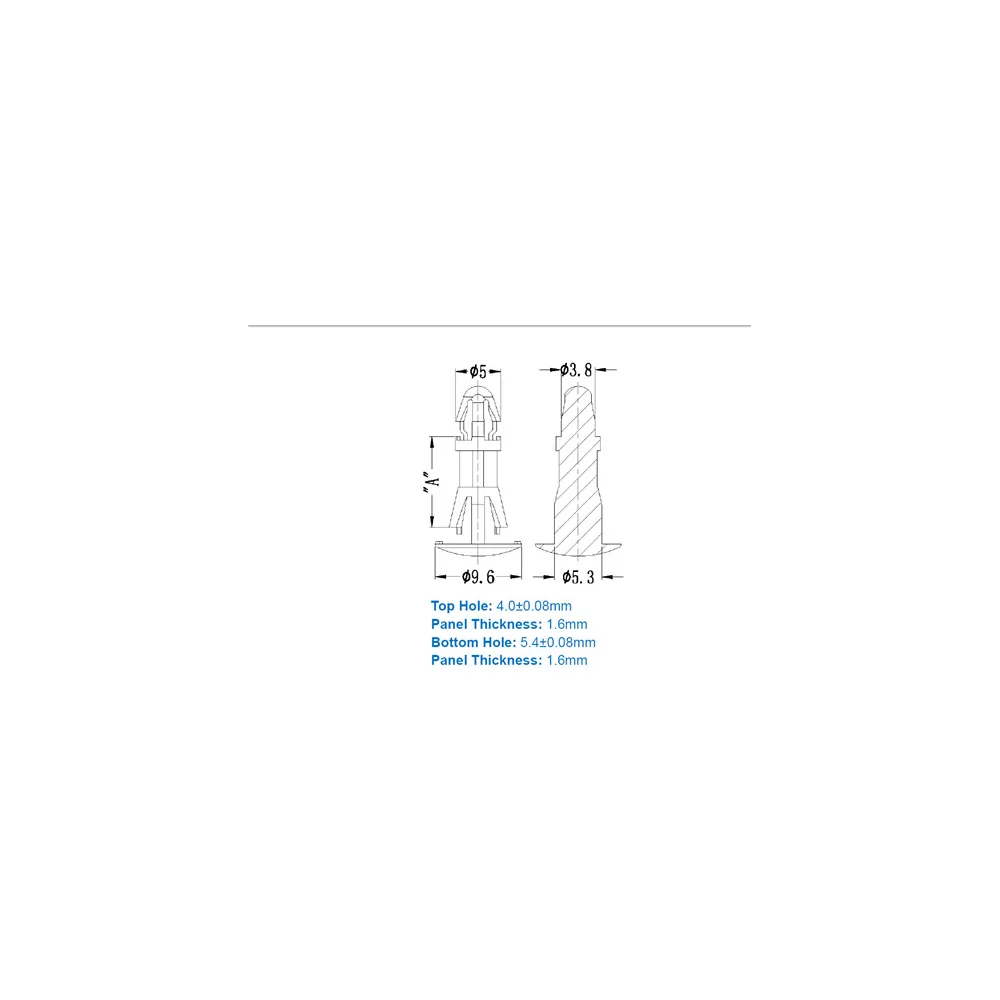

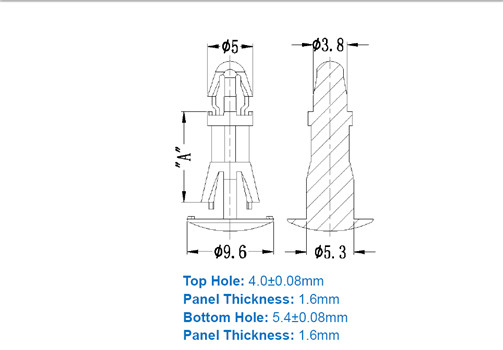

    Ø perçage ≙ 4,0±0,08mm (haut) & 5,4±0,08mm (bas)
    Couleur : Natural - Matériau : PA66 UL 94V2

    GLCBSC Series
    UnitésRéductionVous économisezPrix/unité
    53%21,62 €139,83 €
    106%86,49 €135,50 €
    2010%288,30 €129,74 €
    3015%648,68 €122,53 €
    Remarque

    N'hésitez pas à nous contacter pour les petites quantités, les échantillons gratuits et d'autres informations techniques.



    PCB Support - Spacer - Locking Arrowhead, Reverse Locking Support, Push Spacer

    N° d'articleCross-Ref.MatériauCouleurAFIGTrou en hautPerçage en basÉpaisseur du panneau en hautÉpaisseur du panneau en basUE
    GLCBSC-6-66RLCBSK-6-01PA66 UL94V2Naturel6.014.0 +/- 0.085.4 +/- 0.081,61,61000
    GLCBSC-6-V0RLCBSK-6-19PA66 UL94V0Naturel6.014.0 +/- 0.085.4 +/- 0.081,61,61000
    GLCBSC-6-66BRLCBSK-6-01BKPA66 UL94V2Noir6.014.0 +/- 0.085.4 +/- 0.081,61,61000
    GLCBSC-8-66RLCBSK-8-01PA66 UL94V2Naturel8.014.0 +/- 0.085.4 +/- 0.081,61,61000
    GLCBSC-8-V0RLCBSK-8-19PA66 UL94V0Naturel8.014.0 +/- 0.085.4 +/- 0.081,61,61000
    GLCBSC-8-66BRLCBSK-8-01BKPA66 UL94V2Noir8.014.0 +/- 0.085.4 +/- 0.081,61,61000
    GLCBSC-10-66RLCBSK-10-01PA66 UL94V2Naturel10.014.0 +/- 0.085.4 +/- 0.081,61,61000
    GLCBSC-10-V0RLCBSK-10-19PA66 UL94V0Naturel10.014.0 +/- 0.085.4 +/- 0.081,61,61000
    GLCBSC-10-66BRLCBSK-10-01BKPA66 UL94V2Noir10.014.0 +/- 0.085.4 +/- 0.081,61,61000
    GLCBSC-12-66RLCBSK-12-01PA66 UL94V2Naturel12.014.0 +/- 0.085.4 +/- 0.081,61,61000
    GLCBSC-12-V0RLCBSK-12-19PA66 UL94V0Naturel12.014.0 +/- 0.085.4 +/- 0.081,61,61000
    GLCBSC-12-66BRLCBSK-12-01BKPA66 UL94V2Noir12.014.0 +/- 0.085.4 +/- 0.081,61,61000
    GLCBSC-14-66RLCBSK-14-01PA66 UL94V2Naturel14.014.0 +/- 0.085.4 +/- 0.081,61,61000
    GLCBSC-14-V0RLCBSK-14-19PA66 UL94V0Naturel14.014.0 +/- 0.085.4 +/- 0.081,61,61000
    GLCBSC-14-66BRLCBSK-14-01BKPA66 UL94V2Noir14.014.0 +/- 0.085.4 +/- 0.081,61,61000
    GLCBSC-16-66RLCBSK-16-01PA66 UL94V2Naturel16,014.0 +/- 0.085.4 +/- 0.081,61,61000
    GLCBSC-16-V0RLCBSK-16-19PA66 UL94V0Naturel16,014.0 +/- 0.085.4 +/- 0.081,61,61000
    GLCBSC-16-66BRLCBSK-16-01BKPA66 UL94V2Noir16,014.0 +/- 0.085.4 +/- 0.081,61,61000
    Construction identique à la série Richco / Essentra
    RLCBSK
    Unité d'emballage et de prix
    1000
    Cote fonctionnelle "A" ou "L" (si disponible)
    6 ≙ 6mm; 8 ≙ 8mm; 10 ≙ 10mm; 12 ≙ 12mm; 14 ≙ 14mm
    GLCBSC-6-66
