    LNCBS LNCBS LNCBS

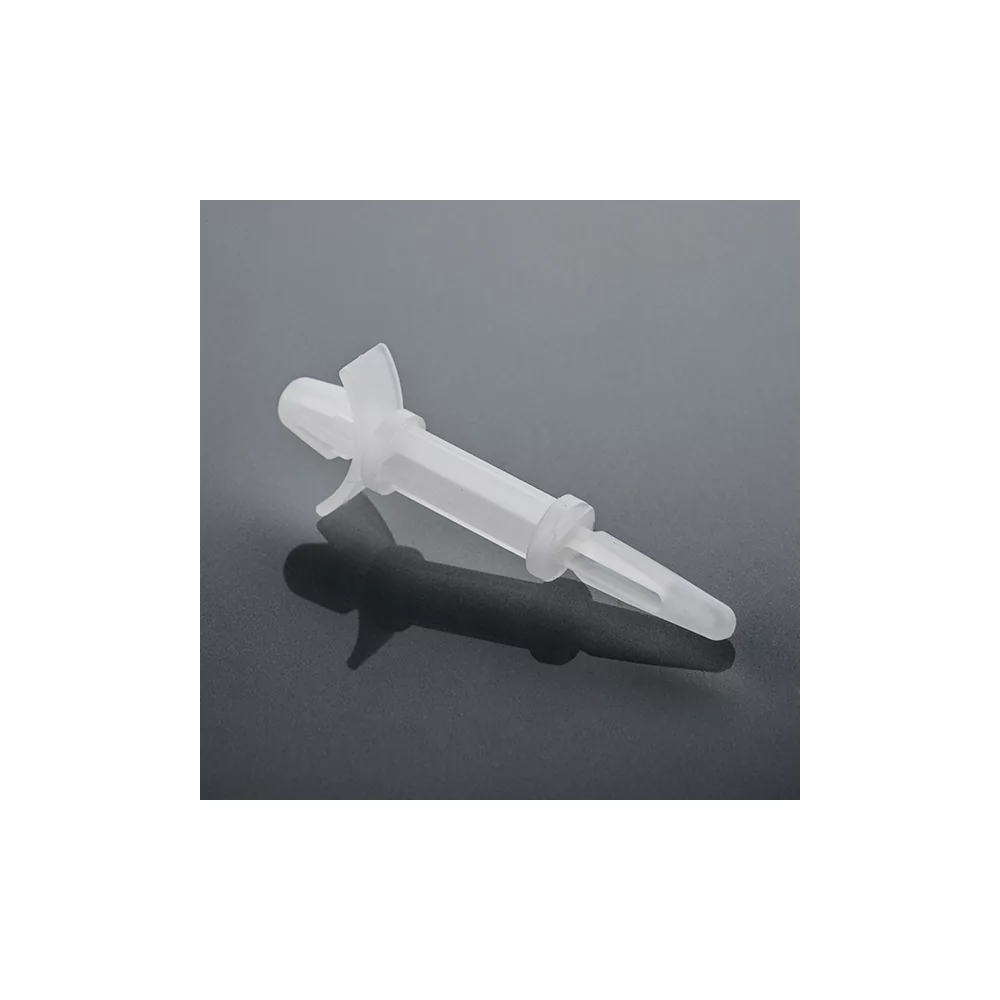

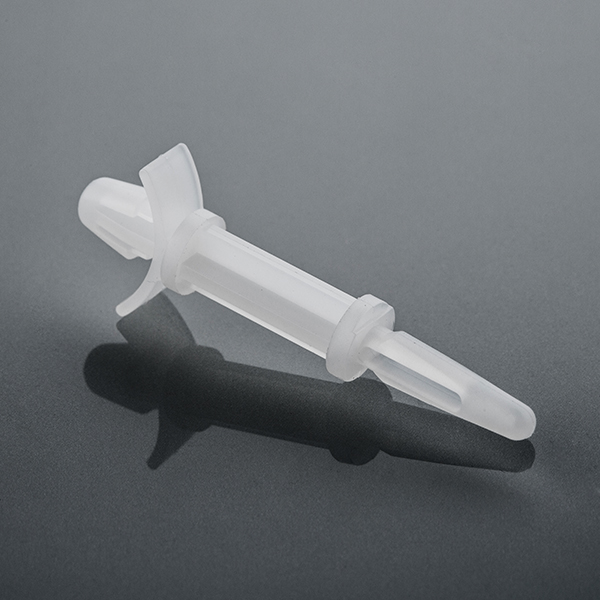

    GLNCBS Series - Support de carte de circuit imprimé de verrouillage I

    127,10 €
    HT Sous réserve de modifications et d'erreurs de prix

    Unité de conditionnement et de prix : 1000 Technique de fixation pour circuits imprimés / entretoises

    En longueurs de 4,8 - 22,2 mm
    Épaisseur du circuit imprimé ≙ 0,79 - 1,98mm
    Ø perçage ≙ 4,75 ± 0,08 mm
    Couleur : Natural - Matériau : PA66 UL 94V2

    GLNCBS Series
    UnitésRéductionVous économisezPrix/unité
    53%19,07 €123,29 €
    106%76,26 €119,47 €
    2010%254,20 €114,39 €
    3015%571,95 €108,04 €
    Remarque

    N'hésitez pas à nous contacter pour les petites quantités, les échantillons gratuits et d'autres informations techniques.

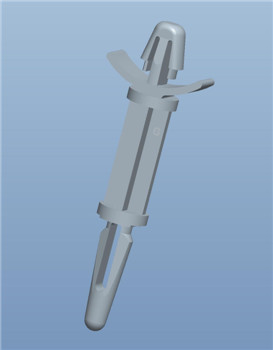

    PCB Support - Spacer - Extended Non-Locking Bayonet with Locking Arrowhead

    N° d'articleRéf. croiséeMatériauCouleurATrou en hautPerçage en basÉpaisseur du panneau en hautÉpaisseur du panneau en basUE
    GLNCBS-3-01LNCBS-3-01PA66 UL94V2Naturel4,84.0 +/- 0.084.75 +/- 0.081,570.79-1.981000
    GLNCBS-3-19LNCBS-3-19PA66 UL94V0Naturel4,84.0 +/- 0.084.75 +/- 0.081,570.79-1.981000
    GLNCBS-4-01LNCBS-4-01PA66 UL94V2Naturel6,44.0 +/- 0.084.75 +/- 0.081,570.79-1.981000
    GLNCBS-4-19LNCBS-4-19PA66 UL94V0Naturel6,44.0 +/- 0.084.75 +/- 0.081,570.79-1.981000
    GLNCBS-6-01LNCBS-6-01PA66 UL94V2Naturel9,54.0 +/- 0.084.75 +/- 0.081,570.79-1.981000
    GLNCBS-6-19LNCBS-6-19PA66 UL94V0Naturel9,54.0 +/- 0.084.75 +/- 0.081,570.79-1.981000
    GLNCBS-8-01LNCBS-8-01PA66 UL94V2Naturel12,74.0 +/- 0.084.75 +/- 0.081,570.79-1.981000
    GLNCBS-8-19LNCBS-8-19PA66 UL94V0Naturel12,74.0 +/- 0.084.75 +/- 0.081,570.79-1.981000
    GLNCBS-10-01LNCBS-10-01PA66 UL94V2Naturel15,94.0 +/- 0.084.75 +/- 0.081,570.79-1.981000
    GLNCBS-10-19LNCBS-10-19PA66 UL94V0Naturel15,94.0 +/- 0.084.75 +/- 0.081,570.79-1.981000
    GLNCBS-12-01LNCBS-12-01PA66 UL94V2Naturel19,14.0 +/- 0.084.75 +/- 0.081,570.79-1.981000
    GLNCBS-12-19LNCBS-12-19PA66 UL94V0Naturel19,14.0 +/- 0.084.75 +/- 0.081,570.79-1.981000
    GLNCBS-14-01LNCBS-14-01PA66 UL94V2Naturel22,24.0 +/- 0.084.75 +/- 0.081,570.79-1.981000
    GLNCBS-14-19LNCBS-14-19PA66 UL94V0Naturel22,24.0 +/- 0.084.75 +/- 0.081,570.79-1.981000
    Construction identique à la série Richco / Essentra
    LNCBS
    Unité d'emballage et de prix
    1000

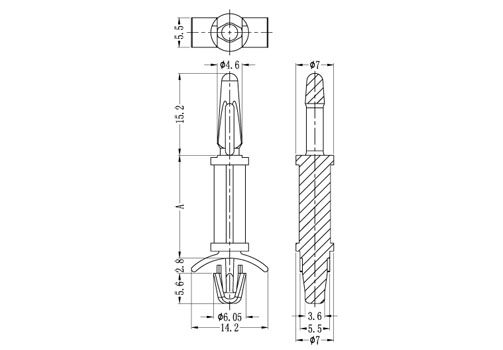

    Cote fonctionnelle "A" ou "L" (si disponible)
    3 ≙ 4,8mm; 4 ≙ 6,4mm; 5 ≙ 7,9mm; 6 ≙ 9,5mm; 7 ≙ 11,1mm; 8 ≙ 12,7mm; 9 ≙ 14,3mm; 10 ≙ 15,9mm; 12 ≙ 19,1mm; 14 ≙ 22,2mm
    GLNCBS Series
