    MSP GCBP Series - Mini Support Post #2 GCBP Series - Mini Support Post

    GCBP Series - Mini Support Post

    120.90 €
    VAT excluded Änderungen und Preisirrtümer vorbehalten

    Packaging and price unit: 1000

    Miniature spacer
    In lengths from 2.0 - 38.1 mm
    PCB thickness: 1.57 mm

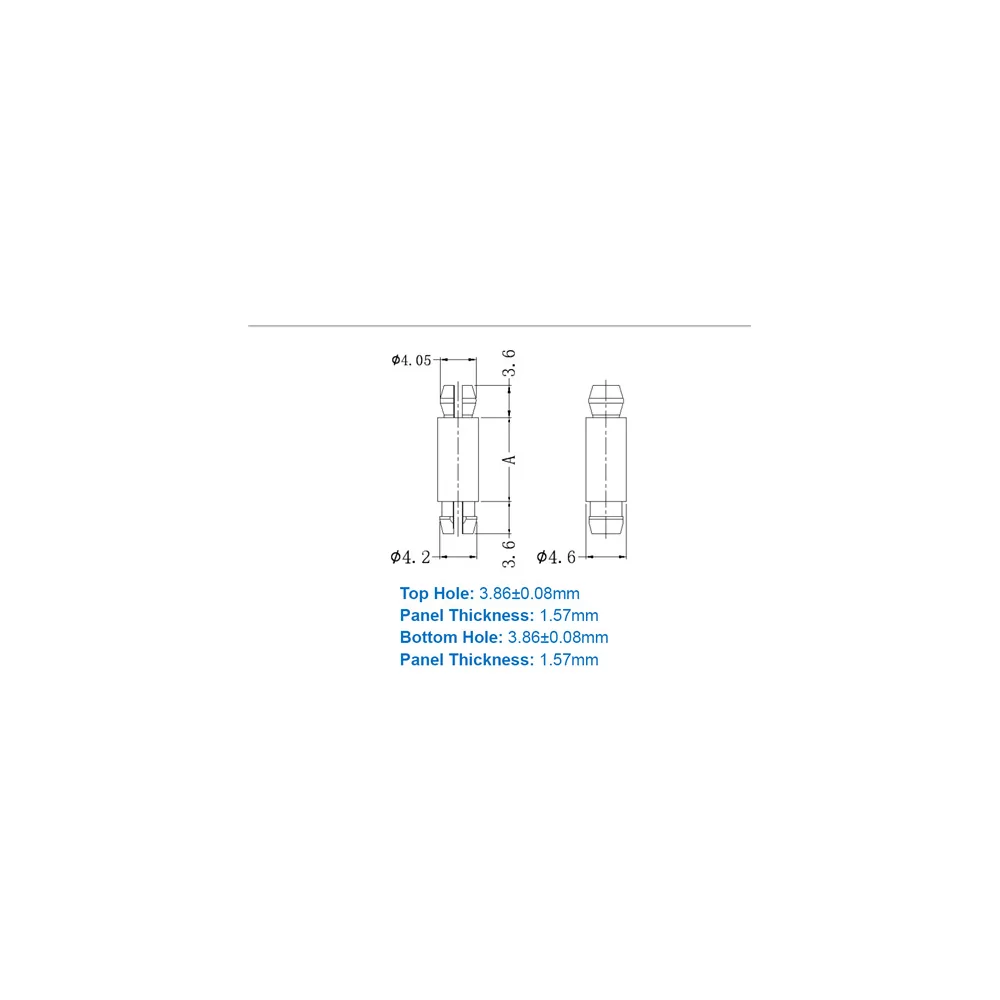

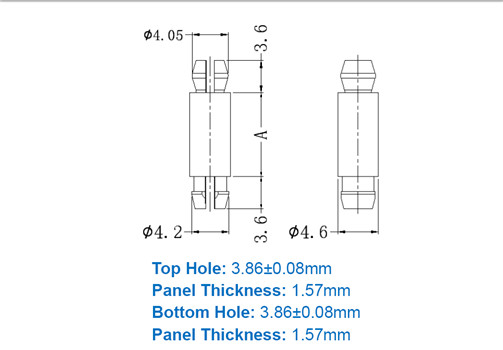

    Ø hole ≙ 3.86 ± 0.08 mm

    GCBP Series
    UnitsDiscountYou will savePrice/unit
    53%18.14 €117.27 €
    106%72.54 €113.65 €
    2010%241.80 €108.81 €
    3015%544.05 €102.77 €
    Note

    Please contact us for small quantities, free samples and further technical details.



    PCB Support - Spacer - Locking/Non Locking Two Prong

    Article No.Cross-Ref.MaterialColourAFIGHole topDrill hole bottomPanel thickness topPlate thickness bottomPU
    GCBP-01-66-PA66 UL94V2Natural2.023.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-01-V0-PA66 UL94V0Natural2.023.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-1S-66-PA66 UL94V2Natural2,5423.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-1S-V0-PA66 UL94V0Natural2,5423.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-02-66MSP-2-01PA66 UL94V2Natural3,223.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-02-V0MSP-2-19PA66 UL94V0Natural3,223.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-4M-66-PA66 UL94V2Natural4.023.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-4M-V0-PA66 UL94V0Natural4.023.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-03-66MSP-3-01PA66 UL94V2Natural4,823.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-03-V0MSP-3-19PA66 UL94V0Natural4,823.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-04-66MSP-4-01PA66 UL94V2Natural6,423.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-04-V0MSP-4-19PA66 UL94V0Natural6,423.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-05-66MSP-5-01PA66 UL94V2Natural7,923.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-05-V0MSP-5-19PA66 UL94V0Natural7,923.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-06-66MSP-6-01PA66 UL94V2Natural9,523.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-06-V0MSP-6-19PA66 UL94V0Natural9,523.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-07-66MSP-7-01PA66 UL94V2Natural11,123.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-07-V0MSP-7-19PA66 UL94V0Natural11,123.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-08-66MSP-8-01PA66 UL94V2Natural12,723.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-08-V0MSP-8-19PA66 UL94V0Natural12,723.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-09-66MSP-9-01PA66 UL94V2Natural14,323.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-09-V0MSP-9-19PA66 UL94V0Natural14,323.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-10-66MSP-10-01PA66 UL94V2Natural15,923.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-10-V0MSP-10-19PA66 UL94V0Natural15,923.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-11-66MSP-11-01PA66 UL94V2Natural17,523.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-11-V0MSP-11-19PA66 UL94V0Natural17,523.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-12-66MSP-12-01PA66 UL94V2Natural19,123.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-12-V0MSP-12-19PA66 UL94V0Natural19,123.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-13-66MSP-13-01PA66 UL94V2Natural20,623.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-13-V0MSP-13-19PA66 UL94V0Natural20,623.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-14-66MSP-14-01PA66 UL94V2Natural22,223.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-14-V0MSP-14-19PA66 UL94V0Natural22,223.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-16-66MSP-16-01PA66 UL94V2Natural25,423.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-16-V0MSP-16-19PA66 UL94V0Natural25,423.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-18-66MSP-18-01PA66 UL94V2Natural28,623.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-18-V0MSP-18-19PA66 UL94V0Natural28,623.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-20-66MSP-20-01PA66 UL94V2Natural31,723.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-20-V0MSP-20-19PA66 UL94V0Natural31,723.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-22-66MSP-22-01PA66 UL94V2Natural34,923.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-22-V0MSP-22-19PA66 UL94V0Natural34,923.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-24-66MSP-24-01PA66 UL94V2Natural38,123.86 +/- 0.053.86 +/- 0.051,571,571000
    GCBP-24-V0MSP-24-19PA66 UL94V0Natural38,123.86 +/- 0.053.86 +/- 0.051,571,571000
    Identical to Richco / Essentra series
    MSP-x
    Packaging and price unit
    1000
    Functional dimension "A" or "L" (if available)
    1S ≙ 2,54mm; 2 ≙ 3,2mm 3 ≙ 4,8mm; 4 ≙ 6,4mm; 5 ≙ 7,9mm; 6 ≙ 9,5mm; 7 ≙ 11,1mm; 8 ≙ 12,7mm; 9 ≙ 14,3mm; 10 ≙ 15,9mm; 12 ≙ 19,1mm; 14 ≙ 22,2mm; 16 ≙ 25,4mm; 18 ≙ 28,6mm; 20 ≙ 31,7mm; 22 ≙ 34,9mm; 24 ≙ 38,1mm
