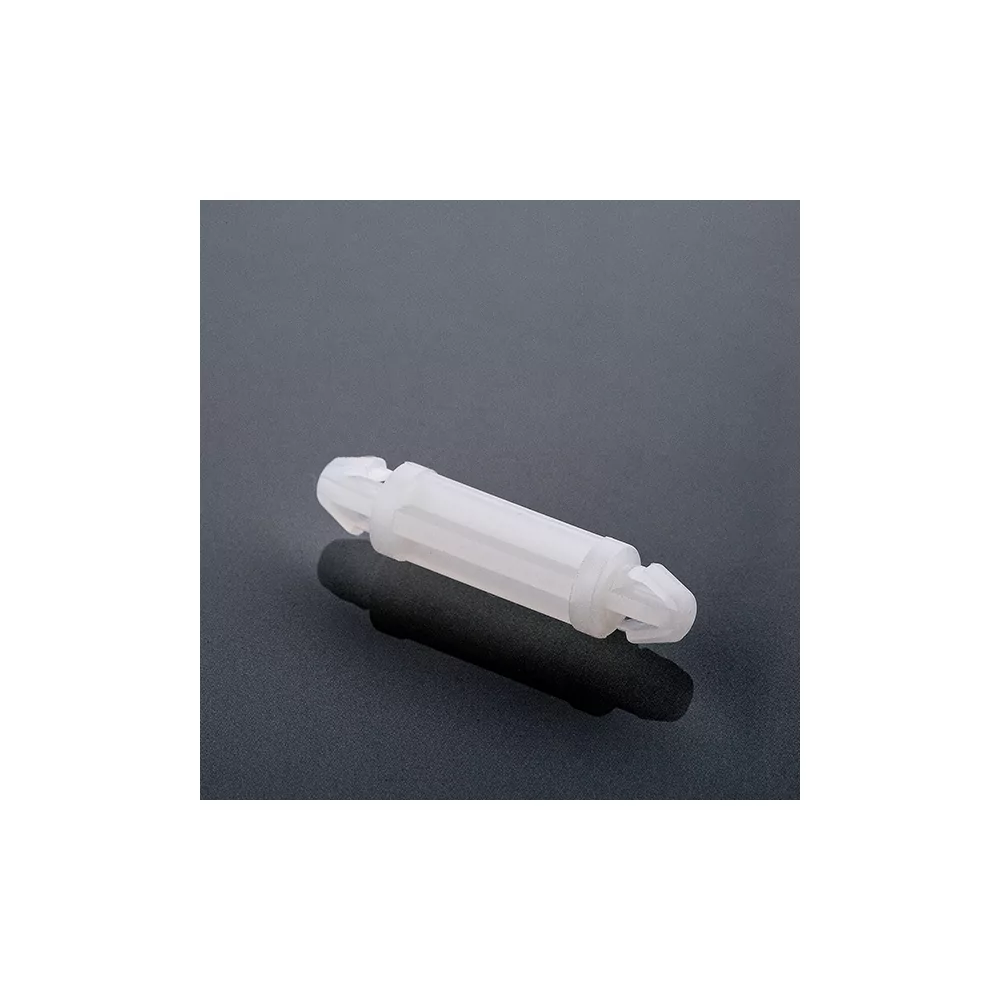

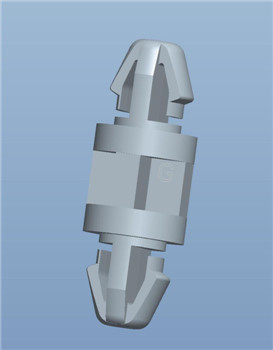

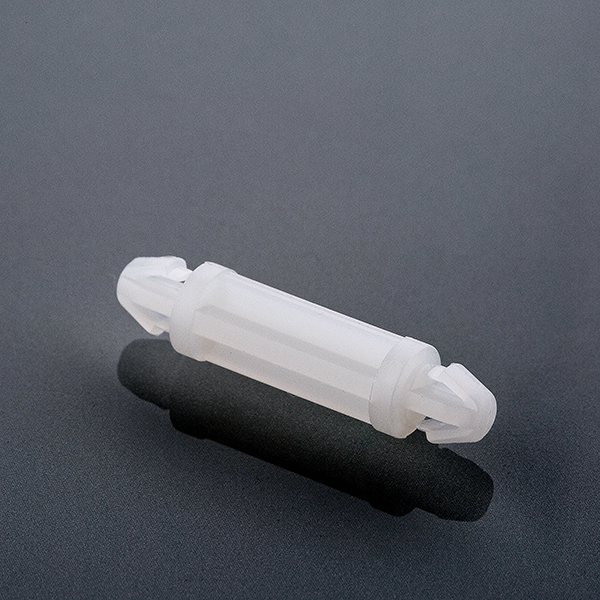

    GDLSP 2 Series - Double locking spacer #2 GDLSP 2 Series - Double locking spacer DLSP-2

    GDLSP 2 Series - Double locking spacer

    122.45 €
    VAT excluded Änderungen und Preisirrtümer vorbehalten

    Packaging and price unit: 1000

    Double locking spacer

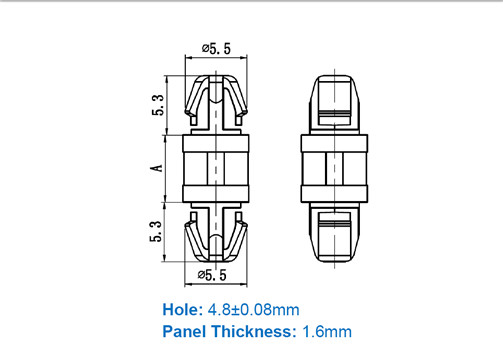

    In lengths from 3.0 - 18.0 mm
    PCB thickness: 1.6 mm
    Ø hole ≙ 4.8 ± 0.08 mm

    GDLSP2 Series
    UnitsDiscountYou will savePrice/unit
    53%18.37 €118.78 €
    106%73.47 €115.10 €
    2010%244.90 €110.21 €
    3015%551.03 €104.08 €
    Note

    Please contact us for small quantities, free samples and further technical details.



    PCB Support - Spacer - with Locking Arrowhead

    Article No.Cross-ref.MaterialColourAFIGHole topDrill hole bottomPanel thickness topPlate thickness bottomPU
    GDLSP2-3M-66DLSP-2-3M-01PA66 UL94V2Natural3.034.8 +/- 0.084.8 +/- 0.081,61,61000
    GDLSP2-3M-V0DLSP-2-3M-19PA66 UL94V0Natural3.034.8 +/- 0.084.8 +/- 0.081,61,61000
    GDLSP2-4M-66DLSP-2-4M-01PA66 UL94V2Natural4.034.8 +/- 0.084.8 +/- 0.081,61,61000
    GDLSP2-4M-V0DLSP-2-4M-19PA66 UL94V0Natural4.034.8 +/- 0.084.8 +/- 0.081,61,61000
    GDLSP2-6M-66DLSP-2-6M-01PA66 UL94V2Natural6.034.8 +/- 0.084.8 +/- 0.081,61,61000
    GDLSP2-6M-V0DLSP-2-6M-19PA66 UL94V0Natural6.034.8 +/- 0.084.8 +/- 0.081,61,61000
    GDLSP2-8M-66DLSP-2-8M-01PA66 UL94V2Natural8.034.8 +/- 0.084.8 +/- 0.081,61,61000
    GDLSP2-8M-V0DLSP-2-8M-19PA66 UL94V0Natural8.034.8 +/- 0.084.8 +/- 0.081,61,61000
    GDLSP2-10M-66DLSP-2-10M-01PA66 UL94V2Natural10.034.8 +/- 0.084.8 +/- 0.081,61,61000
    GDLSP2-10M-V0DLSP-2-10M-19PA66 UL94V0Natural10.034.8 +/- 0.084.8 +/- 0.081,61,61000
    GDLSP2-12M-66DLSP-2-12M-01PA66 UL94V2Natural12.034.8 +/- 0.084.8 +/- 0.081,61,61000
    GDLSP2-12M-V0DLSP-2-12M-19PA66 UL94V0Natural12.034.8 +/- 0.084.8 +/- 0.081,61,61000
    GDLSP2-14M-66DLSP-2-14M-01PA66 UL94V2Natural14.034.8 +/- 0.084.8 +/- 0.081,61,61000
    GDLSP2-14M-V0DLSP-2-14M-19PA66 UL94V0Natural14.034.8 +/- 0.084.8 +/- 0.081,61,61000
    GDLSP2-16M-66DLSP-2-16M-01PA66 UL94V2Natural16.034.8 +/- 0.084.8 +/- 0.081,61,61000
    GDLSP2-16M-V0DLSP-2-16M-19PA66 UL94V0Natural16.034.8 +/- 0.084.8 +/- 0.081,61,61000
    GDLSP2-18M-66DLSP-2-18M-01PA66 UL94V2Natural18.034.8 +/- 0.084.8 +/- 0.081,61,61000
    GDLSP2-18M-V0DLSP-2-18M-19PA66 UL94V0Natural18.034.8 +/- 0.084.8 +/- 0.081,61,61000
    Identical to Richco / Essentra series
    DLSP-2
    Packaging and price unit
    1000
    Functional dimension "A" or "L" (if available)
    3M ≙ 3mm; 4M ≙ 4mm; 6M ≙ 6mm; 8M ≙ 8mm; 10M ≙ 10mm; 12M ≙ 12mm; 14M ≙ 14mm; 16M ≙ 16mm; 18M ≙ 18mm
    GDLSP2 Series
