    GF-1 Series - Enclosure base with rivet or screw fastening GF-1 Series - Enclosure base with rivet or screw fastening #2 GF-1 Series - Enclosure base with rivet or screw fastening #3

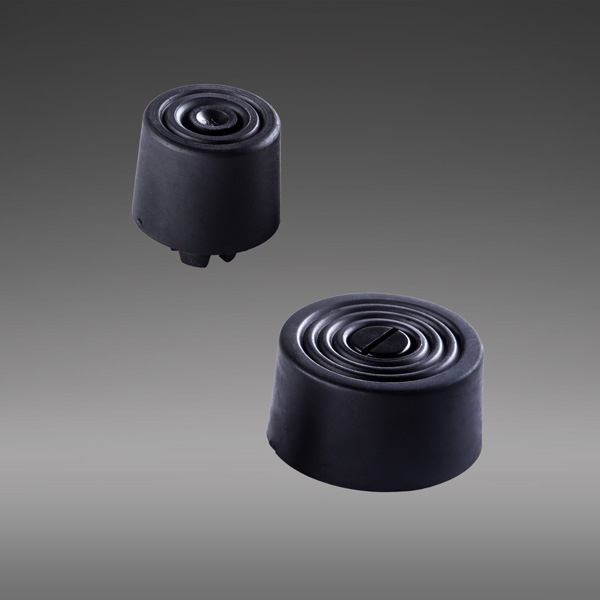

    GF-1 Series - Enclosure base with rivet or screw fastening

    336.35 €
    VAT excluded Änderungen und Preisirrtümer vorbehalten

    Packaging unit:100
    Price unit: 1000
    Minimum order quantity = 1,000 pieces (one unit)

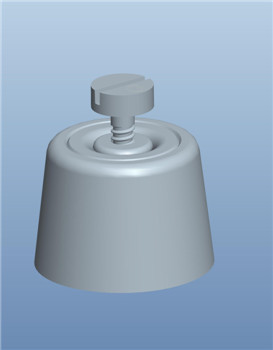

    Housing foot for fastening with expanding rivet or screw

    Colour: black
    Material: Feet Body: TPV UL94HB+Rivet: (Body: PA6 UL94V2+ Pin: POM UL94HB)
    In lengths from 7.9 - 15.7mm (different variants)
    PCB thickness ≙ 1.0-2.3 (GF-101 & GF-104) 0.5-1.5mm (GF-115)
    Ø hole ≙ 5.0-5.1 mm

    GF-1 Series
    UnitsDiscountYou will savePrice/unit
    53%50.45 €326.26 €
    106%201.81 €316.17 €
    2010%672.70 €302.72 €
    3015%1,513.58 €285.90 €
    Note

    Please contact us for small quantities, free samples and further technical details.



    Fast Feet, Screw-On Feet, Quick Assembly, Push-Fit Feet, Rivet Foot, Push Rivet, Bore 5.0-10.2, TPV UL94HB, PA6 UL94V2, PP UL94HB

    Article no.Cross-ref.Material IMaterial IColourABCFIGDrill holePlate thicknessPU
    GF-104FF-004BTPV UL94HBPA6 UL94V2Black18.020.010.015.0-5.11.0-2.3500
    GF-101FF-001BTPV UL94HBPA6 UL94V2Black colour20.024.014.015.0-5.11.0-2.3200
    GF-115-TPV UL94HBPA6 UL94V2Black28.030.015.015.0-5.10.5-1.5200
    Identical to Richco / Essentra series
    FF-x
    Packaging and price unit
    Verpackt zu je 100 Stück. Preis pro 1.000 Stück ( 1 Einheit)

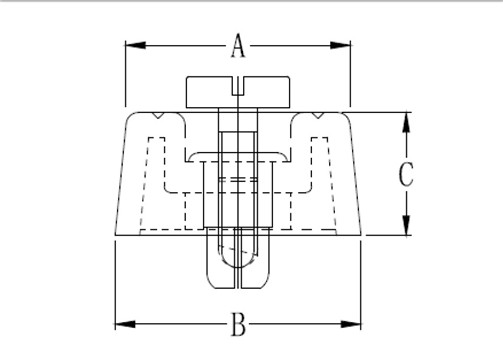

    Functional dimension "A" or "L" (if available)
    101 ≙ "A" 20.0; "B" 24.0; "C" 14.0 / PT: 1.0-2.3 - 104 ≙ "A" 18.0; "B" 20.0; "C" 10.0 / PT: 1.0-2.3 - 115 ≙ "A" 28.0; "B" 30.0; "C" 15.0 / PT: 05-1.5 - Hole: 5.0-5.1
    GF-101
