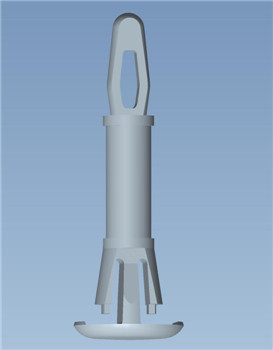

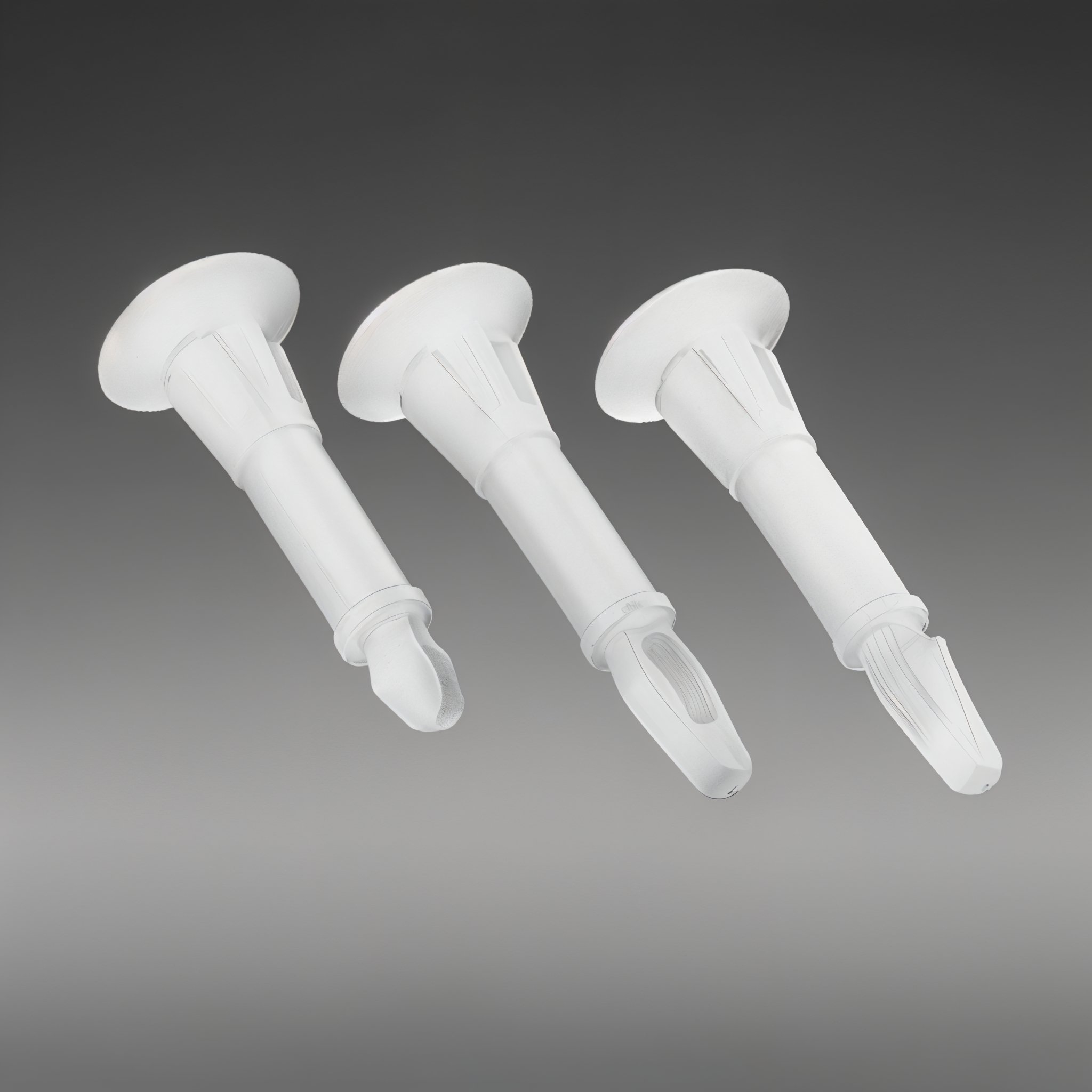

    GLCBSC 9 Series - Cupped Reverse Locking Circuit Board Support #2 GLCBSC 9 Series - Cupped Reverse Locking Circuit Board Support

    GLCBSC 9 Series - Cupped Reverse Locking Circuit Board Support

    100.75 €
    VAT excluded Änderungen und Preisirrtümer vorbehalten

    Packaging and price unit: 1000
    Flat head spacers

    In lengths from 4.8- 19.1mm (others on request)
    PCB thickness ≙ 1.57mm (top) & 1.5-1.6mm (bottom) Ø hole ≙ 3.18±0.05mm (top) & 4.75±0.08mm (bottom)
    Colour: Natural - Material: PA66 UL 94V2

    GLCBSC9 Series
    UnitsDiscountYou will savePrice/unit
    53%15.11 €97.73 €
    106%60.45 €94.71 €
    2010%201.50 €90.68 €
    3015%453.38 €85.64 €
    Note

    Please contact us for small quantities, free samples and further technical details.



    PCB Support - Spacer - Locking/Non Locking Bayonet, Reverse Locking Support, Locking Two Prong, Push Spacer

    Article no.Cross-ref.MaterialMaterial ColourAFIGHole topDrill hole bottomPanel thickness topPlate thickness bottomPU
    GLCBSC9-4-66RCBSR-4-01PA66 UL94V2Natural6,433.18 +/- 0.054.75 +/- 0.081,571.5-1.61000
    GLCBSC9-4-V0RCBSR-4-19PA66 UL94V0Natural6,433.18 +/- 0.054.75 +/- 0.081,571.5-1.61000
    GLCBSC9-5-66RCBSR-5-01PA66 UL94V2Natural7,933.18 +/- 0.054.75 +/- 0.081,571.5-1.61000
    GLCBSC9-5-V0RCBSR-5-19PA66 UL94V0Natural7,933.18 +/- 0.054.75 +/- 0.081,571.5-1.61000
    GLCBSC9-6-66RCBSR-6-01PA66 UL94V2Natural9,533.18 +/- 0.054.75 +/- 0.081,571.5-1.61000
    GLCBSC9-6-V0RCBSR-6-19PA66 UL94V0Natural9,533.18 +/- 0.054.75 +/- 0.081,571.5-1.61000
    GLCBSC9-7-66RCBSR-7-01PA66 UL94V2Natural11,133.18 +/- 0.054.75 +/- 0.081,571.5-1.61000
    GLCBSC9-7-V0RCBSR-7-19PA66 UL94V0Natural11,133.18 +/- 0.054.75 +/- 0.081,571.5-1.61000
    GLCBSC9-8-66RCBSR-8-01PA66 UL94V2Natural12,733.18 +/- 0.054.75 +/- 0.081,571.5-1.61000
    GLCBSC9-8-V0RCBSR-8-19PA66 UL94V0Natural12,733.18 +/- 0.054.75 +/- 0.081,571.5-1.61000
    GLCBSC9-9-66RCBSR-9-01PA66 UL94V2Natural14,333.18 +/- 0.054.75 +/- 0.081,571.5-1.61000
    GLCBSC9-9-V0RCBSR-9-19PA66 UL94V0Natural14,333.18 +/- 0.054.75 +/- 0.081,571.5-1.61000
    GLCBSC9-10-66RCBSR-10-01PA66 UL94V2Natural15,933.18 +/- 0.054.75 +/- 0.081,571.5-1.61000
    GLCBSC9-10-V0RCBSR-10-19PA66 UL94V0Natural15,933.18 +/- 0.054.75 +/- 0.081,571.5-1.61000
    Identical to Richco / Essentra series
    RCBSR
    Packaging and price unit
    1000

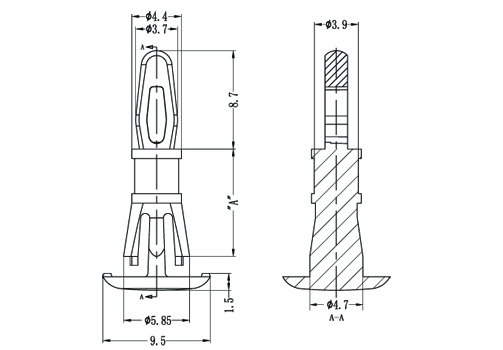

    Functional dimension "A" or "L" (if available)
    4 ≙ 6,4mm; 5 ≙ 7,9mm; 6 ≙ 9,5mm; 7 ≙ 11,1mm; 8 ≙ 12,7mm; 9 ≙ 14,3mm; 10 ≙ 15,9mm
    GLCBSC9-4-66
