    LCBS-3 GLSP 3 Series - Locking Circuit Board Support II #2 GLSP 3 Series - Locking Circuit Board Support II

    GLSP 3 Series - Locking Circuit Board Support II

    97.65 €
    VAT excluded Änderungen und Preisirrtümer vorbehalten

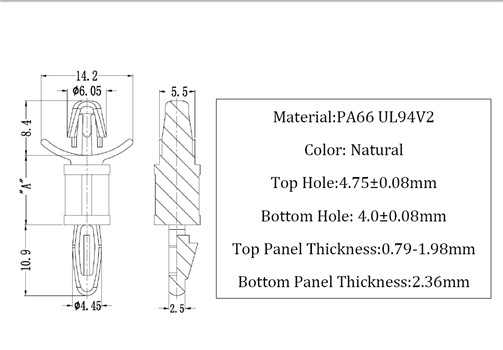

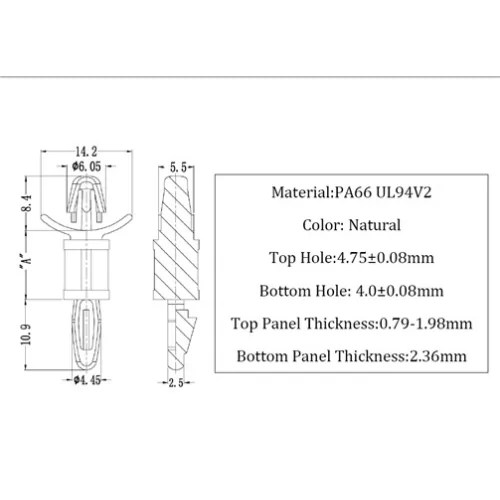

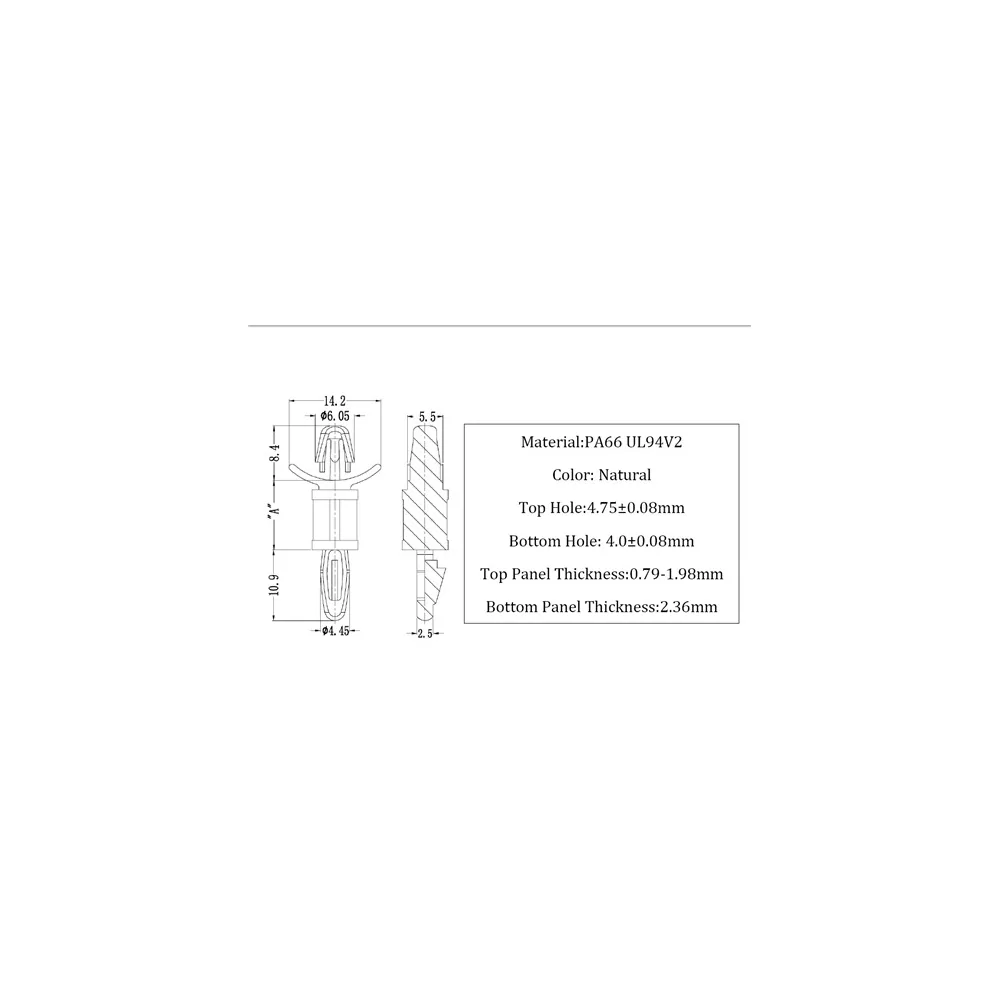

    Fastening technology for PCBs / spacers In lengths from 4.8 - 34.9mm (others on request)
    PCB thickness ≙ 0.79-1.98mm (top) & 2.36mm (bottom)
    Ø hole ≙ 4.75±0.08mm (top) & 4.0±0.08mm (bottom)
    Colour: Natural - Material: PA66 UL 94V2

    GLSP3 Series
    UnitsDiscountYou will savePrice/unit
    53%14.65 €94.72 €
    106%58.59 €91.79 €
    2010%195.30 €87.89 €
    3015%439.43 €83.00 €
    Note

    Please contact us for small quantities, free samples and further technical details.

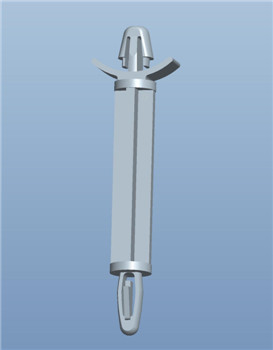

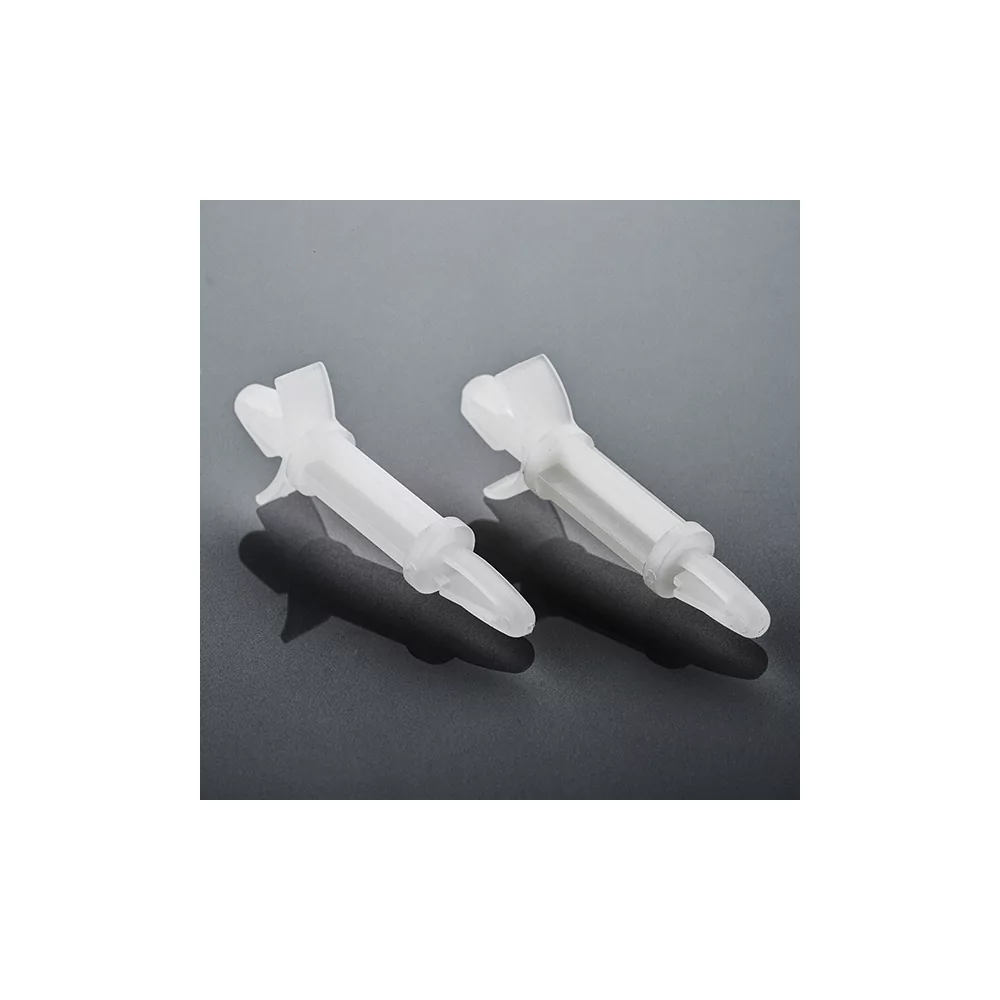

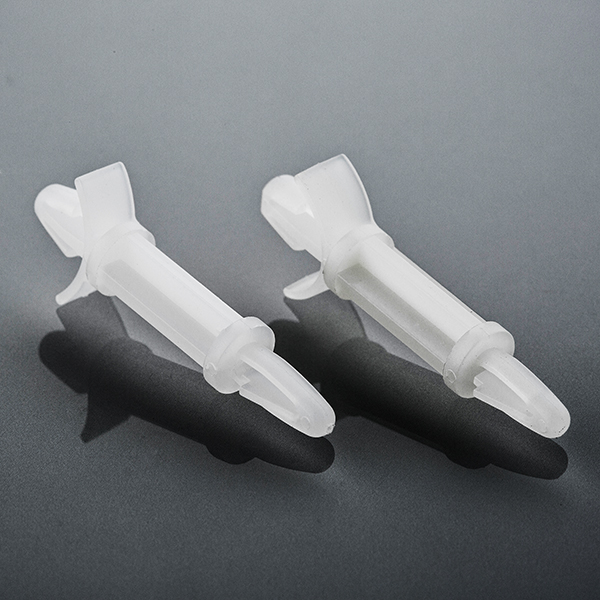

    PCB Support - Spacer - Locking Bayonet with Locking Arrowhead

    Article No.Cross-Ref.MaterialColourAFIGHole topDrill hole bottomPanel thickness topPlate thickness bottomPU
    GLSP3-3-66LCBS-3-3-01PA66 UL94V2Natural4,824.75 +/- 0.084.0 +/- 0.080.79-1.982,361000
    GLSP3-3-V0LCBS-3-3-19PA66 UL94V0Natural4,824.75 +/- 0.084.0 +/- 0.080.79-1.982,361000
    GLSP3-4-66LCBS-3-4-01PA66 UL94V2Natural6,424.75 +/- 0.084.0 +/- 0.080.79-1.982,361000
    GLSP3-4-V0LCBS-3-4-19PA66 UL94V0Natural6,424.75 +/- 0.084.0 +/- 0.080.79-1.982,361000
    GLSP3-5-66LCBS-3-5-01PA66 UL94V2Natural7,924.75 +/- 0.084.0 +/- 0.080.79-1.982,361000
    GLSP3-5-V0LCBS-3-5-19PA66 UL94V0Natural7,924.75 +/- 0.084.0 +/- 0.080.79-1.982,361000
    GLSP3-6-66LCBS-3-6-01PA66 UL94V2Natural9,524.75 +/- 0.084.0 +/- 0.080.79-1.982,361000
    GLSP3-6-V0LCBS-3-6-19PA66 UL94V0Natural9,524.75 +/- 0.084.0 +/- 0.080.79-1.982,361000
    GLSP3-7-66LCBS-3-7-01PA66 UL94V2Natural11,124.75 +/- 0.084.0 +/- 0.080.79-1.982,361000
    GLSP3-7-V0LCBS-3-7-19PA66 UL94V0Natural11,124.75 +/- 0.084.0 +/- 0.080.79-1.982,361000
    GLSP3-8-66LCBS-3-8-01PA66 UL94V2Natural12,724.75 +/- 0.084.0 +/- 0.080.79-1.982,361000
    GLSP3-8-V0LCBS-3-8-19PA66 UL94V0Natural12,724.75 +/- 0.084.0 +/- 0.080.79-1.982,361000
    GLSP3-10-66LCBS-3-10-01PA66 UL94V2Natural15,924.75 +/- 0.084.0 +/- 0.080.79-1.982,361000
    GLSP3-10-V0LCBS-3-10-19PA66 UL94V0Natural15,924.75 +/- 0.084.0 +/- 0.080.79-1.982,361000
    GLSP3-12-66LCBS-3-12-01PA66 UL94V2Natural19,124.75 +/- 0.084.0 +/- 0.080.79-1.982,361000
    GLSP3-12-V0LCBS-3-12-19PA66 UL94V0Natural19,124.75 +/- 0.084.0 +/- 0.080.79-1.982,361000
    GLSP3-14-66LCBS-3-14-01PA66 UL94V2Natural22,224.75 +/- 0.084.0 +/- 0.080.79-1.982,361000
    GLSP3-14-V0LCBS-3-14-19PA66 UL94V0Natural22,224.75 +/- 0.084.0 +/- 0.080.79-1.982,361000
    GLSP3-16-66LCBS-3-16-01PA66 UL94V2Natural25,424.75 +/- 0.084.0 +/- 0.080.79-1.982,361000
    GLSP3-16-V0LCBS-3-16-19PA66 UL94V0Natural25,424.75 +/- 0.084.0 +/- 0.080.79-1.982,361000
    GLSP3-18-66LCBS-3-18-01PA66 UL94V2Natural28,624.75 +/- 0.084.0 +/- 0.080.79-1.982,361000
    GLSP3-18-V0LCBS-3-18-19PA66 UL94V0Natural28,624.75 +/- 0.084.0 +/- 0.080.79-1.982,361000
    GLSP3-20-66LCBS-3-20-01PA66 UL94V2Natural31,724.75 +/- 0.084.0 +/- 0.080.79-1.982,361000
    GLSP3-20-V0LCBS-3-20-19PA66 UL94V0Natural31,724.75 +/- 0.084.0 +/- 0.080.79-1.982,361000
    GLSP3-22-66LCBS-3-22-01PA66 UL94V2Natural34,924.75 +/- 0.084.0 +/- 0.080.79-1.982,361000
    GLSP3-22-V0LCBS-3-22-19PA66 UL94V0Natural34,924.75 +/- 0.084.0 +/- 0.080.79-1.982,361000
    Identical to Richco / Essentra series
    LCBS-3
    Packaging and price unit
    1000
    Functional dimension "A" or "L" (if available)
    3 ≙ 4,8mm; 4 ≙ 6,4mm; 5 ≙ 7,9mm; 6 ≙ 9,5mm; 7 ≙ 11,1mm; 8 ≙ 12,7mm; 9 ≙ 14,3mm; 10 ≙ 15,9mm; 12 ≙ 19,1mm; 14 ≙ 22,2mm; 16 ≙ 25,4mm; 18 ≙ 28,6mm; 20 ≙ 31,7mm; 22 ≙ 34,9mm
    GLSP3-3-66
