    Locking Circuit Board Support Locking Circuit Board Support Locking Circuit Board Support

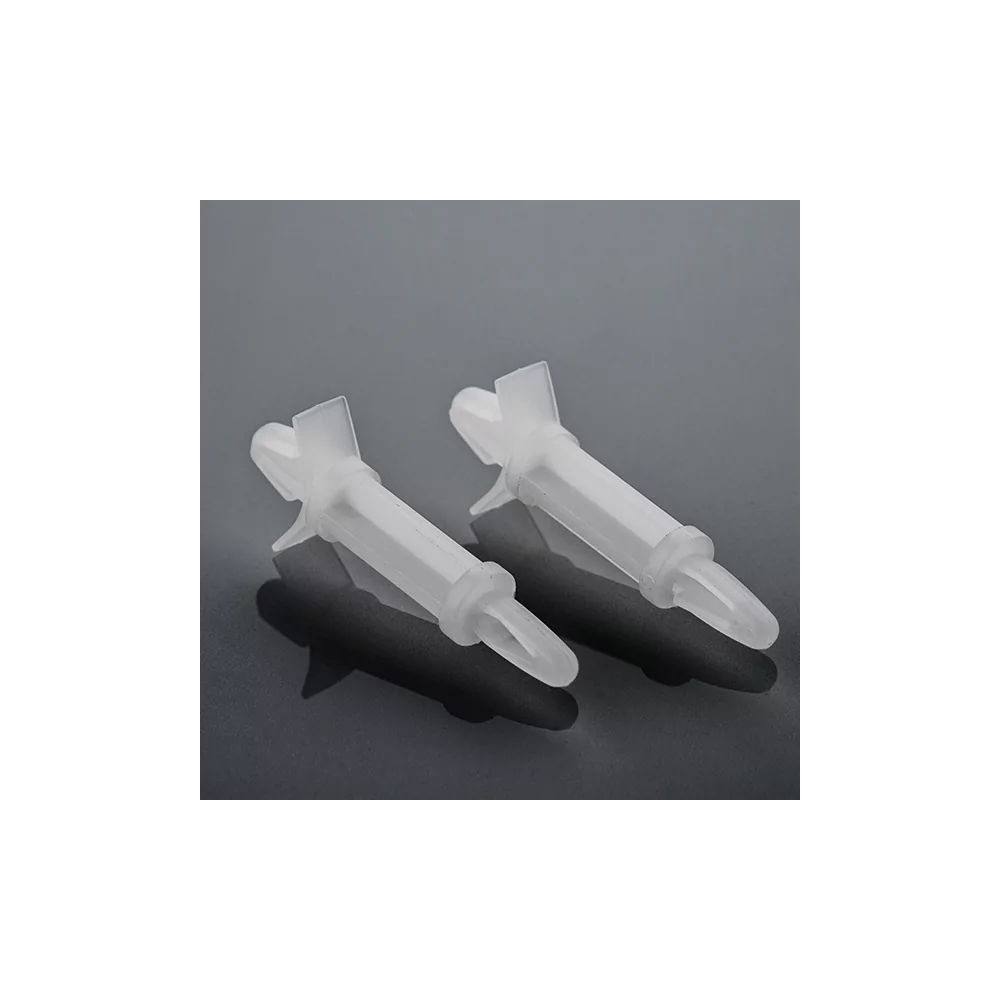

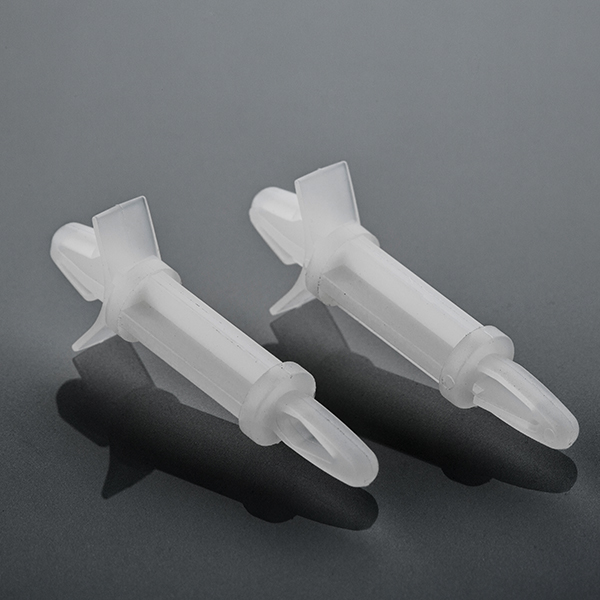

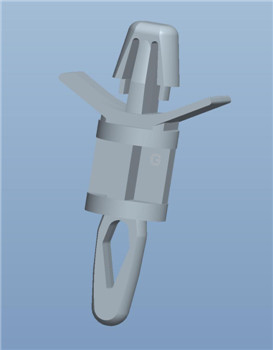

    GLSP 4 Series - Locking Circuit Board Support II

    97.65 €
    VAT excluded Änderungen und Preisirrtümer vorbehalten

    Packaging and price unit: 1000 Fastening technology for printed circuit boards / spacers

    In lengths from 4.8 - 34.9mm (others on request)
    PCB thickness ≙ 0.79-1.98 (top) & 1.57mm (bottom)
    Ø hole ≙ 4.75±0.08mm (top) & 4.0±0.08mm (bottom)
    Colour: Natural - Material: PA66 UL 94V2

    GLSP4 Series
    UnitsDiscountYou will savePrice/unit
    53%14.65 €94.72 €
    106%58.59 €91.79 €
    2010%195.30 €87.89 €
    3015%439.43 €83.00 €
    Note

    Please contact us for small quantities, free samples and further technical details.



    PCB Support - Spacer - Locking/Non Locking Bayonet with Locking Arrowhead

    Article No.Cross-Ref.MaterialColourAFIGHole topDrill hole bottomPanel thickness topPlate thickness bottomPU
    GLSP4-3-66LCBS-4-3-01PA66 UL94V2Natural4,824.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-3-V0LCBS-4-3-19PA66 UL94V0Natural4,824.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-6M-66LCBS-4-6M-01PA66 UL94V2Natural6.024.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-6M-V0-PA66 UL94V0Natural6.024.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-4-66LCBS-4-4-01PA66 UL94V2Natural6,424.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-4-V0LCBS-4-4-19PA66 UL94V0Natural6,424.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-5-66LCBS-4-5-01PA66 UL94V2Natural7,924.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-5-V0LCBS-4-5-19PA66 UL94V0Natural7,924.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-8M-66LCBS-4-8M-01PA66 UL94V2Natural8.024.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-8M-V0-PA66 UL94V0Natural8.024.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-6-66LCBS-4-6-01PA66 UL94V2Natural9,524.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-6-V0LCBS-4-6-19PA66 UL94V0Natural9,524.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-10M-66LCBS-4-10M-01PA66 UL94V2Natural10.024.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-10M-V0-PA66 UL94V0Natural10.024.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-7-66LCBS-4-7-01PA66 UL94V2Natural11,124.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-7-V0LCBS-4-7-19PA66 UL94V0Natural11,124.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-12M-66LCBS-4-12M-01PA66 UL94V2Natural12.024.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-12M-V0-PA66 UL94V0Natural12.024.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-8-66LCBS-4-8-01PA66 UL94V2Natural12,724.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-8-V0LCBS-4-8-19PA66 UL94V0Natural12,724.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-14M-66LCBS-4-14M-01PA66 UL94V2Natural14.024.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-14M-V0-PA66 UL94V0Natural14.024.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-10-66LCBS-4-10-01PA66 UL94V2Natural15,924.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-10-V0LCBS-4-10-19PA66 UL94V0Natural15,924.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-16M-66LCBS-4-16M-01PA66 UL94V2Natural16.024.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-16M-V0-PA66 UL94V0Natural16.024.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-12-66LCBS-4-12-01PA66 UL94V2Natural19,124.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-12-V0LCBS-4-12-19PA66 UL94V0Natural19,124.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-14-66LCBS-4-14-01PA66 UL94V2Natural22,224.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-14-V0LCBS-4-14-19PA66 UL94V0Natural22,224.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-16-66LCBS-4-16-01PA66 UL94V2Natural25,424.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-16-V0LCBS-4-16-19PA66 UL94V0Natural25,424.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-18-66LCBS-4-18-01PA66 UL94V2Natural28,624.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-18-V0LCBS-4-18-19PA66 UL94V0Natural28,624.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-20-66LCBS-4-20-01PA66 UL94V2Natural31,724.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-20-V0LCBS-4-20-19PA66 UL94V0Natural31,724.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-22-66LCBS-4-22-01PA66 UL94V2Natural34,924.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP4-22-V0LCBS-4-22-19PA66 UL94V0Natural34,924.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    Identical to Richco / Essentra series
    LCBS-4-x
    Packaging and price unit
    1000

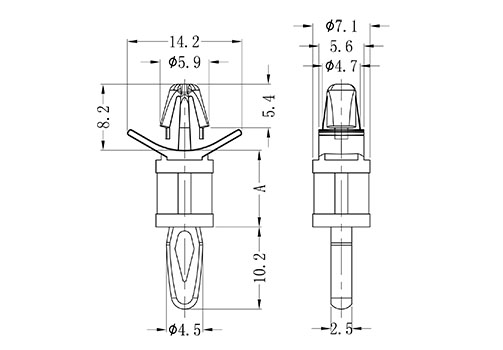

    Functional dimension "A" or "L" (if available)
    3 ≙ 4,8mm; 4 ≙ 6,4mm; 5 ≙ 7,9mm; 6 ≙ 9,5mm; 7 ≙ 11,1mm; 8 ≙ 12,7mm; 10 ≙ 15,9mm; 12 ≙ 19,1mm; 14 ≙ 22,2mm; 16 ≙ 25,4mm; 18 ≙ 28,6mm; 20 ≙ 31,7mm; 22 ≙ 34,9mm; 6M ≙ 6mm; 8M ≙ 8mm; 10M ≙ 10mm; 12M ≙ 12mm; 14M ≙ 14mm; 16M ≙ 16mm
