    Locking Circuit Board Support Locking Circuit Board Support Locking Circuit Board Support

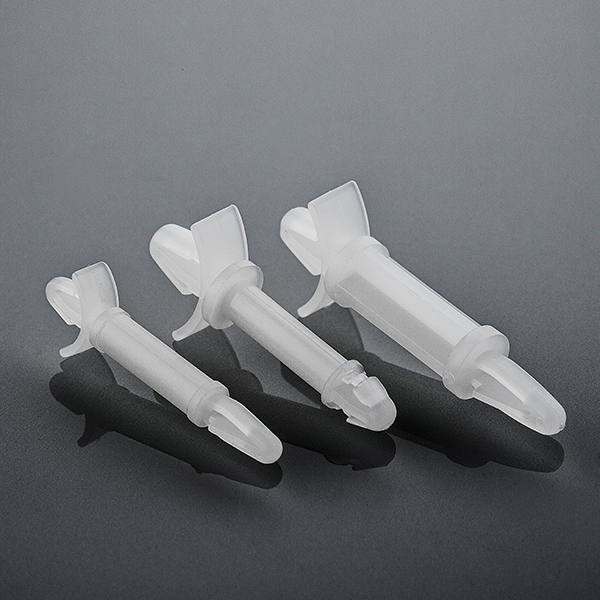

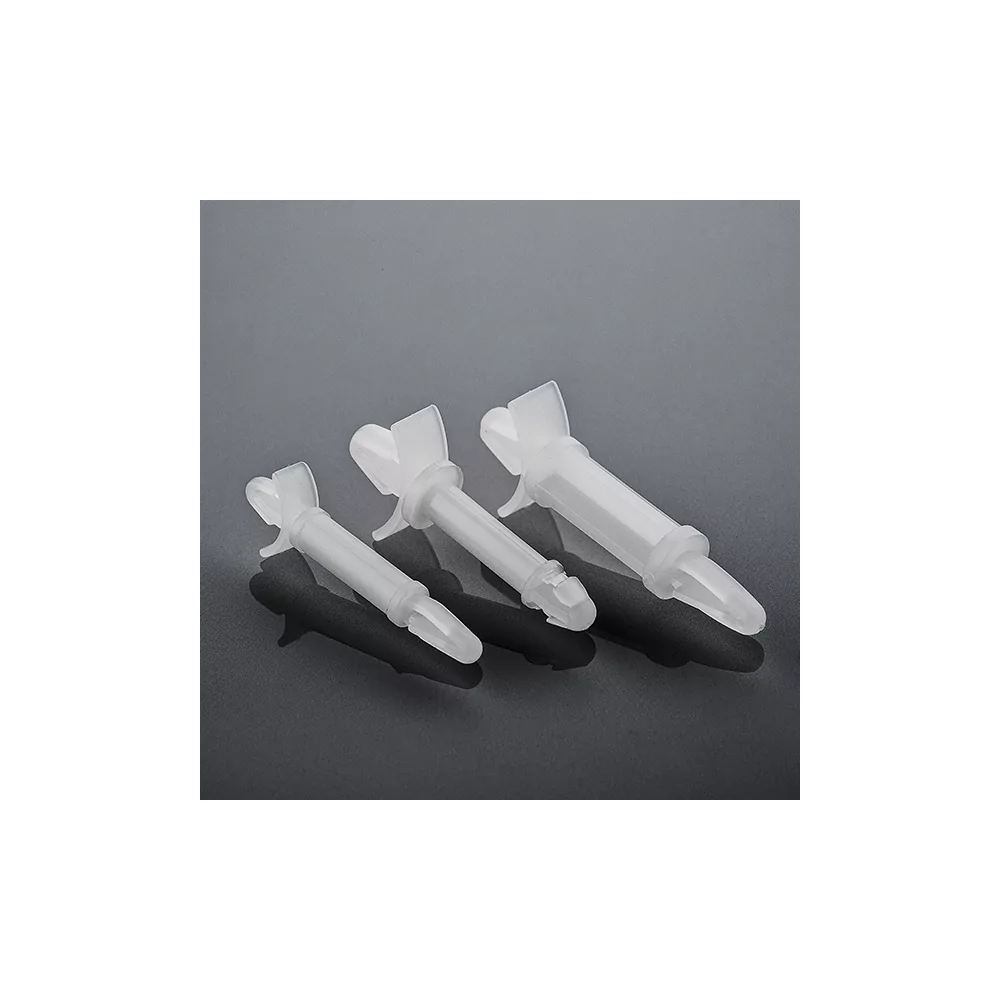

    GLSP 9 Series - Locking Circuit Board Support II

    144.15 €
    VAT excluded Änderungen und Preisirrtümer vorbehalten

    Packaging and price unit: 1000 Fastening technology for printed circuit boards / spacers

    In lengths from 3.2 - 15.9 mm (others on request)
    PCB thickness ≙ 0.79-1.98 (top) & 1.57mm (bottom)
    Ø hole ≙ 3.18±0.08mm (top) & 3.18±0.08mm (bottom)
    Colour: Natural - Material: PA66 UL 94V2

    GLSP9 Series
    UnitsDiscountYou will savePrice/unit
    53%21.62 €139.83 €
    106%86.49 €135.50 €
    2010%288.30 €129.74 €
    3015%648.68 €122.53 €
    Note

    Please contact us for small quantities, free samples and further technical details.

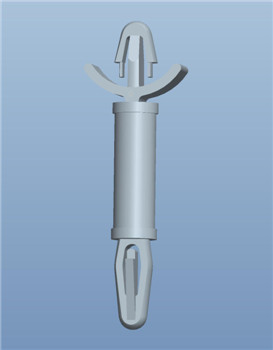

    PCB Support - Spacer - Locking Bayonet with Locking Arrowhead

    Article No.Cross-Ref.MaterialColourAFIGHole topDrill hole bottomPanel thickness topPlate thickness bottomPU
    GLSP9-2-66LCBSM-2-01PA66 UL94V2Natural3,233.18 +/- 0.053.18 +/- 0.050.79-1.981,571000
    GLSP9-2-V0LCBSM-2-19PA66 UL94V0Natural3,233.18 +/- 0.053.18 +/- 0.050.79-1.981,571000
    GLSP9-3-66LCBSM-3-01PA66 UL94V2Natural4,833.18 +/- 0.053.18 +/- 0.050.79-1.981,571000
    GLSP9-3-V0LCBSM-3-19PA66 UL94V0Natural4,833.18 +/- 0.053.18 +/- 0.050.79-1.981,571000
    GLSP9-3-66BLCBSM-3-01BPA66 UL94V2Black4,833.18 +/- 0.053.18 +/- 0.050.79-1.981,571000
    GLSP9-4-66LCBSM-4-01PA66 UL94V2Natural6,433.18 +/- 0.053.18 +/- 0.050.79-1.981,571000
    GLSP9-4-V0LCBSM-4-19PA66 UL94V0Natural6,433.18 +/- 0.053.18 +/- 0.050.79-1.981,571000
    GLSP9-5-66LCBSM-5-01PA66 UL94V2Natural7,933.18 +/- 0.053.18 +/- 0.050.79-1.981,571000
    GLSP9-5-V0LCBSM-5-19PA66 UL94V0Natural7,933.18 +/- 0.053.18 +/- 0.050.79-1.981,571000
    GLSP9-6-66LCBSM-6-01PA66 UL94V2Natural9,533.18 +/- 0.053.18 +/- 0.050.79-1.981,571000
    GLSP9-6-V0LCBSM-6-19PA66 UL94V0Natural9,533.18 +/- 0.053.18 +/- 0.050.79-1.981,571000
    GLSP9-7-66LCBSM-7-01PA66 UL94V2Natural11,133.18 +/- 0.053.18 +/- 0.050.79-1.981,571000
    GLSP9-7-V0LCBSM-7-19PA66 UL94V0Natural11,133.18 +/- 0.053.18 +/- 0.050.79-1.981,571000
    GLSP9-8-66LCBSM-8-01PA66 UL94V2Natural12,733.18 +/- 0.053.18 +/- 0.050.79-1.981,571000
    GLSP9-8-V0LCBSM-8-19PA66 UL94V0Natural12,733.18 +/- 0.053.18 +/- 0.050.79-1.981,571000
    GLSP9-9-66LCBSM-9-01PA66 UL94V2Natural14,333.18 +/- 0.053.18 +/- 0.050.79-1.981,571000
    GLSP9-9-V0LCBSM-9-19PA66 UL94V0Natural14,333.18 +/- 0.053.18 +/- 0.050.79-1.981,571000
    GLSP9-10-66LCBSM-10-01PA66 UL94V2Natural15,933.18 +/- 0.053.18 +/- 0.050.79-1.981,571000
    GLSP9-10-V0LCBSM-10-19PA66 UL94V0Natural15,933.18 +/- 0.053.18 +/- 0.050.79-1.981,571000
    Identical to Richco / Essentra series
    LCBSM-x
    Packaging and price unit
    1000

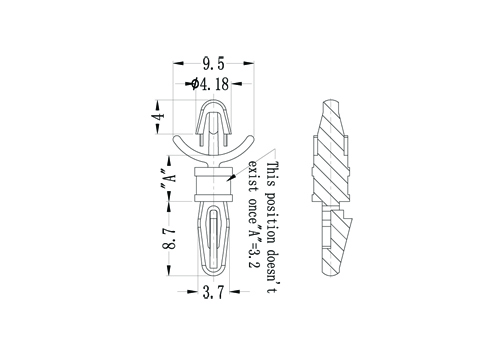

    Functional dimension "A" or "L" (if available)
    2 ≙ 3,2mm 3 ≙ 4,8mm; 4 ≙ 6,4mm; 5 ≙ 7,9mm; 6 ≙ 9,5mm; 7 ≙ 11,1mm; 8 ≙ 12,7mm; 9 ≙ 14,3mm; 10 ≙ 15,9mm
    GLSP9-2-66
