    Mini Support Post Mini Support Post Mini Support Post

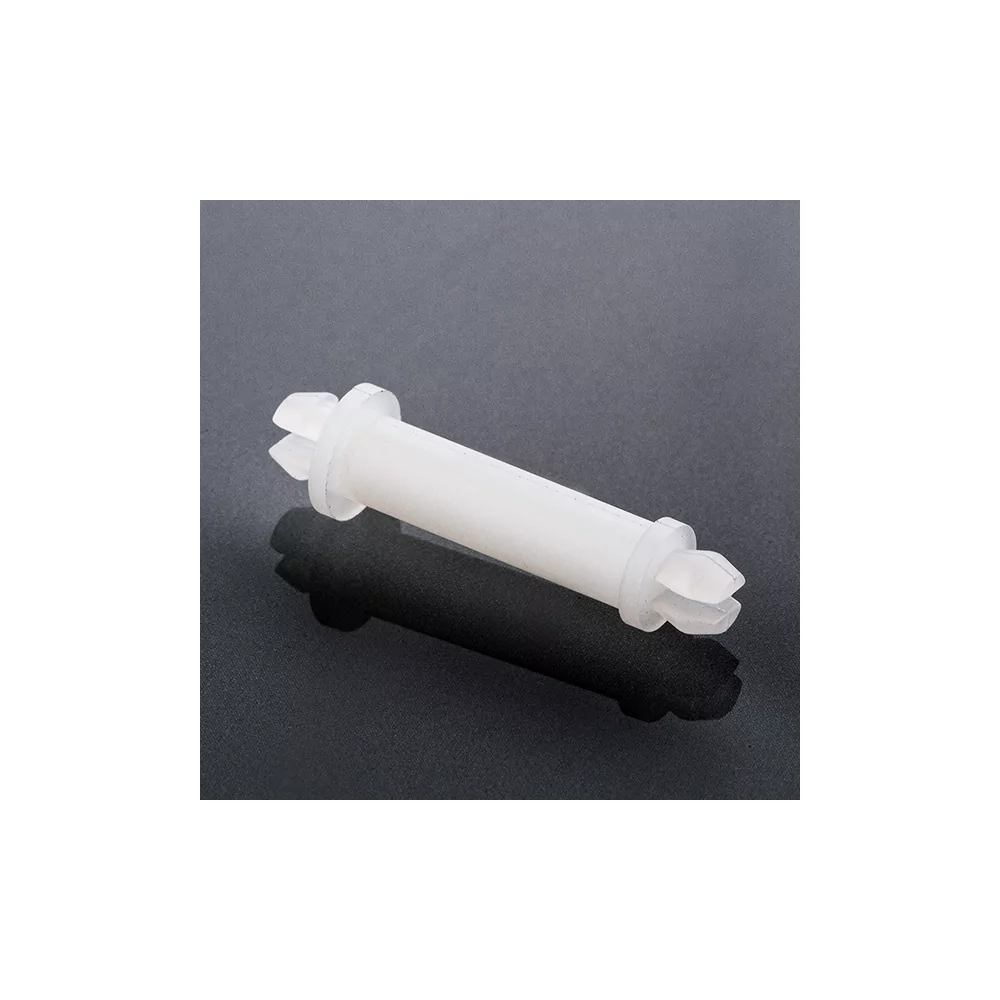

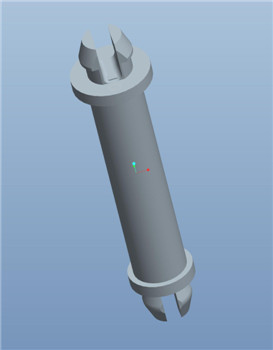

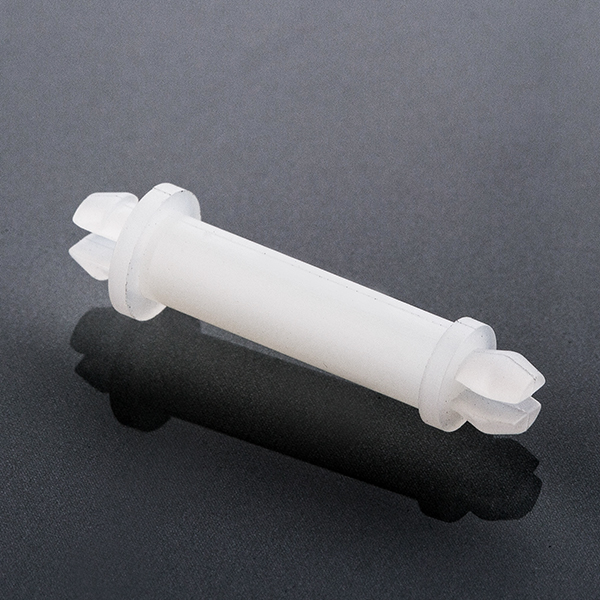

    GMSPS Series - Mini Support Post

    103.85 €
    VAT excluded Änderungen und Preisirrtümer vorbehalten

    Packaging and price unit: 1000 Fastening technology for printed circuit boards / spacers

    In lengths from 4.8 - 22.2 mm (different variants)
    PCB thickness ≙ 1.6 mm
    Ø hole ≙ 4.0±0.08mm
    Colour: Natural - Material: PA66 UL 94V2

    GMSPS Series
    UnitsDiscountYou will savePrice/unit
    53%15.58 €100.73 €
    106%62.31 €97.62 €
    2010%207.70 €93.47 €
    3015%467.33 €88.27 €
    Note

    Please contact us for small quantities, free samples and further technical details.



    PCB Support - Spacer - Locking/Non Locking Two Prong

    Article No.Cross-Ref.MaterialColourADrill holePlate thicknessPU
    GMSPS-3-66MSPS-3-01PA66 UL94V2Natural4,84.0 +/- 0.081,61000
    GMSPS-3-V0MSPS-3-19PA66 UL94V0Natural4,84.0 +/- 0.081,61000
    GMSPS-4-66MSPS-4-01PA66 UL94V2Natural6,44.0 +/- 0.081,61000
    GMSPS-4-V0MSPS-4-19PA66 UL94V0Natural6,44.0 +/- 0.081,61000
    GMSPS-5-66MSPS-5-01PA66 UL94V2Natural7,94.0 +/- 0.081,61000
    GMSPS-5-V0MSPS-5-19PA66 UL94V0Natural7,94.0 +/- 0.081,61000
    GMSPS-6-66MSPS-6-01PA66 UL94V2Natural9,54.0 +/- 0.081,61000
    GMSPS-6-V0MSPS-6-19PA66 UL94V0Natural9,54.0 +/- 0.081,61000
    GMSPS-7-66MSPS-7-01PA66 UL94V2Natural11,14.0 +/- 0.081,61000
    GMSPS-7-V0MSPS-7-19PA66 UL94V0Natural11,14.0 +/- 0.081,61000
    GMSPS-8-66MSPS-8-01PA66 UL94V2Natural12,74.0 +/- 0.081,61000
    GMSPS-8-V0MSPS-8-19PA66 UL94V0Natural12,74.0 +/- 0.081,61000
    GMSPS-10-66MSPS-10-01PA66 UL94V2Natural15,94.0 +/- 0.081,61000
    GMSPS-10-V0MSPS-10-19PA66 UL94V0Natural15,94.0 +/- 0.081,61000
    GMSPS-11-66MSPS-11-01PA66 UL94V2Natural17,54.0 +/- 0.081,61000
    GMSPS-11-V0MSPS-11-19PA66 UL94V0Natural17,54.0 +/- 0.081,61000
    GMSPS-12-66MSPS-12-01PA66 UL94V2Natural19,14.0 +/- 0.081,61000
    GMSPS-12-V0MSPS-12-19PA66 UL94V0Natural19,14.0 +/- 0.081,61000
    GMSPS-14-66MSPS-14-01PA66 UL94V2Natural22,24.0 +/- 0.081,61000
    GMSPS-14-V0MSPS-14-19PA66 UL94V0Natural22,24.0 +/- 0.081,61000
    Identical to Richco / Essentra series
    MSPS
    Packaging and price unit
    1000

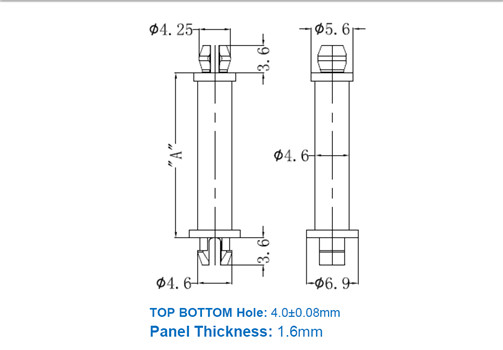

    Functional dimension "A" or "L" (if available)
    3 ≙ 4,8mm; 4 ≙ 6,4mm; 5 ≙ 7,9mm; 6 ≙ 9,5mm; 7 ≙ 11,1mm; 8 ≙ 12,7mm; 9 ≙ 14,3mm; 10 ≙ 15,9mm; 12 ≙ 19,1mm; 14 ≙ 22,2mm
    GMSPS-3-66
