    Kabelhalter für Leiterplatten mit Spreizanker GNWS-A1 Series - Wire Saddle, Arrowhead, Push-In, Non-Locking GNWS-A1 Series - Wire Saddle, Arrowhead, Push-In, Non-Locking #2

    GNWS-A1 Series - Wire Saddle, Arrowhead, Push-In, Non-Locking

    89.20 €
    VAT excluded Änderungen und Preisirrtümer vorbehalten

    Packaging and price unit: 1000

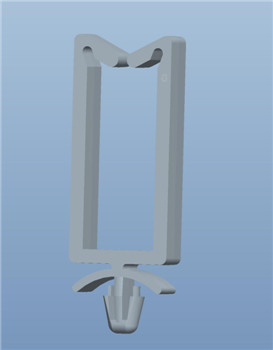

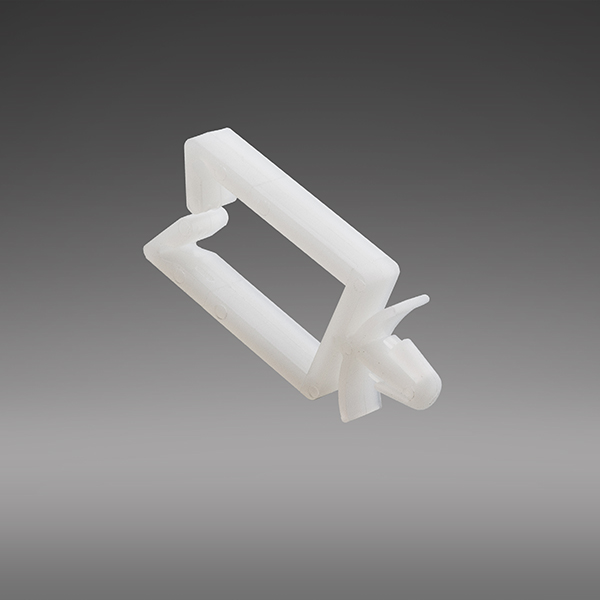

    Cable holder / cable saddle for printed circuit board

    In lengths from 13.0 - 34.8 mm (others on request)
    PCB thickness: 1.6 mm
    Ø hole ≙ 4.75 mm ± 0.08 mm
    Colour: Natural - Material: PA66 UL94V0

    GNWS-A1 Series
    UnitsDiscountYou will savePrice/unit
    53%13.38 €86.52 €
    106%53.52 €83.85 €
    2010%178.40 €80.28 €
    3015%401.40 €75.82 €
    Note

    Please contact us for small quantities, free samples and further technical details.



    Wire Saddle, Snap Lock, Arrowhead, Non-Locking, PA66 UL94V2, PA66 UL94V0, PA6 UL94V2

    Article no.Cross-ref.MaterialColourAFIGDrill holePlate thicknessPU
    GNWS-A1-1-66WS-A-1-01PA66 UL94V2Natural13.014.75 +/- 0.081,61000
    GNWS-A1-1-V0WS-A-1-19PA66 UL94V0Natural13.014.75 +/- 0.081,61000
    GNWS-A1-1-66BWS-A-1-01BKPA66 UL94V2Black13.014.75 +/- 0.081,61000
    GNWS-A1-2-66WS-A-2-01PA66 UL94V2Natural18.014.75 +/- 0.081,61000
    GNWS-A1-2-V0WS-A-2-19PA66 UL94V0Natural18.014.75 +/- 0.081,61000
    GNWS-A1-2-6-PA6 UL94V2Natural18.014.75 +/- 0.081,61000
    GNWS-A1-2-66BWS-A-2-01BKPA66 UL94V2Black18.014.75 +/- 0.081,61000
    GNWS-A1-3-66WS-A-3-01PA66 UL94V2Natural26,914.75 +/- 0.081,61000
    GNWS-A1-3-V0WS-A-3-19PA66 UL94V0Natural26,914.75 +/- 0.081,61000
    GNWS-A1-3-6-PA6 UL94V2Natural26,914.75 +/- 0.081,61000
    GNWS-A1-3-66BWS-A-3-01BKPA66 UL94V2Black26,914.75 +/- 0.081,61000
    GNWS-A1-4-66WS-A-4-01PA66 UL94V2Natural34,814.75 +/- 0.081,61000
    GNWS-A1-4-V0WS-A-4-19PA66 UL94V0Natural34,814.75 +/- 0.081,61000
    GNWS-A1-4-66BWS-A-4-01BKPA66 UL94V2Black34,814.75 +/- 0.081,61000
    Identical to Richco / Essentra series
    WS-A-x
    Packaging and price unit
    1000

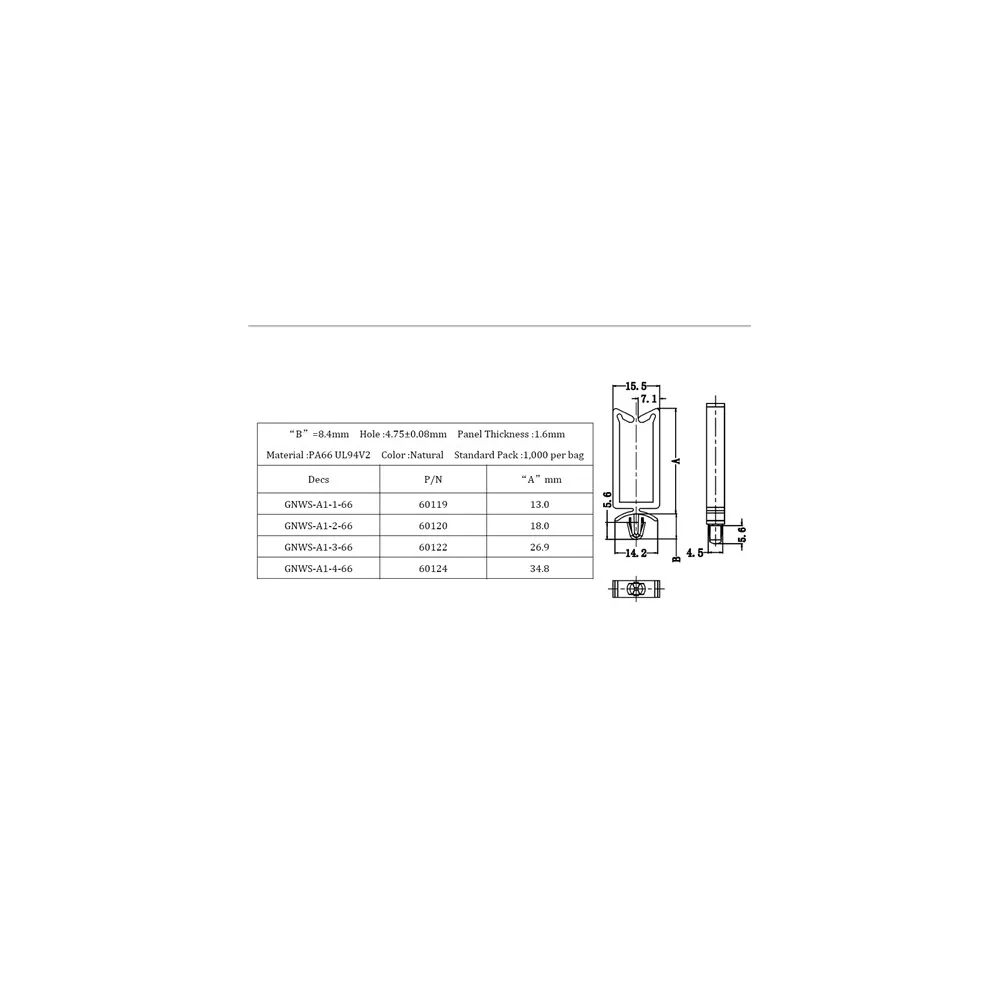

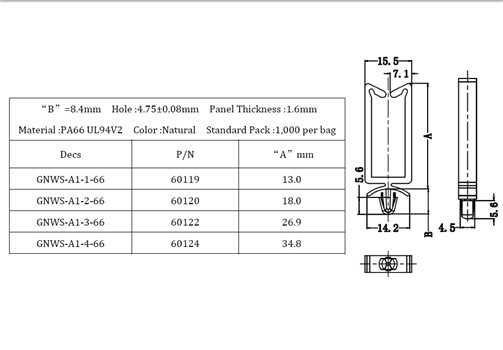

    Functional dimension "A" or "L" (if available)
    1 ≙ 13.0mm; 2 ≙ 18.0mm 3 ≙ 26.9mm; 4 ≙ 34.8mm - "B" ≙ 8.4mm
    GNWS-A1 Series
