GPHS-S-1580 Series - Screw With Slot

38.75 €

VAT excluded Änderungen und Preisirrtümer vorbehalten

Packaging and price unit: 1000

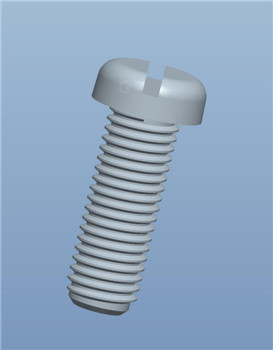

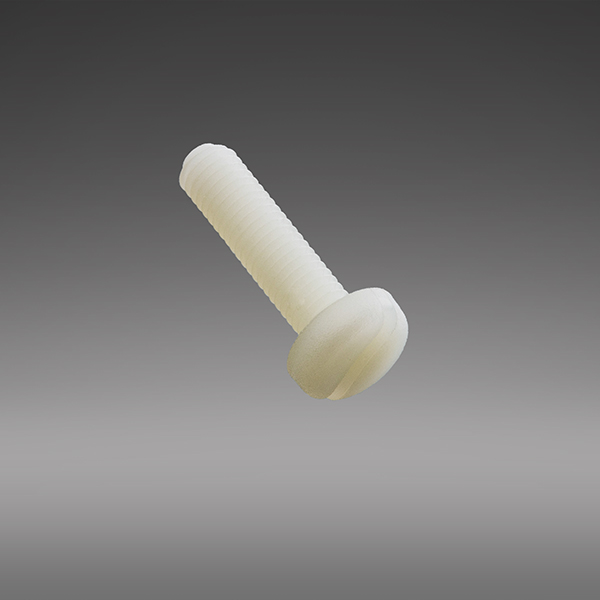

Flat-head plastic screw (slotted)

Colour: natural
Material: PA66 UL 94 V2
In accordance with DIN EN 1580

GPHS-S-1580 Series

Units	Discount	You will save	Price/unit
5	3%	5.81 €	37.59 €
10	6%	23.25 €	36.43 €
20	10%	77.50 €	34.88 €
30	15%	174.38 €	32.94 €

Add to watchlist

Note

Please contact us for small quantities, free samples and further technical details.

Slotted Pan Machine Screw, M2, M2.5, M3, M4, M5, M6, M8

Article no.	Cross-Ref.	Material	Colour	A	B	C	L	Thread	PU
GPHS-S-1580-M2-4	NSE-1580-M2-4 / 050010400002 / 50M020040N004	PA66 UL94V2	Natural	1,3	3,8	0,6	4,0	M2	1000
GPHS-S-1580-M2-5	NSE-1580-M2-5 / 050010500002 / 50M020040N005	PA66 UL94V2	Natural	1,3	3,8	0,6	5,0	M2	1000
GPHS-S-1580-M2-6	NSE-1580-M2-6 / 050010600002 / 50M020040N006	PA66 UL94V2	Natural	1,3	3,8	0,6	6,0	M2	1000
GPHS-S-1580-M2-8	NSE-1580-M2-8 / 050010800002 / 50M020040N008	PA66 UL94V2	Natural	1,3	3,8	0,6	8,0	M2	1000
GPHS-S-1580-M2-10	NSE-1580-M2-10 / 050011000002 / 50M020040N010	PA66 UL94V2	Natural	1,3	3,8	0,6	10,0	M2	1000
GPHS-S-1580-M2-12	NSE-1580-M2-12 / 050011200002 / 50M020040N012	PA66 UL94V2	Natural	1,3	3,8	0,6	12,0	M2	1000
GPHS-S-1580-M2-16	NSE-1580-M2-16 / 050011600002 / 50M020040N016	PA66 UL94V2	Natural	1,3	3,8	0,6	16,0	M2	1000
GPHS-S-1580-M2-20	NSE-1580-M2-20 / 050012000002 / 50M020040N020	PA66 UL94V2	Natural	1,3	3,8	0,6	20,0	M2	1000
GPHS-S-1580-M2-25	NSE-1580-M2-25 / 050012500002 / 50M020040N025	PA66 UL94V2	Natural	1,3	3,8	0,6	25,0	M2	1000
GPHS-S-1580-M2.5-4	NSE-1580-M2.5-4	PA66 UL94V2	Natural	1,5	5.0	0,7	4,0	M2.5	1000
GPHS-S-1580-M2.5-4.5	NSE-1580-M2.5-4.5 / 050020500002	PA66 UL94V2	Natural	1,5	5.0	0,7	4,5	M2.5	1000
GPHS-S-1580-M2.5-5	NSE-1580-M2.5-5	PA66 UL94V2	Natural	1,5	5.0	0,7	5,0	M2.5	1000
GPHS-S-1580-M2.5-6	NSE-1580-M2.5-6 / 050020600002 / 50M025045N006	PA66 UL94V2	Natural	1,5	5.0	0,7	6,0	M2.5	1000
GPHS-S-1580-M2.5-6B	NSE-1580-M2.5-6B	PA66 UL94V2	Black	1,5	5.0	0,7	6,0	M2.5	1000
GPHS-S-1580-M2.5-8	NSE-1580-M2.5-8 / 050020800002 / 50M025045N008	PA66 UL94V2	Natural	1,5	5.0	0,7	8,0	M2.5	1000
GPHS-S-1580-M2.5-10	NSE-1580-M2.5-10 / 050021000002 / 50M025045N010	PA66 UL94V2	Natural	1,5	5.0	0,7	10,0	M2.5	1000
GPHS-S-1580-M2.5-10-B	-	PA66 UL94V2	Black	1,5	5.0	0,7	10,0	M2.5	1000
GPHS-S-1580-M2.5-12	NSE-1580-M2.5-12 / 050021200002 / 50M025045N012	PA66 UL94V2	Natural	1,5	5.0	0,7	12,0	M2.5	1000
GPHS-S-1580-M2.5-16	NSE-1580-M2.5-16 / 050021600002 / 50M025045N016	PA66 UL94V2	Natural	1,5	5.0	0,7	16,0	M2.5	1000
GPHS-S-1580-M2.5-20	NSE-1580-M2.5-20 / 050022000002 / 50M025045N020	PA66 UL94V2	Natural	1,5	5.0	0,7	20,0	M2.5	1000
GPHS-S-1580-M2.5-25	NSE-1580-M2.5-25 / 050022500002 / 50M025045N025	PA66 UL94V2	Natural	1,5	5.0	0,7	25,0	M2.5	1000
GPHS-S-1580-M3-4	NSE-1580-M3-4 / 050030400002 / 50M030050N004	PA66 UL94V2	Natural	1,7	5,5	0,9	4,0	M3	1000
GPHS-S-1580-M3-5	NSE-1580-M3-5 / 050030500002 / 50M030050N005	PA66 UL94V2	Natural	1,7	5,5	0,9	5,0	M3	1000
GPHS-S-1580-M3-6	NSE-1580-M3-6 / 050030600002 / 50M030050N006	PA66 UL94V2	Natural	1,7	5,5	0,9	6,0	M3	1000
GPHS-S-1580-M3-8	NSE-1580-M3-8 / 050030800002 / 50M030050N008	PA66 UL94V2	Natural	1,7	5,5	0,9	8,0	M3	1000
GPHS-S-1580-M3-10	NSE-1580-M3-10 / 050031000002 / 50M030050N010	PA66 UL94V2	Natural	1,7	5,5	0,9	10,0	M3	1000
GPHS-S-1580-M3-12	NSE-1580-M3-12 / 050031200002 / 50M030050N012	PA66 UL94V2	Natural	1,7	5,5	0,9	12,0	M3	1000
GPHS-S-1580-M3-16	NSE-1580-M3-16 / 050031600002 / 50M030050N016	PA66 UL94V2	Natural	1,7	5,5	0,9	16,0	M3	1000
GPHS-S-1580-M3-20	NSE-1580-M3-20 / 050032000002 / 50M030050N020	PA66 UL94V2	Natural	1,7	5,5	0,9	20,0	M3	1000
GPHS-S-1580-M3-25	NSE-1580-M3-25 / 050032500002 / 50M030050N025	PA66 UL94V2	Natural	1,7	5,5	0,9	25,0	M3	1000
GPHS-S-1580-M3-30	NSE-1580-M3-30 / 050033000002 / 50M030050N030	PA66 UL94V2	Natural	1,7	5,5	0,9	30,0	M3	1000
GPHS-S-1580-M3-35	NSE-1580-M3-35 / 050033500002 / 50M030050N035	PA66 UL94V2	Natural	1,7	5,5	0,9	35,0	M3	1000
GPHS-S-1580-M3-40	NSE-1580-M3-40 / 050034000002	PA66 UL94V2	Natural	1,7	5,5	0,9	40,0	M3	1000
GPHS-S-1580-M4-4	-	PA66 UL94V2	Natural	2,4	7,8	1,3	4,0	M4	1000
GPHS-S-1580-M4-6	NSE-1580-M4-6 / 050040600002 / 50M040070N006	PA66 UL94V2	Natural	2,4	7,8	1,3	6,0	M4	1000
GPHS-S-1580-M4-6B	NSE-1580-M4-6B	PA66 UL94V2	Black	2,4	7,8	1,3	6,0	M4	1000
GPHS-S-1580-M4-8	NSE-1580-M4-8 / 050040800002 / 50M040070N008	PA66 UL94V2	Natural	2,4	7,8	1,3	8,0	M4	1000
GPHS-S-1580-M4-10	NSE-1580-M4-10 / 050041000002 / 50M040070N010	PA66 UL94V2	Natural	2,4	7,8	1,3	10,0	M4	1000
GPHS-S-1580-M4-12	NSE-1580-M4-12 / 050041200002 / 50M040070N012	PA66 UL94V2	Natural	2,4	7,8	1,3	12,0	M4	1000
GPHS-S-1580-M4-15	NSE-1580-M4-15	PA66 UL94V2	Natural	2,4	7,8	1,3	15,0	M4	1000
GPHS-S-1580-M4-16	NSE-1580-M4-16 / 050041600002 / 50M040070N016	PA66 UL94V2	Natural	2,4	7,8	1,3	16,0	M4	1000
GPHS-S-1580-M4-16B	NSE-1580-M4-16B	PA66 UL94V2	Black	2,4	7,8	1,3	16,0	M4	1000
GPHS-S-1580-M4-20	NSE-1580-M4-20 / 050041600002 / 50M040070N020	PA66 UL94V2	Natural	2,4	7,8	1,3	20,0	M4	1000
GPHS-S-1580-M4-25	NSE-1580-M4-25 / 050042000002 / 50M040070N025	PA66 UL94V2	Natural	2,4	7,8	1,3	25,0	M4	1000
GPHS-S-1580-M4-30	NSE-1580-M4-30 / 050042500002 / 50M040070N030	PA66 UL94V2	Natural	2,4	7,8	1,3	30,0	M4	1000
GPHS-S-1580-M4-40	NSE-1580-M4-40 / 050043000002 / 50M040070N040	PA66 UL94V2	Natural	2,4	7,8	1,3	40,0	M4	1000
GPHS-S-1580-M5-6	NSE-1580-M5-6 / 050050600002 / 50M050080N006	PA66 UL94V2	Natural	3.0	9,4	1,3	6,0	M5	1000
GPHS-S-1580-M5-8	NSE-1580-M5-8 / 050050800002 / 50M050080N008	PA66 UL94V2	Natural	3.0	9,4	1,3	8,0	M5	1000
GPHS-S-1580-M5-10	NSE-1580-M5-10 / 050051000002 / 50M050080N010	PA66 UL94V2	Natural	3.0	9,4	1,3	10,0	M5	1000
GPHS-S-1580-M5-12	NSE-1580-M5-12 / 050051200002 / 50M050080N012	PA66 UL94V2	Natural	3.0	9,4	1,3	12,0	M5	1000
GPHS-S-1580-M5-16	NSE-1580-M5-16 / 050051600002 / 50M050080N016	PA66 UL94V2	Natural	3.0	9,4	1,3	16,0	M5	1000
GPHS-S-1580-M5-16B	NSE-1580-M5-16B	PA66 UL94V2	Black	3.0	9,4	1,3	16,0	M5	1000
GPHS-S-1580-M5-20	NSE-1580-M5-20 / 050052000002 / 50M050080N020	PA66 UL94V2	Natural	3.0	9,4	1,3	20,0	M5	1000
GPHS-S-1580-M5-25	NSE-1580-M5-25 / 050052500002 / 50M050080N025	PA66 UL94V2	Natural	3.0	9,4	1,3	25,0	M5	1000
GPHS-S-1580-M5-30	NSE-1580-M5-30 / 050053000002 / 50M050080N030	PA66 UL94V2	Natural	3.0	9,4	1,3	30,0	M5	1000
GPHS-S-1580-M5-40	NSE-1580-M5-40 / 050054000002 / 50M050080N040	PA66 UL94V2	Natural	3.0	9,4	1,3	40,0	M5	1000
GPHS-S-1580-M5-50	NSE-1580-M5-50 / 050055000002	PA66 UL94V2	Natural	3.0	9,4	1,3	50,0	M5	1000
GPHS-S-1580-M6-5	NSE-1580-M6-5 / 050060500002 / 50M060100N005	PA66 UL94V2	Natural	3,5	11,8	1,7	5,0	M6	1000
GPHS-S-1580-M6-6	NSE-1580-M6-6 / 050060600002	PA66 UL94V2	Natural	3,5	11,8	1,7	6,0	M6	1000
GPHS-S-1580-M6-6.5	NSE-1580-M6-6.5	PA66 UL94V2	Natural	3,5	11,8	1,7	6,5	M6	1000
GPHS-S-1580-M6-8	NSE-1580-M6-8 / 050060800002 / 50M060100N008	PA66 UL94V2	Natural	3,5	11,8	1,7	8,0	M6	1000
GPHS-S-1580-M6-10	NSE-1580-M6-10 / 050061000002 / 50M060100N010	PA66 UL94V2	Natural	3,5	11,8	1,7	10,0	M6	1000
GPHS-S-1580-M6-12	NSE-1580-M6-12 / 050061200002 / 50M060100N012	PA66 UL94V2	Natural	3,5	11,8	1,7	12,0	M6	1000
GPHS-S-1580-M6-16	NSE-1580-M6-16 / 050061200002 / 50M060100N016	PA66 UL94V2	Natural	3,5	11,8	1,7	16,0	M6	1000
GPHS-S-1580-M6-20	NSE-1580-M6-20 / 050062000002 / 50M060100N020	PA66 UL94V2	Natural	3,5	11,8	1,7	20,0	M6	1000
GPHS-S-1580-M6-22	NSE-1580-M6-22 / 50M060100N022	PA66 UL94V2	Natural	3,5	11,8	1,7	22,0	M6	1000
GPHS-S-1580-M6-25	NSE-1580-M6-25 / 050062500002 / 50M060100N025	PA66 UL94V2	Natural	3,5	11,8	1,7	25,0	M6	1000
GPHS-S-1580-M6-30	NSE-1580-M6-30 / 050063000002 / 50M060100N030	PA66 UL94V2	Natural	3,5	11,8	1,7	30,0	M6	1000
GPHS-S-1580-M6-40	NSE-1580-M6-40 / 050064000002 / 50M060100N040	PA66 UL94V2	Natural	3,5	11,8	1,7	40,0	M6	1000
GPHS-S-1580-M6-50	NSE-1580-M6-50 / 050065000002 / 50M060100N050	PA66 UL94V2	Natural	3,5	11,8	1,7	50,0	M6	1000
GPHS-S-1580-M6-60	NSE-1580-M6-60 / 050066000002 / 50M060100N060	PA66 UL94V2	Natural	3,5	11,8	1,7	60,0	M6	1000
GPHS-S-1580-M8-8	-	PA66 UL94V2	Natural	4,8	15,8	2,2	8,0	M8	1000
GPHS-S-1580-M8-10	-	PA66 UL94V2	Natural	4,8	15,8	2,2	10,0	M8	1000
GPHS-S-1580-M8-12	-	PA66 UL94V2	Natural	4,8	15,8	2,2	12,0	M8	1000
GPHS-S-1580-M8-16	-	PA66 UL94V2	Natural	4,8	15,8	2,2	16,0	M8	1000
GPHS-S-1580-M8-20	-	PA66 UL94V2	Natural	4,8	15,8	2,2	20,0	M8	1000
GPHS-S-1580-M8-25	-	PA66 UL94V2	Natural	4,8	15,8	2,2	25,0	M8	1000
GPHS-S-1580-M8-30	-	PA66 UL94V2	Natural	4,8	15,8	2,2	30,0	M8	1000
GPHS-S-1580-M8-35	-	PA66 UL94V2	Natural	4,8	15,8	2,2	35,0	M8	1000
GPHS-S-1580-M8-40	-	PA66 UL94V2	Natural	4,8	15,8	2,2	40,0	M8	1000
GPHS-S-1580-M8-45	-	PA66 UL94V2	Natural	4,8	15,8	2,2	45,0	M8	1000
GPHS-S-1580-M8-50	-	PA66 UL94V2	Natural	4,8	15,8	2,2	50,0	M8	1000

Identical to Richco / Essentra series: NSE-1580-Mx
Packaging and price unit: 1000

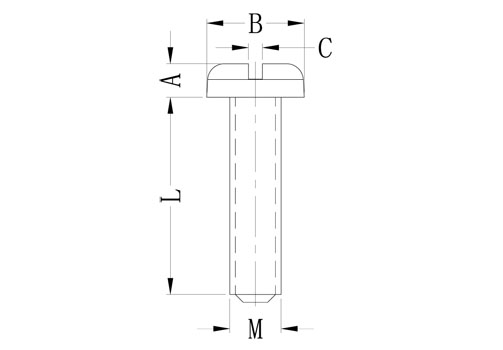

Functional dimension "A" or "L" (if available): "L" ≙ mm - M2 (A≙1.3 / B≙3.8mm) / M2.5 (A≙1.5 / B≙5.0mm) / M3 (A≙1.7 / B≙5.5mm) / M4 (A≙2.4 / B≙7.8mm) / M5 (A≙3.0 / B≙9.4mm) / M6 (A≙3.5 / B≙11.8mm)

Reference GPHS-S-1580 Series

GPHS-S-1580-L
