    GRT 35x Series - Expandable rivet, removable with rotary knob #3 GRT 35x Series - Expandable rivet, removable with rotary knob #2 GRT 35x Series - Expandable rivet, removable with rotary knob

    GRT 35x Series - Expandable rivet, removable with rotary knob

    204.60 €
    VAT excluded Änderungen und Preisirrtümer vorbehalten

    Packaging and price unit: 1000

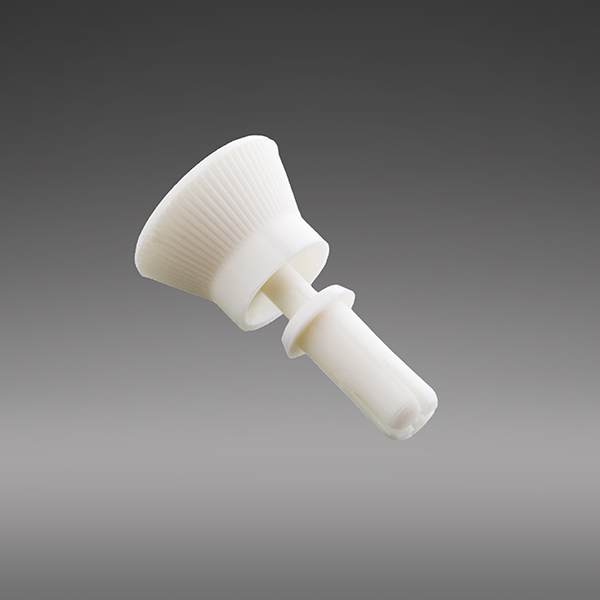

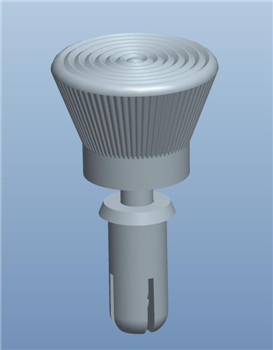

    Detachable expanding fastener with handle

    Colour: black (B) or white (W) / Material: PA6 UL94V2
    PCB thickness: 1.0-6.5mm (different variants)
    Ø hole ≙ 3.1-3.2 & 3.6-3.7mm

    GRT35x Series
    UnitsDiscountYou will savePrice/unit
    53%30.69 €198.46 €
    106%122.76 €192.32 €
    2010%409.20 €184.14 €
    3015%920.70 €173.91 €
    Note

    Please contact us for small quantities, free samples and further technical details.



    Snap Push-In Rivet, Releasable, Knob, PA6 UL94V2

    Article no.Cross-ref.MaterialColourABCDEFGFIGPU
    GRT3535BSRT-3535BPA6 UL94V2Black10.08.03,53.56,61.0-2.03.6-3.721000
    GRT3535WSRT-3535WPA6 UL94V2White10.08.03,53.56,61.0-2.03.6-3.721000
    GRT3545BSRT-3545BPA6 UL94V2Black10.08.04,53.56,62.0-3.03.6-3.721000
    GRT3545WSRT-3545WPA6 UL94V2White10.08.04,53.56,62.0-3.03.6-3.721000
    GRT3555BSRT-3555BPA6 UL94V2Black10.08.05,53.56,63.0-4.03.6-3.721000
    GRT3555WSRT-3555WPA6 UL94V2White10.08.05,53.56,63.0-4.03.6-3.721000
    GRT3565BSRT-3565BPA6 UL94V2Black10.08.06,53.59.04.0-5.03.6-3.721000
    GRT3565WSRT-3565WPA6 UL94V2White10.08.06,53.59.04.0-5.03.6-3.721000
    GRT3575BSRT-3575BPA6 UL94V2Black10.08.07,53.59.05.0-6.03.6-3.721000
    GRT3575WSRT-3575WPA6 UL94V2White10.08.07,53.59.05.0-6.03.6-3.721000
    GRT3580BSRT-3580BPA6 UL94V2Black10.08.08.03.59.05.5-6.53.6-3.721000
    GRT3580WSRT-3580WPA6 UL94V2White10.08.08.03.59.05.5-6.53.6-3.721000
    Identical to Richco / Essentra series
    SRT
    Packaging and price unit
    1000

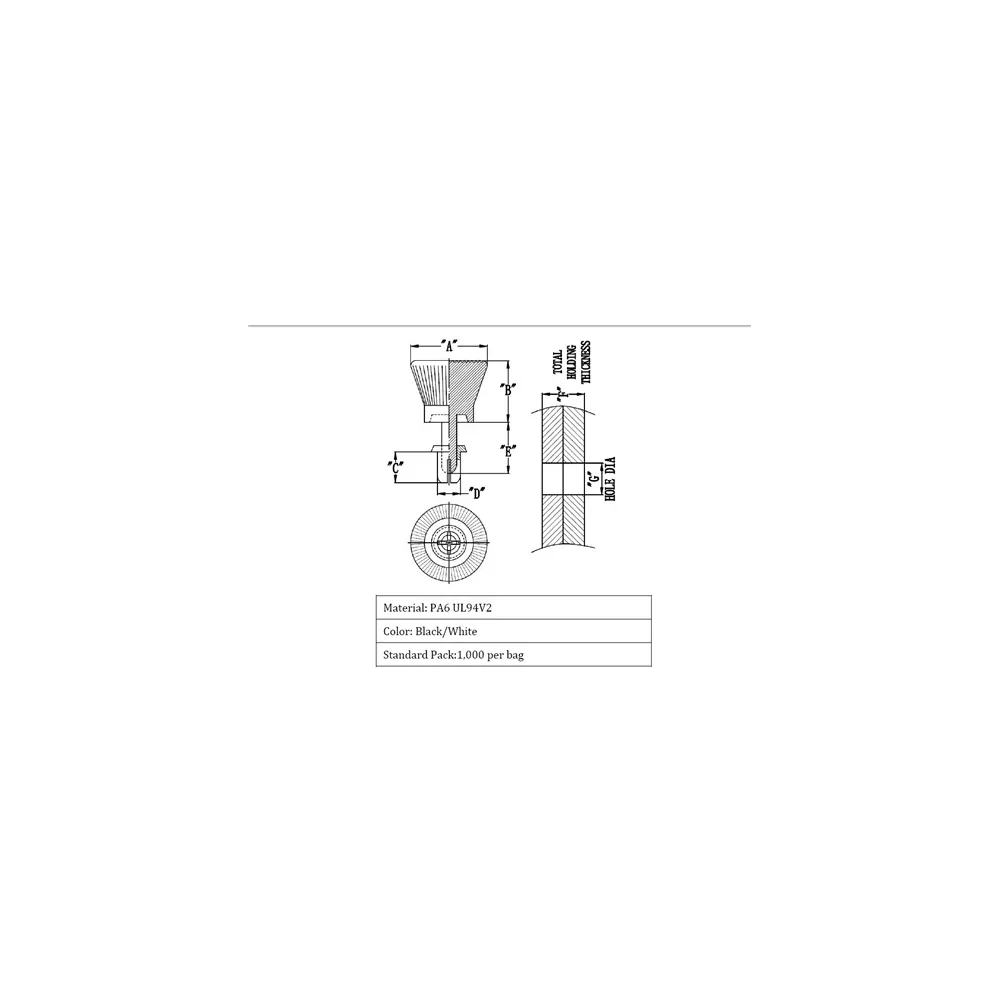

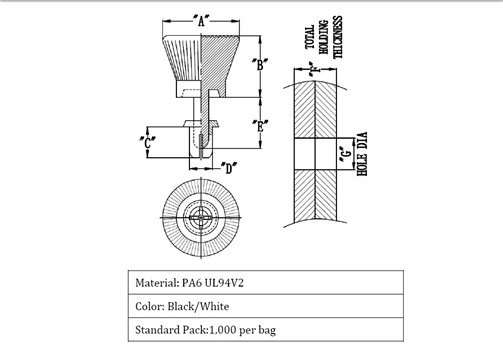

    Functional dimension "A" or "L" (if available)
    "A": 10.0 mm Fig. 2 (GRT3535 bis GRT3580)
    GRT3535B
