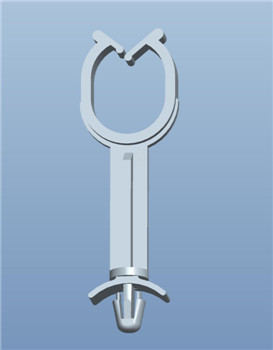

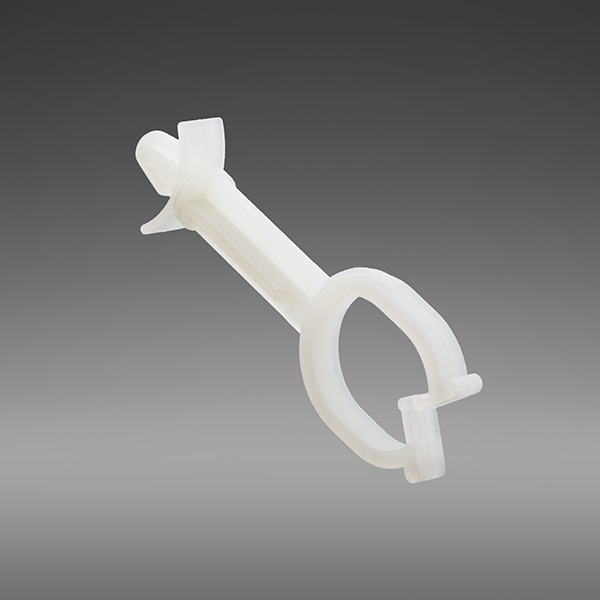

GSHK Series - Cable clamp with snap-on fastening
155.00 €
VAT excluded Änderungen und Preisirrtümer vorbehalten
Packaging and price unit: 1000
Spacer clip for cable harnesses
Colour: natural
In lengths from 6.0 - 28.0 mm (different variants)
PCB thickness: 1.57 mm
Ø hole ≙ 4.75±0.08 mm
Cable Clamp, Wire Saddle, Wire Harness Clip, Snap In, Ratcheting, PA66 UL94V2, PA66 UL94V0
| Article no. | Cross-ref. | Material | Colour | A | FIG | Drill hole | Plate thickness | PU |
| GSHK-6M-66 | SHK-J-6M-01 | PA66 UL94V2 | Natural | 6.0 | 1 | 4.75 +/- 0.08 | 1,57 | 1000 |
| GSHK-6M-V0 | SHK-J-6M-19 | PA66 UL94V0 | Natural | 6.0 | 1 | 4.75 +/- 0.08 | 1,57 | 1000 |
| GSHK-8M-66 | SHK-J-8M-01 | PA66 UL94V2 | Natural | 8.0 | 1 | 4.75 +/- 0.08 | 1,57 | 1000 |
| GSHK-8M-V0 | SHK-J-8M-19 | PA66 UL94V0 | Natural | 8.0 | 1 | 4.75 +/- 0.08 | 1,57 | 1000 |
| GSHK-6-66 | SHK-6-01 | PA66 UL94V2 | Natural | 9.5 | 1 | 4.75 +/- 0.08 | 1,57 | 1000 |
| GSHK-6-V0 | SHK-6-19 | PA66 UL94V0 | Natural | 9,5 | 1 | 4.75 +/- 0.08 | 1,57 | 1000 |
| GSHK-10M-66 | SHK-J-10M-01 | PA66 UL94V2 | Natural | 10.0 | 1 | 4.75 +/- 0.08 | 1,57 | 1000 |
| GSHK-10M-V0 | SHK-J-10M-19 | PA66 UL94V0 | Natural | 10.0 | 1 | 4.75 +/- 0.08 | 1,57 | 1000 |
| GSHK-12M-66 | SHK-J-12M-01 | PA66 UL94V2 | Natural | 12.0 | 1 | 4.75 +/- 0.08 | 1,57 | 1000 |
| GSHK-12M-V0 | SHK-J-12M-19 | PA66 UL94V0 | Natural | 12.0 | 1 | 4.75 +/- 0.08 | 1,57 | 1000 |
| GSHK-8-66 | SHK-8-01 | PA66 UL94V2 | Natural | 12.7 | 1 | 4.75 +/- 0.08 | 1,57 | 1000 |
| GSHK-8-V0 | SHK-8-19 | PA66 UL94V0 | Natural | 12,7 | 1 | 4.75 +/- 0.08 | 1,57 | 1000 |
| GSHK-14M-66 | SHK-J-14M-01 | PA66 UL94V2 | Natural | 14.0 | 1 | 4.75 +/- 0.08 | 1,57 | 1000 |
| GSHK-14M-V0 | SHK-J-14M-19 | PA66 UL94V0 | Natural | 14.0 | 1 | 4.75 +/- 0.08 | 1,57 | 1000 |
| GSHK-16M-66 | SHK-J-16M-01 | PA66 UL94V2 | Natural | 16.0 | 1 | 4.75 +/- 0.08 | 1,57 | 1000 |
| GSHK-16M-V0 | SHK-J-16M-19 | PA66 UL94V0 | Natural | 16.0 | 1 | 4.75 +/- 0.08 | 1,57 | 1000 |
| GSHK-18M-66 | SHK-J-18M-01 | PA66 UL94V2 | Natural | 18.0 | 1 | 4.75 +/- 0.08 | 1,57 | 1000 |
| GSHK-18M-V0 | SHK-J-18M-19 | PA66 UL94V0 | Natural | 18.0 | 1 | 4.75 +/- 0.08 | 1,57 | 1000 |
| GSHK-12-66 | SHK-12-01 | PA66 UL94V2 | Natural | 19.1 | 1 | 4.75 +/- 0.08 | 1,57 | 1000 |
| GSHK-12-V0 | SHK-12-19 | PA66 UL94V0 | Natural | 19,1 | 1 | 4.75 +/- 0.08 | 1,57 | 1000 |
| GSHK-20M-66 | SHK-J-20M-01 | PA66 UL94V2 | Natural | 20.0 | 1 | 4.75 +/- 0.08 | 1,57 | 1000 |
| GSHK-20M-V0 | SHK-J-20M-19 | PA66 UL94V0 | Natural | 20.0 | 1 | 4.75 +/- 0.08 | 1,57 | 1000 |
| GSHK-22M-66 | SHK-J-22M-01 | PA66 UL94V2 | Natural | 22.0 | 1 | 4.75 +/- 0.08 | 1,57 | 1000 |
| GSHK-22M-V0 | SHK-J-22M-19 | PA66 UL94V0 | Natural | 22.0 | 1 | 4.75 +/- 0.08 | 1,57 | 1000 |
| GSHK-24M-66 | SHK-J-24M-01 | PA66 UL94V2 | Natural | 24.0 | 1 | 4.75 +/- 0.08 | 1,57 | 1000 |
| GSHK-24M-V0 | SHK-J-24M-19 | PA66 UL94V0 | Natural | 24.0 | 1 | 4.75 +/- 0.08 | 1,57 | 1000 |
| GSHK-16-66 | SHK-16-01 | PA66 UL94V2 | Natural | 25.4 | 1 | 4.75 +/- 0.08 | 1,57 | 1000 |
| GSHK-16-V0 | SHK-16-19 | PA66 UL94V0 | Natural | 25,4 | 1 | 4.75 +/- 0.08 | 1,57 | 1000 |
| GSHK-26M-66 | SHK-J-26M-01 | PA66 UL94V2 | Natural | 26.0 | 1 | 4.75 +/- 0.08 | 1,57 | 1000 |
| GSHK-26M-V0 | SHK-J-26M-19 | PA66 UL94V0 | Natural | 26.0 | 1 | 4.75 +/- 0.08 | 1,57 | 1000 |
| GSHK-28M-66 | SHK-J-28M-01 | PA66 UL94V2 | Natural | 28.0 | 1 | 4.75 +/- 0.08 | 1,57 | 1000 |
| GSHK-28M-V0 | SHK-J-28M-19 | PA66 UL94V0 | Natural | 28.0 | 1 | 4.75 +/- 0.08 | 1,57 | 1000 |
| GSHK-20-66 | SHK-20-01 | PA66 UL94V2 | Natural | 31.8 | 1 | 4.75 +/- 0.08 | 1,57 | 1000 |
| GSHK-20-V0 | SHK-20-19 | PA66 UL94V0 | Natural | 31,8 | 1 | 4.75 +/- 0.08 | 1,57 | 1000 |
- Identical to Richco / Essentra series
- SHK-J-6M - SHK-J-28M
- Packaging and price unit
- 1000

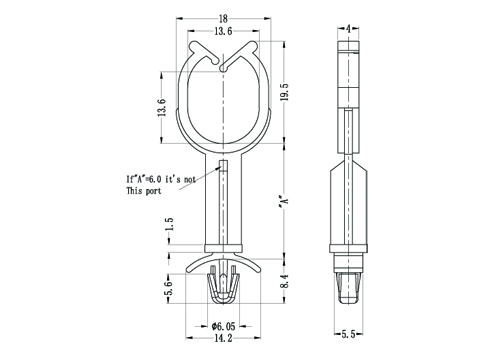

- Functional dimension "A" or "L" (if available)
- 6 ≙ 6mm; 8 ≙ 8mm; 10 ≙ 10mm; 12 ≙ 12mm; 13 ≙ 13mm; 15 ≙ 15mm; 16 ≙ 16mm; 18M ≙ 18mm; 20 ≙ 20mm; 22 ≙ 22mm; 24 ≙ 24mm; 26 ≙ 26mm; 28 ≙ 28mm
