GSLCS / SLCS | Cable clip with spacer | Gecko Fastener GmbH

GSLCS Series - Cable clip with spacer

133.30 €

VAT excluded Änderungen und Preisirrtümer vorbehalten

Packaging and price unit: 1000

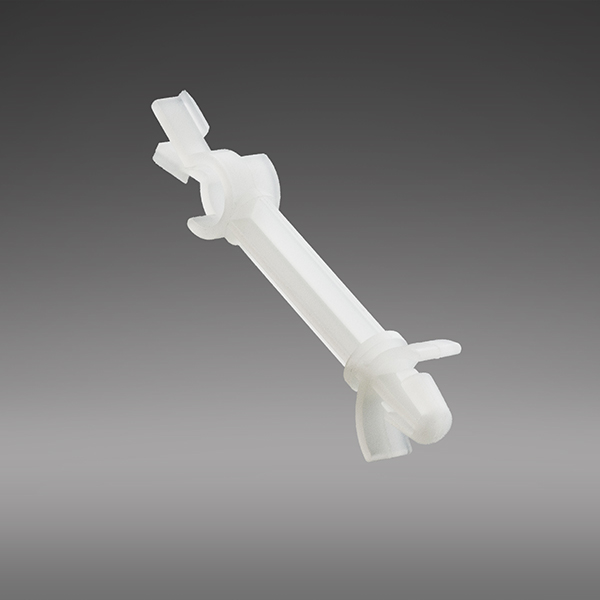

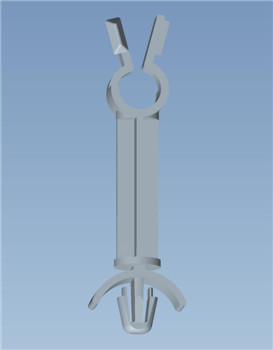

Cable clip with spacer

Ø hole ≙ 4.75mm
PCB thickness: 1.6mm
Bundle Ø ≙ 4.8mm (GSLCS-250-x) / 11.1mm (GSLCS-500-x)

GSLCS Series

Units	Discount	You will save	Price/unit
5	3%	20.00 €	129.30 €
10	6%	79.98 €	125.30 €
20	10%	266.60 €	119.97 €
30	15%	599.85 €	113.31 €

Add to watchlist

Note

Please contact us for small quantities, free samples and further technical details.

Cable Clamp, Wire Saddle, Wire Harness Clip, Standoff Locking Clip, Snap In, PA66 UL94V2, PA66 UL94V0

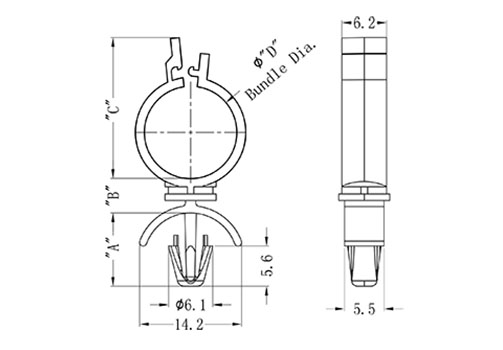

Article no.	Cross-ref.	Material	Colour	A	B	C	Drill hole	Plate thickness	PU
GSLCS-250-4M-66	-	PA66 UL94V2	Natural	4,0	13,5	4,8	4.75 +/- 0.08	1,6	1000
GSLCS-250-4M-V0	-	PA66 UL94V0	Natural	4,0	13,5	4,8	4.75 +/- 0.08	1,6	1000
GSLCS-250-3-66	SLCS-250-3-01	PA66 UL94V2	Natural	4,8	13,5	4,8	4.75 +/- 0.08	1,6	1000
GSLCS-250-3-V0	SLCS-250-3-19	PA66 UL94V0	Natural	4,8	13,5	4,8	4.75 +/- 0.08	1,6	1000
GSLCS-250-4-66	SLCS-250-4-01	PA66 UL94V2	Natural	6,4	13,5	4,8	4.75 +/- 0.08	1,6	1000
GSLCS-250-4-V0	SLCS-250-4-19	PA66 UL94V0	Natural	6,4	13,5	4,8	4.75 +/- 0.08	1,6	1000
GSLCS-250-6-66	SLCS-250-6-01	PA66 UL94V2	Natural	9,5	13,5	4,8	4.75 +/- 0.08	1,6	1000
GSLCS-250-6-V0	SLCS-250-6-19	PA66 UL94V0	Natural	9,5	13,5	4,8	4.75 +/- 0.08	1,6	1000
GSLCS-250-8-66	SLCS-250-8-01	PA66 UL94V2	Natural	12,7	13,5	4,8	4.75 +/- 0.08	1,6	1000
GSLCS-250-8-V0	SLCS-250-8-19	PA66 UL94V0	Natural	12,7	13,5	4,8	4.75 +/- 0.08	1,6	1000
GSLCS-250-10-66	SLCS-250-10-01	PA66 UL94V2	Natural	15,9	13,5	4,8	4.75 +/- 0.08	1,6	1000
GSLCS-250-10-V0	SLCS-250-10-19	PA66 UL94V0	Natural	15,9	13,5	4,8	4.75 +/- 0.08	1,6	1000
GSLCS-250-16-66	SLCS-250-16-01	PA66 UL94V2	Natural	25,4	13,5	4,8	4.75 +/- 0.08	1,6	1000
GSLCS-250-16-V0	SLCS-250-16-19	PA66 UL94V0	Natural	25,4	13,5	4,8	4.75 +/- 0.08	1,6	1000
GSLCS-500-3-66	SLCS-500-3-01	PA66 UL94V2	Natural	4,8	20,1	11,1	4.75 +/- 0.08	1,6	1000
GSLCS-500-3-V0	SLCS-500-3-19	PA66 UL94V0	Natural	4,8	20,1	11,1	4.75 +/- 0.08	1,6	1000
GSLCS-500-4-66	SLCS-500-4-01	PA66 UL94V2	Natural	6,4	20,1	11,1	4.75 +/- 0.08	1,6	1000
GSLCS-500-4-V0	SLCS-500-4-19	PA66 UL94V0	Natural	6,4	20,1	11,1	4.75 +/- 0.08	1,6	1000
GSLCS-500-6-66	SLCS-500-6-01	PA66 UL94V2	Natural	9,5	20,1	11,1	4.75 +/- 0.08	1,6	1000
GSLCS-500-6-V0	SLCS-500-6-19	PA66 UL94V0	Natural	9,5	20,1	11,1	4.75 +/- 0.08	1,6	1000
GSLCS-500-8-66	SLCS-500-8-01	PA66 UL94V2	Natural	12,7	20,1	11,1	4.75 +/- 0.08	1,6	1000
GSLCS-500-8-V0	SLCS-500-8-19	PA66 UL94V0	Natural	12,7	20,1	11,1	4.75 +/- 0.08	1,6	1000
GSLCS-500-10-66	SLCS-500-10-01	PA66 UL94V2	Natural	15,9	20,1	11,1	4.75 +/- 0.08	1,6	1000
GSLCS-500-10-V0	SLCS-500-10-19	PA66 UL94V0	Natural	15,9	20,1	11,1	4.75 +/- 0.08	1,6	1000
GSLCS-500-16-66	SLCS-500-16-01	PA66 UL94V2	Natural	25,4	20,1	11,1	4.75 +/- 0.08	1,6	1000
GSLCS-500-16-V0	SLCS-500-16-19	PA66 UL94V0	Natural	25,4	20,1	11,1	4.75 +/- 0.08	1,6	1000

Identical to Richco / Essentra series: SLCS-250-x / SLCS-500-x
Packaging and price unit: 1000
Functional dimension "A" or "L" (if available): 3 ≙ 4,8mm; 4 ≙ 6,4mm; 4M ≙ 4,0mm; 5 ≙ 7,9mm; 6 ≙ 9,5mm; 8 ≙ 12,7mm; 10 ≙ 15,9mm; 16 ≙ 25,4mm

Reference GSLCS-250-3-01

GSLCS

Download (187.72KB)
