Spacer roller self-retaining M4 / SSRS8 / GSSRS8 ★ Gecko Fastener GmbH

GSSRS 8 Series - Bracket for screw mounting #2

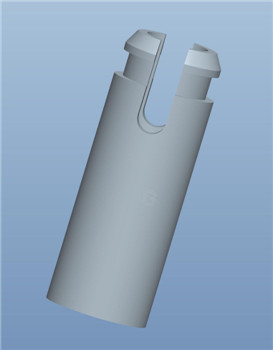

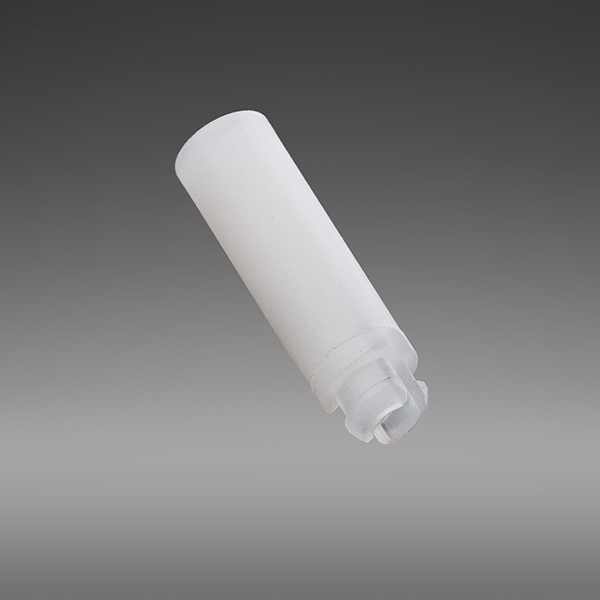

GSSRS 8 Series - Bracket for screw mounting

160.38 €

VAT excluded Änderungen und Preisirrtümer vorbehalten

Packaging and price unit: 1000

For screw size M4
Ø hole ≙ 5.94 ± 0.08 mm
PCB thickness: 1.6 mm

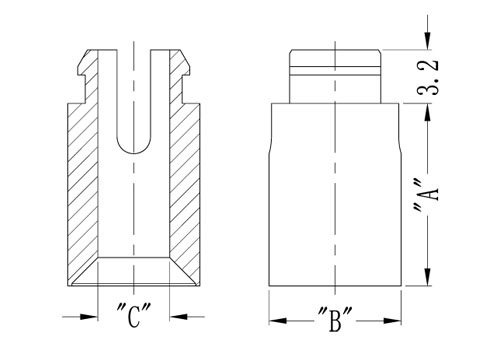

"C" ≙ 4.3 mm / "B" ≙ 7.9 mm

GSSRS8 Series

Units	Discount	You will save	Price/unit
5	3%	24.06 €	155.57 €
10	6%	96.23 €	150.76 €
20	10%	320.76 €	144.34 €
30	15%	721.71 €	136.32 €

Add to watchlist

Note

Please contact us for small quantities, free samples and further technical details.

PCB Support - Spacer - Locking Two Prong, Round, #8/M4

Article No.	Cross-Ref.	Material	Colour	A	B	C	FIG	Drill hole	Plate thickness	Screw	PU
GSSRS8-4-66	SSRS8-4-01	PA66 UL94V2	Natural	6,4	3,2	1,7	4	5.9 +/- 0.08	1,57	#8/M4	1000
GSSRS8-4-V0	SSRS8-4-19	PA66 UL94V0	Natural	6,4	3,2	1,7	4	5.9 +/- 0.08	1,57	#8/M4	1000
GSSRS8-5-66	SSRS8-5-01	PA66 UL94V2	Natural	7,9	3,2	1,7	4	5.9 +/- 0.08	1,57	#8/M4	1000
GSSRS8-5-V0	SSRS8-5-19	PA66 UL94V0	Natural	7,9	3,2	1,7	4	5.9 +/- 0.08	1,57	#8/M4	1000
GSSRS8-6-66	SSRS8-6-01 / 13SS008037	PA66 UL94V2	Natural	9,5	3,2	1,7	4	5.9 +/- 0.08	1,57	#8/M4	1000
GSSRS8-6-V0	SSRS8-6-19	PA66 UL94V0	Natural	9,5	3,2	1,7	4	5.9 +/- 0.08	1,57	#8/M4	1000
GSSRS8-7-66	SSRS8-7-01	PA66 UL94V2	Natural	11,1	3,2	1,7	4	5.9 +/- 0.08	1,57	#8/M4	1000
GSSRS8-7-V0	SSRS8-7-19	PA66 UL94V0	Natural	11,1	3,2	1,7	4	5.9 +/- 0.08	1,57	#8/M4	1000
GSSRS8-8-66	SSRS8-8-01 / 13SS008050	PA66 UL94V2	Natural	12,7	3,2	1,7	4	5.9 +/- 0.08	1,57	#8/M4	1000
GSSRS8-8-V0	SSRS8-8-19	PA66 UL94V0	Natural	12,7	3,2	1,7	4	5.9 +/- 0.08	1,57	#8/M4	1000
GSSRS8-10-66	SRS8-10-01	PA66 UL94V2	Natural	15,9	3,2	1,7	4	5.9 +/- 0.08	1,57	#8/M4	1000
GSSRS8-10-V0	SRS8-10-19	PA66 UL94V0	Natural	15,9	3,2	1,7	4	5.9 +/- 0.08	1,57	#8/M4	1000
GSSRS8-12-66	SRS8-12-01	PA66 UL94V2	Natural	19,1	3,2	1,7	4	5.9 +/- 0.08	1,57	#8/M4	1000
GSSRS8-12-V0	SRS8-12-19	PA66 UL94V0	Natural	19,1	3,2	1,7	4	5.9 +/- 0.08	1,57	#8/M4	1000
GSSRS8-14-66	SRS8-14-01	PA66 UL94V2	Natural	22,2	3,2	1,7	4	5.9 +/- 0.08	1,57	#8/M4	1000
GSSRS8-14-V0	SRS8-14-19	PA66 UL94V0	Natural	22,2	3,2	1,7	4	5.9 +/- 0.08	1,57	#8/M4	1000
GSSRS8-16-66	SSRS8-16-01	PA66 UL94V2	Natural	25,4	3,2	1,7	4	5.9 +/- 0.08	1,57	#8/M4	1000
GSSRS8-16-V0	SSRS8-16-19	PA66 UL94V0	Natural	25,4	3,2	1,7	4	5.9 +/- 0.08	1,57	#8/M4	1000
GSSRS8-2-4-66	SSRS8-2-4-01	PA66 UL94V2	Natural	6,4	3,85	2,3	4	5.9 +/- 0.08	2,20	#8/M4	1000
GSSRS8-2-4-V0	SSRS8-2-4-19	PA66 UL94V0	Natural	6,4	3,85	2,3	5	5.9 +/- 0.08	2,20	#8/M4	1000
GSSRS8-2-5-66	SSRS8-2-5-01	PA66 UL94V2	Natural	7,9	3,85	2,3	4	5.9 +/- 0.08	2,20	#8/M4	1000
GSSRS8-2-5-V0	SSRS8-2-5-19	PA66 UL94V0	Natural	7,9	3,85	2,3	5	5.9 +/- 0.08	2,20	#8/M4	1000
GSSRS8-2-6-66	SSRS8-2-6-01	PA66 UL94V2	Natural	9,5	3,85	2,3	4	5.9 +/- 0.08	2,20	#8/M4	1000
GSSRS8-2-6-V0	SSRS8-2-6-19	PA66 UL94V0	Natural	9,5	3,85	2,3	5	5.9 +/- 0.08	2,20	#8/M4	1000
GSRS8-2-7-66	SSRS8-2-7-01	PA66 UL94V2	Natural	11,1	3,85	2,3	4	5.9 +/- 0.08	2,20	#8/M4	1000
GSSRS8-2-7-V0	SSRS8-2-7-19	PA66 UL94V0	Natural	11,1	3,85	2,3	5	5.9 +/- 0.08	2,20	#8/M4	1000
GSSRS8-2-8-66	SSRS8-2-8-01	PA66 UL94V2	Natural	12,7	3,85	2,3	4	5.9 +/- 0.08	2,20	#8/M4	1000
GSSRS8-2-8-V0	SSRS8-2-8-19	PA66 UL94V0	Natural	12,7	3,85	2,3	5	5.9 +/- 0.08	2,20	#8/M4	1000
GSSRS8-2-10-66	SSRS8-2-10-01	PA66 UL94V2	Natural	15,9	3,85	2,3	4	5.9 +/- 0.08	2,20	#8/M4	1000
GSSRS8-2-10-V0	SSRS8-2-10-19	PA66 UL94V0	Natural	15,9	3,85	2,3	5	5.9 +/- 0.08	2,20	#8/M4	1000
GSSRS8-2-12-66	SSRS8-2-12-01	PA66 UL94V2	Natural	19,1	3,85	2,3	4	5.9 +/- 0.08	2,20	#8/M4	1000
GSSRS8-2-12-V0	SSRS8-2-12-19	PA66 UL94V0	Natural	19,1	3,85	2,3	5	5.9 +/- 0.08	2,20	#8/M4	1000
GSSRS8-2-14-66	SSRS8-2-14-01	PA66 UL94V2	Natural	22,2	3,85	2,3	4	5.9 +/- 0.08	2,20	#8/M4	1000
GSSRS8-2-14-V0	SSRS8-2-14-19	PA66 UL94V0	Natural	22,2	3,85	2,3	5	5.9 +/- 0.08	2,20	#8/M4	1000
GSSRS8-2-16-66	SSRS8-2-16-01	PA66 UL94V2	Natural	25,4	3,85	2,3	4	5.9 +/- 0.08	2,20	#8/M4	1000
GSSRS8-2-16-V0	SSRS8-2-16-19	PA66 UL94V0	Natural	25,4	3,85	2,3	5	5.9 +/- 0.08	2,20	#8/M4	1000
