    Dual Locking Spacers Dual Locking Spacers Dual Locking Spacers

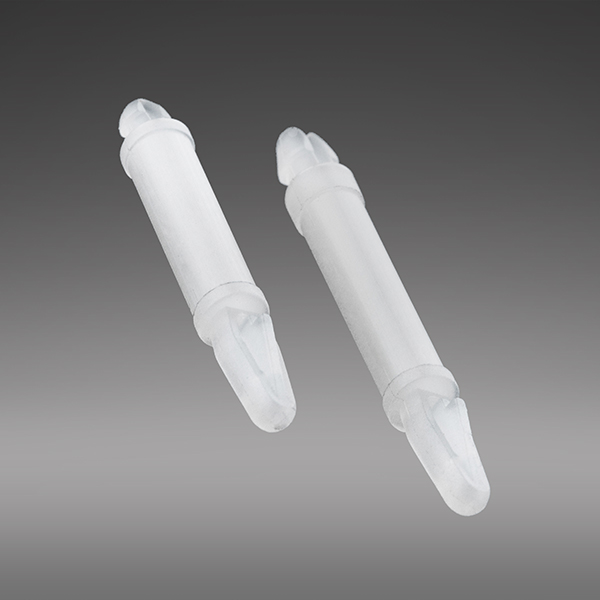

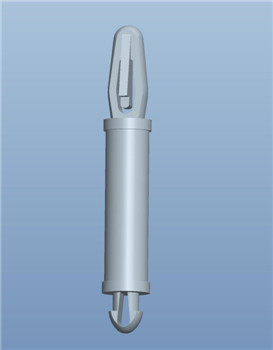

    GTLSP Series - Locking Circuit Board Support I

    111.60 €
    VAT excluded Änderungen und Preisirrtümer vorbehalten

    Packaging and price unit: 1000 Fastening technology for printed circuit boards / spacers

    In lengths from 3.2 - 15.9mm (others on request)

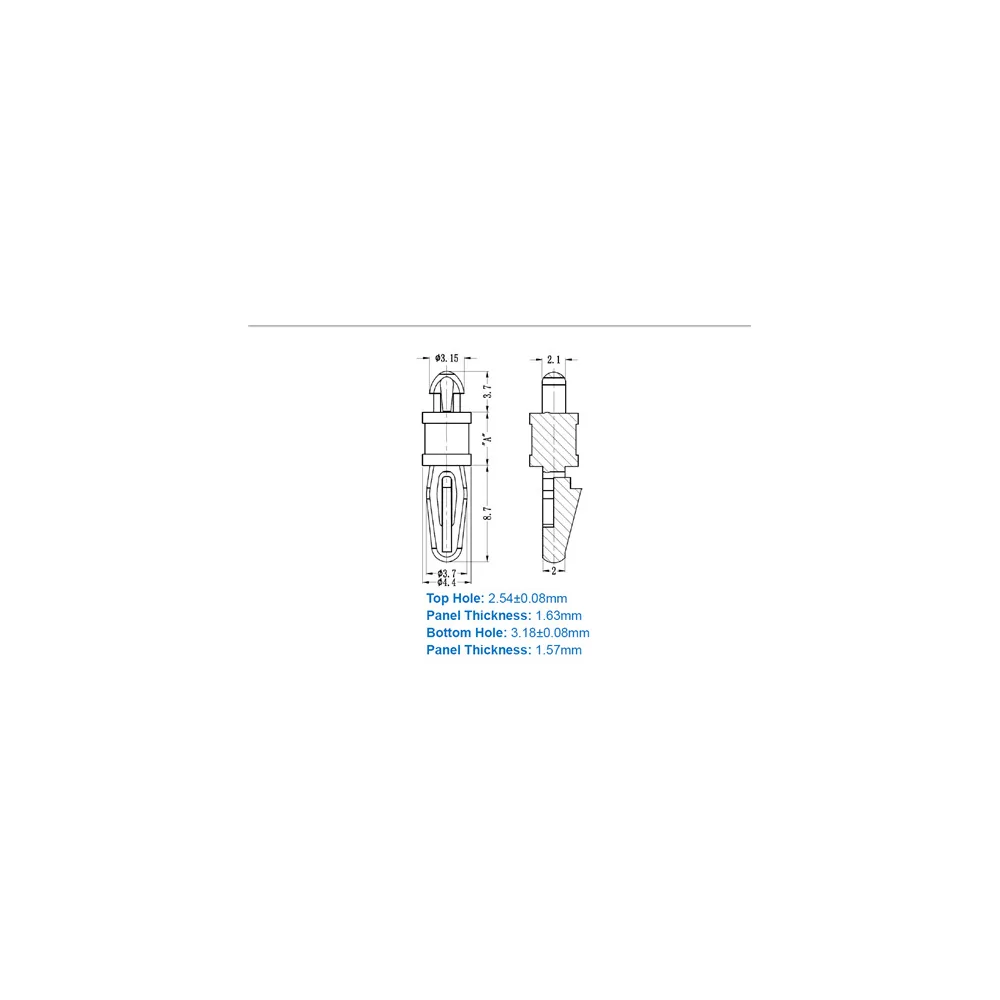

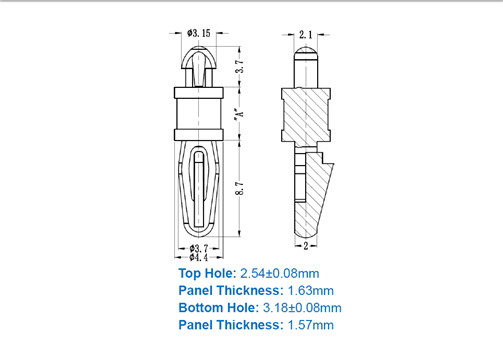

    PCB thickness ≙ 1.63mm (top) & 1.57mm (bottom)
    Ø hole ≙ 2.54±0.08mm (top) & 3.18±0.08mm (bottom)
    Colour: Natural - Material: PA66 UL 94V2

    GTLSP Series
    UnitsDiscountYou will savePrice/unit
    53%16.74 €108.25 €
    106%66.96 €104.90 €
    2010%223.20 €100.44 €
    3015%502.20 €94.86 €
    Note

    Please contact us for small quantities, free samples and further technical details.



    PCB Support - Spacer - Locking Two Prong, Bayonet Spacer, Teardrop

    Article no.Cross-ref.MaterialColourAFIGHole topDrill hole bottomPanel thickness topPlate thickness bottomPU
    GTLSP-2-66LCBST-2-01PA66 UL94V2Natural3,223.18 +/- 0.052.54 +/- 0.051,571,631000
    GTLSP-2-V0LCBST-2-19PA66 UL94V0Natural3,223.18 +/- 0.052.54 +/- 0.051,571,631000
    GTLSP-3-66LCBST-3-01PA66 UL94V2Natural4,823.18 +/- 0.052.54 +/- 0.051,571,631000
    GTLSP-3-V0LCBST-3-19PA66 UL94V0Natural4,823.18 +/- 0.052.54 +/- 0.051,571,631000
    GTLSP-4-66LCBST-4-01PA66 UL94V2Natural6,423.18 +/- 0.052.54 +/- 0.051,571,631000
    GTLSP-4-V0LCBST-4-19PA66 UL94V0Natural6,423.18 +/- 0.052.54 +/- 0.051,571,631000
    GTLSP-5-66LCBST-5-01PA66 UL94V2Natural7,923.18 +/- 0.052.54 +/- 0.051,571,631000
    GTLSP-5-V0LCBST-5-19PA66 UL94V0Natural7,923.18 +/- 0.052.54 +/- 0.051,571,631000
    GTLSP-6-66LCBST-6-01PA66 UL94V2Natural9,523.18 +/- 0.052.54 +/- 0.051,571,631000
    GTLSP-6-V0LCBST-6-19PA66 UL94V0Natural9,523.18 +/- 0.052.54 +/- 0.051,571,631000
    GTLSP-7-66LCBST-7-01PA66 UL94V2Natural11,123.18 +/- 0.052.54 +/- 0.051,571,631000
    GTLSP-7-V0LCBST-7-19PA66 UL94V0Natural11,123.18 +/- 0.052.54 +/- 0.051,571,631000
    GTLSP-8-66LCBST-8-01PA66 UL94V2Natural12,723.18 +/- 0.052.54 +/- 0.051,571,631000
    GTLSP-8-V0LCBST-8-19PA66 UL94V0Natural12,723.18 +/- 0.052.54 +/- 0.051,571,631000
    GTLSP-10-66LCBST-10-01PA66 UL94V2Natural15,923.18 +/- 0.052.54 +/- 0.051,571,631000
    GTLSP-10-V0LCBST-10-19PA66 UL94V0Natural15,923.18 +/- 0.052.54 +/- 0.051,571,631000
    Identical to Richco / Essentra series
    LCBST
    Packaging and price unit
    1000
    Functional dimension "A" or "L" (if available)
    2 ≙ 3,2mm 3 ≙ 4,8mm; 4 ≙ 6,4mm; 5 ≙ 7,9mm; 6 ≙ 9,5mm; 7 ≙ 11,1mm; 8 ≙ 12,7mm; 10 ≙ 15,9mm;
    Cross-reference
    LCBST-2-01 LCBST-3-01 LCBST-4-01 LCBST-5-01 LCBST-6-01 LCBST-7-01 LCBST-8-01 LCBST-10-01 LCBST-2-19 LCBST-3-19 LCBST-4-19 LCBST-5-19 LCBST-6-19 LCBST-7-19 LCBST-8-19 LCBST-10-19
    Catalog #
    40927 40928 40929 40930 40931 40932 40933 40934 42043 42044 42045 42046 42047 42048 42049 42050
    GTLSP-2-66
