Distanziale a scatto per filettature M2,5 - M3 & m4 | Gecko Fastener GmbH

Serie GTCBNS - Supporto per scheda di circuito di bloccaggio filettato

128,65 €

Tasse escluse Soggetto a modifiche ed errori di prezzo.

Unità di imballaggio e prezzo: 1000

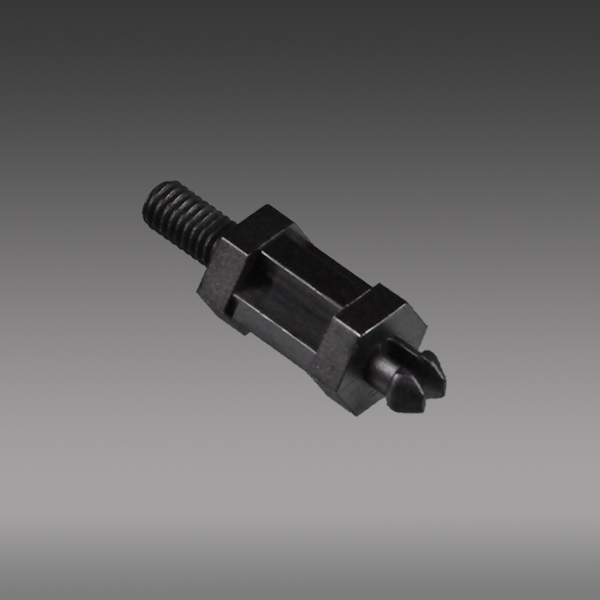

Distanziatore per PCB per M2,5 & M3 & M4

Colore: nero / materiale: PA66 UL94V2
In lunghezze di 3,0 e 20,0 mm
Spessore del PCB: 1,6 mm
Ø foro ≙ 3,0 ± 0,08 mm

GTCBNS Series

Unità	Sconti	Si risparmia	Prezzo/unità
5	3%	19,30 €	124,79 €
10	6%	77,19 €	120,93 €
20	10%	257,30 €	115,79 €
30	15%	578,93 €	109,35 €

Aggiungi alla lista di controllo

Nota

Vi preghiamo di contattarci per piccole quantità, campioni gratuiti e ulteriori dati tecnici.

Supporto per PCB - Distanziatore - Distanziatore filettato, supporto a vite, esagonale, bloccaggio a due punte, M2,5, M3, M4

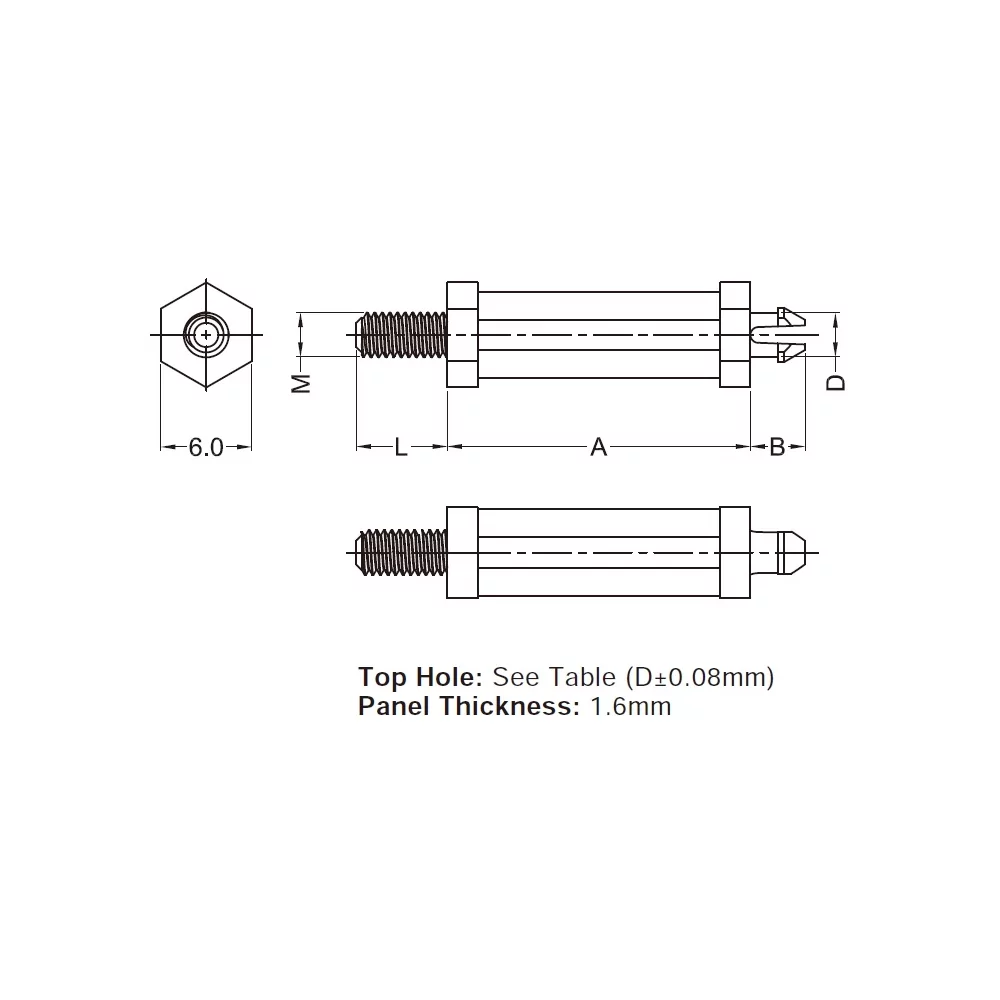

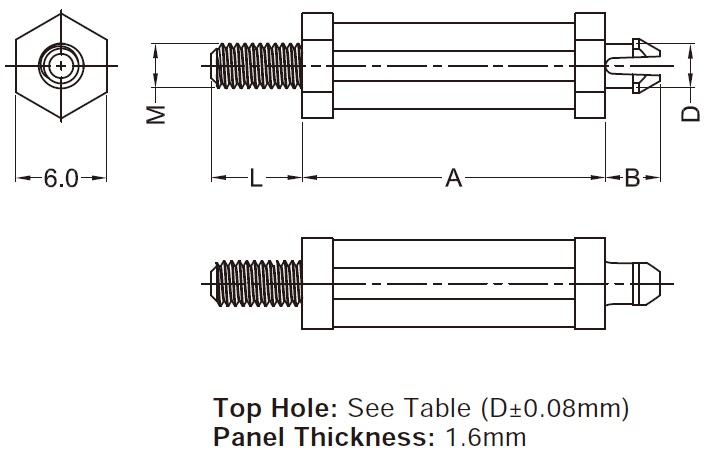

Articolo n.	Riferimento incrociato.	Materiale	Colore	A	B	D	L	Il filo	PU
GTCBNS-M2.5-3-66	-	PA66 UL94V2	Naturale	3,0	3,6	3,0	6,0	M2.5	1000
GTCBNS-M2.5-3-V0	-	PA66 UL94V0	Naturale	3,0	3,6	3,0	6,0	M2.5	1000
GTCBNS-M2.5-3-66B	TCBNS-M2.5-3	PA66 UL94V2	Nero	3,0	3,6	3,0	6,0	M2.5	1000
GTCBNS-M2.5-3-BV0	-	PA66 UL94V0	Nero	3,0	3,6	3,0	6,0	M2.5	1000
GTCBNS-M2.5-5-66	-	PA66 UL94V2	Naturale	5,0	3,6	3,0	6,0	M2.5	1000
GTCBNS-M2,5-5-V0	-	PA66 UL94V0	Naturale	5,0	3,6	3,0	6,0	M2.5	1000
GTCBNS-M2.5-5-66B	TCBNS-M2.5-5	PA66 UL94V2	Nero	5,0	3,6	3,0	6,0	M2.5	1000
GTCBNS-M2.5-5-BV0	-	PA66 UL94V0	Nero	5,0	3,6	3,0	6,0	M2.5	1000
GTCBNS-M2.5-6-66	-	PA66 UL94V2	Naturale	6,0	3,6	3,0	6,0	M2.5	1000
GTCBNS-M2.5-6-V0	-	PA66 UL94V0	Naturale	6,0	3,6	3,0	6,0	M2.5	1000
GTCBNS-M2.5-6-66B	TCBNS-M2.5-6	PA66 UL94V2	Nero	6,0	3,6	3,0	6,0	M2.5	1000
GTCBNS-M2.5-6-BV0	-	PA66 UL94V0	Nero	6,0	3,6	3,0	6,0	M2.5	1000
GTCBNS-M2.5-8-66	-	PA66 UL94V2	Naturale	8,0	3,6	3,0	6,0	M2.5	1000
GTCBNS-M2.5-8-V0	-	PA66 UL94V0	Naturale	8,0	3,6	3,0	6,0	M2.5	1000
GTCBNS-M2.5-8-66B	TCBNS-M2.5-8	PA66 UL94V2	Nero	8,0	3,6	3,0	6,0	M2.5	1000
GTCBNS-M2.5-8-BV0	-	PA66 UL94V0	Nero	8,0	3,6	3,0	6,0	M2.5	1000
GTCBNS-M2.5-10-66	-	PA66 UL94V2	Naturale	10,0	3,6	3,0	6,0	M2.5	1000
GTCBNS-M2.5-10-V0	-	PA66 UL94V0	Naturale	10,0	3,6	3,0	6,0	M2.5	1000
GTCBNS-M2.5-10-66B	TCBNS-M2.5-10	PA66 UL94V2	Nero	10,0	3,6	3,0	6,0	M2.5	1000
GTCBNS-M2.5-10-BV0	-	PA66 UL94V0	Nero	10,0	3,6	3,0	6,0	M2.5	1000
GTCBNS-M2.5-12-66	-	PA66 UL94V2	Naturale	12,0	3,6	3,0	6,0	M2.5	1000
GTCBNS-M2.5-12-V0	-	PA66 UL94V0	Naturale	12,0	3,6	3,0	6,0	M2.5	1000
GTCBNS-M2.5-12-66B	TCBNS-M2.5-12	PA66 UL94V2	Nero	12,0	3,6	3,0	6,0	M2.5	1000
GTCBNS-M2,5-12-BV0	-	PA66 UL94V0	Nero	12,0	3,6	3,0	6,0	M2.5	1000
GTCBNS-M2.5-15-66	-	PA66 UL94V2	Naturale	15,0	3,6	3,0	6,0	M2.5	1000
GTCBNS-M2,5-15-V0	-	PA66 UL94V0	Naturale	15,0	3,6	3,0	6,0	M2.5	1000
GTCBNS-M2.5-15-66B	TCBNS-M2.5-15	PA66 UL94V2	Nero	15,0	3,6	3,0	6,0	M2.5	1000
GTCBNS-M2,5-15-BV0	-	PA66 UL94V0	Nero	15,0	3,6	3,0	6,0	M2.5	1000
GTCBNS-M2.5-20-66	-	PA66 UL94V2	Naturale	20,0	3,6	3,0	6,0	M2.5	1000
GTCBNS-M2.5-20-V0	-	PA66 UL94V0	Naturale	20,0	3,6	3,0	6,0	M2.5	1000
GTCBNS-M2.5-20-66B	TCBNS-M2.5-20	PA66 UL94V2	Nero	20,0	3,6	3,0	6,0	M2.5	1000
GTCBNS-M2,5-20-BV0	-	PA66 UL94V0	Nero	20,0	3,6	3,0	6,0	M2.5	1000
GTCBNS-M3-3-66	-	PA66 UL94V2	Naturale	3,0	3,6	3,0	6,0	M3	1000
GTCBNS-M3-3-V0	-	PA66 UL94V0	Naturale	3,0	3,6	3,0	6,0	M3	1000
GTCBNS-M3-3-66B	TCBNS-M3-3	PA66 UL94V2	Nero	3,0	3,6	3,0	6,0	M3	1000
GTCBNS-M3-3-BV0	-	PA66 UL94V0	Nero	3,0	3,6	3,0	6,0	M3	1000
GTCBNS-M3-5-66	-	PA66 UL94V2	Naturale	5,0	3,6	3,0	6,0	M3	1000
GTCBNS-M3-5-V0	-	PA66 UL94V0	Naturale	5,0	3,6	3,0	6,0	M3	1000
GTCBNS-M3-5-66B	TCBNS-M3-5	PA66 UL94V2	Nero	5,0	3,6	3,0	6,0	M3	1000
GTCBNS-M3-5-BV0	-	PA66 UL94V0	Nero	5,0	3,6	3,0	6,0	M3	1000
GTCBNS-M3-6-66	-	PA66 UL94V2	Naturale	6,0	3,6	3,0	6,0	M3	1000
GTCBNS-M3-6-V0	-	PA66 UL94V0	Naturale	6,0	3,6	3,0	6,0	M3	1000
GTCBNS-M3-6-66B	TCBNS-M3-6	PA66 UL94V2	Nero	6,0	3,6	3,0	6,0	M3	1000
GTCBNS-M3-6-BV0	-	PA66 UL94V0	Nero	6,0	3,6	3,0	6,0	M3	1000
GTCBNS-M3-8-66	-	PA66 UL94V2	Naturale	8,0	3,6	3,0	6,0	M3	1000
GTCBNS-M3-8-V0	-	PA66 UL94V0	Naturale	8,0	3,6	3,0	6,0	M3	1000
GTCBNS-M3-8-66B	TCBNS-M3-8	PA66 UL94V2	Nero	8,0	3,6	3,0	6,0	M3	1000
GTCBNS-M3-8-BV0	-	PA66 UL94V0	Nero	8,0	3,6	3,0	6,0	M3	1000
GTCBNS-M3-10-66	-	PA66 UL94V2	Naturale	10,0	3,6	3,0	6,0	M3	1000
GTCBNS-M3-10-V0	-	PA66 UL94V0	Naturale	10,0	3,6	3,0	6,0	M3	1000
GTCBNS-M3-10-66B	TCBNS-M3-10	PA66 UL94V2	Nero	10,0	3,6	3,0	6,0	M3	1000
GTCBNS-M3-10-BV0	-	PA66 UL94V0	Nero	10,0	3,6	3,0	6,0	M3	1000
GTCBNS-M3-12-66	-	PA66 UL94V2	Naturale	12,0	3,6	3,0	6,0	M3	1000
GTCBNS-M3-12-V0	-	PA66 UL94V0	Naturale	12,0	3,6	3,0	6,0	M3	1000
GTCBNS-M3-12-66B	TCBNS-M3-12	PA66 UL94V2	Nero	12,0	3,6	3,0	6,0	M3	1000
GTCBNS-M3-12-BV0	-	PA66 UL94V0	Nero	12,0	3,6	3,0	6,0	M3	1000
GTCBNS-M3-15-66	-	PA66 UL94V2	Naturale	15,0	3,6	3,0	6,0	M3	1000
GTCBNS-M3-15-V0	-	PA66 UL94V0	Naturale	15,0	3,6	3,0	6,0	M3	1000
GTCBNS-M3-15-66B	TCBNS-M3-15	PA66 UL94V2	Nero	15,0	3,6	3,0	6,0	M3	1000
GTCBNS-M3-15-BV0	-	PA66 UL94V0	Nero	15,0	3,6	3,0	6,0	M3	1000
GTCBNS-M3-20-66	-	PA66 UL94V2	Naturale	20,0	3,6	3,0	6,0	M3	1000
GTCBNS-M3-20-V0	-	PA66 UL94V0	Naturale	20,0	3,6	3,0	6,0	M3	1000
GTCBNS-M3-20-66B	TCBNS-M3-20	PA66 UL94V2	Nero	20,0	3,6	3,0	6,0	M3	1000
GTCBNS-M3-20-BV0	-	PA66 UL94V0	Nero	20,0	3,6	3,0	6,0	M3	1000
GTCBNS-M4-3-66	-	PA66 UL94V2	Naturale	3,0	4,8	3,8	6,4	M4	1000
GTCBNS-M4-3-V0	-	PA66 UL94V0	Naturale	3,0	4,8	3,8	6,4	M4	1000
GTCBNS-M4-3-66B	TCBNS-M4-3	PA66 UL94V2	Nero	3,0	4,8	3,8	6,4	M4	1000
GTCBNS-M4-3-BV0	-	PA66 UL94V0	Nero	3,0	4,8	3,8	6,4	M4	1000
GTCBNS-M4-5-66	-	PA66 UL94V2	Naturale	5,0	4,8	3,8	6,4	M4	1000
GTCBNS-M4-5-V0	-	PA66 UL94V0	Naturale	5,0	4,8	3,8	6,4	M4	1000
GTCBNS-M4-5-66B	TCBNS-M4-5	PA66 UL94V2	Nero	5,0	4,8	3,8	6,4	M4	1000
GTCBNS-M4-5-BV0	-	PA66 UL94V0	Nero	5,0	4,8	3,8	6,4	M4	1000
GTCBNS-M4-6-66	-	PA66 UL94V2	Naturale	6,0	4,8	3,8	6,4	M4	1000
GTCBNS-M4-6-V0	-	PA66 UL94V0	Naturale	6,0	4,8	3,8	6,4	M4	1000
GTCBNS-M4-6-66B	TCBNS-M4-6	PA66 UL94V2	Nero	6,0	4,8	3,8	6,4	M4	1000
GTCBNS-M4-6-BV0	-	PA66 UL94V0	Nero	6,0	4,8	3,8	6,4	M4	1000
GTCBNS-M4-8-66	-	PA66 UL94V2	Naturale	8,0	4,8	3,8	6,4	M4	1000
GTCBNS-M4-8-V0	-	PA66 UL94V0	Naturale	8,0	4,8	3,8	6,4	M4	1000
GTCBNS-M4-8-66B	TCBNS-M4-8	PA66 UL94V2	Nero	8,0	4,8	3,8	6,4	M4	1000
GTCBNS-M4-8-BV0	-	PA66 UL94V0	Nero	8,0	4,8	3,8	6,4	M4	1000
GTCBNS-M4-10-66	-	PA66 UL94V2	Naturale	10,0	4,8	3,8	6,4	M4	1000
GTCBNS-M4-10-V0	-	PA66 UL94V0	Naturale	10,0	4,8	3,8	6,4	M4	1000
GTCBNS-M4-10-66B	TCBNS-M4-10	PA66 UL94V2	Nero	10,0	4,8	3,8	6,4	M4	1000
GTCBNS-M4-10-BV0	-	PA66 UL94V0	Nero	10,0	4,8	3,8	6,4	M4	1000
GTCBNS-M4-12-66	-	PA66 UL94V2	Naturale	12,0	4,8	3,8	6,4	M4	1000
GTCBNS-M4-12-V0	-	PA66 UL94V0	Naturale	12,0	4,8	3,8	6,4	M4	1000
GTCBNS-M4-12-66B	TCBNS-M4-12	PA66 UL94V2	Nero	12,0	4,8	3,8	6,4	M4	1000
GTCBNS-M4-12-BV0	-	PA66 UL94V0	Nero	12,0	4,8	3,8	6,4	M4	1000
GTCBNS-M4-15-66	-	PA66 UL94V2	Naturale	15,0	4,8	3,8	6,4	M4	1000
GTCBNS-M4-15-V0	-	PA66 UL94V0	Naturale	15,0	4,8	3,8	6,4	M4	1000
GTCBNS-M4-15-66B	TCBNS-M4-15	PA66 UL94V2	Nero	15,0	4,8	3,8	6,4	M4	1000
GTCBNS-M4-15-BV0	-	PA66 UL94V0	Nero	15,0	4,8	3,8	6,4	M4	1000
GTCBNS-M4-20-66	-	PA66 UL94V2	Naturale	20,0	4,8	3,8	6,4	M4	1000
GTCBNS-M4-20-V0	-	PA66 UL94V0	Naturale	20,0	4,8	3,8	6,4	M4	1000
GTCBNS-M4-20-66B	TCBNS-M4-20	PA66 UL94V2	Nero	20,0	4,8	3,8	6,4	M4	1000
GTCBNS-M4-20-BV0	-	PA66 UL94V0	Nero	20,0	4,8	3,8	6,4	M4	1000

Identico alla serie Richco / Essentra: TCBNS
Imballaggio e unità di prezzo: 1000
Dimensione funzionale "A" o "L" (se disponibile): Angaben in mm.
Riferimento incrociato: TCBNS-M2.5-3 TCBNS-M2.5-5 TCBNS-M2.5-6 TCBNS-M2.5-8 TCBNS-M2.5-10 TCBNS-M2.5-12 TCBNS-M2.5-15 TCBNS-M2.5-20 TCBNS-M3-3 TCBNS-M3-5 TCBNS-M3-6 TCBNS-M3-8 TCBNS-M3-10 TCBNS-M3-12
Catalogo #: 43049 43097 43025 43073 43050 43098 43026 43074 43051 43099 43027 43075 43052 43100 43028 43076 43053 43101 43029 43077 43054 43102 43030 43078 43055 43103 43031 43079 43056 43104 43032 43080 43057 43105 43033 43081 43058 43106 43034 43082 43059 43107 430

Riferimento GTCBNS Series

GTCBNS

Scarica (524.68KB)
