    MSPM Serie GMCBP - Miniposte de apoyo #2 Serie GMCBP - Miniposte de apoyo

    Serie GMCBP - Miniposte de apoyo

    115,90 €
    Impuestos excluidos Modificaciones y tarifas vigentes

    Unidad de embalaje y precio: 1000

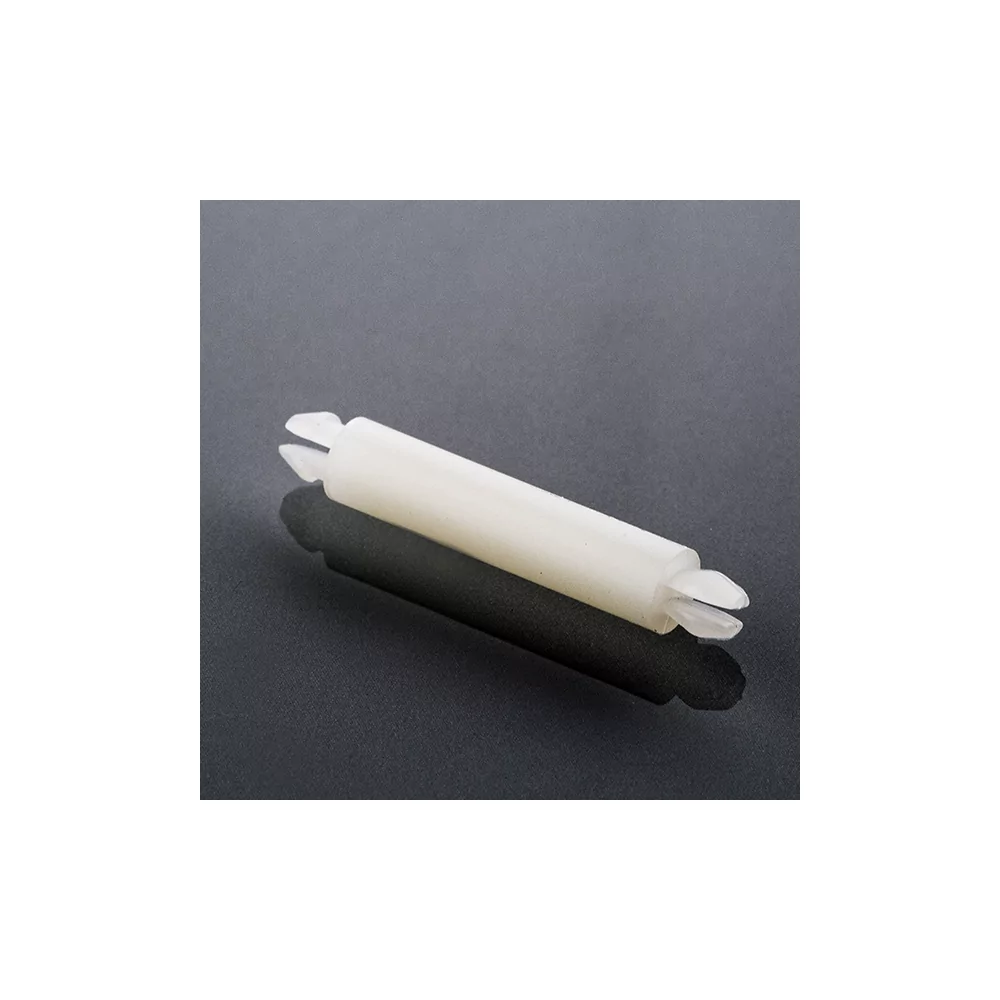

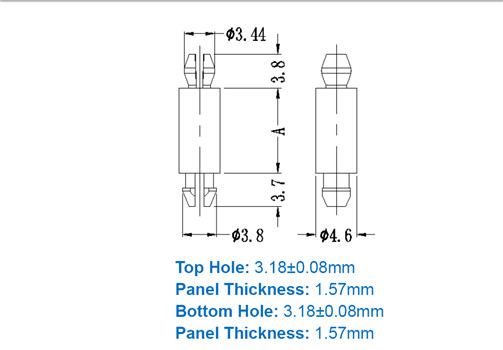

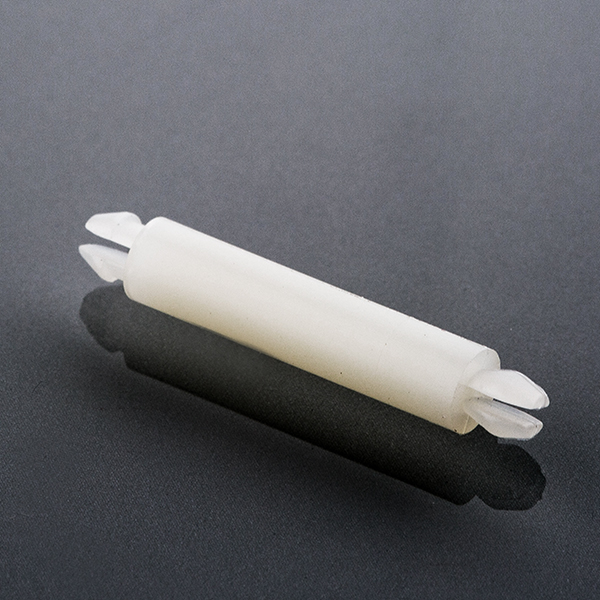

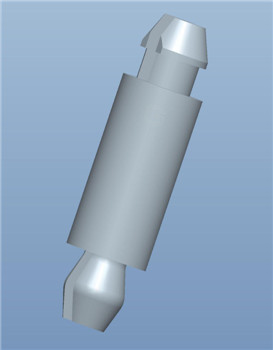

    Distanciador en miniatura
    En longitudes de 2,0 - 38,1 mm (diferentes variantes)
    Grosor de la placa de circuito impreso: 1,57 mm
    Ø agujero ≙ 3,50 ± 0,08 mm

    GMCBP Series
    UnidadesDescuentoAhorraPrecio/unidad
    53%17,39 €112,42 €
    106%69,54 €108,95 €
    2010%231,80 €104,31 €
    3015%521,55 €98,52 €
    Nota

    Póngase en contacto con nosotros para solicitar pequeñas cantidades, muestras gratuitas y más datos técnicos.



    Soporte para placas de circuito impreso - Distanciador - Bloqueo/no bloqueo Dos puntas

    Artículo No.ReferenciaMaterialColorAFIGParte superior del taladroTaladro abajoEspesor de la placa arribaEspesor de la placa abajoPU
    GMCBP-01-66MSPM-1-01PA66 UL94V2Natural2.013.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-01-V0MSPM-1-19PA66 UL94V0Natural2.013.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-1S-66-PA66 UL94V2Natural2,5413.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-1S-V0-PA66 UL94V0Natural2,5413.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-02-66MSPM-2-01PA66 UL94V2Natural3,213.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-02-V0MSPM-2-19PA66 UL94V0Natural3,213.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-4M-66-PA66 UL94V2Natural4.013.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-4M-V0-PA66 UL94V0Natural4.013.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-03-66MSPM-3-01PA66 UL94V2Natural4,813.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-03-V0MSPM-3-19PA66 UL94V0Natural4,813.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-04-66MSPM-4-01PA66 UL94V2Natural6,413.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-04-V0MSPM-4-19PA66 UL94V0Natural6,413.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-05-66MSPM-5-01PA66 UL94V2Natural7,913.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-05-V0MSPM-5-19PA66 UL94V0Natural7,913.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-06-66MSPM-6-01PA66 UL94V2Natural9,513.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-06-V0MSPM-6-19PA66 UL94V0Natural9,513.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-07-66MSPM-7-01PA66 UL94V2Natural11,113.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-07-V0MSPM-7-19PA66 UL94V0Natural11,113.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-08-66MSPM-8-01PA66 UL94V2Natural12,713.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-08-V0MSPM-8-19PA66 UL94V0Natural12,713.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-09-66MSPM-9-01PA66 UL94V2Natural14,313.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-09-V0MSPM-9-19PA66 UL94V0Natural14,313.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-10-66MSPM-10-01PA66 UL94V2Natural15,913.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-10-V0MSPM-10-19PA66 UL94V0Natural15,913.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-11-66MSPM-11-01PA66 UL94V2Natural17,513.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-11-V0MSPM-11-19PA66 UL94V0Natural17,513.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-12-66MSPM-12-01PA66 UL94V2Natural19,113.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-12-V0MSPM-12-19PA66 UL94V0Natural19,113.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-13-66MSPM-13-01PA66 UL94V2Natural20,613.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-13-V0MSPM-13-19PA66 UL94V0Natural20,613.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-14-66MSPM-14-01PA66 UL94V2Natural22,213.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-14-V0MSPM-14-19PA66 UL94V0Natural22,213.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-16-66MSPM-16-01PA66 UL94V2Natural25,413.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-16-V0MSPM-16-19PA66 UL94V0Natural25,413.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-18-66MSPM-18-01PA66 UL94V2Natural28,613.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-18-V0MSPM-18-19PA66 UL94V0Natural28,613.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-20-66MSPM-20-01PA66 UL94V2Natural31,713.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-20-V0MSPM-20-19PA66 UL94V0Natural31,713.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-22-66MSPM-22-01PA66 UL94V2Natural34,913.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-22-V0MSPM-22-19PA66 UL94V0Natural34,913.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-24-66MSPM-24-01PA66 UL94V2Natural38,113.18 +/- 0.053.18 +/- 0.051,571,571000
    GMCBP-24-V0MSPM-24-19PA66 UL94V0Natural38,113.18 +/- 0.053.18 +/- 0.051,571,571000
    Idéntica a la serie Richco / Essentra
    MSPM
    Unidad de embalaje y precio
    1000
    Dimensión funcional "A" o "L" (si está disponible)
    1S ≙ 2,54mm; 2 ≙ 3,2mm 3 ≙ 4,8mm; 4 ≙ 6,4mm; 5 ≙ 7,9mm; 6 ≙ 9,5mm; 7 ≙ 11,1mm; 8 ≙ 12,7mm; 9 ≙ 14,3mm; 10 ≙ 15,9mm; 12 ≙ 19,1mm; 14 ≙ 22,2mm; 16 ≙ 25,4mm; 18 ≙ 28,6mm; 20 ≙ 31,7mm; 22 ≙ 34,9mm; 24 ≙ 38,1mm
    GMCBP Series
