- New

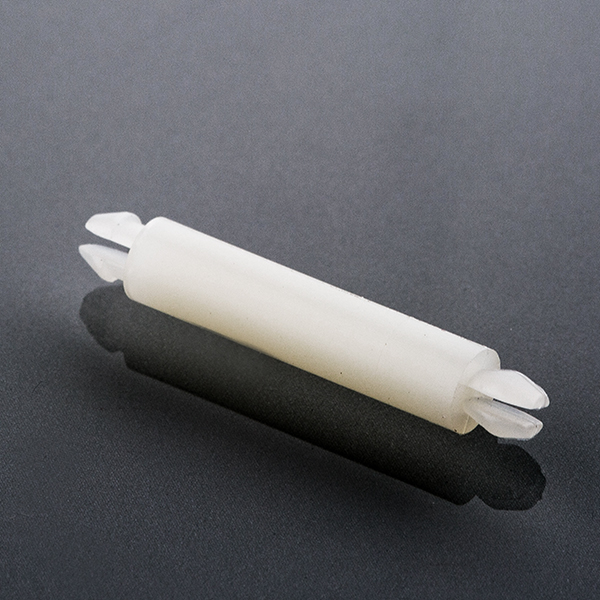

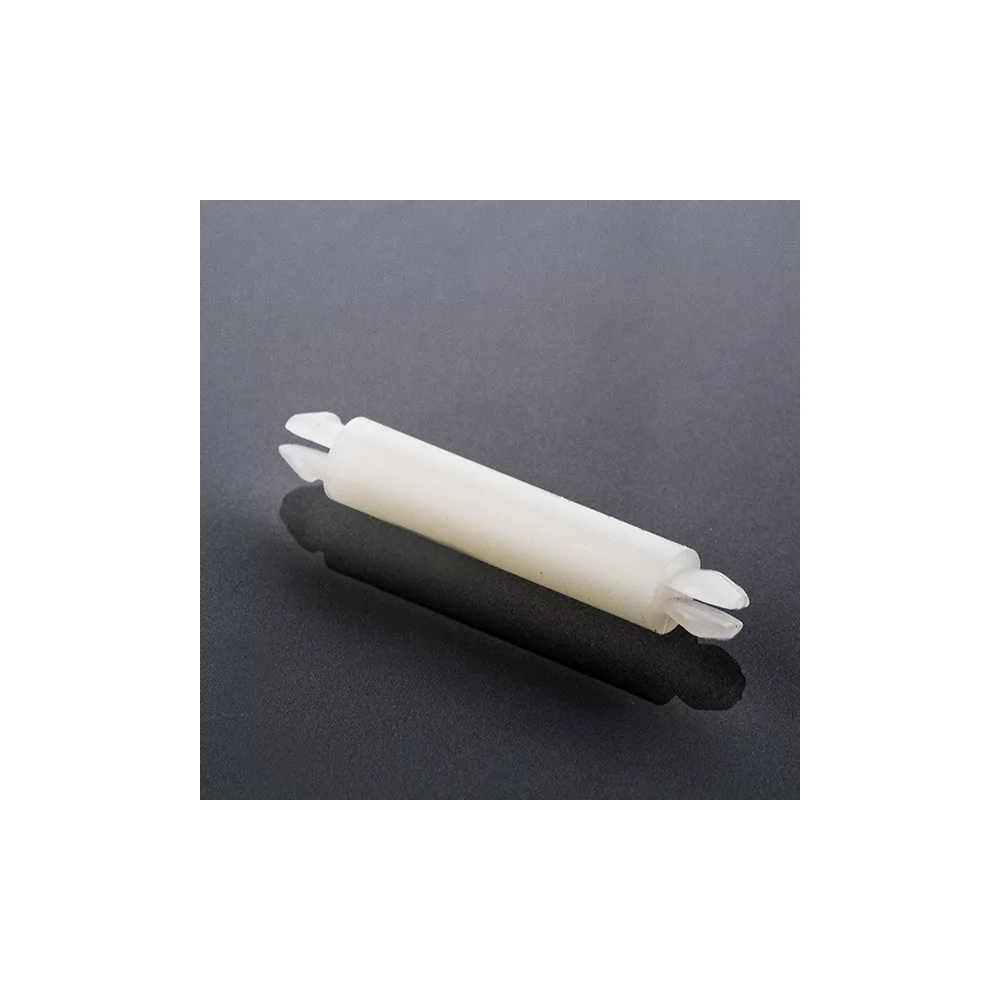

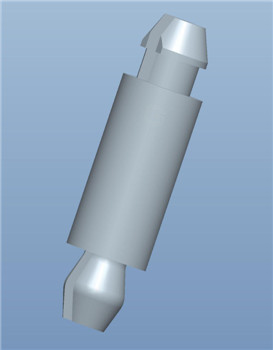

GMCBP Series - Mini Support Post
115.90 €
VAT excluded Änderungen und Preisirrtümer vorbehalten
Packaging and price unit: 1000
Miniature spacer
In lengths from 2.0 - 38.1 mm (different variants)

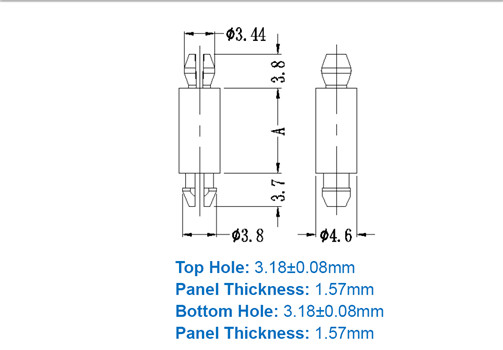

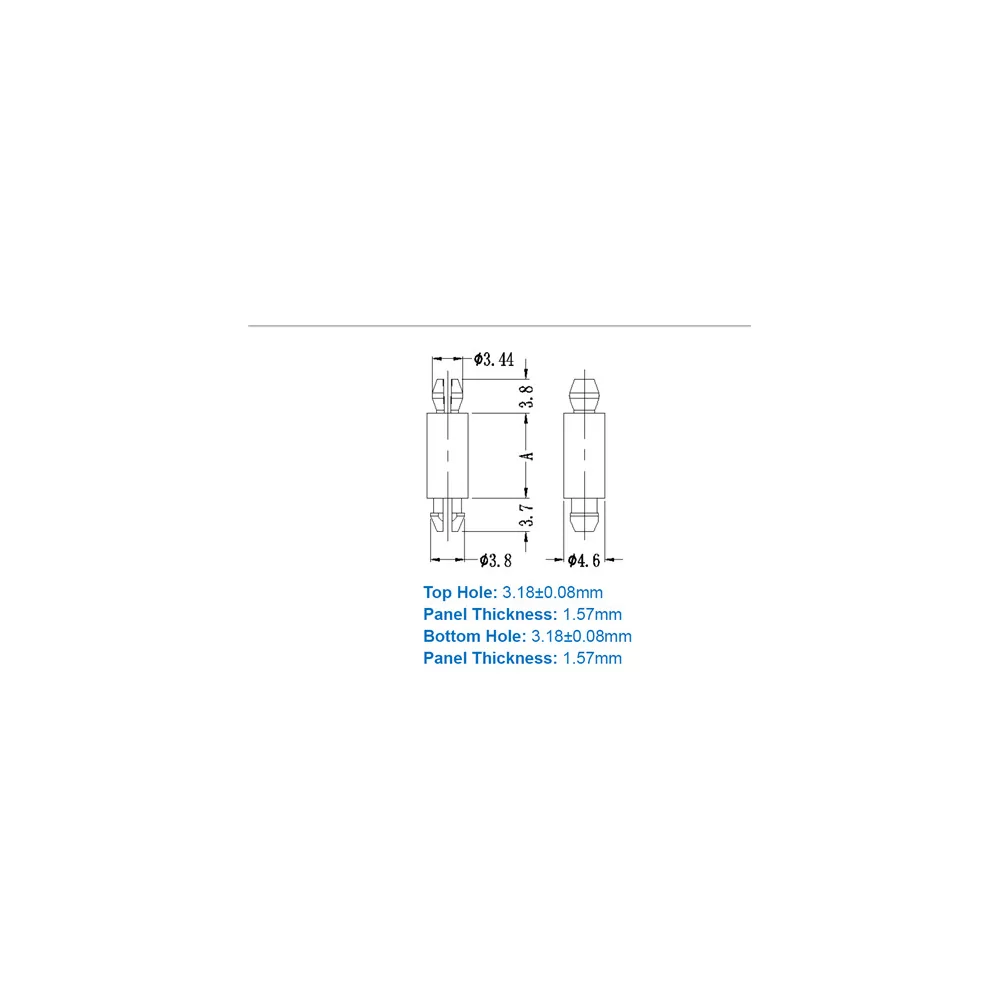

PCB thickness: 1.57 mm
Ø hole ≙ 3.50 ± 0.08 mm
PCB Support - Spacer - Locking/Non Locking Two Prong
| Article No. | Cross-Ref. | Material | Colour | A | FIG | Hole top | Drill hole bottom | Panel thickness top | Plate thickness bottom | PU |
| GMCBP-01-66 | MSPM-1-01 | PA66 UL94V2 | Natural | 2.0 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-01-V0 | MSPM-1-19 | PA66 UL94V0 | Natural | 2.0 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-1S-66 | - | PA66 UL94V2 | Natural | 2,54 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-1S-V0 | - | PA66 UL94V0 | Natural | 2,54 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-02-66 | MSPM-2-01 | PA66 UL94V2 | Natural | 3,2 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-02-V0 | MSPM-2-19 | PA66 UL94V0 | Natural | 3,2 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-4M-66 | - | PA66 UL94V2 | Natural | 4.0 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-4M-V0 | - | PA66 UL94V0 | Natural | 4.0 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-03-66 | MSPM-3-01 | PA66 UL94V2 | Natural | 4,8 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-03-V0 | MSPM-3-19 | PA66 UL94V0 | Natural | 4,8 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-04-66 | MSPM-4-01 | PA66 UL94V2 | Natural | 6,4 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-04-V0 | MSPM-4-19 | PA66 UL94V0 | Natural | 6,4 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-05-66 | MSPM-5-01 | PA66 UL94V2 | Natural | 7,9 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-05-V0 | MSPM-5-19 | PA66 UL94V0 | Natural | 7,9 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-06-66 | MSPM-6-01 | PA66 UL94V2 | Natural | 9,5 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-06-V0 | MSPM-6-19 | PA66 UL94V0 | Natural | 9,5 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-07-66 | MSPM-7-01 | PA66 UL94V2 | Natural | 11,1 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-07-V0 | MSPM-7-19 | PA66 UL94V0 | Natural | 11,1 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-08-66 | MSPM-8-01 | PA66 UL94V2 | Natural | 12,7 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-08-V0 | MSPM-8-19 | PA66 UL94V0 | Natural | 12,7 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-09-66 | MSPM-9-01 | PA66 UL94V2 | Natural | 14,3 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-09-V0 | MSPM-9-19 | PA66 UL94V0 | Natural | 14,3 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-10-66 | MSPM-10-01 | PA66 UL94V2 | Natural | 15,9 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-10-V0 | MSPM-10-19 | PA66 UL94V0 | Natural | 15,9 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-11-66 | MSPM-11-01 | PA66 UL94V2 | Natural | 17,5 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-11-V0 | MSPM-11-19 | PA66 UL94V0 | Natural | 17,5 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-12-66 | MSPM-12-01 | PA66 UL94V2 | Natural | 19,1 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-12-V0 | MSPM-12-19 | PA66 UL94V0 | Natural | 19,1 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-13-66 | MSPM-13-01 | PA66 UL94V2 | Natural | 20,6 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-13-V0 | MSPM-13-19 | PA66 UL94V0 | Natural | 20,6 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-14-66 | MSPM-14-01 | PA66 UL94V2 | Natural | 22,2 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-14-V0 | MSPM-14-19 | PA66 UL94V0 | Natural | 22,2 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-16-66 | MSPM-16-01 | PA66 UL94V2 | Natural | 25,4 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-16-V0 | MSPM-16-19 | PA66 UL94V0 | Natural | 25,4 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-18-66 | MSPM-18-01 | PA66 UL94V2 | Natural | 28,6 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-18-V0 | MSPM-18-19 | PA66 UL94V0 | Natural | 28,6 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-20-66 | MSPM-20-01 | PA66 UL94V2 | Natural | 31,7 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-20-V0 | MSPM-20-19 | PA66 UL94V0 | Natural | 31,7 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-22-66 | MSPM-22-01 | PA66 UL94V2 | Natural | 34,9 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-22-V0 | MSPM-22-19 | PA66 UL94V0 | Natural | 34,9 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-24-66 | MSPM-24-01 | PA66 UL94V2 | Natural | 38,1 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
| GMCBP-24-V0 | MSPM-24-19 | PA66 UL94V0 | Natural | 38,1 | 1 | 3.18 +/- 0.05 | 3.18 +/- 0.05 | 1,57 | 1,57 | 1000 |
- Identical to Richco / Essentra series
- MSPM
- Packaging and price unit
- 1000
- Functional dimension "A" or "L" (if available)
- 1S ≙ 2,54mm; 2 ≙ 3,2mm 3 ≙ 4,8mm; 4 ≙ 6,4mm; 5 ≙ 7,9mm; 6 ≙ 9,5mm; 7 ≙ 11,1mm; 8 ≙ 12,7mm; 9 ≙ 14,3mm; 10 ≙ 15,9mm; 12 ≙ 19,1mm; 14 ≙ 22,2mm; 16 ≙ 25,4mm; 18 ≙ 28,6mm; 20 ≙ 31,7mm; 22 ≙ 34,9mm; 24 ≙ 38,1mm
