    DLMSPM DLMSPM DLMSPM

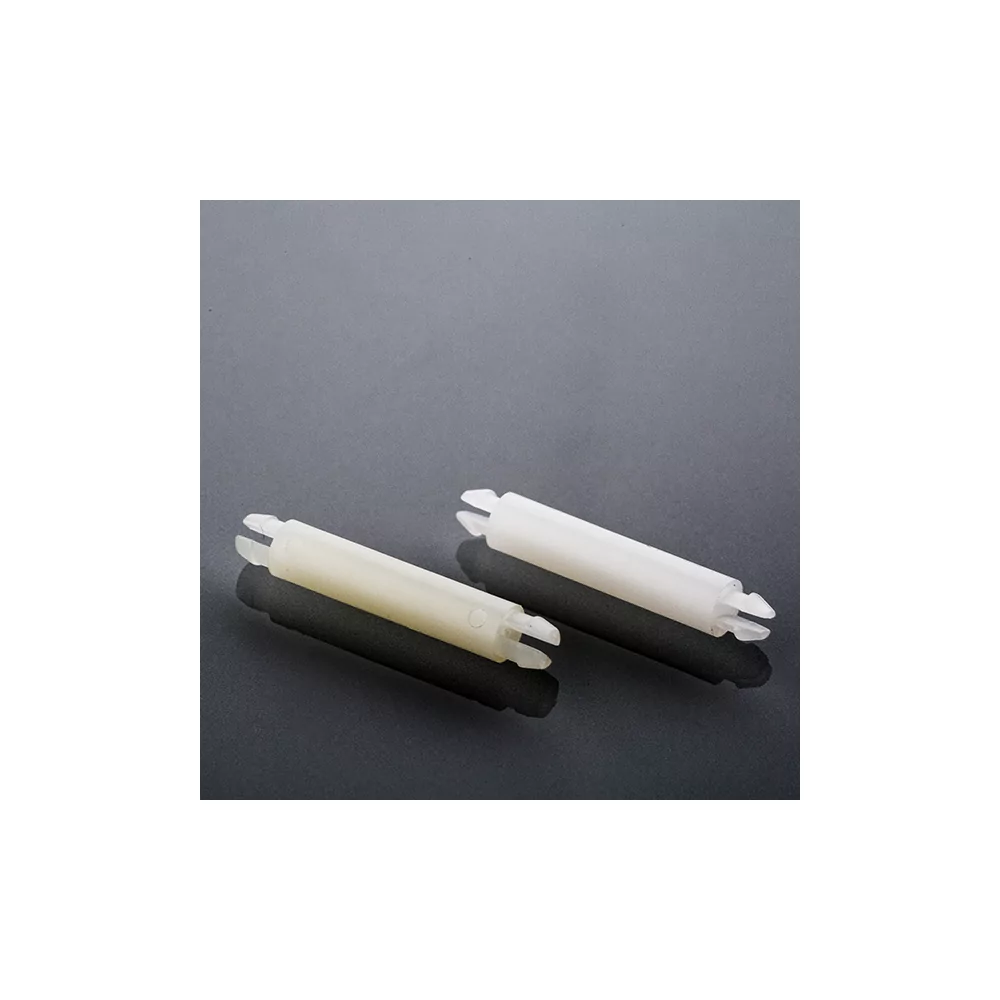

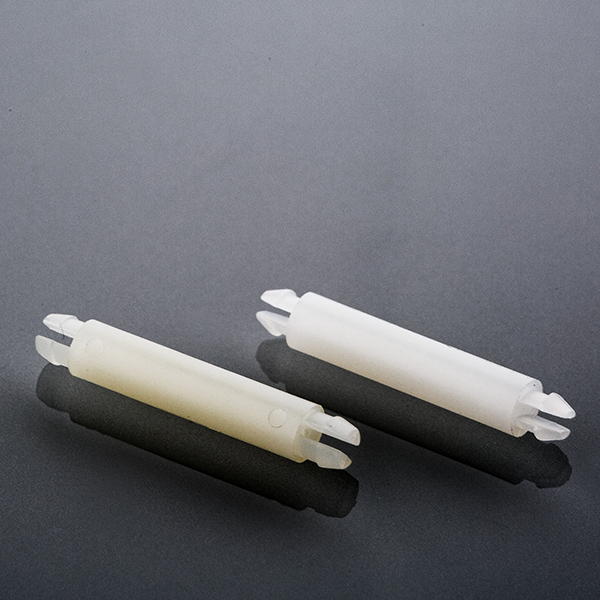

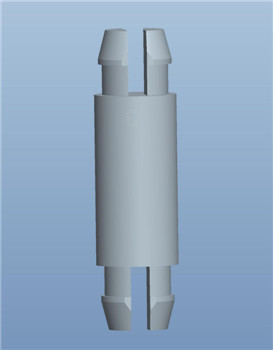

    Serie GMSPDL - Miniposte de apoyo

    119,35 €
    Impuestos excluidos Modificaciones y tarifas vigentes

    Unidad de embalaje y precio: 1000 Técnica de fijación para placas de circuito impreso / separadores

    En longitudes de 3,2 - 38,1 mm (diferentes variantes)
    Grosor de la placa de circuito impreso ≙ 1,57 mm

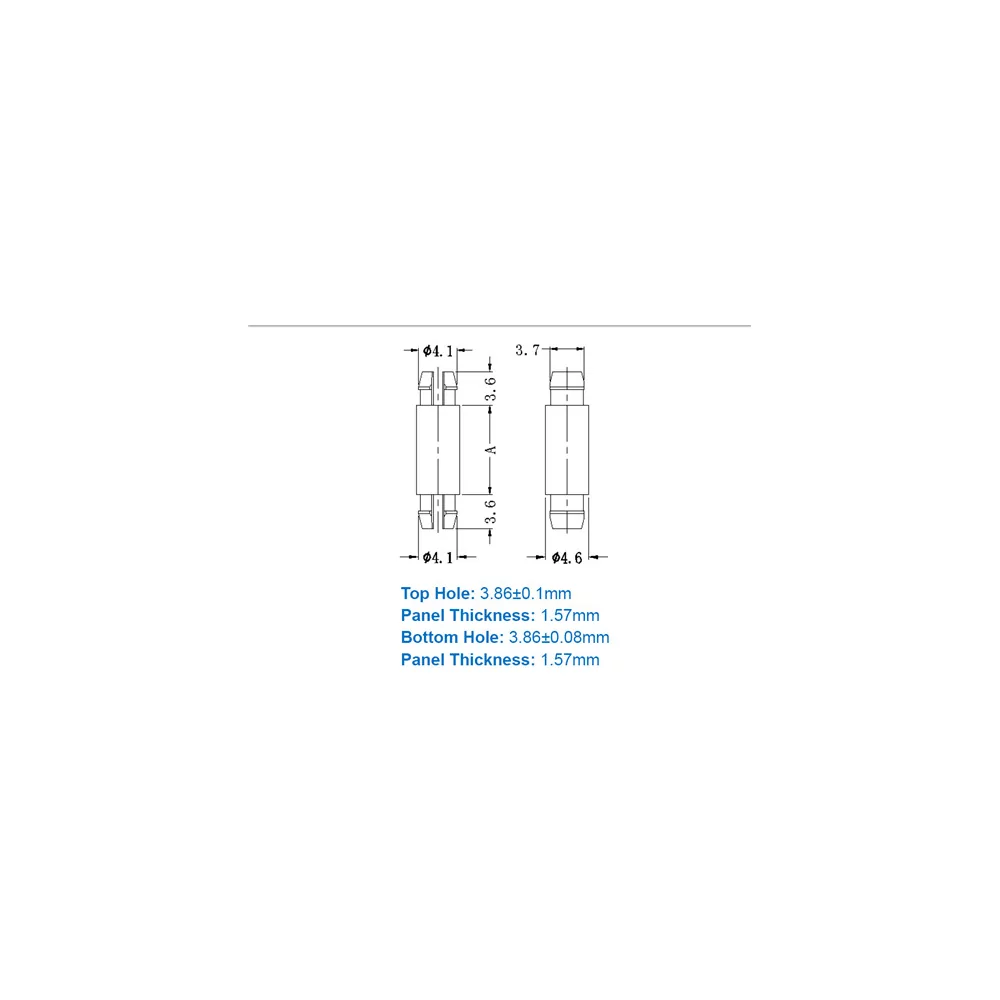

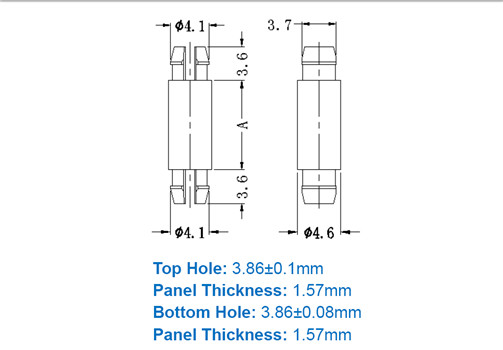

    Ø agujero ≙ 3,86±0,1mm (arriba) & 3,86±0,08mm (abajo)
    Color: Natural - Material: PA66 UL 94V2

    GMSPDL Series
    UnidadesDescuentoAhorraPrecio/unidad
    53%17,90 €115,77 €
    106%71,61 €112,19 €
    2010%238,70 €107,42 €
    3015%537,08 €101,45 €
    Nota

    Póngase en contacto con nosotros para solicitar pequeñas cantidades, muestras gratuitas y más datos técnicos.



    Soporte para placas de circuito impreso - Distanciador - Bloqueo de dos puntas

    Artículo No.ReferenciaMaterialColorAFIGParte superior del taladroTaladro abajoEspesor de la placa arribaEspesor de la placa abajoPU
    GMSPDL-2-66DLMSP-2-01PA66 UL94V2Natural3,223.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-2-V0DLMSP-2-19PA66 UL94V0Natural3,223.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-3-66DLMSP-3-01PA66 UL94V2Natural4,823.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-3-V0DLMSP-3-19PA66 UL94V0Natural4,823.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-4-66DLMSP-4-01PA66 UL94V2Natural6,423.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-4-V0DLMSP-4-19PA66 UL94V0Natural6,423.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-5-66DLMSP-5-01PA66 UL94V2Natural7,923.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-5-V0DLMSP-5-19PA66 UL94V0Natural7,923.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-6-66DLMSP-6-01PA66 UL94V2Natural9,523.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-6-V0DLMSP-6-19PA66 UL94V0Natural9,523.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-7-66DLMSP-7-01PA66 UL94V2Natural11,123.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-7-V0DLMSP-7-19PA66 UL94V0Natural11,123.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-8-66DLMSP-8-01PA66 UL94V2Natural12,723.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-8-V0DLMSP-8-19PA66 UL94V0Natural12,723.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-9-66DLMSP-9-01PA66 UL94V2Natural14,323.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-9-V0DLMSP-9-19PA66 UL94V0Natural14,323.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-10-66DLMSP-10-01PA66 UL94V2Natural15,923.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-10-V0DLMSP-10-19PA66 UL94V0Natural15,923.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-11-66DLMSP-11-01PA66 UL94V2Natural17,523.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-11-V0DLMSP-11-19PA66 UL94V0Natural17,523.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-12-66DLMSP-12-01PA66 UL94V2Natural19,123.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-12-V0DLMSP-12-19PA66 UL94V0Natural19,123.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-13-66DLMSP-13-01PA66 UL94V2Natural20,623.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-13-V0DLMSP-13-19PA66 UL94V0Natural20,623.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-14-66DLMSP-14-01PA66 UL94V2Natural22,223.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-14-V0DLMSP-14-19PA66 UL94V0Natural22,223.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-16-66DLMSP-16-01PA66 UL94V2Natural25,423.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-16-V0DLMSP-16-19PA66 UL94V0Natural25,423.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-18-66DLMSP-18-01PA66 UL94V2Natural28,623.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-18-V0DLMSP-18-19PA66 UL94V0Natural28,623.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-20-66DLMSP-20-01PA66 UL94V2Natural31,723.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-20-V0DLMSP-20-19PA66 UL94V0Natural31,723.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-22-66DLMSP-22-01PA66 UL94V2Natural34,923.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-22-V0DLMSP-22-19PA66 UL94V0Natural34,923.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-24-66DLMSP-24-01PA66 UL94V2Natural38,123.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-24-V0DLMSP-24-19PA66 UL94V0Natural38,123.86 +/- 0.053.86 +/- 0.051,571,571000
    Idéntica a la serie Richco / Essentra
    DLMSP
    Unidad de embalaje y precio
    1000
    Dimensión funcional "A" o "L" (si está disponible)
    2 ≙ 3,2mm 3 ≙ 4,8mm; 4 ≙ 6,4mm; 5 ≙ 7,9mm; 6 ≙ 9,5mm; 7 ≙ 11,1mm; 8 ≙ 12,7mm; 9 ≙ 14,3mm; 10 ≙ 15,9mm; 12 ≙ 19,1mm; 14 ≙ 22,2mm; 16 ≙ 25,4mm; 18 ≙ 28,6mm; 20 ≙ 31,7mm; 22 ≙ 34,9mm; 24 ≙ 38,1mm
    GMSPDL-2-66
