    DLMSPM DLMSPM DLMSPM

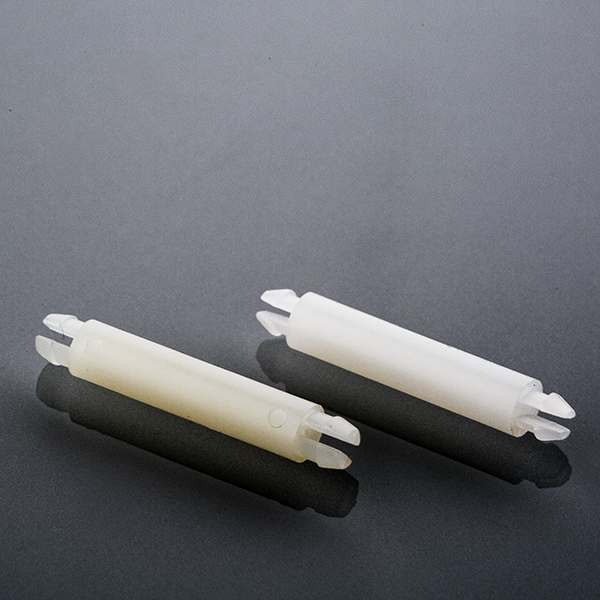

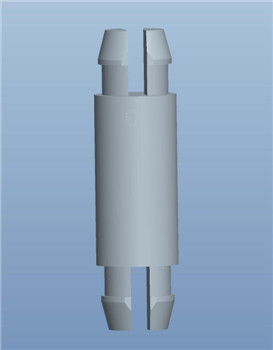

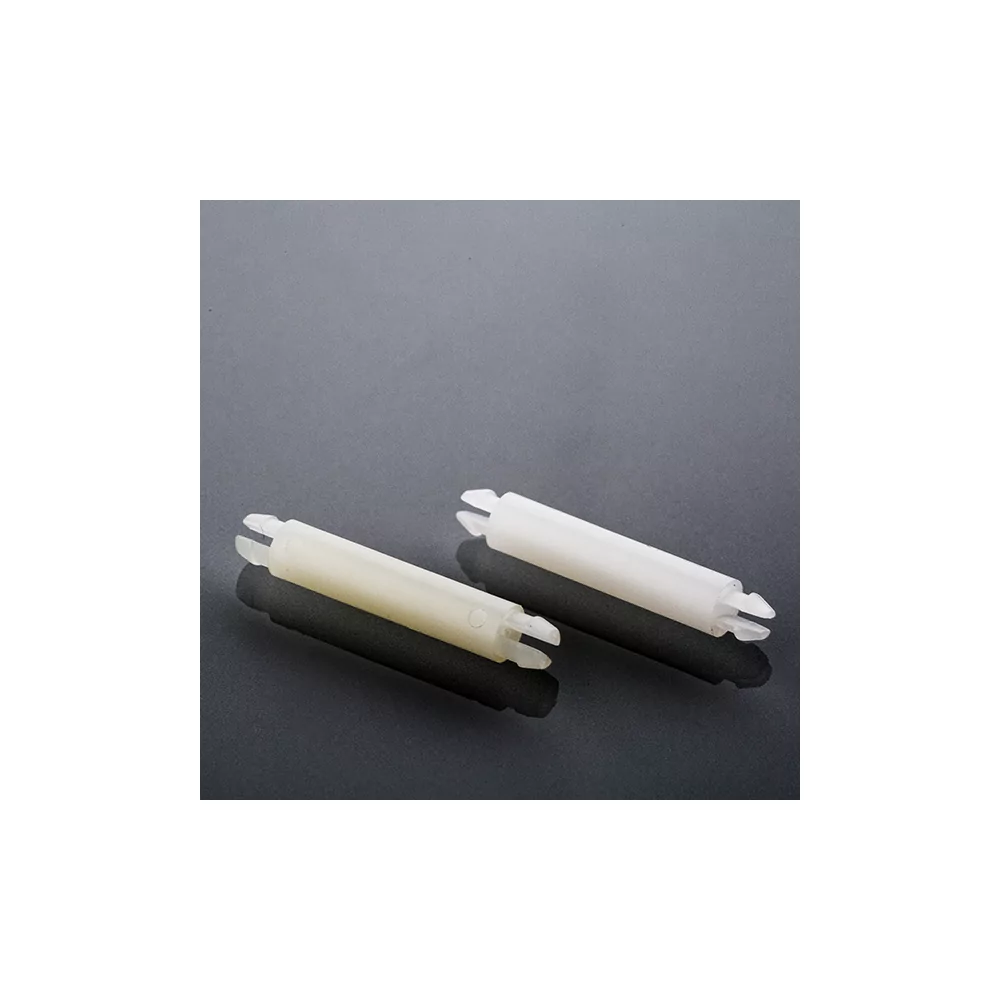

    GMSPDL Series - Mini Support Post

    119.35 €
    VAT excluded Änderungen und Preisirrtümer vorbehalten

    Packaging and price unit: 1000 Fastening technology for printed circuit boards / spacers

    In lengths from 3.2 - 38.1 mm (different variants)

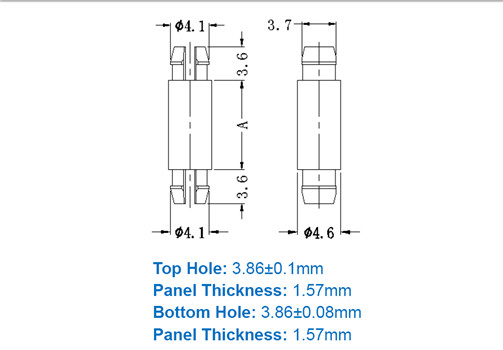

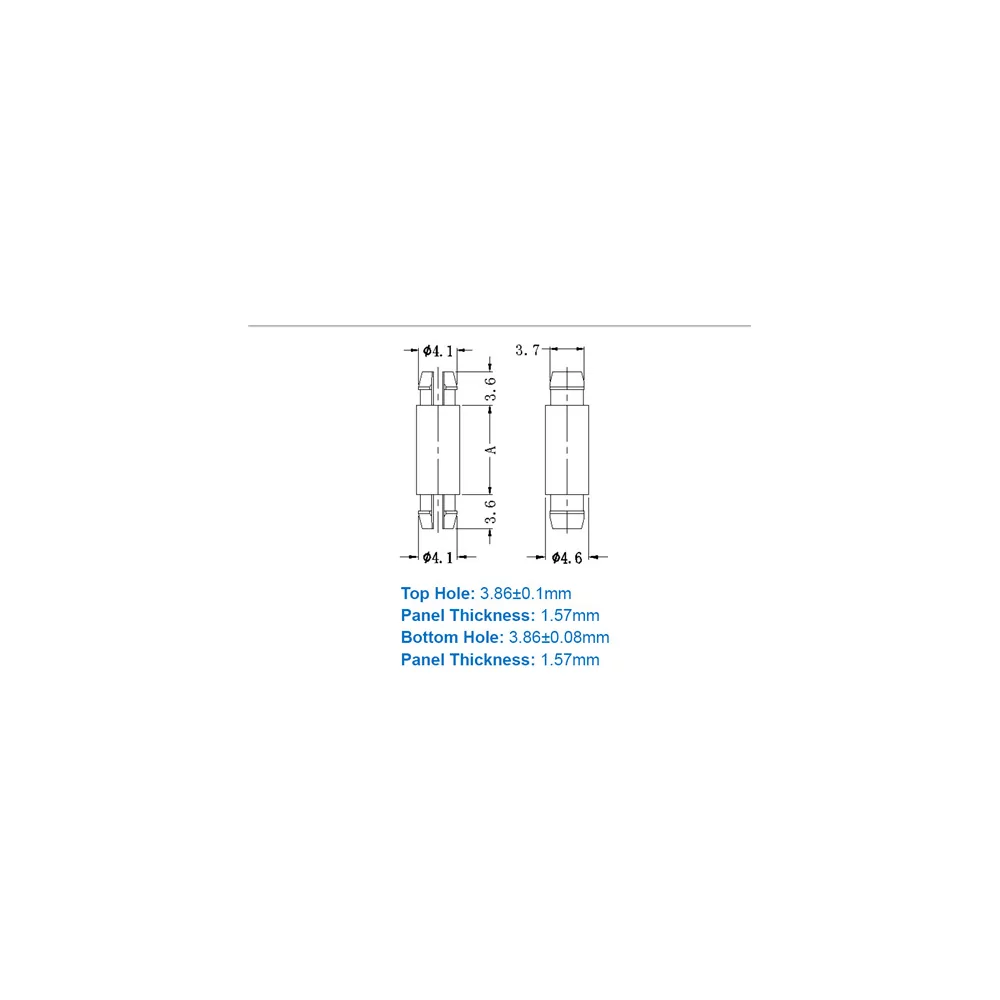

    PCB thickness ≙ 1.57 mm
    Ø hole ≙ 3.86±0.1mm (top) & 3.86±0.08mm (bottom)
    Colour: Natural - Material: PA66 UL 94V2

    GMSPDL Series
    UnitsDiscountYou will savePrice/unit
    53%17.90 €115.77 €
    106%71.61 €112.19 €
    2010%238.70 €107.42 €
    3015%537.08 €101.45 €
    Note

    Please contact us for small quantities, free samples and further technical details.



    PCB Support - Spacer - Locking Two Prong

    Article No.Cross-Ref.MaterialColourAFIGHole topDrill hole bottomPanel thickness topPlate thickness bottomPU
    GMSPDL-2-66DLMSP-2-01PA66 UL94V2Natural3,223.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-2-V0DLMSP-2-19PA66 UL94V0Natural3,223.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-3-66DLMSP-3-01PA66 UL94V2Natural4,823.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-3-V0DLMSP-3-19PA66 UL94V0Natural4,823.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-4-66DLMSP-4-01PA66 UL94V2Natural6,423.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-4-V0DLMSP-4-19PA66 UL94V0Natural6,423.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-5-66DLMSP-5-01PA66 UL94V2Natural7,923.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-5-V0DLMSP-5-19PA66 UL94V0Natural7,923.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-6-66DLMSP-6-01PA66 UL94V2Natural9,523.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-6-V0DLMSP-6-19PA66 UL94V0Natural9,523.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-7-66DLMSP-7-01PA66 UL94V2Natural11,123.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-7-V0DLMSP-7-19PA66 UL94V0Natural11,123.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-8-66DLMSP-8-01PA66 UL94V2Natural12,723.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-8-V0DLMSP-8-19PA66 UL94V0Natural12,723.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-9-66DLMSP-9-01PA66 UL94V2Natural14,323.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-9-V0DLMSP-9-19PA66 UL94V0Natural14,323.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-10-66DLMSP-10-01PA66 UL94V2Natural15,923.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-10-V0DLMSP-10-19PA66 UL94V0Natural15,923.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-11-66DLMSP-11-01PA66 UL94V2Natural17,523.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-11-V0DLMSP-11-19PA66 UL94V0Natural17,523.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-12-66DLMSP-12-01PA66 UL94V2Natural19,123.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-12-V0DLMSP-12-19PA66 UL94V0Natural19,123.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-13-66DLMSP-13-01PA66 UL94V2Natural20,623.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-13-V0DLMSP-13-19PA66 UL94V0Natural20,623.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-14-66DLMSP-14-01PA66 UL94V2Natural22,223.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-14-V0DLMSP-14-19PA66 UL94V0Natural22,223.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-16-66DLMSP-16-01PA66 UL94V2Natural25,423.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-16-V0DLMSP-16-19PA66 UL94V0Natural25,423.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-18-66DLMSP-18-01PA66 UL94V2Natural28,623.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-18-V0DLMSP-18-19PA66 UL94V0Natural28,623.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-20-66DLMSP-20-01PA66 UL94V2Natural31,723.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-20-V0DLMSP-20-19PA66 UL94V0Natural31,723.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-22-66DLMSP-22-01PA66 UL94V2Natural34,923.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-22-V0DLMSP-22-19PA66 UL94V0Natural34,923.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-24-66DLMSP-24-01PA66 UL94V2Natural38,123.86 +/- 0.053.86 +/- 0.051,571,571000
    GMSPDL-24-V0DLMSP-24-19PA66 UL94V0Natural38,123.86 +/- 0.053.86 +/- 0.051,571,571000
    Identical to Richco / Essentra series
    DLMSP
    Packaging and price unit
    1000
    Functional dimension "A" or "L" (if available)
    2 ≙ 3,2mm 3 ≙ 4,8mm; 4 ≙ 6,4mm; 5 ≙ 7,9mm; 6 ≙ 9,5mm; 7 ≙ 11,1mm; 8 ≙ 12,7mm; 9 ≙ 14,3mm; 10 ≙ 15,9mm; 12 ≙ 19,1mm; 14 ≙ 22,2mm; 16 ≙ 25,4mm; 18 ≙ 28,6mm; 20 ≙ 31,7mm; 22 ≙ 34,9mm; 24 ≙ 38,1mm
    GMSPDL-2-66
