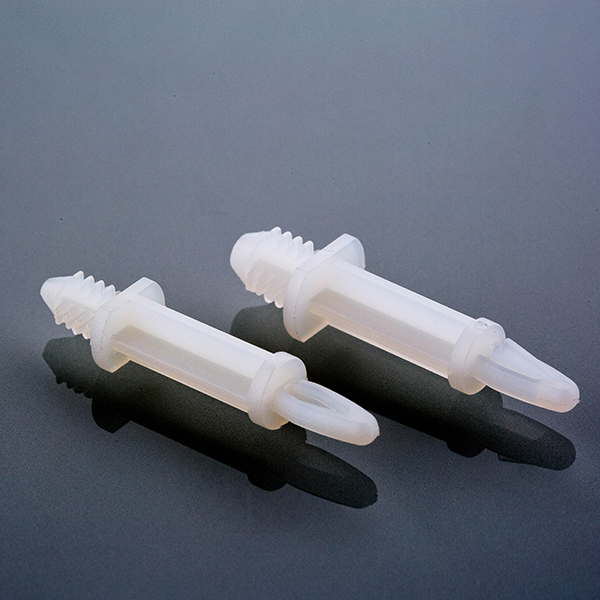

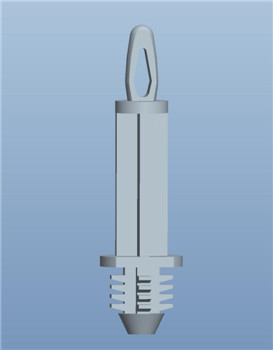

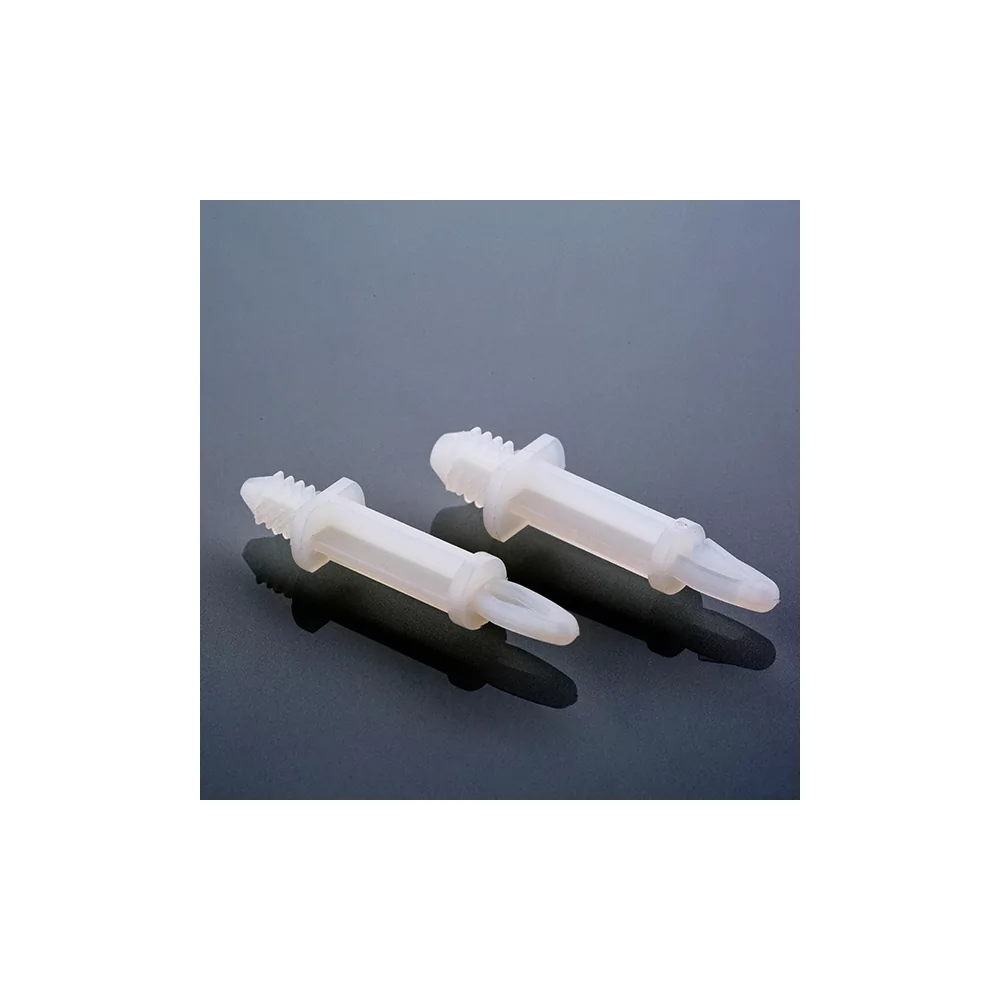

    GBS GBS 2 Series - Blind Hole Circuit Board Support #2 GBS 2 Series - Blind Hole Circuit Board Support

    GBS 2 Serie- Schnappverschluss-Halterung mit/ohne Sperre und Tannenbaumbefestigung

    106.50 €
    VAT excluded Änderungen und Preisirrtümer vorbehalten

    Packaging and price unit: 1000 Spacers for blind hole mounting

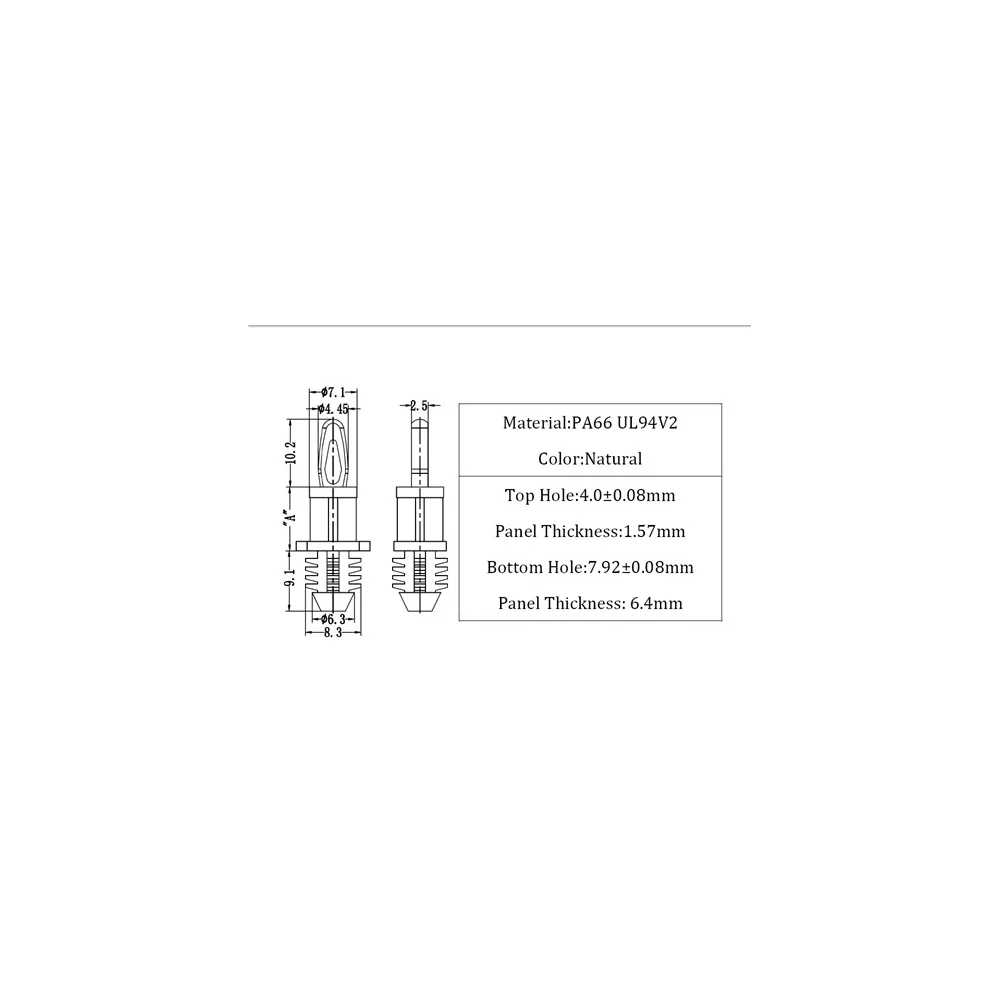

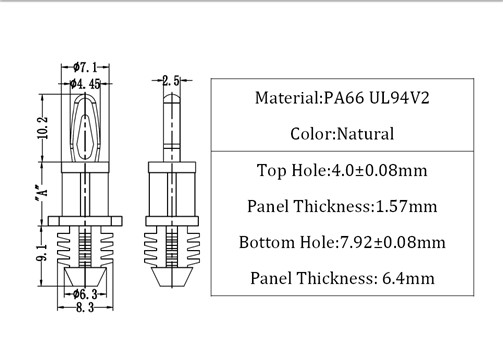

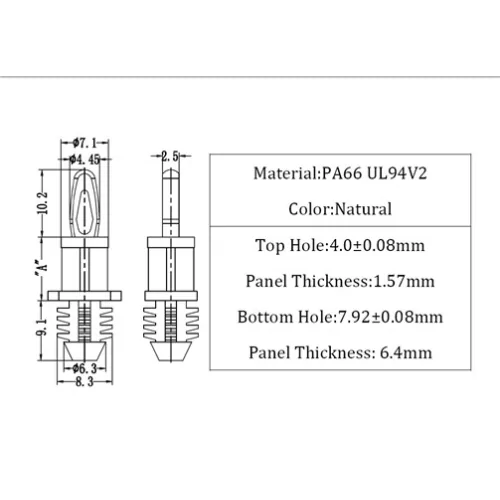

    In lengths from 4.8 - 22.2mm (others on request)
    PCB thickness ≙ 1.57mm (top) & 6.4mm (bottom)
    Ø hole ≙ 4.0±0.08mm (top) & 7.92±0.08mm (bottom)
    Colour: Natural - Material: PA66 UL 94V2

    GBS2 Series
    UnitsDiscountYou will savePrice/unit
    53%15.98 €103.31 €
    106%63.90 €100.11 €
    2010%213.00 €95.85 €
    3015%479.25 €90.53 €
    Note

    Please contact us for small quantities, free samples and further technical details.



    PCB Support - Spacer - Locking/Non Locking Bayonet with Fir Tree Mount

    Article No.Cross-Ref.MaterialColourAFIGHole topDrill hole bottomPanel thickness topPlate thickness bottomPU
    GBS2-3-66BHC-3-01PA66 UL94V2Natural4,824.0 +/- 0.087.92 +/- 0.081,576.4 (min)1000
    GBS2-3-V0BHC-3-19PA66 UL94V0Natural4,824.0 +/- 0.087.92 +/- 0.081,576.4 (min)1000
    GBS2-4-66BHC-4-01PA66 UL94V2Natural6,424.0 +/- 0.087.92 +/- 0.081,576.4 (min)1000
    GBS2-4-V0BHC-4-19PA66 UL94V0Natural6,424.0 +/- 0.087.92 +/- 0.081,576.4 (min)1000
    GBS2-6-66BHC-6-01PA66 UL94V2Natural9,524.0 +/- 0.087.92 +/- 0.081,576.4 (min)1000
    GBS2-6-V0BHC-6-19PA66 UL94V0Natural9,524.0 +/- 0.087.92 +/- 0.081,576.4 (min)1000
    GBS2-7-66BHC-7-01PA66 UL94V2Natural11,124.0 +/- 0.087.92 +/- 0.081,576.4 (min)1000
    GBS2-7-V0BHC-7-19PA66 UL94V0Natural11,124.0 +/- 0.087.92 +/- 0.081,576.4 (min)1000
    GBS2-8-66BHC-8-01PA66 UL94V2Natural12,724.0 +/- 0.087.92 +/- 0.081,576.4 (min)1000
    GBS2-8-V0BHC-8-19PA66 UL94V0Natural12,724.0 +/- 0.087.92 +/- 0.081,576.4 (min)1000
    GBS2-10-66BHC-10-01PA66 UL94V2Natural15,924.0 +/- 0.087.92 +/- 0.081,576.4 (min)1000
    GBS2-10-V0BHC-10-19PA66 UL94V0Natural15,924.0 +/- 0.087.92 +/- 0.081,576.4 (min)1000
    GBS2-12-66BHC-12-01PA66 UL94V2Natural19,124.0 +/- 0.087.92 +/- 0.081,576.4 (min)1000
    GBS2-12-V0BHC-12-19PA66 UL94V0Natural19,124.0 +/- 0.087.92 +/- 0.081,576.4 (min)1000
    GBS2-14-66BHC-14-01PA66 UL94V2Natural22,224.0 +/- 0.087.92 +/- 0.081,576.4 (min)1000
    GBS2-14-V0BHC-14-19PA66 UL94V0Natural22,224.0 +/- 0.087.92 +/- 0.081,576.4 (min)1000
    Identical to Richco / Essentra series
    BHC-x
    Packaging and price unit
    1000
    Functional dimension "A" or "L" (if available)
    3 ≙ 4,8mm; 4 ≙ 6,4mm; 5 ≙ 7,9mm; 6 ≙ 9,5mm; 7 ≙ 11,1mm; 8 ≙ 12,7mm; 9 ≙ 14,3mm; 10 ≙ 15,9mm; 12 ≙ 19,1mm; 14 ≙ 22,2mm
    GBS2-3-66
