GCE4077 / Screw insulator | Gecko Fastener GmbH

GCE Series - Attachment disc

113.15 €

VAT excluded Änderungen und Preisirrtümer vorbehalten

Packaging and price unit: 1000

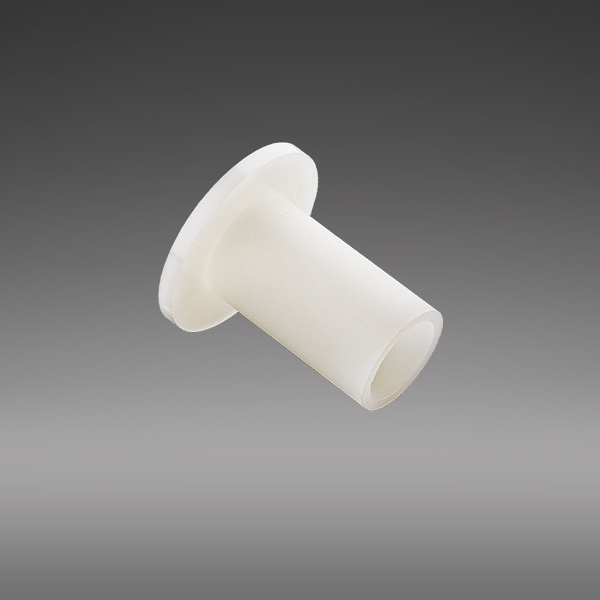

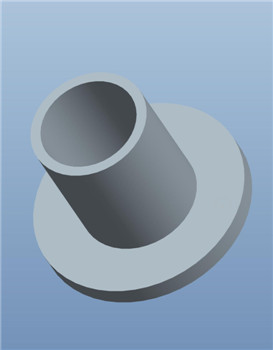

Screw insulator

GCE Series

Units	Discount	You will save	Price/unit
5	3%	16.97 €	109.76 €
10	6%	67.89 €	106.36 €
20	10%	226.30 €	101.84 €
30	15%	509.18 €	96.18 €

Add to watchlist

Note

Please contact us for small quantities, free samples and further technical details.

Description
Product Details

Screw Insulator, Shoulder Washer, Cup Washer, Insulation Sleeve

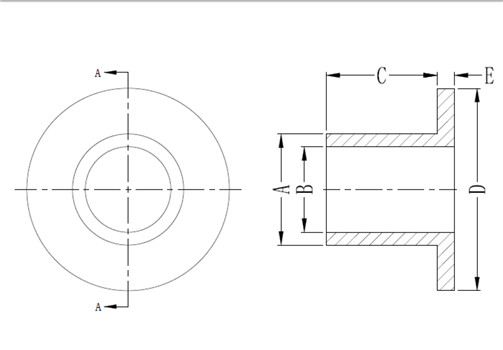

Article no.	Cross-ref.	Material	Colour	A	B	C	D	E	PU
GCE2320	MNI-2-2	PA66 UL94V2	Natural	3,0	2,3	0,8	4,6	1,2	1000
GCE2832	-	PA66 UL94V0	Natural	3,5	2,8	2,0	5,8	1,2	1000
GCE2923	-	PA66 UL94V2	Natural	3,56	2,92	1,17	6,4	1,2	1000
GCE2935	-	PA66 UL94V2	Natural	3,56	2,92	2,36	6,4	1,2	1000
GCE2951	-	PA66 UL94V2	Natural	3,56	2,92	3,96	6,4	1,2	1000
GCE3644	12SWS0460 / 10SC006012	PA66 UL94V2	Natural	4,3	3,6	3,2	7,4	1,2	1000
GCE3644-V0	-	PA66 UL94V0	Natural	4,3	3,6	3,2	7,4	1,2	1000
GCE4077	-	PA66 UL94V2	Natural	4,7	4.0	6,25	10,84	1,5	1000
GCE4440	MNI-8-6 / 290806000002 / 12SWS0637	PA66 UL94V2	Natural	5,2	4,4	2,4	8,7	1,6	1000
GCE44110	MNI-8-24	PA66 UL94V2	Natural	5,2	4,4	9,5	8,7	1,6	1000
GCE4540B-2	312083159935	PA6+GF UL94HB	Black	6.0	4,5	3,2	8.0	0,8	1000
GCE4025B	312085059935	PA6 UL94V2	Black	6,3	4.0	1,3	9,3	1,2	1000
GCE6230B	312081759935	PA66 UL94V2	Black	6,5	6,2	2.0	12.0	1.0	1000
GCE6235	018060100001	PA66 UL94V2	Natural	7,9	6,2	2.0	15,0	1,5	1000
GCE5140	MNI-10-6	PA66 UL94V2	Natural	6,6	5,1	2.4	10.1	1.6	1000
GCE5163	MNI-10-12 / 10SC010018	PA66 UL94V2	Natural	6,6	5,1	4,7	10,1	1,6	1000
GCE5163B	-	PA66 UL94V2	Black	6,6	5.1	4,7	10,1	1,6	1000
GCE8140	MNI5/16-6	PA66 UL94V2	Natural	9,1	8,1	2,4	15,7	1,6	1000
GCE8180	MNI5/16-16	PA66 UL94V2	Natural	9,1	8,1	6,4	15,7	1,6	1000
GCE8110	-	PA66 UL94V2	Natural	11.0	8,1	8.0	20.0	2.0	1000
GCE8115	-	PA66 UL94V2	Natural	11.0	8,1	13.0	20.0	2.0	1000
GCE8240	018080200001	PA6 UL94V2	Natural	10.9	8,2	2.5	18.0	1.5	1000
GCE10012B	-	PA66 UL94V2	Black	13.0	10.0	10.0	23,7	2.0	1000
GCE10015	-	PA66 UL94V2	Natural	13.0	10.0	13.0	23,7	2.0	1000
GCE10015B	-	PA66 UL94V2	Black	13.0	10.0	13.0	23,7	2.0	1000
GCE10025	-	PA66 UL94V2	Natural	13.0	10.0	23.0	23,7	2.0	500
GCE15034B	-	PA66 UL94V2	Black	21.0	15.0	30.0	27.0	4.0	200
GCE20160	018200000001	PA6 UL94V2	Natural	21.8	20.1	3.0	36.0	3.0	500

Identical to Richco / Essentra series: -
Packaging and price unit: 1000
Functional dimension "A" or "L" (if available): Von 3.0 bis 13.0 mm (in versch. Varrianten)
Catalog #: 43454 40976 41486 42613 42529 40035 40036 40033 40034 40767 42640 42472 42641 43437 43326

Reference GCE & G312 Series
