GCSHSC-7046 | Plastic screws cross recess | Gecko Fastener GmbH

GCSHSC-7046 Series - Countersunk head screw, cross recessed

GCSHSC-7046 Series - Countersunk head screw, cross recessed

38.75 €

VAT excluded Änderungen und Preisirrtümer vorbehalten

Packaging and price unit: 1000

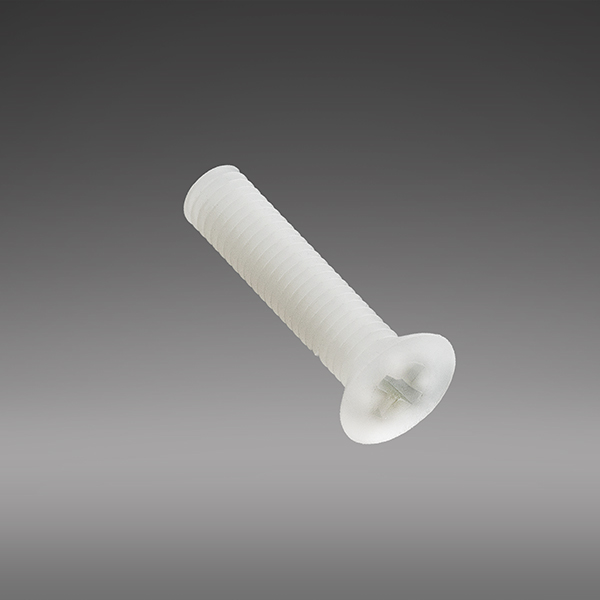

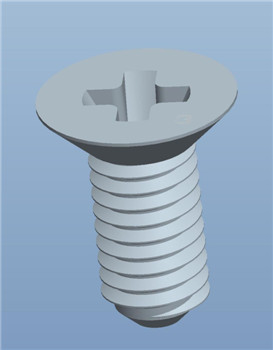

Plastic screw (cross recess)

Colour: natural
Material: PA66 UL 94 V2

GCSHSC-7046 Series

Units	Discount	You will save	Price/unit
5	3%	5.81 €	37.59 €
10	6%	23.25 €	36.43 €
20	10%	77.50 €	34.88 €
30	15%	174.38 €	32.94 €

Add to watchlist

Note

Please contact us for small quantities, free samples and further technical details.

Countersunk Machine Screw, Crossed, M2, M2.5, M3, M4, M5, M6

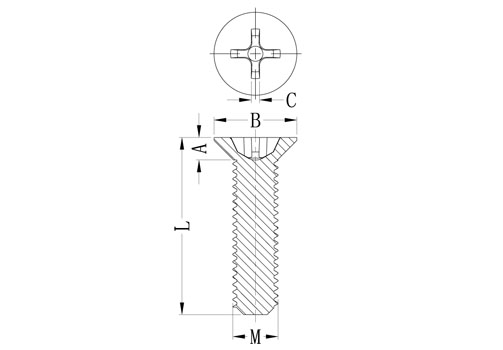

Article no.	Cross-Ref.	Material	Colour	A	B	C	L	Thread	PU
GCSHSC-7046-M2-5	-	PA66 UL94V2	Natural	1,2	3,8	1,9	5,0	M2	1000
GCSHSC-7046-M2-6	-	PA66 UL94V2	Natural	1,2	3,8	1,9	6,0	M2	1000
GCSHSC-7046-M2-8	-	PA66 UL94V2	Natural	1,2	3,8	1,9	8,0	M2	1000
GCSHSC-7046-M2-10	-	PA66 UL94V2	Natural	1,2	3,8	1,9	10,0	M2	1000
GCSHSC-7046-M2-12	-	PA66 UL94V2	Natural	1,2	3,8	1,9	12,0	M2	1000
GCSHSC-7046-M2-16	-	PA66 UL94V2	Natural	1,2	3,8	1,9	16,0	M2	1000
GCSHSC-7046-M2-20	-	PA66 UL94V2	Natural	1,2	3,8	1,9	20,0	M2	1000
GCSHSC-7046-M2-25	-	PA66 UL94V2	Natural	1,2	3,8	1,9	25,0	M2	1000
GCSHSC-7046-M2.5-5	-	PA66 UL94V2	Natural	1,5	4,7	2,7	5,0	M2.5	1000
GCSHSC-7046-M2.5-6	-	PA66 UL94V2	Natural	1,5	4,7	2,7	6,0	M2.5	1000
GCSHSC-7046-M2.5-8	-	PA66 UL94V2	Natural	1,5	4,7	2,7	8,0	M2.5	1000
GCSHSC-7046-M2.5-10	-	PA66 UL94V2	Natural	1,5	4,7	2,7	10,0	M2.5	1000
GCSHSC-7046-M2.5-12	-	PA66 UL94V2	Natural	1,5	4,7	2,7	12,0	M2.5	1000
GCSHSC-7046-M2.5-16	-	PA66 UL94V2	Natural	1,5	4,7	2,7	16,0	M2.5	1000
GCSHSC-7046-M2.5-20	-	PA66 UL94V2	Natural	1,5	4,7	2,7	20,0	M2.5	1000
GCSHSC-7046-M2.5-25	-	PA66 UL94V2	Natural	1,5	4,7	2,7	25,0	M2.5	1000
GCSHSC-7046-M3-5	50M030050I005	PA66 UL94V2	Natural	1,65	5,5	2,9	5,0	M3	1000
GCSHSC-7046-M3-6	50M030050I006	PA66 UL94V2	Natural	1,65	5,5	2,9	6,0	M3	1000
GCSHSC-7046-M3-8	50M030050I008	PA66 UL94V2	Natural	1,65	5,5	2,9	8,0	M3	1000
GCSHSC-7046-M3-10	50M030050I010	PA66 UL94V2	Natural	1,65	5,5	2,9	10,0	M3	1000
GCSHSC-7046-M3-12	50M030050I012	PA66 UL94V2	Natural	1,65	5,5	2,9	12,0	M3	1000
GCSHSC-7046-M3-16	50M030050I016	PA66 UL94V2	Natural	1,65	5,5	2,9	16,0	M3	1000
GCSHSC-7046-M3-20	50M030050I020	PA66 UL94V2	Natural	1,65	5,5	2,9	20,0	M3	1000
GCSHSC-7046-M3-25	50M030050I025	PA66 UL94V2	Natural	1,65	5,5	2,9	25,0	M3	1000
GCSHSC-7046-M3-30	-	PA66 UL94V2	Natural	1,65	5,5	2,9	30,0	M3	1000
GCSHSC-7046-M3-42	-	PA66 UL94V2	Natural	1,65	5,5	2,9	42,0	M3	1000
GCSHSC-7046-M4-6	50M040070I006	PA66 UL94V2	Natural	2.7	8,4	4,6	6,0	M4	1000
GCSHSC-7046-M4-8	50M040070I008	PA66 UL94V2	Natural	2.7	8,4	4,6	8,0	M4	1000
GCSHSC-7046-M4-10	50M040070I010	PA66 UL94V2	Natural	2.7	8,4	4,6	10,0	M4	1000
GCSHSC-7046-M4-12	50M040070I012	PA66 UL94V2	Natural	2.7	8,4	4,6	12,0	M4	1000
GCSHSC-7046-M4-15	-	PA66 UL94V2	Natural	2.7	8,4	4,6	15,0	M4	1000
GCSHSC-7046-M4-16	50M040070I016	PA66 UL94V2	Natural	2.7	8,4	4,6	16,0	M4	1000
GCSHSC-7046-M4-20	50M040070I020	PA66 UL94V2	Natural	2.7	8,4	4,6	20,0	M4	1000
GCSHSC-7046-M4-25	50M040070I025	PA66 UL94V2	Natural	2.7	8,4	4,6	25,0	M4	1000
GCSHSC-7046-M4-30	-	PA66 UL94V2	Natural	2.7	8,4	4,6	30,0	M4	1000
GCSHSC-7046-M4-35	-	PA66 UL94V2	Natural	2.7	8,4	4,6	35,0	M4	1000
GCSHSC-7046-M5-6	-	PA66 UL94V2	Natural	2.7	9.0	4,8	6,0	M5	1000
GCSHSC-7046-M5-7	-	PA66 UL94V2	Natural	2.7	9.0	4,8	7,0	M5	1000
GCSHSC-7046-M5-8	50M050080I008	PA66 UL94V2	Natural	2.7	9.0	4,8	8,0	M5	1000
GCSHSC-7046-M5-10	50M050080I010	PA66 UL94V2	Natural	2.7	9.0	4,8	10,0	M5	1000
GCSHSC-7046-M5-12	50M050080I012	PA66 UL94V2	Natural	2.7	9.0	4,8	12,0	M5	1000
GCSHSC-7046-M5-15	-	PA66 UL94V2	Natural	2.7	9.0	4,8	15,0	M5	1000
GCSHSC-7046-M5-16	50M050080I016	PA66 UL94V2	Natural	2.7	9.0	4,8	16,0	M5	1000
GCSHSC-7046-M5-18	-	PA66 UL94V2	Natural	2.7	9.0	4,8	18,0	M5	1000
GCSHSC-7046-M5-20	50M050080I020	PA66 UL94V2	Natural	2.7	9.0	4,8	20,0	M5	1000
GCSHSC-7046-M5-25	50M050080I025	PA66 UL94V2	Natural	2.7	9.0	4,8	25,0	M5	1000
GCSHSC-7046-M5-30	50M050080I030	PA66 UL94V2	Natural	2.7	9.0	4,8	30,0	M5	1000
GCSHSC-7046-M5-35	-	PA66 UL94V2	Natural	2.7	9.0	4,8	35,0	M5	1000
GCSHSC-7046-M5-40	50M050080I040	PA66 UL94V2	Natural	2.7	9.0	4,8	40,0	M5	1000
GCSHSC-7046-M6-8	50M060100I008	PA66 UL94V2	Natural	3,3	11.0	6,6	8,0	M6	1000
GCSHSC-7046-M6-10	50M060100I010	PA66 UL94V2	Natural	3,3	11.0	6,6	10,0	M6	1000
GCSHSC-7046-M6-12	50M060100I012	PA66 UL94V2	Natural	3,3	11.0	6,6	12,0	M6	1000
GCSHSC-7046-M6-15	-	PA66 UL94V2	Natural	3,3	11.0	6,6	15,0	M6	1000
GCSHSC-7046-M6-16	50M060100I016	PA66 UL94V2	Natural	3,3	11.0	6,6	16,0	M6	1000
GCSHSC-7046-M6-20	50M060100I020	PA66 UL94V2	Natural	3,3	11.0	6,6	20,0	M6	1000
GCSHSC-7046-M6-22	-	PA66 UL94V2	Natural	3,3	11.0	6,6	22,0	M6	1000
GCSHSC-7046-M6-25	50M060100I025	PA66 UL94V2	Natural	3,3	11.0	6,6	25,0	M6	1000
GCSHSC-7046-M6-30	-	PA66 UL94V2	Natural	3,3	11.0	6,6	30,0	M6	1000
GCSHSC-7046-M6-40	-	PA66 UL94V2	Natural	3,3	11.0	6,6	40,0	M6	1000
GCSHSC-7046-M6-50	-	PA66 UL94V2	Natural	3,3	11.0	6,6	50,0	M6	1000
GCSHSC-7046-M6-60	-	PA66 UL94V2	Natural	3,3	11.0	6,6	60,0	M6	1000

Identical to Richco / Essentra series: -
Packaging and price unit: 1000
Functional dimension "A" or "L" (if available): "L" mm ≙ - M3 (A≙1.35 / B≙5.5mm) / M4 (A≙2.0 / B≙7.6mm) / M5 (A≙2.5 / B≙9.0mm) / M5 (A≙2.5 / B≙9.0mm) / M6 (A≙3.0 / B≙11.0mm)

Reference GCSHSC-7046 Series

GCSHSC-7046-L

Download (263.1KB)
