GDLSPTH Series - Miniature spacer (round)

110.05 €

VAT excluded Änderungen und Preisirrtümer vorbehalten

Packaging and price unit: 1000

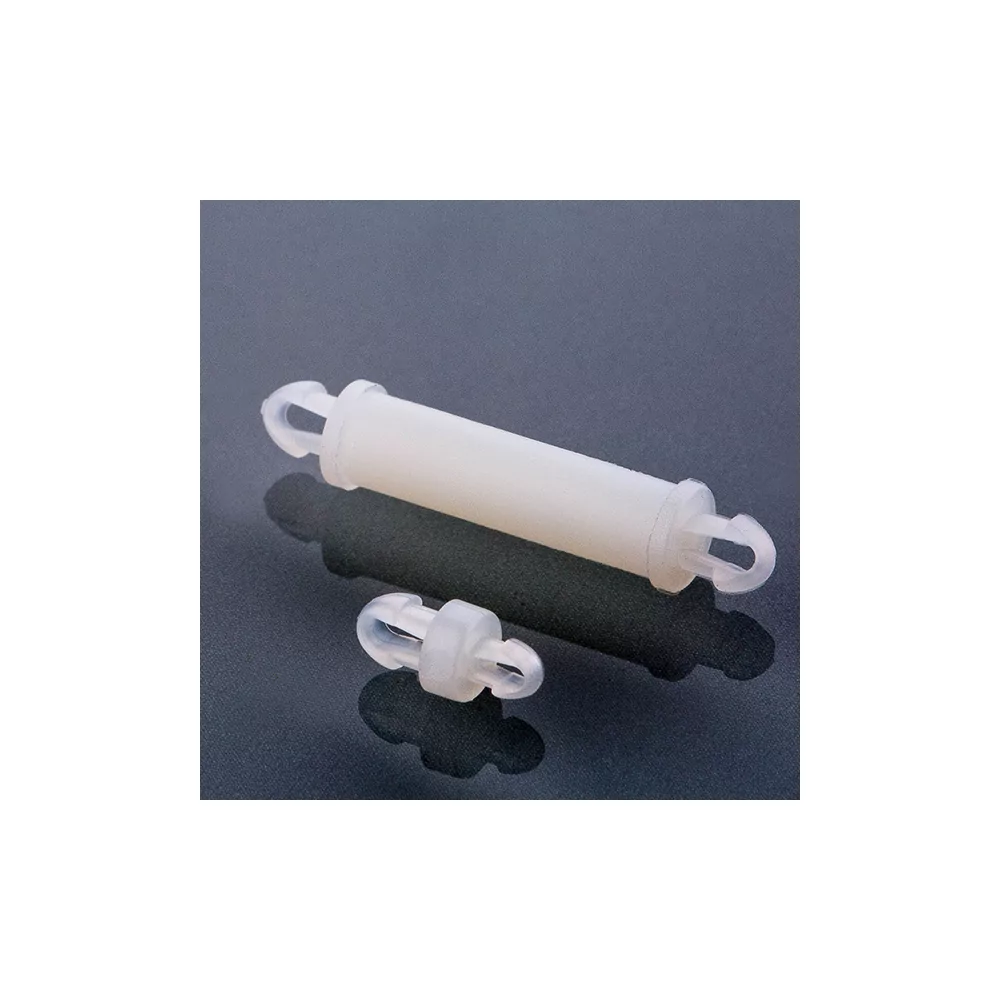

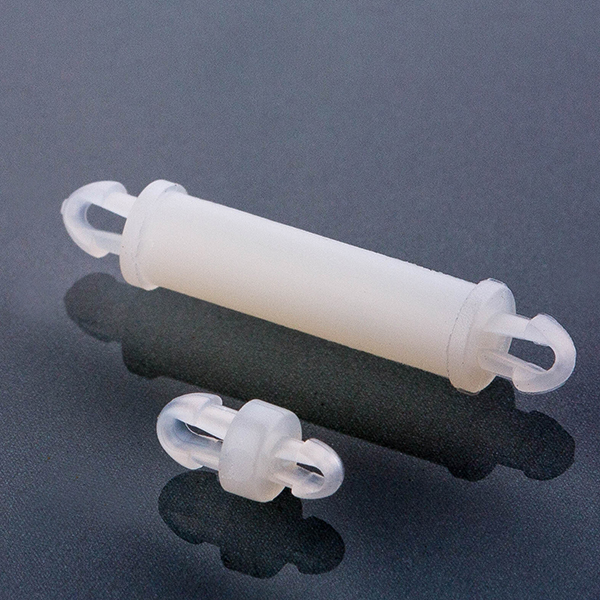

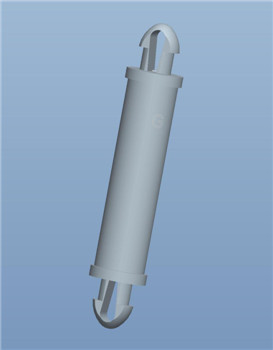

Miniature spacer

In lengths from 1.6 - 22.2 mm
PCB thickness: 1.63 mm (top) & 1.63 mm (bottom)
Ø hole ≙ 2.54 ± 0.08 mm (top) & 1.63 mm (bottom)

GDLSPTH Series

Units	Discount	You will save	Price/unit
5	3%	16.51 €	106.75 €
10	6%	66.03 €	103.45 €
20	10%	220.10 €	99.05 €
30	15%	495.23 €	93.54 €

Add to watchlist

Note

Please contact us for small quantities, free samples and further technical details.

PCB Support - Spacer - with Locking Teardrop

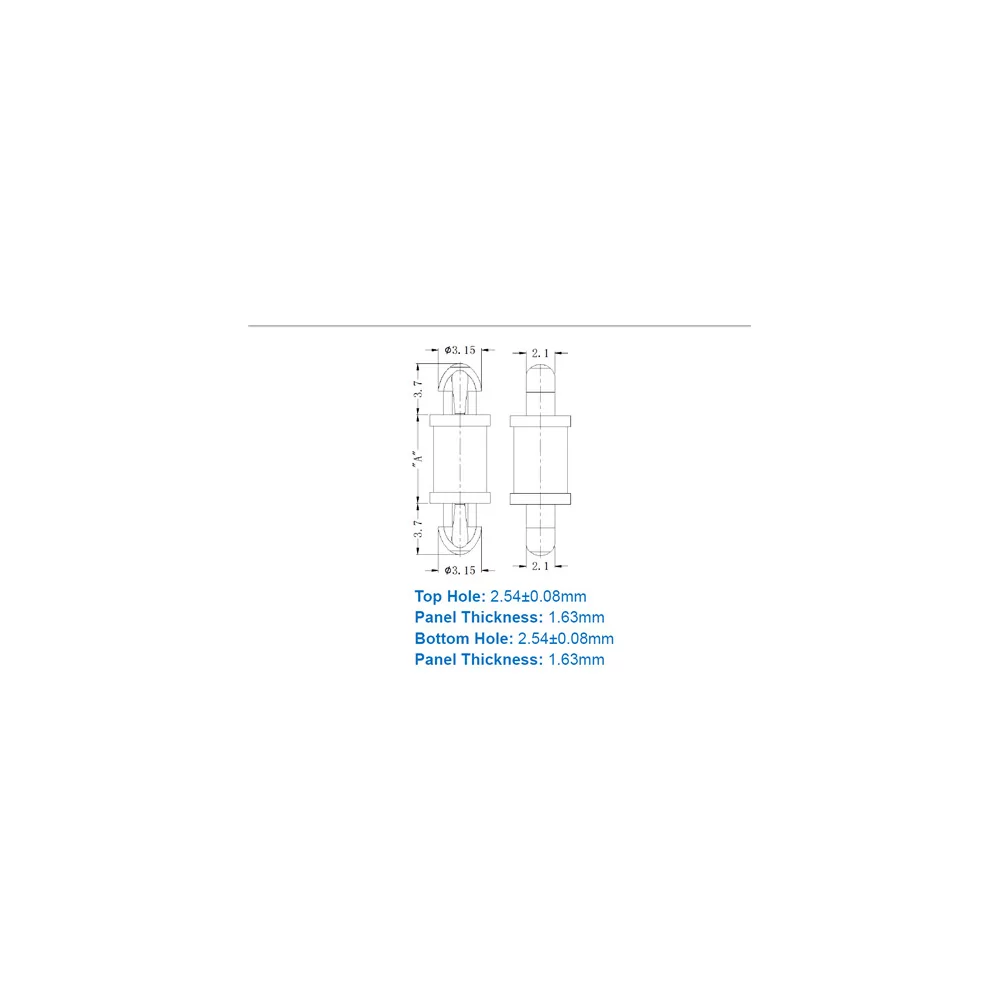

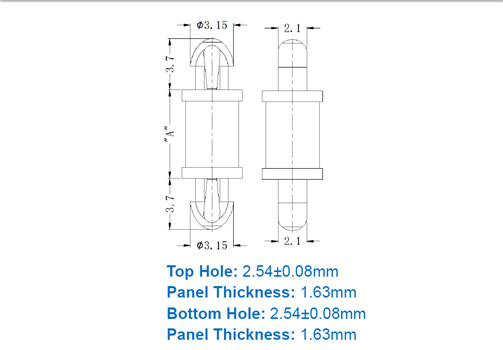

Article No.	Cross-ref.	Material	Colour	A	FIG	Hole top	Drill hole bottom	Panel thickness top	Plate thickness bottom	PU
GDLSPTH-1-66	DLCBST-1-01	PA66 UL94V2	Natural	1,6	1	2.54 +/- 0.05	2.54 +/- 0.05	1,63	1,63	1000
GDLSPTH-1-V0	DLCBST-1-19	PA66 UL94V0	Natural	1,6	1	2.54 +/- 0.05	2.54 +/- 0.05	1,63	1,63	1000
GDLSPTH-1-66B	DLCBST-1-01BK	PA66 UL94V2	Black	1,6	1	2.54 +/- 0.05	2.54 +/- 0.05	1,63	1,63	1000
GDLSPTH-2-66	DLCBST-2-01	PA66 UL94V2	Natural	3,2	1	2.54 +/- 0.05	2.54 +/- 0.05	1,63	1,63	1000
GDLSPTH-2-V0	DLCBST-2-19	PA66 UL94V0	Natural	3,2	1	2.54 +/- 0.05	2.54 +/- 0.05	1,63	1,63	1000
GDLSPTH-2-66B	DLCBST-2-01BK	PA66 UL94V2	Black	3,2	1	2.54 +/- 0.05	2.54 +/- 0.05	1,63	1,63	1000
GDLSPTH-3-66	DLCBST-3-01	PA66 UL94V2	Natural	4,8	1	2.54 +/- 0.05	2.54 +/- 0.05	1,63	1,63	1000
GDLSPTH-3-V0	DLCBST-3-19	PA66 UL94V0	Natural	4,8	1	2.54 +/- 0.05	2.54 +/- 0.05	1,63	1,63	1000
GDLSPTH-3-66B	DLCBST-3-01BK	PA66 UL94V2	Black	4,8	1	2.54 +/- 0.05	2.54 +/- 0.05	1,63	1,63	1000
GDLSPTH-4-66	DLCBST-4-01	PA66 UL94V2	Natural	6,4	1	2.54 +/- 0.05	2.54 +/- 0.05	1,63	1,63	1000
GDLSPTH-4-V0	DLCBST-4-19	PA66 UL94V0	Natural	6,4	1	2.54 +/- 0.05	2.54 +/- 0.05	1,63	1,63	1000
GDLSPTH-4-66B	DLCBST-4-01BK	PA66 UL94V2	Black	6,4	1	2.54 +/- 0.05	2.54 +/- 0.05	1,63	1,63	1000
GDLSPTH-5-66	DLCBST-5-01	PA66 UL94V2	Natural	7,9	1	2.54 +/- 0.05	2.54 +/- 0.05	1,63	1,63	1000
GDLSPTH-5-V0	DLCBST-5-19	PA66 UL94V0	Natural	7,9	1	2.54 +/- 0.05	2.54 +/- 0.05	1,63	1,63	1000
GDLSPTH-5-66B	DLCBST-5-01BK	PA66 UL94V2	Black	7,9	1	2.54 +/- 0.05	2.54 +/- 0.05	1,63	1,63	1000
GDLSPTH-6-66	DLCBST-6-01	PA66 UL94V2	Natural	9,5	1	2.54 +/- 0.05	2.54 +/- 0.05	1,63	1,63	1000
GDLSPTH-6-V0	DLCBST-6-19	PA66 UL94V0	Natural	9,5	1	2.54 +/- 0.05	2.54 +/- 0.05	1,63	1,63	1000
GDLSPTH-6-66B	DLCBST-6-01BK	PA66 UL94V2	Black	9,5	1	2.54 +/- 0.05	2.54 +/- 0.05	1,63	1,63	1000
GDLSPTH-7-66	DLCBST-7-01	PA66 UL94V2	Natural	11,1	1	2.54 +/- 0.05	2.54 +/- 0.05	1,63	1,63	1000
GDLSPTH-7-V0	DLCBST-7-19	PA66 UL94V0	Natural	11,1	1	2.54 +/- 0.05	2.54 +/- 0.05	1,63	1,63	1000
GDLSPTH-7-66B	DLCBST-7-01BK	PA66 UL94V2	Black	11,1	1	2.54 +/- 0.05	2.54 +/- 0.05	1,63	1,63	1000
GDLSPTH-8-66	DLCBST-8-01	PA66 UL94V2	Natural	12,7	1	2.54 +/- 0.05	2.54 +/- 0.05	1,63	1,63	1000
GDLSPTH-8-V0	DLCBST-8-19	PA66 UL94V0	Natural	12,7	1	2.54 +/- 0.05	2.54 +/- 0.05	1,63	1,63	1000
GDLSPTH-8-66B	DLCBST-8-01BK	PA66 UL94V2	Black	12,7	1	2.54 +/- 0.05	2.54 +/- 0.05	1,63	1,63	1000
GDLSPTH-9-66	DLCBST-9-01	PA66 UL94V2	Natural	14,3	1	2.54 +/- 0.05	2.54 +/- 0.05	1,63	1,63	1000
GDLSPTH-9-V0	DLCBST-9-19	PA66 UL94V0	Natural	14,3	1	2.54 +/- 0.05	2.54 +/- 0.05	1,63	1,63	1000
GDLSPTH-9-66B	DLCBST-9-01BK	PA66 UL94V2	Black	14,3	1	2.54 +/- 0.05	2.54 +/- 0.05	1,63	1,63	1000
GDLSPTH-10-66	DLCBST-10-01	PA66 UL94V2	Natural	15,9	1	2.54 +/- 0.05	2.54 +/- 0.05	1,63	1,63	1000
GDLSPTH-10-V0	DLCBST-10-19	PA66 UL94V0	Natural	15,9	1	2.54 +/- 0.05	2.54 +/- 0.05	1,63	1,63	1000
GDLSPTH-10-66B	DLCBST-10-01BK	PA66 UL94V2	Black	15,9	1	2.54 +/- 0.05	2.54 +/- 0.05	1,63	1,63	1000
GDLSPTH-14-66	DLCBST-14-01	PA66 UL94V2	Natural	22,2	1	2.54 +/- 0.05	2.54 +/- 0.05	1,63	1,63	1000
GDLSPTH-14-V0	DLCBST-14-19	PA66 UL94V0	Natural	22,2	1	2.54 +/- 0.05	2.54 +/- 0.05	1,63	1,63	1000
GDLSPTH-14-66B	DLCBST-14-01BK	PA66 UL94V2	Black	22,2	1	2.54 +/- 0.05	2.54 +/- 0.05	1,63	1,63	1000

Identical to Richco / Essentra series: DLCBST
Packaging and price unit: 1000
Functional dimension "A" or "L" (if available): 1 ≙ 1,6mm; 2 ≙ 3,2mm 3 ≙ 4,8mm; 4 ≙ 6,4mm; 5 ≙ 7,9mm; 6 ≙ 9,5mm; 7 ≙ 11,1mm; 8 ≙ 12,7mm; 9 ≙ 14,3mm; 10 ≙ 15,9mm; 12 ≙ 19,1mm; 14 ≙ 22,2mm

Reference GDLSPTH-1-66

GDLSPTH-A

Download (202.22KB)
