    Self -Tapping Circuit Board Support Self -Tapping Circuit Board Support

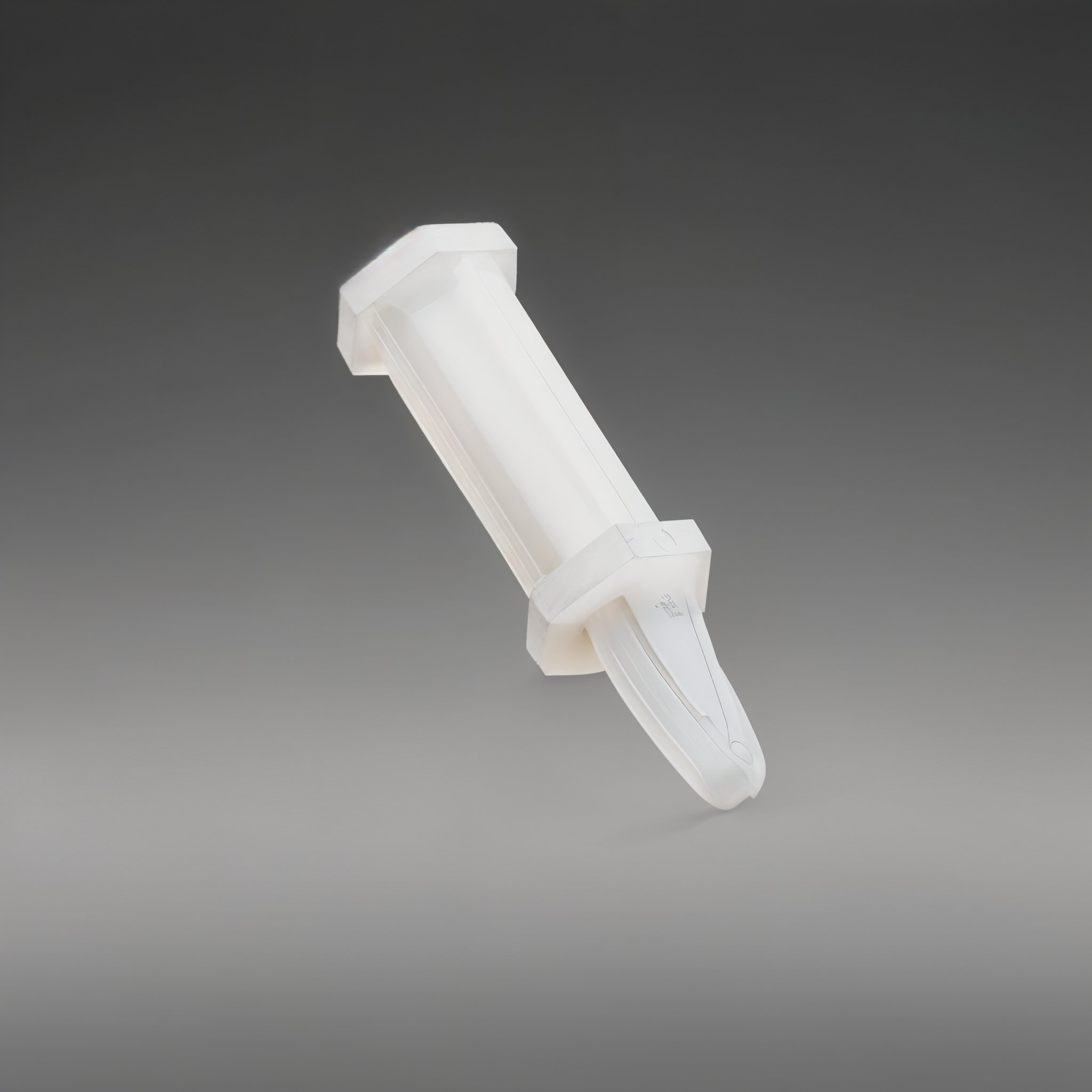

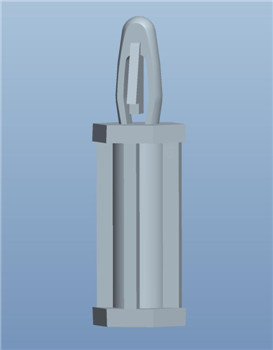

    GHCBS Series - Snap Lock Support

    127.10 €
    VAT excluded Änderungen und Preisirrtümer vorbehalten

    Packaging and price unit: 1000

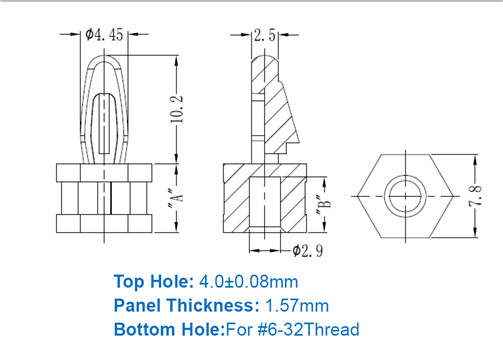

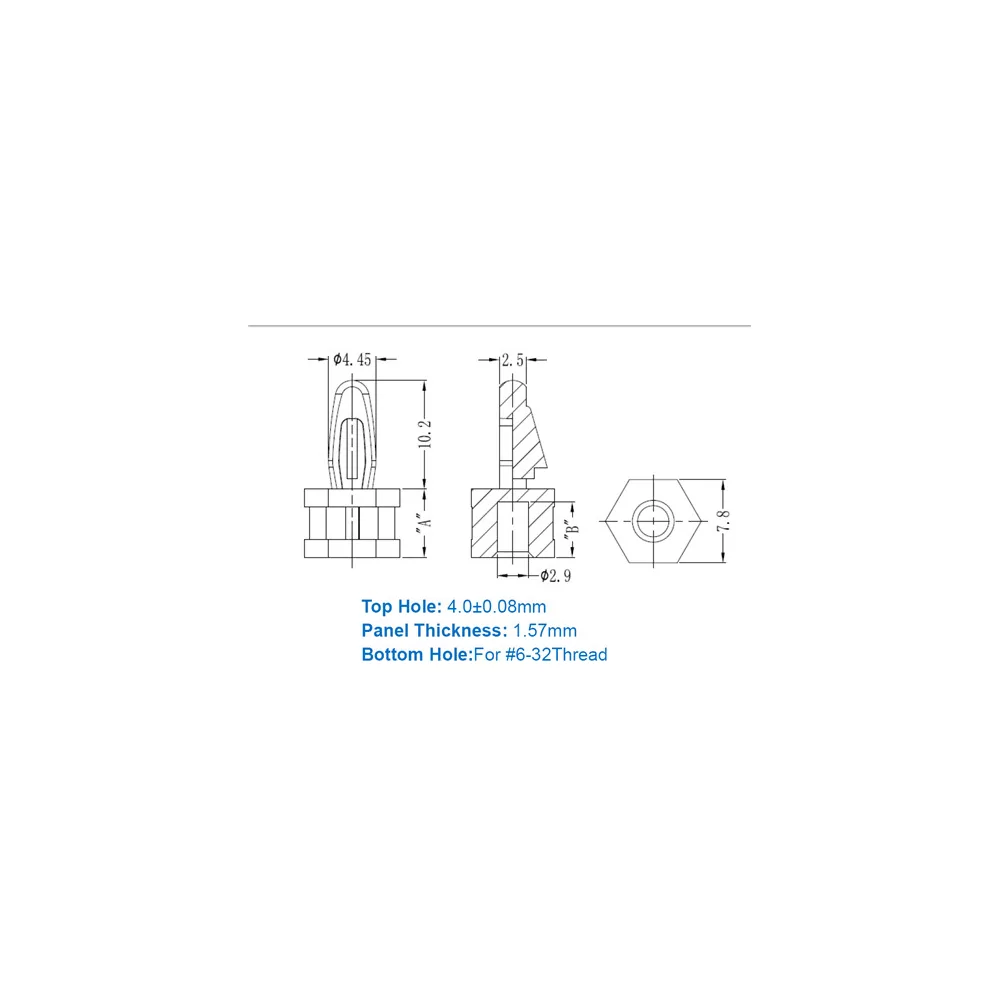

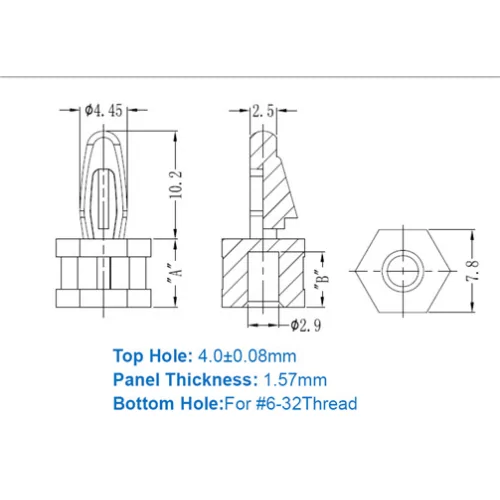

    Hexagonal spacer for self-tapping internal thread
    "B" ≙ 7.9mm (only for GHCBS-04-66 ≙ 5.2mm)

    GHCBS Series
    UnitsDiscountYou will savePrice/unit
    53%19.07 €123.29 €
    106%76.26 €119.47 €
    2010%254.20 €114.39 €
    3015%571.95 €108.04 €
    Note

    Please contact us for small quantities, free samples and further technical details.



    PCB Support - Spacer - Locking Bayonet, Female Thread, Self - Tapping

    Article no.Cross-ref.MaterialMaterial ColourABHole topHole bottomPlate thicknessPU
    GHCBS-4-66TCBS-4-01 / 27FSTP00250PA66 UL94V2Natural6,45,24.0 +/- 0.08#6 (3.5)1,571000
    GHCBS-4-V0TCBS-4-19PA66 UL94V0Natural6,45,24.0 +/- 0.08#6 (3.5)1,571000
    GHCBS-6-66TCBS-6-01 / 27FSTP00375PA66 UL94V2Natural9,57,94.0 +/- 0.08#6 (3.5)1,571000
    GHCBS-6-V0TCBS-6-19PA66 UL94V0Natural9,57,94.0 +/- 0.08#6 (3.5)1,571000
    GHCBS-8-66TCBS-8-01 / 27FSTP00500PA66 UL94V2Natural12,77,94.0 +/- 0.08#6 (3.5)1,571000
    GHCBS-8-V0TCBS-8-19PA66 UL94V0Natural12,77,94.0 +/- 0.08#6 (3.5)1,571000
    GHCBS-10-66TCBS-10-01 / 27FSTP00625PA66 UL94V2Natural15,97,94.0 +/- 0.08#6 (3.5)1,571000
    GHCBS-10-V0TCBS-10-19PA66 UL94V0Natural15,97,94.0 +/- 0.08#6 (3.5)1,571000
    GHCBS-12-66TCBS-12-01 / 27FSTP00750PA66 UL94V2Natural19,17,94.0 +/- 0.08#6 (3.5)1,571000
    GHCBS-12-V0TCBS-12-19PA66 UL94V0Natural19,17,94.0 +/- 0.08#6 (3.5)1,571000
    GHCBS-14-66TCBS-14-01 / 27FSTP00875PA66 UL94V2Natural22,27,94.0 +/- 0.08#6 (3.5)1,571000
    GHCBS-14-V0TCBS-14-19PA66 UL94V0Natural22,27,94.0 +/- 0.08#6 (3.5)1,571000
    GHCBS-16-66TCBS-16-01 / 27FSTP01000PA66 UL94V2Natural25,47,94.0 +/- 0.08#6 (3.5)1,571000
    GHCBS-16-V0TCBS-16-19PA66 UL94V0Natural25,47,94.0 +/- 0.08#6 (3.5)1,571000
    GHCBS-18-66TCBS-18-01 / 27FSTP01125PA66 UL94V2Natural28,67,94.0 +/- 0.08#6 (3.5)1,571000
    GHCBS-18-V0TCBS-18-19PA66 UL94V0Natural28,67,94.0 +/- 0.08#6 (3.5)1,571000
    GHCBS-20-66TCBS-20-01 / 27FSTP01250PA66 UL94V2Natural31,77,94.0 +/- 0.08#6 (3.5)1,571000
    GHCBS-20-V0TCBS-20-19PA66 UL94V0Natural31,77,94.0 +/- 0.08#6 (3.5)1,571000
    GHCBS-22.5-66TCBS-22.5-01 / 27FSTP01406PA66 UL94V2Natural35,77,94.0 +/- 0.08#6 (3.5)1,571000
    GHCBS-22.5-V0TCBS-22.5-19PA66 UL94V0Natural35,77,94.0 +/- 0.08#6 (3.5)1,571000
    Identical to Richco / Essentra series
    TCBS
    Packaging and price unit
    1000
    Functional dimension "A" or "L" (if available)
    4 ≙ 6,4mm; 5 ≙ 7,9mm; 6 ≙ 9,5mm; 7 ≙ 11,1mm; 8 ≙ 12,7mm; 9 ≙ 14,3mm; 10 ≙ 15,9mm; 12 ≙ 19,1mm; 14 ≙ 22,2mm; 16 ≙ 25,4mm; 18 ≙ 28,6mm; 20 ≙ 31,7mm; 22 ≙ 34,9mm; 22.5 ≙ 37,5mm - \"B\" ≙ 7,9mm (nur bei GHCBS-04-66 ≙ 5,2mm)
    GHCBS-04-66
