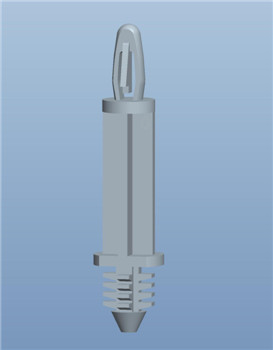

    BHL GBS Series - Blind Hole Circuit Board Support #2 GBS Series - Blind Hole Circuit Board Support

    GBS Series - Blind Hole Circuit Board Support

    106.50 €
    VAT excluded Änderungen und Preisirrtümer vorbehalten

    Packaging and price unit: 1000 Spacers for blind hole mounting

    In lengths from 4.8 - 22.2mm (others on request)

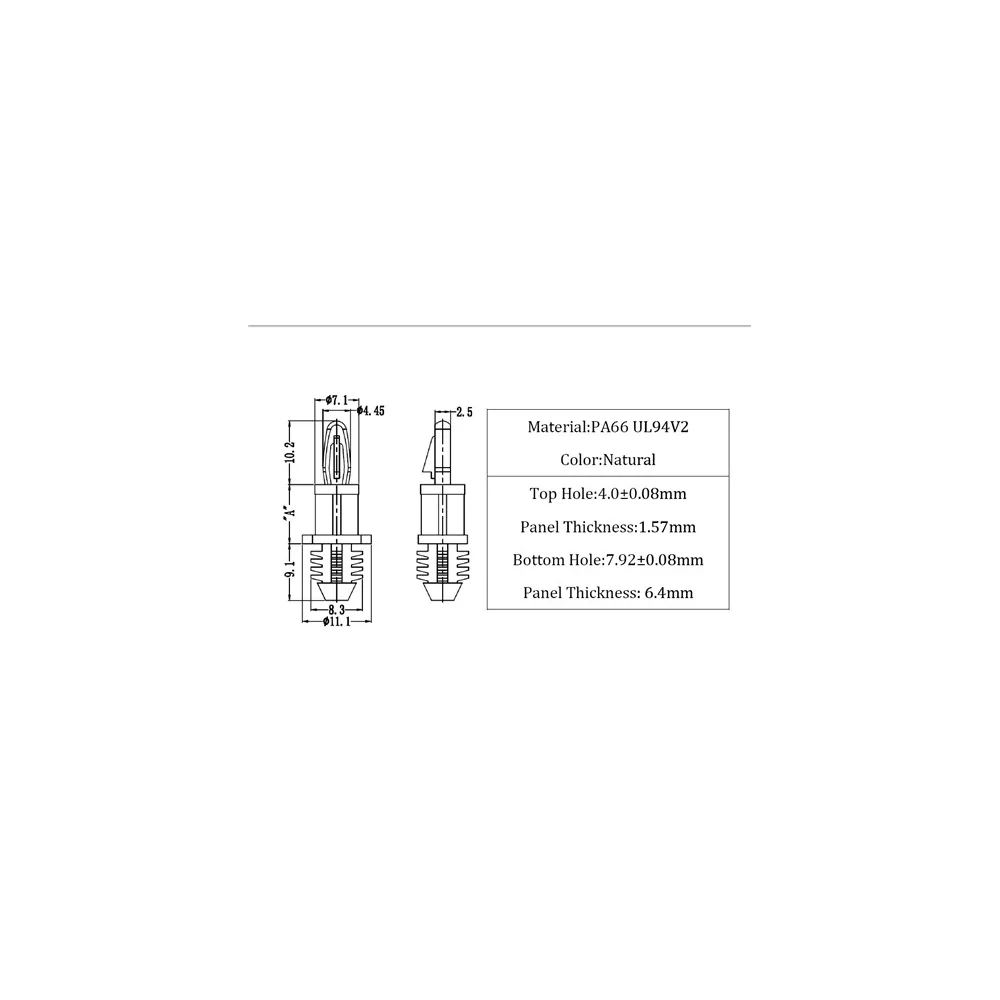

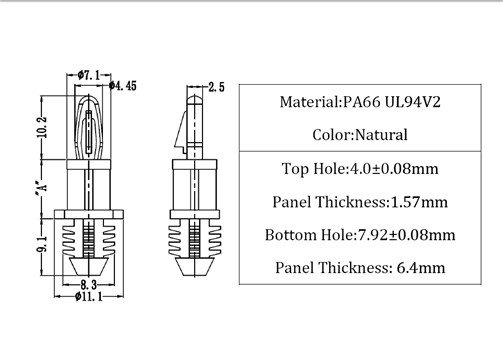

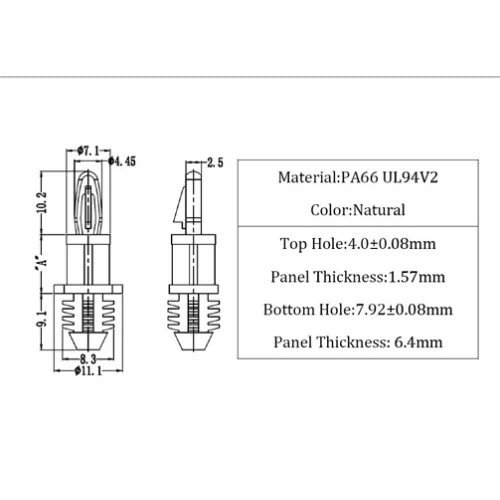

    PCB thickness ≙ 1.57mm (top) & 6.4mm (bottom)
    Ø hole ≙ 4.0±0.08mm (top) & 7.92±0.08mm (bottom)
    Colour: Natural - Material: PA66 UL 94V2

    GBS Series
    UnitsDiscountYou will savePrice/unit
    53%15.98 €103.31 €
    106%63.90 €100.11 €
    2010%213.00 €95.85 €
    3015%479.25 €90.53 €
    Note

    Please contact us for small quantities, free samples and further technical details.

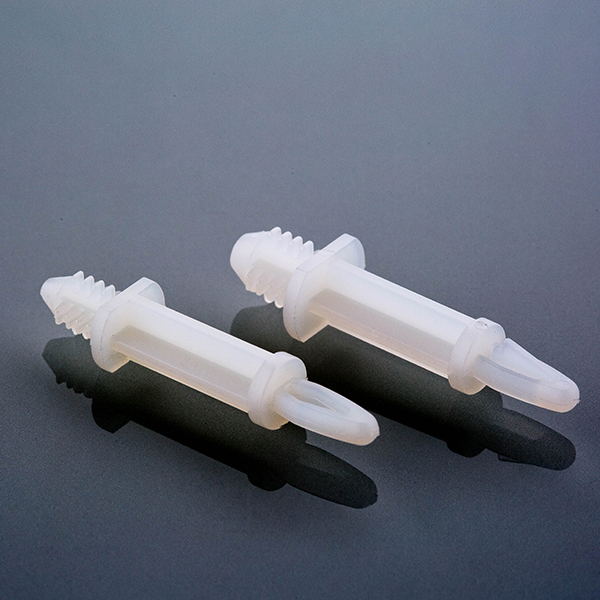

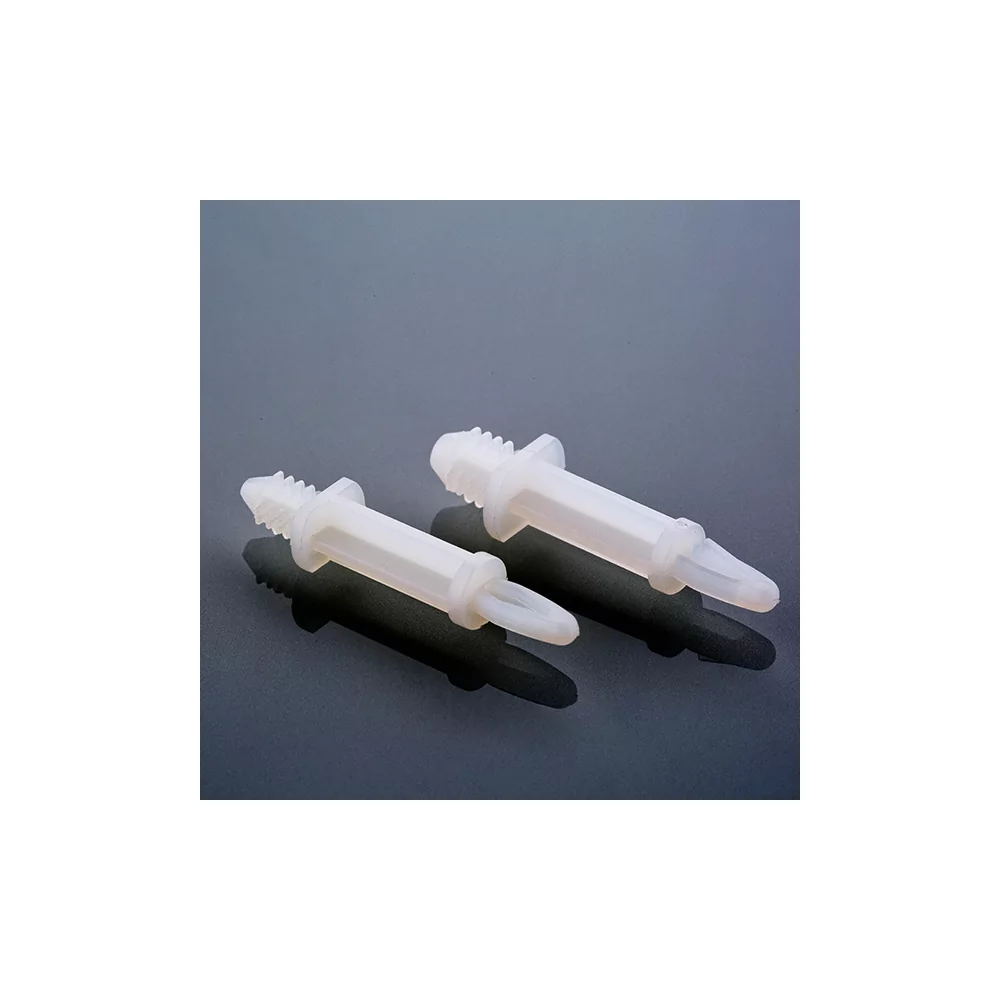

    PCB Support - Spacer - Locking/Non Locking Bayonet with Fir Tree Mount

    Article No.Cross-Ref.MaterialColourAFIGHole topDrill hole bottomPanel thickness topPlate thickness bottomPU
    GBS-3-66BHL-3-01PA66 UL94V2Natural4,814.0 +/- 0.087.92 +/- 0.081,576.4 (min)1000
    GBS-3-V0BHL-3-19PA66 UL94V0Natural4,814.0 +/- 0.087.92 +/- 0.081,576.4 (min)1000
    GBS-4-66BHL-4-01PA66 UL94V2Natural6,414.0 +/- 0.087.92 +/- 0.081,576.4 (min)1000
    GBS-4-V0BHL-4-19PA66 UL94V0Natural6,414.0 +/- 0.087.92 +/- 0.081,576.4 (min)1000
    GBS-6-66BHL-6-01PA66 UL94V2Natural9,514.0 +/- 0.087.92 +/- 0.081,576.4 (min)1000
    GBS-6-V0BHL-6-19PA66 UL94V0Natural9,514.0 +/- 0.087.92 +/- 0.081,576.4 (min)1000
    GBS-7-66BHL-7-01PA66 UL94V2Natural11,114.0 +/- 0.087.92 +/- 0.081,576.4 (min)1000
    GBS-7-V0BHL-7-19PA66 UL94V0Natural11,114.0 +/- 0.087.92 +/- 0.081,576.4 (min)1000
    GBS-8-66BHL-8-01PA66 UL94V2Natural12,714.0 +/- 0.087.92 +/- 0.081,576.4 (min)1000
    GBS-8-V0BHL-8-19PA66 UL94V0Natural12,714.0 +/- 0.087.92 +/- 0.081,576.4 (min)1000
    GBS-10-66BHL-10-01PA66 UL94V2Natural15,914.0 +/- 0.087.92 +/- 0.081,576.4 (min)1000
    GBS-10-V0BHL-10-19PA66 UL94V0Natural15,914.0 +/- 0.087.92 +/- 0.081,576.4 (min)1000
    GBS-12-66BHL-12-01PA66 UL94V2Natural19,114.0 +/- 0.087.92 +/- 0.081,576.4 (min)1000
    GBS-12-V0BHL-12-19PA66 UL94V0Natural19,114.0 +/- 0.087.92 +/- 0.081,576.4 (min)1000
    GBS-14-66BHL-14-01PA66 UL94V2Natural22,214.0 +/- 0.087.92 +/- 0.081,576.4 (min)1000
    GBS-14-V0BHL-14-19PA66 UL94V0Natural22,214.0 +/- 0.087.92 +/- 0.081,576.4 (min)1000
    Identical to Richco / Essentra series
    BHL-x
    Packaging and price unit
    1000
    Functional dimension "A" or "L" (if available)
    3 ≙ 4,8mm; 4 ≙ 6,4mm; 5 ≙ 7,9mm; 6 ≙ 9,5mm; 7 ≙ 11,1mm; 8 ≙ 12,7mm; 9 ≙ 14,3mm; 10 ≙ 15,9mm; 12 ≙ 19,1mm; 14 ≙ 22,2mm
    GBS-3-66
