    LCBS GLSP 1 Series - Locking Circuit Board Support II #2 GLSP 1 Series - Locking Circuit Board Support II

    GLSP 1 Series - Locking Circuit Board Support II

    82.15 €
    VAT excluded Änderungen und Preisirrtümer vorbehalten

    Packaging and price unit: 1000 Fastening technology for printed circuit boards / spacers

    In lengths from 4.8 - 34.9mm (others on request)
    PCB thickness ≙ 0.79-1.98 (top) & 1.57mm (bottom)
    Ø hole ≙ 4.75±0.08mm (top) & 4.0±0.08mm (bottom)
    Colour: Natural - Material: PA66 UL 94V2 / V0; HT≙ PEI-V0

    GLSP1 Series
    UnitsDiscountYou will savePrice/unit
    53%12.32 €79.69 €
    106%49.29 €77.22 €
    2010%164.30 €73.94 €
    3015%369.68 €69.83 €
    Note

    Please contact us for small quantities, free samples and further technical details.

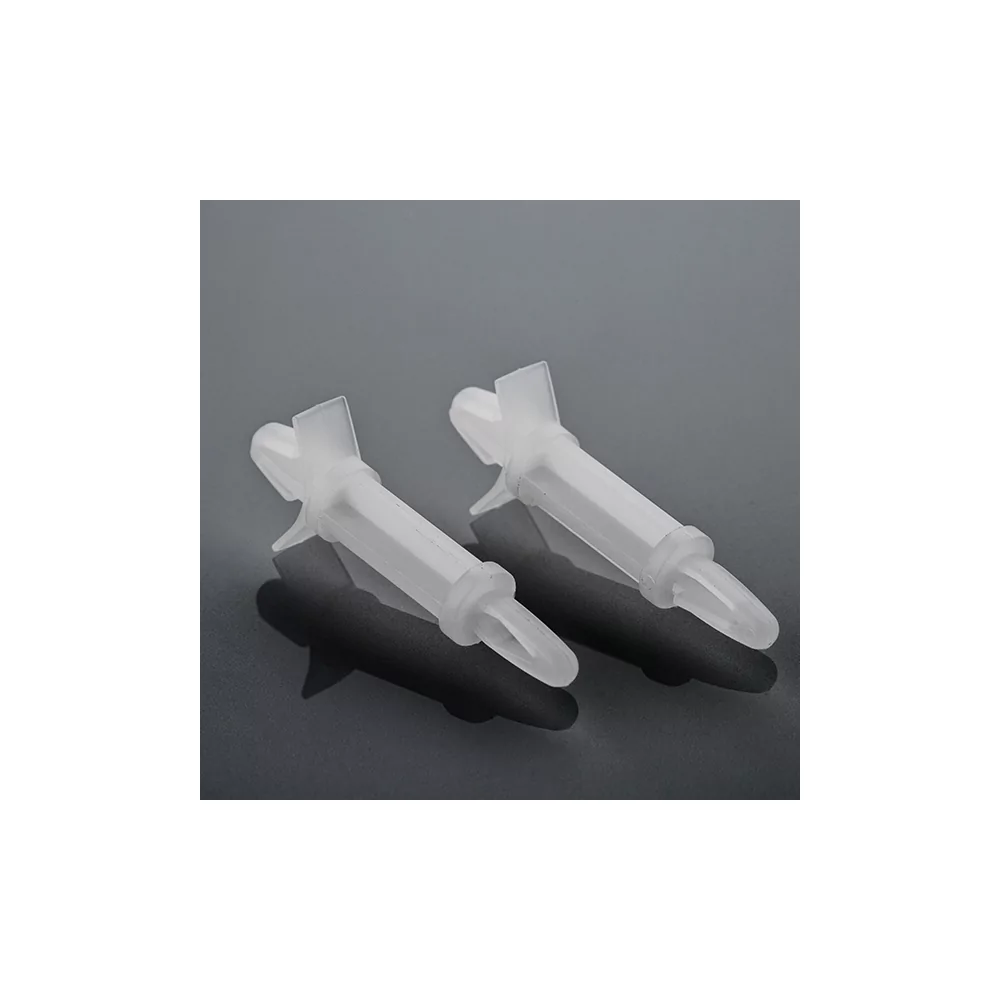

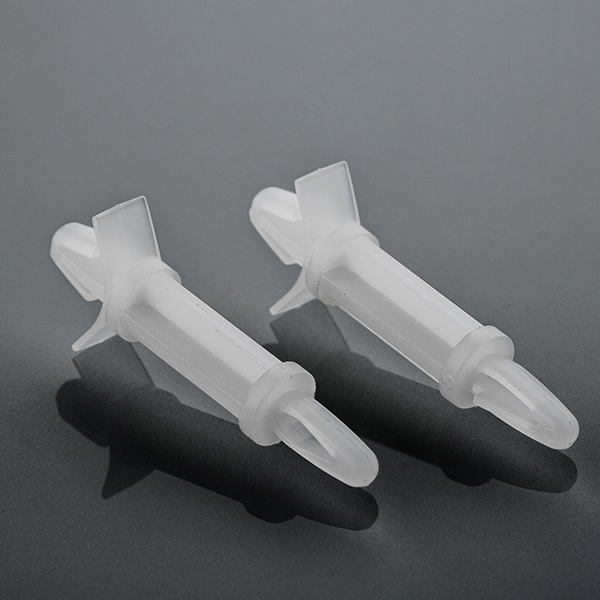

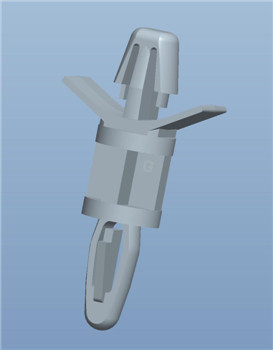

    PCB Support - Spacer - Locking/Non Locking Bayonet with Locking Arrowhead

    Article no.Cross-Ref.MaterialColourAFIGDrill hole topBottom holeTop panel thicknessBottom panel thicknessPU
    GLSP1-3-66LCBS-3-01PA66 UL94V2Natural4,814.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-3-V0LCBS-3-19PA66 UL94V0Natural4,814.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-6M-66LCBS-6M-01PA66 UL94V2Natural6.014.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-6M-V0-PA66 UL94V0Natural6.014.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-4-66LCBS-4-01PA66 UL94V2Natural6,414.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-4-V0LCBS-4-19PA66 UL94V0Natural6,414.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-5-66LCBS-5-01PA66 UL94V2Natural7,914.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-5-V0LCBS-5-19PA66 UL94V0Natural7,914.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-8M-66LCBS-8M-01PA66 UL94V2Natural8.014.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-8M-V0-PA66 UL94V0Natural8.014.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-6-66LCBS-6-01PA66 UL94V2Natural9,514.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-6-V0LCBS-6-19PA66 UL94V0Natural9,514.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-10M-66LCBS-10M-01PA66 UL94V2Natural10.014.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-10M-V0-PA66 UL94V0Natural10.014.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-7-66LCBS-7-01PA66 UL94V2Natural11,114.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-7-V0LCBS-7-19PA66 UL94V0Natural11,114.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-12M-66LCBS-12M-01PA66 UL94V2Natural12.014.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-12M-V0-PA66 UL94V0Natural12.014.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-8-66LCBS-8-01PA66 UL94V2Natural12,714.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-8-V0LCBS-8-19PA66 UL94V0Natural12,714.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-14M-66LCBS-14M-01PA66 UL94V2Natural14.014.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-14M-V0-PA66 UL94V0Natural14.014.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-10-66LCBS-10-01PA66 UL94V2Natural15,914.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-10-V0LCBS-10-19PA66 UL94V0Natural15,914.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-16M-66LCBS-16M-01PA66 UL94V2Natural16.014.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-16M-V0-PA66 UL94V0Natural16.014.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-12-66LCBS-12-01PA66 UL94V2Natural19,114.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-12-V0LCBS-12-19PA66 UL94V0Natural19,114.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-14-66LCBS-14-01PA66 UL94V2Natural22,214.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-14-V0LCBS-14-19PA66 UL94V0Natural22,214.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-16-66LCBS-16-01PA66 UL94V2Natural25,414.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-16-V0LCBS-16-19PA66 UL94V0Natural25,414.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-18-66LCBS-18-01PA66 UL94V2Natural28,614.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-18-V0LCBS-18-19PA66 UL94V0Natural28,614.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-20-66LCBS-20-01PA66 UL94V2Natural31,714.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-20-V0LCBS-20-19PA66 UL94V0Natural31,714.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-20-6-PA6 UL94V2Natural31,714.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-22-66LCBS-22-01PA66 UL94V2Natural34,914.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-22-V0LCBS-22-19PA66 UL94V0Natural34,914.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-12-HTLCBS-12-HTPEI UL94V0Black19,114.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-14-HTLCBS-14-HTPEI UL94V0Black22,214.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-16-HTLCBS-16-HTPEI UL94V0Black25,414.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    GLSP1-18-HTLCBS-18-HTPEI UL94V0Black28,614.75 +/- 0.084.0 +/- 0.080.79-1.981,571000
    Identical to Richco / Essentra series
    LCBS Serie
    Packaging and price unit
    1000

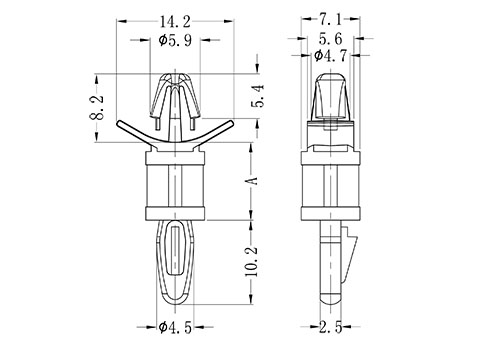

    Functional dimension "A" or "L" (if available)
    3 ≙ 4,8mm; 4 ≙ 6,4mm; 5 ≙ 7,9mm; 6 ≙ 9,5mm; 7 ≙ 11,1mm; 8 ≙ 12,7mm; 10 ≙ 15,9mm; 12 ≙ 19,1mm; 14 ≙ 22,2mm; 16 ≙ 25,4mm; 18 ≙ 28,6mm; 20 ≙ 31,7mm; 22 ≙ 34,9mm; 6M ≙ 6mm; 8M ≙ 8mm; 10M ≙ 10mm; 12M ≙ 12mm; 14M ≙ 14mm; 16M ≙ 16mm
    Cross-reference
    LCBS-6-01 LCBS-7-01 LCBS-8-01 LCBS-6M-01 LCBS-8M-01 LCBS-10M-01 LCBS-12M-01 LCBS-14M-01 LCBS-16M-01 LCBS-10-01 LCBS-12-01 LCBS-14-01 LCBS-16-01 LCBS-18-01 LCBS-20-01 LCBS-22-01
