Plastic expanding rivets and expanding fasteners
Preis auf Anfrage GRF Series - Snap Rivets
93.00 €
VAT excluded Änderungen und Preisirrtümer vorbehalten
Packaging and price unit: 1000
Shockproof / "vibration-proof" - PATENT
Newly developed! - The "Shockproof rivet". With improved function to prevent loss caused by vibrations.
Further variations on request.
Colour: SW or NAT; Material: PA6 UL94V2
Fastening range: 2.0 - 8.5 (different variants)
Ø hole ≙ 3.1-3.2 / 4.1-4.2 / 5.1-5.2 / 5.9-6.0 & 6.1-6.2
'

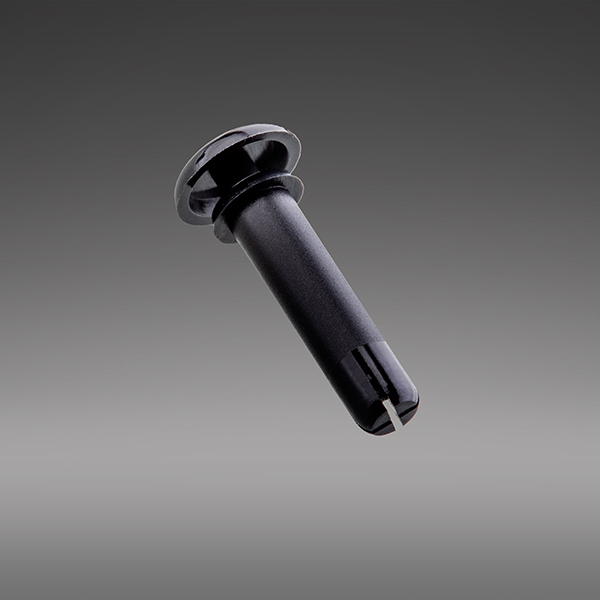

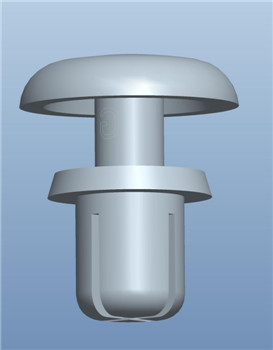

Snap Push-In Rivet, Shockproof, PA6 UL94V2, PA66 UL94V0

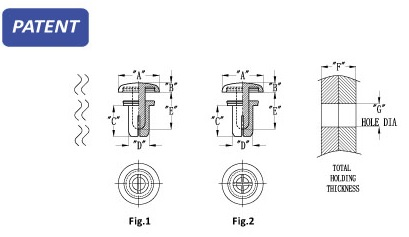

| Article no. | Material | Colour | A | B | C | D | E | F | G | FIG | Drill hole | Panel thickness | PU |
| GRF2024B | PA6 UL94V2 | Black | 4,2 | 1,2 | 2,4 | 2.0 | 2,8 | 0.6-1.2 | 2.1-2.2 | 1 | 2.1-2.2 | 0.6-1.2 | 1000 |
| GRF2024N | PA6 UL94V2 | Natural | 4,2 | 1,2 | 2,4 | 2.0 | 2,8 | 0.6-1.2 | 2.1-2.2 | 1 | 2.1-2.2 | 0.6-1.2 | 1000 |
| GRF2024W | PA6 UL94V2 | White | 4,2 | 1,2 | 2,4 | 2.0 | 2,8 | 0.6-1.2 | 2.1-2.2 | 1 | 2.1-2.2 | 0.6-1.2 | 1000 |
| GRF2024BV0 | PA66 UL94V0 | Black | 4,2 | 1,2 | 2,4 | 2.0 | 2,8 | 0.6-1.2 | 2.1-2.2 | 1 | 2.1-2.2 | 0.6-1.2 | 1000 |
| GRF2032B | PA6 UL94V2 | Black | 4,2 | 1,2 | 3,2 | 2.0 | 3,8 | 1.3-2.0 | 2.1-2.2 | 1 | 2.1-2.2 | 1.3-2.0 | 1000 |
| GRF2032N | PA6 UL94V2 | Natural | 4,2 | 1,2 | 3,2 | 2.0 | 3,8 | 1.3-2.0 | 2.1-2.2 | 1 | 2.1-2.2 | 1.3-2.0 | 1000 |
| GRF2032W | PA6 UL94V2 | White | 4,2 | 1,2 | 3,2 | 2.0 | 3,8 | 1.3-2.0 | 2.1-2.2 | 1 | 2.1-2.2 | 1.3-2.0 | 1000 |
| GRF2032BV0 | PA66 UL94V0 | Black | 4,2 | 1,2 | 3,2 | 2.0 | 3,8 | 1.3-2.0 | 2.1-2.2 | 1 | 2.1-2.2 | 1.3-2.0 | 1000 |
| GRF2040B | PA6 UL94V2 | Black | 4,2 | 1,2 | 4,0 | 2.0 | 5,5 | 2.1-2.8 | 2.1-2.2 | 1 | 2.1-2.2 | 2.1-2.8 | 1000 |
| GRF2040N | PA6 UL94V2 | Natural | 4,2 | 1,2 | 4,0 | 2.0 | 5,5 | 2.1-2.8 | 2.1-2.2 | 1 | 2.1-2.2 | 2.1-2.8 | 1000 |
| GRF2040W | PA6 UL94V2 | White | 4,2 | 1,2 | 4,0 | 2.0 | 5,5 | 2.1-2.8 | 2.1-2.2 | 1 | 2.1-2.2 | 2.1-2.8 | 1000 |
| GRF2040BV0 | PA66 UL94V0 | Black | 4,2 | 1,2 | 4,0 | 2.0 | 5,5 | 2.1-2.8 | 2.1-2.2 | 1 | 2.1-2.2 | 2.1-2.8 | 1000 |
| GRF2048B | PA6 UL94V2 | Black | 4,2 | 1,2 | 4,8 | 2.0 | 5,5 | 2.9-3.6 | 2.1-2.2 | 1 | 2.1-2.2 | 2.9-3.6 | 1000 |
| GRF2048N | PA6 UL94V2 | Natural | 4,2 | 1,2 | 4,8 | 2.0 | 5,5 | 2.9-3.6 | 2.1-2.2 | 1 | 2.1-2.2 | 2.9-3.6 | 1000 |
| GRF2048W | PA6 UL94V2 | White | 4,2 | 1,2 | 4,8 | 2.0 | 5,5 | 2.9-3.6 | 2.1-2.2 | 1 | 2.1-2.2 | 2.9-3.6 | 1000 |
| GRF2048BV0 | PA66 UL94V0 | Black | 4,2 | 1,2 | 4,8 | 2.0 | 5,5 | 2.9-3.6 | 2.1-2.2 | 1 | 2.1-2.2 | 2.9-3.6 | 1000 |
| GRF2056B | PA6 UL94V2 | Black | 4,2 | 1,2 | 5,6 | 2.0 | 6,2 | 3.7-4.4 | 2.1-2.2 | 1 | 2.1-2.2 | 3.7-4.4 | 1000 |
| GRF2056N | PA6 UL94V2 | Natural | 4,2 | 1,2 | 5,6 | 2.0 | 6,2 | 3.7-4.4 | 2.1-2.2 | 1 | 2.1-2.2 | 3.7-4.4 | 1000 |
| GRF2056W | PA6 UL94V2 | White | 4,2 | 1,2 | 5,6 | 2.0 | 6,2 | 3.7-4.4 | 2.1-2.2 | 1 | 2.1-2.2 | 3.7-4.4 | 1000 |
| GRF2056BV0 | PA66 UL94V0 | Black | 4,2 | 1,2 | 5,6 | 2.0 | 6,2 | 3.7-4.4 | 2.1-2.2 | 1 | 2.1-2.2 | 3.7-4.4 | 1000 |
| GRF2064B | PA6 UL94V2 | Black | 4,2 | 1,2 | 6,4 | 2.0 | 7,2 | 4.4-5.2 | 2.1-2.2 | 1 | 2.1-2.2 | 4.4-5.2 | 1000 |
| GRF2064N | PA6 UL94V2 | Natural | 4,2 | 1,2 | 6,4 | 2.0 | 7,2 | 4.4-5.2 | 2.1-2.2 | 1 | 2.1-2.2 | 4.4-5.2 | 1000 |
| GRF2064W | PA6 UL94V2 | White | 4,2 | 1,2 | 6,4 | 2.0 | 7,2 | 4.4-5.2 | 2.1-2.2 | 1 | 2.1-2.2 | 4.4-5.2 | 1000 |
| GRF2064BV0 | PA66 UL94V0 | Black | 4,2 | 1,2 | 6,4 | 2.0 | 7,2 | 4.4-5.2 | 2.1-2.2 | 1 | 2.1-2.2 | 4.4-5.2 | 1000 |
| GRF2632B | PA6 UL94V2 | Black | 5,0 | 1,4 | 3,2 | 2.6 | 4.6 | 1.0-2.0 | 2.7-2.8 | 1 | 2.7-2.8 | 1.0-2.0 | 1000 |
| GRF2632N | PA6 UL94V2 | Natural | 5,0 | 1,4 | 3,2 | 2.6 | 4.6 | 1.0-2.0 | 2.7-2.8 | 1 | 2.7-2.8 | 1.0-2.0 | 1000 |
| GRF2632W | PA6 UL94V2 | White | 5,0 | 1,4 | 3,2 | 2.6 | 4.6 | 1.0-2.0 | 2.7-2.8 | 1 | 2.7-2.8 | 1.0-2.0 | 1000 |
| GRF2632BV0 | PA66 UL94V0 | Black | 5,0 | 1,4 | 3,2 | 2.6 | 4.6 | 1.0-2.0 | 2.7-2.8 | 1 | 2.7-2.8 | 1.0-2.0 | 1000 |
| GRF2642B | PA6 UL94V2 | Black | 5.0 | 1,4 | 4.2 | 2.6 | 4.6 | 2.0-3.0 | 2.7-2.8 | 1 | 2.7-2.8 | 2.0-3.0 | 1000 |
| GRF2642N | PA6 UL94V2 | Natural | 5.0 | 1,4 | 4.2 | 2.6 | 4.6 | 2.0-3.0 | 2.7-2.8 | 1 | 2.7-2.8 | 2.0-3.0 | 1000 |
| GRF2642W | PA6 UL94V2 | White | 5.0 | 1,4 | 4.2 | 2.6 | 4.6 | 2.0-3.0 | 2.7-2.8 | 1 | 2.7-2.8 | 2.0-3.0 | 1000 |
| GRF2642BV0 | PA66 UL94V0 | Black | 5.0 | 1,4 | 4.2 | 2.6 | 4.6 | 2.0-3.0 | 2.7-2.8 | 1 | 2.7-2.8 | 2.0-3.0 | 1000 |
| GRF2648B | PA6 UL94V2 | Black | 5.0 | 1,4 | 4,8 | 2.6 | 6.2 | 2.7-3.6 | 2.7-2.8 | 1 | 2.7-2.8 | 2.7-3.6 | 1000 |
| GRF2648N | PA6 UL94V2 | Natural | 5.0 | 1,4 | 4,8 | 2.6 | 6.2 | 2.7-3.6 | 2.7-2.8 | 1 | 2.7-2.8 | 2.7-3.6 | 1000 |
| GRF2648W | PA6 UL94V2 | White | 5.0 | 1,4 | 4,8 | 2.6 | 6.2 | 2.7-3.6 | 2.7-2.8 | 1 | 2.7-2.8 | 2.7-3.6 | 1000 |
| GRF2648BV0 | PA66 UL94V0 | Black | 5.0 | 1,4 | 4,8 | 2.6 | 6.2 | 2.7-3.6 | 2.7-2.8 | 1 | 2.7-2.8 | 2.7-3.6 | 1000 |
| GRF2655B | PA6 UL94V2 | Black | 5,0 | 1,4 | 5,5 | 2.6 | 6,2 | 3.4-4.3 | 2.7-2.8 | 1 | 2.7-2.8 | 3.4-4.3 | 1000 |
| GRF2655W | PA6 UL94V2 | White | 5,0 | 1,4 | 5,5 | 2.6 | 6,2 | 3.4-4.3 | 2.7-2.8 | 1 | 2.7-2.8 | 3.4-4.3 | 1000 |
| GRF2655N | PA6 UL94V2 | Natural | 5,0 | 1,4 | 5,5 | 2.6 | 6,2 | 3.4-4.3 | 2.7-2.8 | 1 | 2.7-2.8 | 3.4-4.3 | 1000 |
| GRF2655BV0 | PA66 UL94V0 | Black | 5,0 | 1,4 | 5,5 | 2.6 | 6,2 | 3.4-4.3 | 2.7-2.8 | 1 | 2.7-2.8 | 3.4-4.3 | 1000 |
| GRF2664B | PA6 UL94V2 | Black | 5,0 | 1,4 | 6,4 | 2.6 | 7,8 | 4.3-5.2 | 2.7-2.8 | 1 | 2.7-2.8 | 4.3-5.2 | 1000 |
| GRF2664N | PA6 UL94V2 | White | 5,0 | 1,4 | 6,4 | 2.6 | 7,8 | 4.3-5.2 | 2.7-2.8 | 1 | 2.7-2.8 | 4.3-5.2 | 1000 |
| GRF2664W | PA6 UL94V2 | Natural | 5,0 | 1,4 | 6,4 | 2.6 | 7,8 | 4.3-5.2 | 2.7-2.8 | 1 | 2.7-2.8 | 4.3-5.2 | 1000 |
| GRF2664BV0 | PA66 UL94V0 | Black | 5,0 | 1,4 | 6,4 | 2.6 | 7,8 | 4.3-5.2 | 2.7-2.8 | 1 | 2.7-2.8 | 4.3-5.2 | 1000 |
| GRF2672B | PA6 UL94V2 | Black | 5,0 | 1,4 | 7,2 | 2.6 | 7,8 | 5.1-6.0 | 2.7-2.8 | 1 | 2.7-2.8 | 5.1-6.0 | 1000 |
| GRF2672N | PA6 UL94V2 | White | 5,0 | 1,4 | 7,2 | 2.6 | 7,8 | 5.1-6.0 | 2.7-2.8 | 1 | 2.7-2.8 | 5.1-6.0 | 1000 |
| GRF2672W | PA6 UL94V2 | Natural | 5,0 | 1,4 | 7,2 | 2.6 | 7,8 | 5.1-6.0 | 2.7-2.8 | 1 | 2.7-2.8 | 5.1-6.0 | 1000 |
| GRF2672BV0 | PA66 UL94V0 | Black | 5,0 | 1,4 | 7,2 | 2.6 | 7,8 | 5.1-6.0 | 2.7-2.8 | 1 | 2.7-2.8 | 5.1-6.0 | 1000 |
| GRF3035B | PA6 UL94V2 | Black | 6,4 | 1,7 | 3,5 | 3.0 | 5,1 | 1.0-2.0 | 3.1-3.2 | 1 | 3.1-3.2 | 1.0-2.0 | 1000 |
| GRF3035N | PA6 UL94V2 | Natural | 6,4 | 1,7 | 3,5 | 3.0 | 5,1 | 1.0-2.0 | 3.1-3.2 | 1 | 3.1-3.2 | 1.0-2.0 | 1000 |
| GRF3035W | PA6 UL94V2 | White | 6,4 | 1,7 | 3,5 | 3.0 | 5,1 | 1.0-2.0 | 3.1-3.2 | 1 | 3.1-3.2 | 1.0-2.0 | 1000 |
| GRF3035BV0 | PA66 UL94V0 | Black | 6,4 | 1,7 | 3,5 | 3.0 | 5,1 | 1.0-2.0 | 3.1-3.2 | 1 | 3.1-3.2 | 1.0-2.0 | 1000 |
| GRF3045B | PA6 UL94V2 | Black | 6,4 | 1,7 | 4,5 | 3.0 | 6,1 | 2.0-3.0 | 3.1-3.2 | 1 | 3.1-3.2 | 2.0-3.0 | 1000 |
| GRF3045N | PA6 UL94V2 | Natural | 6,4 | 1,7 | 4,5 | 3.0 | 6,1 | 2.0-3.0 | 3.1-3.2 | 1 | 3.1-3.2 | 2.0-3.0 | 1000 |
| GRF3045W | PA6 UL94V2 | White | 6,4 | 1,7 | 4,5 | 3.0 | 6,1 | 2.0-3.0 | 3.1-3.2 | 1 | 3.1-3.2 | 2.0-3.0 | 1000 |
| GRF3045BV0 | PA66 UL94V0 | Black | 6,4 | 1,7 | 4,5 | 3.0 | 6,1 | 2.0-3.0 | 3.1-3.2 | 1 | 3.1-3.2 | 2.0-3.0 | 1000 |
| GRF3050B | PA6 UL94V2 | Black | 6,4 | 1,7 | 5,0 | 3.0 | 6,1 | 2.5-3.5 | 3.1-3.2 | 1 | 3.1-3.2 | 2.5-3.5 | 1000 |
| GRF3050N | PA6 UL94V2 | Natural | 6,4 | 1,7 | 5,0 | 3.0 | 6,1 | 2.5-3.5 | 3.1-3.2 | 1 | 3.1-3.2 | 2.5-3.5 | 1000 |
| GRF3050W | PA6 UL94V2 | White | 6,4 | 1,7 | 5,0 | 3.0 | 6,1 | 2.5-3.5 | 3.1-3.2 | 1 | 3.1-3.2 | 2.5-3.5 | 1000 |
| GRF3050BV0 | PA66 UL94V0 | Black | 6,4 | 1,7 | 5,0 | 3.0 | 6,1 | 2.5-3.5 | 3.1-3.2 | 1 | 3.1-3.2 | 2.5-3.5 | 1000 |
| GRF3055B | PA6 UL94V2 | Black | 6,4 | 1,7 | 5,5 | 3.0 | 6,1 | 3.0-4.0 | 3.1-3.2 | 1 | 3.1-3.2 | 3.0-4.0 | 1000 |
| GRF3055N | PA6 UL94V2 | Natural | 6,4 | 1,7 | 5,5 | 3.0 | 6,1 | 3.0-4.0 | 3.1-3.2 | 1 | 3.1-3.2 | 3.0-4.0 | 1000 |
| GRF3055W | PA6 UL94V2 | White | 6,4 | 1,7 | 5,5 | 3.0 | 6,1 | 3.0-4.0 | 3.1-3.2 | 1 | 3.1-3.2 | 3.0-4.0 | 1000 |
| GRF3055BV0 | PA66 UL94V0 | Black | 6,4 | 1,7 | 5,5 | 3.0 | 6,1 | 3.0-4.0 | 3.1-3.2 | 1 | 3.1-3.2 | 3.0-4.0 | 1000 |
| GRF3065B | PA6 UL94V2 | Black | 6,4 | 1,7 | 6,5 | 3.0 | 7,1 | 4.0-5.0 | 3.1-3.2 | 1 | 3.1-3.2 | 4.0-5.0 | 1000 |
| GRF3065N | PA6 UL94V2 | Natural | 6,4 | 1,7 | 6,5 | 3.0 | 7,1 | 4.0-5.0 | 3.1-3.2 | 1 | 3.1-3.2 | 4.0-5.0 | 1000 |
| GRF3065W | PA6 UL94V2 | White | 6,4 | 1,7 | 6,5 | 3.0 | 7,1 | 4.0-5.0 | 3.1-3.2 | 1 | 3.1-3.2 | 4.0-5.0 | 1000 |
| GRF3065BV0 | PA66 UL94V0 | Black | 6,4 | 1,7 | 6,5 | 3.0 | 7,1 | 4.0-5.0 | 3.1-3.2 | 1 | 3.1-3.2 | 4.0-5.0 | 1000 |
| GRF3075B | PA6 UL94V2 | Black | 6,4 | 1,7 | 7,5 | 3.0 | 9,0 | 5.0-6.0 | 3.1-3.2 | 1 | 3.1-3.2 | 5.0-6.0 | 1000 |
| GRF3075N | PA6 UL94V2 | Natural | 6,4 | 1,7 | 7,5 | 3.0 | 9,0 | 5.0-6.0 | 3.1-3.2 | 1 | 3.1-3.2 | 5.0-6.0 | 1000 |
| GRF3075W | PA6 UL94V2 | White | 6,4 | 1,7 | 7,5 | 3.0 | 9,0 | 5.0-6.0 | 3.1-3.2 | 1 | 3.1-3.2 | 5.0-6.0 | 1000 |
| GRF3075BV0 | PA66 UL94V0 | Black | 6,4 | 1,7 | 7,5 | 3.0 | 9,0 | 5.0-6.0 | 3.1-3.2 | 1 | 3.1-3.2 | 5.0-6.0 | 1000 |
| GRF3080B | PA6 UL94V2 | Black | 6,4 | 1,7 | 8,0 | 3.0 | 9,0 | 5.5-6.5 | 3.1-3.2 | 1 | 3.1-3.2 | 5.5-6.5 | 1000 |
| GRF3080N | PA6 UL94V2 | Natural | 6,4 | 1,7 | 8,0 | 3.0 | 9,0 | 5.5-6.5 | 3.1-3.2 | 1 | 3.1-3.2 | 5.5-6.5 | 1000 |
| GRF3080W | PA6 UL94V2 | White | 6,4 | 1,7 | 8,0 | 3.0 | 9,0 | 5.5-6.5 | 3.1-3.2 | 1 | 3.1-3.2 | 5.5-6.5 | 1000 |
| GRF3080BV0 | PA66 UL94V0 | Black | 6,4 | 1,7 | 8,0 | 3.0 | 9,0 | 5.5-6.5 | 3.1-3.2 | 1 | 3.1-3.2 | 5.5-6.5 | 1000 |
| GRF3090B | PA6 UL94V2 | Black | 6,4 | 1,7 | 9,0 | 3.0 | 11,0 | 6.5-7.5 | 3.1-3.2 | 1 | 3.1-3.2 | 6.5-7.5 | 1000 |
| GRF3090N | PA6 UL94V2 | Natural | 6,4 | 1,7 | 9,0 | 3.0 | 11,0 | 6.5-7.5 | 3.1-3.2 | 1 | 3.1-3.2 | 6.5-7.5 | 1000 |
| GRF3090W | PA6 UL94V2 | White | 6,4 | 1,7 | 9,0 | 3.0 | 11,0 | 6.5-7.5 | 3.1-3.2 | 1 | 3.1-3.2 | 6.5-7.5 | 1000 |
| GRF3090BV0 | PA66 UL94V0 | Black | 6,4 | 1,7 | 9,0 | 3.0 | 11,0 | 6.5-7.5 | 3.1-3.2 | 1 | 3.1-3.2 | 6.5-7.5 | 1000 |
| GRF3100B | PA6 UL94V2 | Black | 6,4 | 1,7 | 10,0 | 3.0 | 11,0 | 7.5-8.5 | 3.1-3.2 | 1 | 3.1-3.2 | 7.5-8.5 | 1000 |
| GRF3100N | PA6 UL94V2 | Natural | 6,4 | 1,7 | 10,0 | 3.0 | 11,0 | 7.5-8.5 | 3.1-3.2 | 1 | 3.1-3.2 | 7.5-8.5 | 1000 |
| GRF3100W | PA6 UL94V2 | White | 6,4 | 1,7 | 10,0 | 3.0 | 11,0 | 7.5-8.5 | 3.1-3.2 | 1 | 3.1-3.2 | 7.5-8.5 | 1000 |
| GRF3100BV0 | PA66 UL94V0 | Black | 6,4 | 1,7 | 10,0 | 3.0 | 11,0 | 7.5-8.5 | 3.1-3.2 | 1 | 3.1-3.2 | 7.5-8.5 | 1000 |
| GRF3145B | PA6 UL94V2 | Black | 6,4 | 1,7 | 14,5 | 3.0 | 15,5 | 11.5-13.0 | 3.1-3.2 | 1 | 3.1-3.2 | 11.5-13.0 | 1000 |
| GRF3145N | PA6 UL94V2 | Natural | 6,4 | 1,7 | 14,5 | 3.0 | 15,5 | 11.5-13.0 | 3.1-3.2 | 1 | 3.1-3.2 | 11.5-13.0 | 1000 |
| GRF3145W | PA6 UL94V2 | White | 6,4 | 1,7 | 14,5 | 3.0 | 15,5 | 11.5-13.0 | 3.1-3.2 | 1 | 3.1-3.2 | 11.5-13.0 | 1000 |
| GRF3145BV0 | PA66 UL94V0 | Black | 6,4 | 1,7 | 14,5 | 3.0 | 15,5 | 11.5-13.0 | 3.1-3.2 | 1 | 3.1-3.2 | 11.5-13.0 | 1000 |
| GRF3230B | PA6 UL94V2 | Black | 6,4 | 1,7 | 23,0 | 3.0 | 24,0 | 20.5-21.5 | 3.1-3.2 | 1 | 3.1-3.2 | 20.5-21.5 | 1000 |
| GRF3230N | PA6 UL94V2 | Natural | 6,4 | 1,7 | 23,0 | 3.0 | 24,0 | 20.5-21.5 | 3.1-3.2 | 1 | 3.1-3.2 | 20.5-21.5 | 1000 |
| GRF3230W | PA6 UL94V2 | White | 6,4 | 1,7 | 23,0 | 3.0 | 24,0 | 20.5-21.5 | 3.1-3.2 | 1 | 3.1-3.2 | 20.5-21.5 | 1000 |
| GRF3230BV0 | PA66 UL94V0 | Black | 6,4 | 1,7 | 23,0 | 3.0 | 24,0 | 20.5-21.5 | 3.1-3.2 | 1 | 3.1-3.2 | 20.5-21.5 | 1000 |
| GRF3535B | PA6 UL94V2 | Black | 6,4 | 1,7 | 3,5 | 3.5 | 5,1 | 1.2-2.1 | 3.6-3.7 | 2 | 3.6-3.7 | 1.2-2.1 | 1000 |
| GRF3535N | PA6 UL94V2 | Natural | 6,4 | 1,7 | 3,5 | 3.5 | 5,1 | 1.2-2.1 | 3.6-3.7 | 2 | 3.6-3.7 | 1.2-2.1 | 1000 |
| GRF3535W | PA6 UL94V2 | White | 6,4 | 1,7 | 3,5 | 3.5 | 5,1 | 1.2-2.1 | 3.6-3.7 | 2 | 3.6-3.7 | 1.2-2.1 | 1000 |
| GRF3535BV0 | PA66 UL94V0 | Black | 6,4 | 1,7 | 3,5 | 3.5 | 5,1 | 1.2-2.1 | 3.6-3.7 | 2 | 3.6-3.7 | 1.2-2.1 | 1000 |
| GRF3545B | PA6 UL94V2 | Black | 6,4 | 1,7 | 4,5 | 3.5 | 6,1 | 2.1-3.0 | 3.6-3.7 | 2 | 3.6-3.7 | 2.1-3.0 | 1000 |
| GRF3545N | PA6 UL94V2 | Natural | 6,4 | 1,7 | 4,5 | 3.5 | 6,1 | 2.1-3.0 | 3.6-3.7 | 2 | 3.6-3.7 | 2.1-3.0 | 1000 |
| GRF3545W | PA6 UL94V2 | White | 6,4 | 1,7 | 4,5 | 3.5 | 6,1 | 2.1-3.0 | 3.6-3.7 | 2 | 3.6-3.7 | 2.1-3.0 | 1000 |
| GRF3545BV0 | PA66 UL94V0 | Black | 6,4 | 1,7 | 4,5 | 3.5 | 6,1 | 2.1-3.0 | 3.6-3.7 | 2 | 3.6-3.7 | 2.1-3.0 | 1000 |
| GRF3550B | PA6 UL94V2 | Black | 6,4 | 1,7 | 5,0 | 3.5 | 6,1 | 2.7-3.6 | 3.6-3.7 | 2 | 3.6-3.7 | 2.7-3.6 | 1000 |
| GRF3550N | PA6 UL94V2 | Natural | 6,4 | 1,7 | 5,0 | 3.5 | 6,1 | 2.7-3.6 | 3.6-3.7 | 2 | 3.6-3.7 | 2.7-3.6 | 1000 |
| GRF3550W | PA6 UL94V2 | White | 6,4 | 1,7 | 5,0 | 3.5 | 6,1 | 2.7-3.6 | 3.6-3.7 | 2 | 3.6-3.7 | 2.7-3.6 | 1000 |
| GRF3550BV0 | PA66 UL94V0 | Black | 6,4 | 1,7 | 5,0 | 3.5 | 6,1 | 2.7-3.6 | 3.6-3.7 | 2 | 3.6-3.7 | 2.7-3.6 | 1000 |
| GRF3555B | PA6 UL94V2 | Black | 6,4 | 1,7 | 5,5 | 3.5 | 7,1 | 3.1-4.0 | 3.6-3.7 | 2 | 3.6-3.7 | 3.0-4.0 | 1000 |
| GRF3555N | PA6 UL94V2 | Natural | 6,4 | 1,7 | 5,5 | 3.5 | 7,1 | 3.1-4.0 | 3.6-3.7 | 2 | 3.6-3.7 | 3.0-4.0 | 1000 |
| GRF3555W | PA6 UL94V2 | White | 6,4 | 1,7 | 5,5 | 3.5 | 7,1 | 3.1-4.0 | 3.6-3.7 | 2 | 3.6-3.7 | 3.0-4.0 | 1000 |
| GRF3555BV0 | PA66 UL94V0 | Black | 6,4 | 1,7 | 5,5 | 3.5 | 7,1 | 3.1-4.0 | 3.6-3.7 | 2 | 3.6-3.7 | 3.0-4.0 | 1000 |
| GRF3560B | PA6 UL94V2 | Black | 6,4 | 1,7 | 6,0 | 3.5 | 7,1 | 3.7-4.6 | 3.6-3.7 | 2 | 3.6-3.7 | 3.7-4.6 | 1000 |
| GRF3560N | PA6 UL94V2 | Natural | 6,4 | 1,7 | 6,0 | 3.5 | 7,1 | 3.7-4.6 | 3.6-3.7 | 2 | 3.6-3.7 | 3.7-4.6 | 1000 |
| GRF3560W | PA6 UL94V2 | White | 6,4 | 1,7 | 6,0 | 3.5 | 7,1 | 3.7-4.6 | 3.6-3.7 | 2 | 3.6-3.7 | 3.7-4.6 | 1000 |
| GRF3560BV0 | PA66 UL94V0 | Black | 6,4 | 1,7 | 6,0 | 3.5 | 7,1 | 3.7-4.6 | 3.6-3.7 | 2 | 3.6-3.7 | 3.7-4.6 | 1000 |
| GRF3570B | PA6 UL94V2 | Black | 6,4 | 1,7 | 7,0 | 3.5 | 9,0 | 4.5-5.5 | 3.6-3.7 | 2 | 3.6-3.7 | 4.5-5.5 | 1000 |
| GRF3570N | PA6 UL94V2 | Natural | 6,4 | 1,7 | 7,0 | 3.5 | 9,0 | 4.5-5.5 | 3.6-3.7 | 2 | 3.6-3.7 | 4.5-5.5 | 1000 |
| GRF3570W | PA6 UL94V2 | White | 6,4 | 1,7 | 7,0 | 3.5 | 9,0 | 4.5-5.5 | 3.6-3.7 | 2 | 3.6-3.7 | 4.5-5.5 | 1000 |
| GRF3570BV0 | PA66 UL94V0 | Black | 6,4 | 1,7 | 7,0 | 3.5 | 9,0 | 4.5-5.5 | 3.6-3.7 | 2 | 3.6-3.7 | 4.5-5.5 | 1000 |
| GRF3580B | PA6 UL94V2 | Black | 6,4 | 1,7 | 8,0 | 3.5 | 9,0 | 4.5-5.5 | 3.6-3.7 | 2 | 3.6-3.7 | 5.5-6.5 | 1000 |
| GRF3580N | PA6 UL94V2 | Natural | 6,4 | 1,7 | 8,0 | 3.5 | 9,0 | 4.5-5.5 | 3.6-3.7 | 2 | 3.6-3.7 | 5.5-6.5 | 1000 |
| GRF3580W | PA6 UL94V2 | White | 6,4 | 1,7 | 8,0 | 3.5 | 9,0 | 4.5-5.5 | 3.6-3.7 | 2 | 3.6-3.7 | 5.5-6.5 | 1000 |
| GRF3580BV0 | PA66 UL94V0 | Black | 6,4 | 1,7 | 8,0 | 3.5 | 9,0 | 4.5-5.5 | 3.6-3.7 | 2 | 3.6-3.7 | 5.5-6.5 | 1000 |
| GRF4040B | PA6 UL94V2 | Black | 8,0 | 1,8 | 4,0 | 4.0 | 5,1 | 1.7-2.5 | 4.1-4.2 | 2 | 4.1-4.2 | 1.7-2.5 | 1000 |
| GRF4040N | PA6 UL94V2 | Natural | 8,0 | 1,8 | 4,0 | 4.0 | 5,1 | 1.7-2.5 | 4.1-4.2 | 2 | 4.1-4.2 | 1.7-2.5 | 1000 |
| GRF4040W | PA6 UL94V2 | White | 8,0 | 1,8 | 4,0 | 4.0 | 5,1 | 1.7-2.5 | 4.1-4.2 | 2 | 4.1-4.2 | 1.7-2.5 | 1000 |
| GRF4040BV0 | PA66 UL94V0 | Black | 8,0 | 1,8 | 4,0 | 4.0 | 5,1 | 1.7-2.5 | 4.1-4.2 | 2 | 4.1-4.2 | 1.7-2.5 | 1000 |
| GRF4050B | PA6 UL94V2 | Black | 8,0 | 1,8 | 5,0 | 4.0 | 7,1 | 2.5-3.5 | 4.1-4.2 | 2 | 4.1-4.2 | 2.5-3.5 | 1000 |
| GRF4050N | PA6 UL94V2 | Natural | 8,0 | 1,8 | 5,0 | 4.0 | 7,1 | 2.5-3.5 | 4.1-4.2 | 2 | 4.1-4.2 | 2.5-3.5 | 1000 |
| GRF4050W | PA6 UL94V2 | White | 8,0 | 1,8 | 5,0 | 4.0 | 7,1 | 2.5-3.5 | 4.1-4.2 | 2 | 4.1-4.2 | 2.5-3.5 | 1000 |
| GRF4050BV0 | PA66 UL94V0 | Black | 8,0 | 1,8 | 5,0 | 4.0 | 7,1 | 2.5-3.5 | 4.1-4.2 | 2 | 4.1-4.2 | 2.5-3.5 | 1000 |
| GRF4055B | PA6 UL94V2 | Black | 8,0 | 1,8 | 5,5 | 4.0 | 7,1 | 3.0-4.0 | 4.1-4.2 | 2 | 4.1-4.2 | 3.0-4.0 | 1000 |
| GRF4055W | PA6 UL94V2 | White | 8,0 | 1,8 | 5,5 | 4.0 | 7,1 | 3.0-4.0 | 4.1-4.2 | 2 | 4.1-4.2 | 3.0-4.0 | 1000 |
| GRF4055N | PA6 UL94V2 | Natural | 8,0 | 1,8 | 5,5 | 4.0 | 7,1 | 3.0-4.0 | 4.1-4.2 | 2 | 4.1-4.2 | 3.0-4.0 | 1000 |
| GRF4055BV0 | PA66 UL94V0 | Black | 8,0 | 1,8 | 5,5 | 4.0 | 7,1 | 3.0-4.0 | 4.1-4.2 | 2 | 4.1-4.2 | 3.0-4.0 | 1000 |
| GRF4060B | PA6 UL94V2 | Black | 8,0 | 1,8 | 6,0 | 4.0 | 7,1 | 3.5-4.5 | 4.1-4.2 | 2 | 4.1-4.2 | 3.5-4.5 | 1000 |
| GRF4060W | PA6 UL94V2 | White | 8,0 | 1,8 | 6,0 | 4.0 | 7,1 | 3.5-4.5 | 4.1-4.2 | 2 | 4.1-4.2 | 3.5-4.5 | 1000 |
| GRF4060N | PA6 UL94V2 | Natural | 8,0 | 1,8 | 6,0 | 4.0 | 7,1 | 3.5-4.5 | 4.1-4.2 | 2 | 4.1-4.2 | 3.5-4.5 | 1000 |
| GRF4060BV0 | PA66 UL94V0 | Black | 8,0 | 1,8 | 6,0 | 4.0 | 7,1 | 3.5-4.5 | 4.1-4.2 | 2 | 4.1-4.2 | 3.5-4.5 | 1000 |
| GRF4070B | PA6 UL94V2 | Black | 8,0 | 1,8 | 7,0 | 4.0 | 9,0 | 4.5-5.5 | 4.1-4.2 | 2 | 4.1-4.2 | 4.5-5.5 | 1000 |
| GRF4070N | PA6 UL94V2 | Natural | 8,0 | 1,8 | 7,0 | 4.0 | 9,0 | 4.5-5.5 | 4.1-4.2 | 2 | 4.1-4.2 | 4.5-5.5 | 1000 |
| GRF4070W | PA6 UL94V2 | White | 8,0 | 1,8 | 7,0 | 4.0 | 9,0 | 4.5-5.5 | 4.1-4.2 | 2 | 4.1-4.2 | 4.5-5.5 | 1000 |
| GRF4070BV0 | PA66 UL94V0 | Black | 8,0 | 1,8 | 7,0 | 4.0 | 9,0 | 4.5-5.5 | 4.1-4.2 | 2 | 4.1-4.2 | 4.5-5.5 | 1000 |
| GRF4080B | PA6 UL94V2 | Black | 8,0 | 1,8 | 8.0 | 4.0 | 9.0 | 5.5-6.5 | 4.1-4.2 | 2 | 4.1-4.2 | 5.5-6.5 | 1000 |
| GRF4080N | PA6 UL94V2 | Natural | 8,0 | 1,8 | 8.0 | 4.0 | 9.0 | 5.5-6.5 | 4.1-4.2 | 2 | 4.1-4.2 | 5.5-6.5 | 1000 |
| GRF4080W | PA6 UL94V2 | White | 8,0 | 1,8 | 8.0 | 4.0 | 9.0 | 5.5-6.5 | 4.1-4.2 | 2 | 4.1-4.2 | 5.5-6.5 | 1000 |
| GRF4080BV0 | PA66 UL94V0 | Black | 8,0 | 1,8 | 8.0 | 4.0 | 9.0 | 5.5-6.5 | 4.1-4.2 | 2 | 4.1-4.2 | 5.5-6.5 | 1000 |
| GRF4090B | PA6 UL94V2 | Black | 8,0 | 1,8 | 9.0 | 4.0 | 11.0 | 6.5-7.5 | 4.1-4.2 | 2 | 4.1-4.2 | 6.5-7.5 | 1000 |
| GRF4090N | PA6 UL94V2 | Natural | 8,0 | 1,8 | 9.0 | 4.0 | 11.0 | 6.5-7.5 | 4.1-4.2 | 2 | 4.1-4.2 | 6.5-7.5 | 1000 |
| GRF4090W | PA6 UL94V2 | White | 8,0 | 1,8 | 9.0 | 4.0 | 11.0 | 6.5-7.5 | 4.1-4.2 | 2 | 4.1-4.2 | 6.5-7.5 | 1000 |
| GRF4090BV0 | PA66 UL94V0 | Black | 8,0 | 1,8 | 9.0 | 4.0 | 11.0 | 6.5-7.5 | 4.1-4.2 | 2 | 4.1-4.2 | 6.5-7.5 | 1000 |
| GRF4100B | PA6 UL94V2 | Black | 8,0 | 1,8 | 10.0 | 4.0 | 11.0 | 7.5-8.5 | 4.1-4.2 | 2 | 4.1-4.2 | 7.5-8.5 | 1000 |
| GRF4100N | PA6 UL94V2 | Natural | 8,0 | 1,8 | 10.0 | 4.0 | 11.0 | 7.5-8.5 | 4.1-4.2 | 2 | 4.1-4.2 | 7.5-8.5 | 1000 |
| GRF4100W | PA6 UL94V2 | White | 8,0 | 1,8 | 10.0 | 4.0 | 11.0 | 7.5-8.5 | 4.1-4.2 | 2 | 4.1-4.2 | 7.5-8.5 | 1000 |
| GRF4100BV0 | PA66 UL94V0 | Black | 8,0 | 1,8 | 10.0 | 4.0 | 11.0 | 7.5-8.5 | 4.1-4.2 | 2 | 4.1-4.2 | 7.5-8.5 | 1000 |
| GRF4120B | PA6 UL94V2 | Black | 8,0 | 1,8 | 12.0 | 4.0 | 14.0 | 9.0-10.5 | 4.1-4.2 | 2 | 4.1-4.2 | 9.0-10.5 | 1000 |
| GRF4120N | PA6 UL94V2 | Natural | 8,0 | 1,8 | 12.0 | 4.0 | 14.0 | 9.0-10.5 | 4.1-4.2 | 2 | 4.1-4.2 | 9.0-10.5 | 1000 |
| GRF4120W | PA6 UL94V2 | White | 8,0 | 1,8 | 12.0 | 4.0 | 14.0 | 9.0-10.5 | 4.1-4.2 | 2 | 4.1-4.2 | 9.0-10.5 | 1000 |
| GRF4120BV0 | PA66 UL94V0 | Black | 8,0 | 1,8 | 12.0 | 4.0 | 14.0 | 9.0-10.5 | 4.1-4.2 | 2 | 4.1-4.2 | 9.0-10.5 | 1000 |
| GRF4140B | PA6 UL94V2 | Black | 8,0 | 1,8 | 14.0 | 4.0 | 14.0 | 11.0-12.0 | 4.1-4.2 | 2 | 4.1-4.2 | 11.0-12.0 | 1000 |
| GRF4140N | PA6 UL94V2 | Natural | 8,0 | 1,8 | 14.0 | 4.0 | 14.0 | 11.0-12.0 | 4.1-4.2 | 2 | 4.1-4.2 | 11.0-12.0 | 1000 |
| GRF4140W | PA6 UL94V2 | White | 8,0 | 1,8 | 14.0 | 4.0 | 14.0 | 11.0-12.0 | 4.1-4.2 | 2 | 4.1-4.2 | 11.0-12.0 | 1000 |
| GRF4140BV0 | PA66 UL94V0 | Black | 8,0 | 1,8 | 14.0 | 4.0 | 14.0 | 11.0-12.0 | 4.1-4.2 | 2 | 4.1-4.2 | 11.0-12.0 | 1000 |
| GRF4155B | PA6 UL94V2 | Black | 8,0 | 1,8 | 15,5 | 4.0 | 16,6 | 12.5-14.0 | 4.1-4.2 | 2 | 4.1-4.2 | 12.5-14.0 | 1000 |
| GRF4155N | PA6 UL94V2 | Natural | 8,0 | 1,8 | 15,5 | 4.0 | 16,6 | 12.5-14.0 | 4.1-4.2 | 2 | 4.1-4.2 | 12.5-14.0 | 1000 |
| GRF4155W | PA6 UL94V2 | White | 8,0 | 1,8 | 15,5 | 4.0 | 16,6 | 12.5-14.0 | 4.1-4.2 | 2 | 4.1-4.2 | 12.5-14.0 | 1000 |
| GRF4155BV0 | PA66 UL94V0 | Black | 8,0 | 1,8 | 15,5 | 4.0 | 16,6 | 12.5-14.0 | 4.1-4.2 | 2 | 4.1-4.2 | 12.5-14.0 | 1000 |
| GRF5045B | PA6 UL94V2 | Black | 9,0 | 2,2 | 4,5 | 5.0 | 6,5 | 1.5-2.5 | 5.1-5.2 | 2 | 5.1-5.2 | 1.5-2.5 | 1000 |
| GRF5045N | PA6 UL94V2 | Natural | 9,0 | 2,2 | 4,5 | 5.0 | 6,5 | 1.5-2.5 | 5.1-5.2 | 2 | 5.1-5.2 | 1.5-2.5 | 1000 |
| GRF5045W | PA6 UL94V2 | White | 9,0 | 2,2 | 4,5 | 5.0 | 6,5 | 1.5-2.5 | 5.1-5.2 | 2 | 5.1-5.2 | 1.5-2.5 | 1000 |
| GRF5045BV0 | PA66 UL94V0 | Black | 9,0 | 2,2 | 4,5 | 5.0 | 6,5 | 1.5-2.5 | 5.1-5.2 | 2 | 5.1-5.2 | 1.5-2.5 | 1000 |
| GRF5055B | PA6 UL94V2 | Black | 9,0 | 2,2 | 5,5 | 5.0 | 6,5 | 2.5-3.5 | 5.1-5.2 | 2 | 5.1-5.2 | 2.5-3.5 | 1000 |
| GRF5055N | PA6 UL94V2 | Natural | 9,0 | 2,2 | 5,5 | 5.0 | 6,5 | 2.5-3.5 | 5.1-5.2 | 2 | 5.1-5.2 | 2.5-3.5 | 1000 |
| GRF5055W | PA6 UL94V2 | White | 9,0 | 2,2 | 5,5 | 5.0 | 6,5 | 2.5-3.5 | 5.1-5.2 | 2 | 5.1-5.2 | 2.5-3.5 | 1000 |
| GRF5055BV0 | PA66 UL94V0 | Black | 9,0 | 2,2 | 5,5 | 5.0 | 6,5 | 2.5-3.5 | 5.1-5.2 | 2 | 5.1-5.2 | 2.5-3.5 | 1000 |
| GRF5065B | PA6 UL94V2 | Black | 9,0 | 2,2 | 6,5 | 5.0 | 8,5 | 3.5-4.5 | 5.1-5.2 | 2 | 5.1-5.2 | 3.5-4.5 | 1000 |
| GRF5065N | PA6 UL94V2 | Natural | 9,0 | 2,2 | 6,5 | 5.0 | 8,5 | 3.5-4.5 | 5.1-5.2 | 2 | 5.1-5.2 | 3.5-4.5 | 1000 |
| GRF5065W | PA6 UL94V2 | White | 9,0 | 2,2 | 6,5 | 5.0 | 8,5 | 3.5-4.5 | 5.1-5.2 | 2 | 5.1-5.2 | 3.5-4.5 | 1000 |
| GRF5065BV0 | PA66 UL94V0 | Black | 9,0 | 2,2 | 6,5 | 5.0 | 8,5 | 3.5-4.5 | 5.1-5.2 | 2 | 5.1-5.2 | 3.5-4.5 | 1000 |
| GRF5075B | PA6 UL94V2 | Black | 9,0 | 2,2 | 7,5 | 5.0 | 8,5 | 4.5-5.5 | 5.1-5.2 | 2 | 5.1-5.2 | 4.5-5.5 | 1000 |
| GRF5075N | PA6 UL94V2 | Natural | 9,0 | 2,2 | 7,5 | 5.0 | 8,5 | 4.5-5.5 | 5.1-5.2 | 2 | 5.1-5.2 | 4.5-5.5 | 1000 |
| GRF5075W | PA6 UL94V2 | White | 9,0 | 2,2 | 7,5 | 5.0 | 8,5 | 4.5-5.5 | 5.1-5.2 | 2 | 5.1-5.2 | 4.5-5.5 | 1000 |
| GRF5075BV0 | PA66 UL94V0 | Black | 9,0 | 2,2 | 7,5 | 5.0 | 8,5 | 4.5-5.5 | 5.1-5.2 | 2 | 5.1-5.2 | 4.5-5.5 | 1000 |
| GRF5085B | PA6 UL94V2 | Black | 9,0 | 2,2 | 8,5 | 5.0 | 10,5 | 5.5-6.5 | 5.1-5.2 | 2 | 5.1-5.2 | 5.5-6.5 | 1000 |
| GRF5085N | PA6 UL94V2 | Natural | 9,0 | 2,2 | 8,5 | 5.0 | 10,5 | 5.5-6.5 | 5.1-5.2 | 2 | 5.1-5.2 | 5.5-6.5 | 1000 |
| GRF5085W | PA6 UL94V2 | White | 9,0 | 2,2 | 8,5 | 5.0 | 10,5 | 5.5-6.5 | 5.1-5.2 | 2 | 5.1-5.2 | 5.5-6.5 | 1000 |
| GRF5085BV0 | PA66 UL94V0 | Black | 9,0 | 2,2 | 8,5 | 5.0 | 10,5 | 5.5-6.5 | 5.1-5.2 | 2 | 5.1-5.2 | 5.5-6.5 | 1000 |
| GRF5095B | PA6 UL94V2 | Black | 9,0 | 2,2 | 9,5 | 5.0 | 10,5 | 6.5-7.5 | 5.1-5.2 | 2 | 5.1-5.2 | 6.5-7.5 | 1000 |
| GRF5095N | PA6 UL94V2 | Natural | 9,0 | 2,2 | 9,5 | 5.0 | 10,5 | 6.5-7.5 | 5.1-5.2 | 2 | 5.1-5.2 | 6.5-7.5 | 1000 |
| GRF5095W | PA6 UL94V2 | White | 9,0 | 2,2 | 9,5 | 5.0 | 10,5 | 6.5-7.5 | 5.1-5.2 | 2 | 5.1-5.2 | 6.5-7.5 | 1000 |
| GRF5095BV0 | PA66 UL94V0 | Black | 9,0 | 2,2 | 9,5 | 5.0 | 10,5 | 6.5-7.5 | 5.1-5.2 | 2 | 5.1-5.2 | 6.5-7.5 | 1000 |
| GRF5105B | PA6 UL94V2 | Black | 9,0 | 2,2 | 10,5 | 5.0 | 12,0 | 7.5-8.5 | 5.1-5.2 | 2 | 5.1-5.2 | 7.5-8.5 | 1000 |
| GRF5105N | PA6 UL94V2 | Natural | 9,0 | 2,2 | 10,5 | 5.0 | 12,0 | 7.5-8.5 | 5.1-5.2 | 2 | 5.1-5.2 | 7.5-8.5 | 1000 |
| GRF5105W | PA6 UL94V2 | White | 9,0 | 2,2 | 10,5 | 5.0 | 12,0 | 7.5-8.5 | 5.1-5.2 | 2 | 5.1-5.2 | 7.5-8.5 | 1000 |
| GRF5105BV0 | PA66 UL94V0 | Black | 9,0 | 2,2 | 10,5 | 5.0 | 12,0 | 7.5-8.5 | 5.1-5.2 | 2 | 5.1-5.2 | 7.5-8.5 | 1000 |
| GRF5865B | PA6 UL94V2 | Black | 12.0 | 2,7 | 6.3 | 5.8 | 9.0 | 3.0-4.5 | 5.9-6.0 | 2 | 5.9-6.0 | 3.0-4.5 | 1000 |
| GRF5865N | PA6 UL94V2 | Natural | 12.0 | 2,7 | 6.3 | 5.8 | 9.0 | 3.0-4.5 | 5.9-6.0 | 2 | 5.9-6.0 | 3.0-4.5 | 1000 |
| GRF5865W | PA6 UL94V2 | White | 12.0 | 2,7 | 6.3 | 5.8 | 9.0 | 3.0-4.5 | 5.9-6.0 | 2 | 5.9-6.0 | 3.0-4.5 | 1000 |
| GRF5865BV0 | PA66 UL94V0 | Black | 12.0 | 2,7 | 6.3 | 5.8 | 9.0 | 3.0-4.5 | 5.9-6.0 | 2 | 5.9-6.0 | 3.0-4.5 | 1000 |
| GRF6060B | PA6 UL94V2 | Black | 12.0 | 2,5 | 6.0 | 6.0 | 9.0 | 2.5-4.0 | 6.1-6.2 | 2 | 6.1-6.2 | 2.5-4.0 | 1000 |
| GRF6060N | PA6 UL94V2 | Natural | 12.0 | 2,5 | 6.0 | 6.0 | 9.0 | 2.5-4.0 | 6.1-6.2 | 2 | 6.1-6.2 | 2.5-4.0 | 1000 |
| GRF6060W | PA6 UL94V2 | White | 12.0 | 2,5 | 6.0 | 6.0 | 9.0 | 2.5-4.0 | 6.1-6.2 | 2 | 6.1-6.2 | 2.5-4.0 | 1000 |
| GRF6060BV0 | PA66 UL94V0 | Black | 12.0 | 2,5 | 6.0 | 6.0 | 9.0 | 2.5-4.0 | 6.1-6.2 | 2 | 6.1-6.2 | 2.5-4.0 | 1000 |
| GRF6080B | PA6 UL94V2 | Black | 12.0 | 3,0 | 8.0 | 6.0 | 10.0 | 3.5-5.5 | 6.1-6.2 | 2 | 6.1-6.2 | 3.5-5.5 | 1000 |
| GRF6080N | PA6 UL94V2 | Natural | 12.0 | 3,0 | 8.0 | 6.0 | 10.0 | 3.5-5.5 | 6.1-6.2 | 2 | 6.1-6.2 | 3.5-5.5 | 1000 |
| GRF6080W | PA6 UL94V2 | White | 12.0 | 3,0 | 8.0 | 6.0 | 10.0 | 3.5-5.5 | 6.1-6.2 | 2 | 6.1-6.2 | 3.5-5.5 | 1000 |
| GRF6080BV0 | PA66 UL94V0 | Black | 12.0 | 3,0 | 8.0 | 6.0 | 10.0 | 3.5-5.5 | 6.1-6.2 | 2 | 6.1-6.2 | 3.5-5.5 | 1000 |
| GRF6140B | PA6 UL94V2 | Black | 12.0 | 3,0 | 14.0 | 6.0 | 14.0 | 7.5-8.5 | 6.1-6.2 | 2 | 6.1-6.2 | 7.5-8.5 | 1000 |
| GRF6140N | PA6 UL94V2 | Natural | 12.0 | 3,0 | 14.0 | 6.0 | 14.0 | 7.5-8.5 | 6.1-6.2 | 2 | 6.1-6.2 | 7.5-8.5 | 1000 |
| GRF6140W | PA6 UL94V2 | White | 12.0 | 3,0 | 14.0 | 6.0 | 14.0 | 7.5-8.5 | 6.1-6.2 | 2 | 6.1-6.2 | 7.5-8.5 | 1000 |
| GRF6140BV0 | PA66 UL94V0 | Black | 12.0 | 3,0 | 14.0 | 6.0 | 14.0 | 7.5-8.5 | 6.1-6.2 | 2 | 6.1-6.2 | 7.5-8.5 | 1000 |
- Packaging and price unit
- 1000
- Functional dimension "A" or "L" (if available)
- GRF3045 ≙ Fig.1 / GRF4080, GRF4090 ,GRF4100, GRF5105, GRF5865, GRF6060, GRF6080 ≙ Fig. 2
GRF3045B
16 other products in the same category:
- New
Plastic expanding rivets and expanding fasteners
Preis auf Anfrage
- New
Plastic expanding rivets and expanding fasteners
Preis auf Anfrage
- New
Plastic expanding rivets and expanding fasteners
Preis auf Anfrage
- New
Plastic expanding rivets and expanding fasteners
Preis auf Anfrage
Plastic expanding rivets and expanding fasteners
From 182.00 €
- New
Plastic expanding rivets and expanding fasteners
Preis auf Anfrage
- New
Plastic expanding rivets and expanding fasteners
Preis auf Anfrage
Plastic expanding rivets and expanding fasteners
- New
Plastic expanding rivets and expanding fasteners
Preis auf Anfrage
- New
Plastic expanding rivets and expanding fasteners
Preis auf Anfrage
- New
Plastic expanding rivets and expanding fasteners
Preis auf Anfrage
- New
Plastic expanding rivets and expanding fasteners
Preis auf Anfrage Tap to zoom
Offer - Price comparison - Sample
Free samples
We will be happy to send you free samples of individual items.
Component as required
Our team of experts enables customised special solutions.
Customised offer
We always provide you with a customised offer.
Price comparison identical
We compare prices and offer you TOP conditions.
