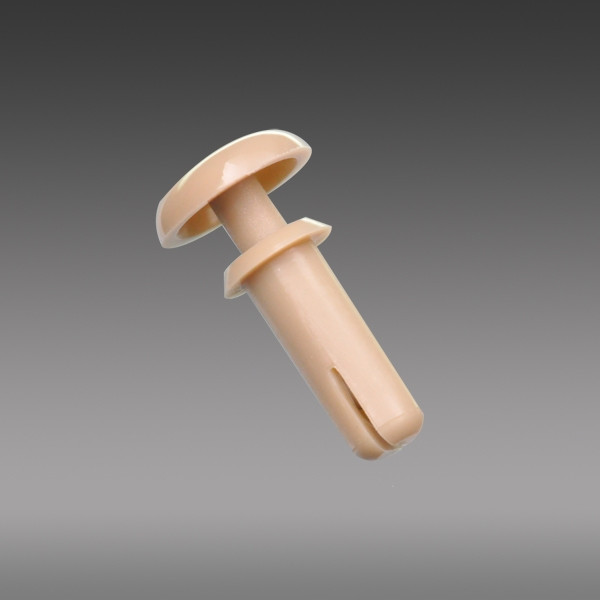

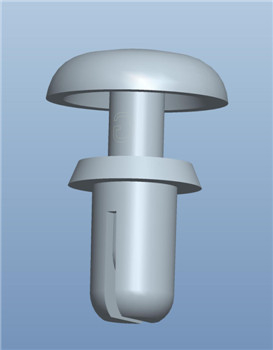

    GRHR 35-60 Series - Expandable rivets, heat-resistant

    168.95 €
    VAT excluded Änderungen und Preisirrtümer vorbehalten

    Packaging and price unit: 1000

    Snap rivets / expanding rivets (high temperature)
    Suitable up to +130° C

    Colour: brown
    Load from 12.0 - 30.0 kg
    Fastening range: 7.5 - 5.5 (different variants)
    Ø hole ≙ 3.1-3.2 & 3.6-3.7 & 4.1-4.2 & 5.1-5.2 & 5.9-6.0 & 6.1-6.2mm

    GRHR35-60 Series
    UnitsDiscountYou will savePrice/unit
    53%25.34 €163.88 €
    106%101.37 €158.81 €
    2010%337.90 €152.06 €
    3015%760.28 €143.61 €
    Note

    Please contact us for small quantities, free samples and further technical details.

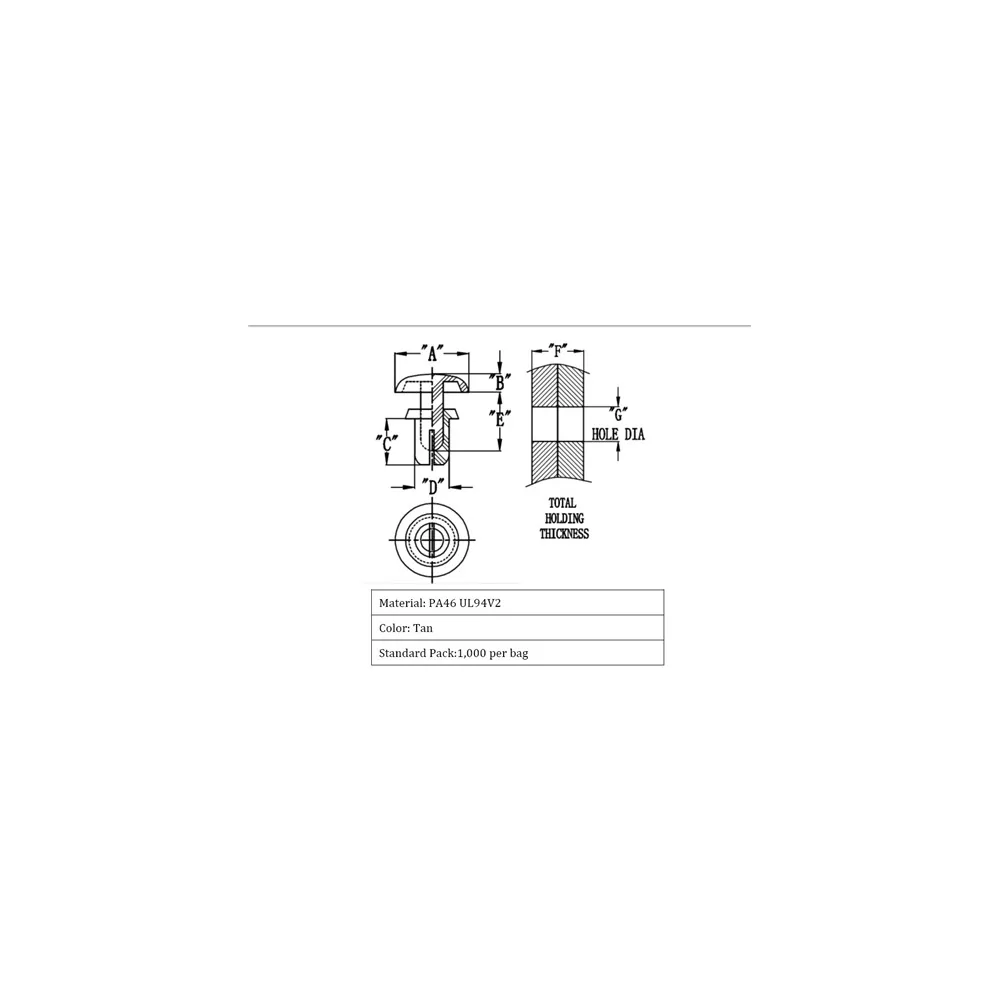

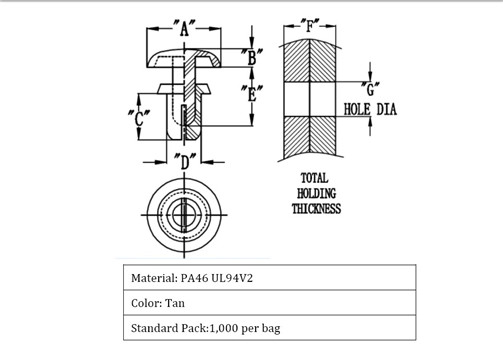

    Snap Push-In Rivet, PA46 UL94V2

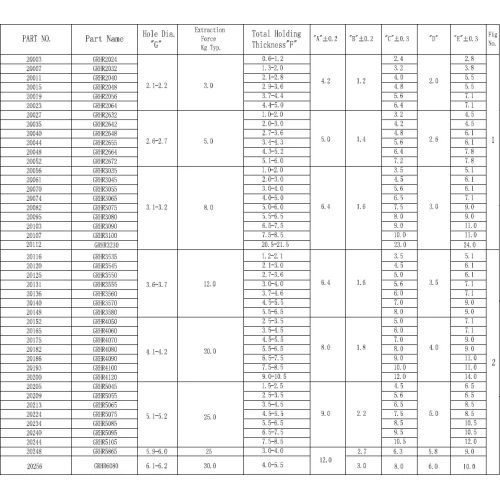

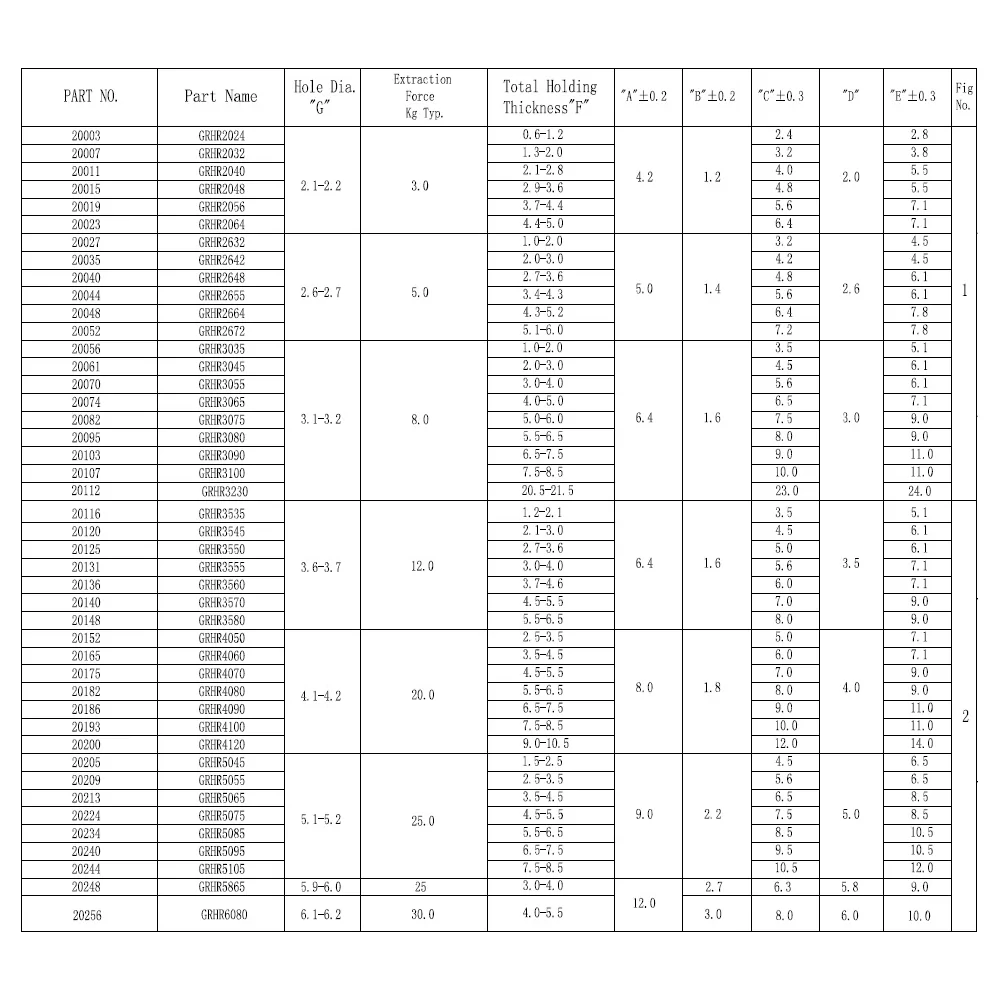

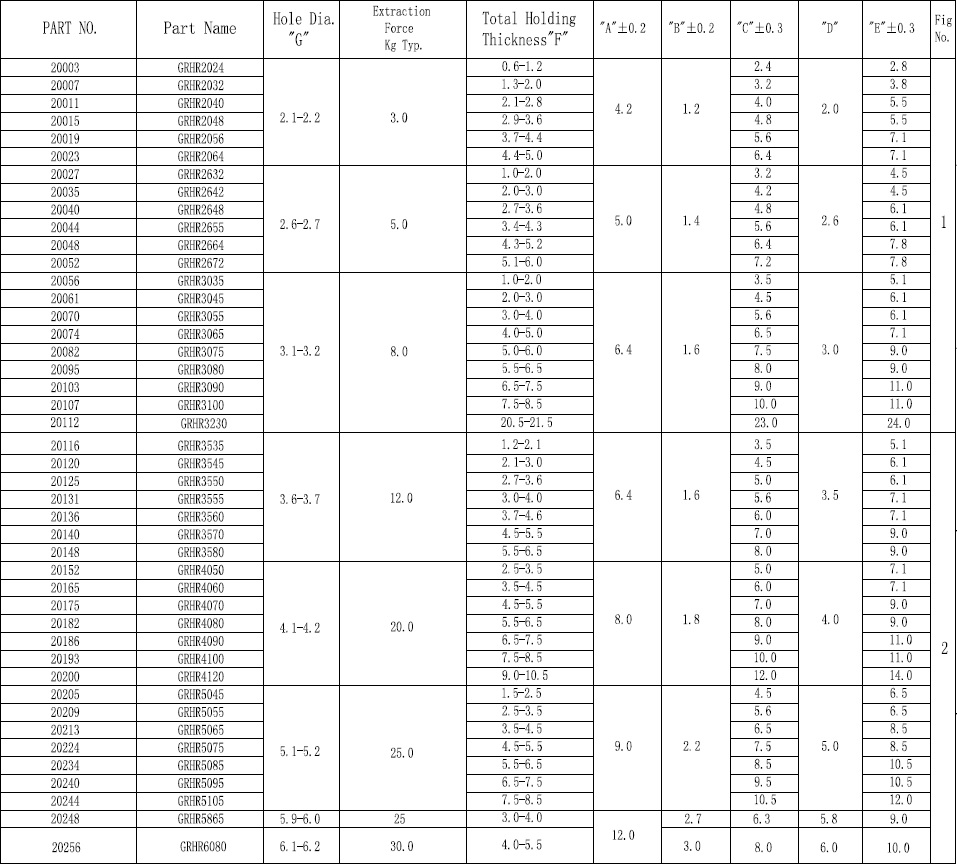

    Article no.Cross-ref.MaterialColourABCDEFGPU
    GRHR3535SRHR-3535PA46 UL94V2Tan6,41,63,53,55,11.2-2.13.6-3.71000
    GRHR3545SRHR-3545PA46 UL94V2Tan6,41,64,53,56,12.1-3.03.6-3.71000
    GRHR3550SRHR-3550PA46 UL94V2Tan6,41,65.03,56,12.7-3.63.6-3.71000
    GRHR3555SRHR-3555PA46 UL94V2Tan6,41,65,53,57,13.0-4.03.6-3.71000
    GRHR3560SRHR-3560PA46 UL94V2Tan6,41,66.03,57,13.7-4.63.6-3.71000
    GRHR3570SRHR-3570PA46 UL94V2Tan6,41,67.03,59.04.5-5.53.6-3.71000
    GRHR3580SRHR-3580PA46 UL94V2Tan6,41,68.03,59.05.5-6.53.6-3.71000
    GRHR4040-PA46 UL94V2Tan8.01,84.04.05.01.7-2.54.1-4.21000
    GRHR4050SRHR-4050PA46 UL94V2Tan8.01,85.04.07,12.5-3.54.1-4.21000
    GRHR4055-PA46 UL94V2Tan8.01,85.54.07,13.0-4.04.1-4.21000
    GRHR4060SRHR-4060PA46 UL94V2Tan8.01,86.04.07,13.5-4.54.1-4.21000
    GRHR4070SRHR-4070PA46 UL94V2Tan8.01,87.04.09.04.5-5.54.1-4.21000
    GRHR4080SRHR-4080PA46 UL94V2Tan8.01,88.04.09.05.5-6.54.1-4.21000
    GRHR4090SRHR-4090PA46 UL94V2Tan8.01,89.04.011.06.5-7.54.1-4.21000
    GRHR4100SRHR-4100PA46 UL94V2Tan8.01,810.04.011.07.5-8.54.1-4.21000
    GRHR4120SRHR-4120PA46 UL94V2Tan8.01,812.04.014.09.0-10.54.1-4.21000
    GRHR4155SRHR-4155PA46 UL94V2Tan8.01,815.54.016.612.5-14.04.1-4.21000
    GRHR5045SRHR-5045PA46 UL94V2Tan9.02,24,55.06,51.5-2.55.1-5.21000
    GRHR5055SRHR-5055PA46 UL94V2Tan9.02,25,55.06,52.5-3.55.1-5.21000
    GRHR5065SRHR-5065PA46 UL94V2Tan9.02,26,55.08,53.5-4.55.1-5.21000
    GRHR5075SRHR-5075PA46 UL94V2Tan9.02,27,55.08,54.5-5.55.1-5.21000
    GRHR5085SRHR-5085PA46 UL94V2Tan9.02,28,55.010,55.5-6.55.1-5.21000
    GRHR5095SRHR-5095PA46 UL94V2Tan9.02,29,55.010,56.5-7.55.1-5.21000
    GRHR5105SRHR-5105PA46 UL94V2Tan9.02,210,55.012.07.5-8.55.1-5.21000
    GRHR5865SRHR-5865PA46 UL94V2Tan12.02,76,35,89.03.0-4.55.9-6.01000
    GRHR6060-PA46 UL94V2Tan12.02,56.06.09.02.5-4.06.1-6.21000
    GRHR6080SRHR-6080PA46 UL94V2Tan12.03.08.06.010,03.5-5.56.1-6.21000
    GRHR6026SRHR-6026PA46 UL94V2Tan12.03,026,06.028,021.5-23.56.1-6.21000
    GRHR6028-PA46 UL94V2Tan12.03.028,56.030,523.5-25.56.1-6.21000
    GRHR3535
