    GRS 30x-GRS60x Series - Push Rivet Blunt #3 GRS 30x-GRS60x Series - Push Rivet Blunt GRS 30x-GRS60x Series - Push Rivet Blunt #2

    GRS 30x-GRS60x Series - Push Rivet Blunt

    99.20 €
    VAT excluded Änderungen und Preisirrtümer vorbehalten

    Packaging and price unit: 1000

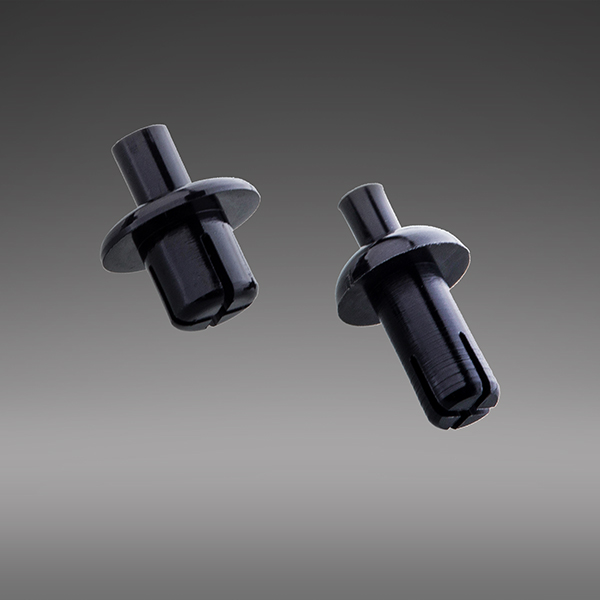

    Push rivets / expanding rivets

    Colour: black (B) or white (W) - V0 only black
    Material: PA6 UL94V2
    Fastening range: 2.0 - 3.5 (different variants)
    Ø hole ≙ 3.1 & 4.1 & 4.8 & 5.1 & 6.1

    GRS30x-GRS60x Series
    UnitsDiscountYou will savePrice/unit
    53%14.88 €96.22 €
    106%59.52 €93.25 €
    2010%198.40 €89.28 €
    3015%446.40 €84.32 €
    Note

    Please contact us for small quantities, free samples and further technical details.



    Push-In Rivet, sheet thickness 1.2 - 8.0, PA6 UL94V2

    Article no.Cross-ref.MaterialColourABCDEFGFIGPU
    GRS3045BPPR-3045BPA6 UL94V2Black8,92.04,53.05,82.0-3.03.1-3.211000
    GRS3045WPPR-3045WPA6 UL94V2White8,92.04,53.05,82.0-3.03.1-3.211000
    GRS3055BPPR-3055BPA6 UL94V2Black8,92.05,53.05,83.0-4.03.1-3.211000
    GRS3055WPPR-3055WPA6 UL94V2White8,92.05,53.05,83.0-4.03.1-3.211000
    GRS4050BPPR-4050BPA6 UL94V2Black9,22,25.04.08.02.5-3.54.1-4.221000
    GRS4050WPPR-4050WPA6 UL94V2White9,22,25.04.08.02.5-3.54.1-4.221000
    GRS4060BPPR-4060BPA6 UL94V2Black9,22,26.04.08.03.5-4.54.1-4.221000
    GRS4060WPPR-4060WPA6 UL94V2White9,22,26.04.08.03.5-4.54.1-4.221000
    GRS4850BPPR-4850BPA6 UL94V2Black11,03,25,04,89,91.2-3.04.8-4.921000
    GRS4850WPPR-4850WPA6 UL94V2White11,03,25,04,89,91.2-3.04.8-4.921000
    GRS5050BPPR-5050BPA6 UL94V2Black9,62,85,05.09,52.0-3.05.1-5.221000
    GRS5050WPPR-5050WPA6 UL94V2White9,62,85,05.09,52.0-3.05.1-5.221000
    GRS5060BPPR-5060BPA6 UL94V2Black9,62,86,05.09,53.0-4.05.1-5.221000
    GRS5060WPPR-5060WPA6 UL94V2White9,62,86,05.09,53.0-4.05.1-5.221000
    GRS5070BPPR-5070BPA6 UL94V2Black11,42,87,05.09,54.0-5.05.1-5.221000
    GRS5070WPPR-5070WPA6 UL94V2White11,42,87,05.09,54.0-5.05.1-5.221000
    GRS5080BPPR-5080BPA6 UL94V2Black11,42,88,05.09,55.0-6.05.1-5.221000
    GRS5080WPPR-5080WPA6 UL94V2White11,42,88,05.09,55.0-6.05.1-5.221000
    GRS5090BPPR-5090BPA6 UL94V2Black12,42,89,05.09,56.0-7.05.1-5.221000
    GRS5090WPPR-5090WPA6 UL94V2White12,42,89,05.09,56.0-7.05.1-5.221000
    GRS5100BPPR-5100BPA6 UL94V2Black13,62,810,05.09,57.0-8.05.1-5.221000
    GRS5100WPPR-5100WPA6 UL94V2White13,62,810,05.09,57.0-8.05.1-5.221000
    GRS6060BPPR-6060BPA6 UL94V2Black9,81,56,06.011,02.5-4.06.1-6.231000
    GRS6060WPPR-6060WPA6 UL94V2White9,81,56,06.011,02.5-4.06.1-6.231000
    Identical to Richco / Essentra series
    PPR-x
    Packaging and price unit
    1000
    Functional dimension "A" or "L" (if available)

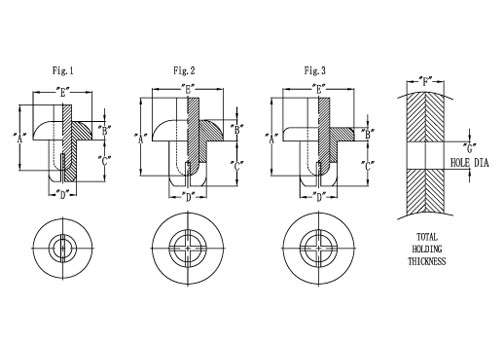

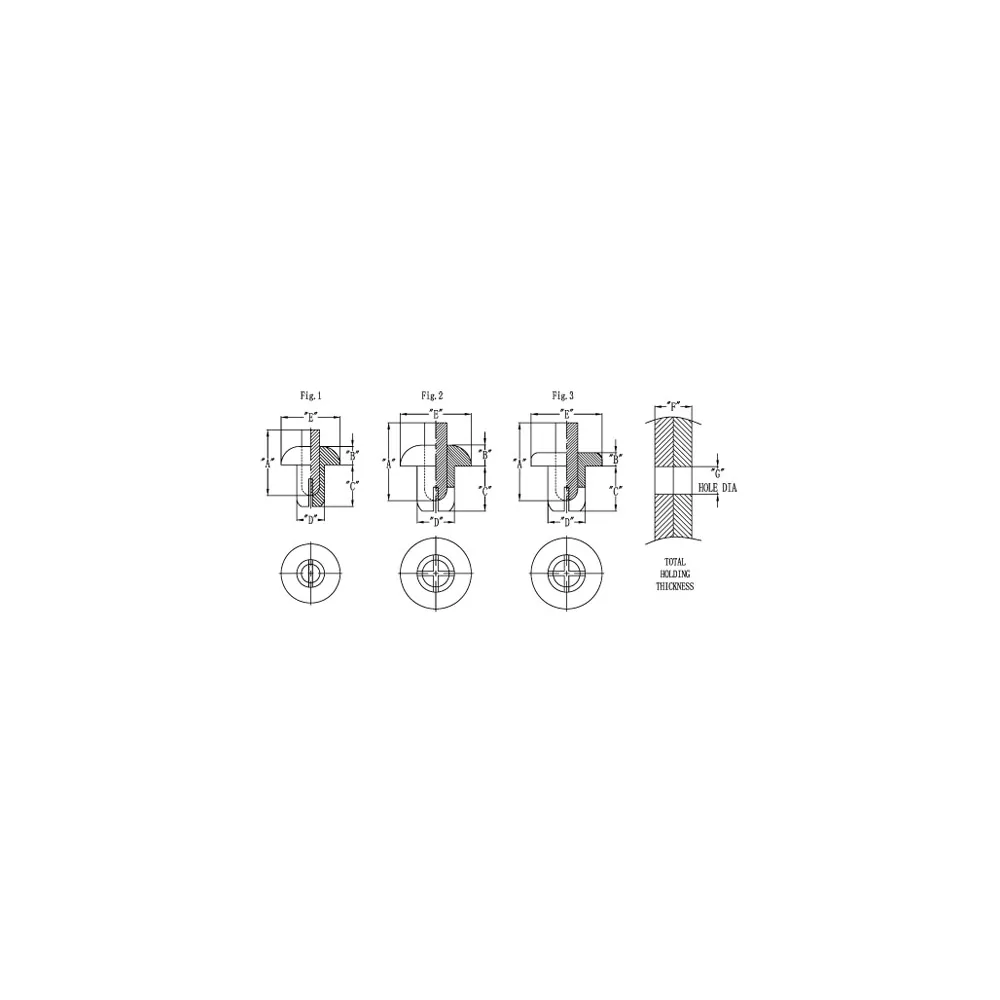

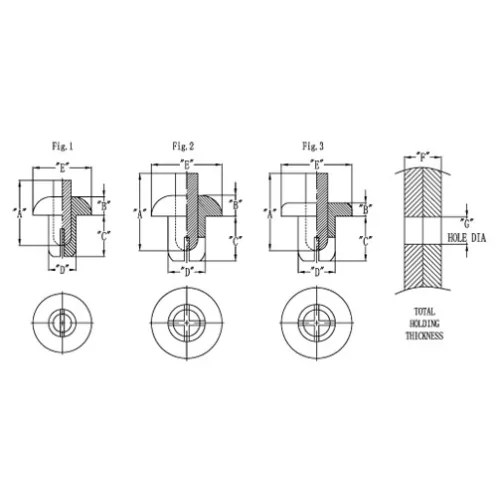

    GRS3045-GRS3055 ≙ Fig. 1 - GRS4050-GRS5100 ≙ Fig. 2 - GRS6060 ≙ Fig. 3
    GRS3045B
