- New
Spacers and PCB accessories

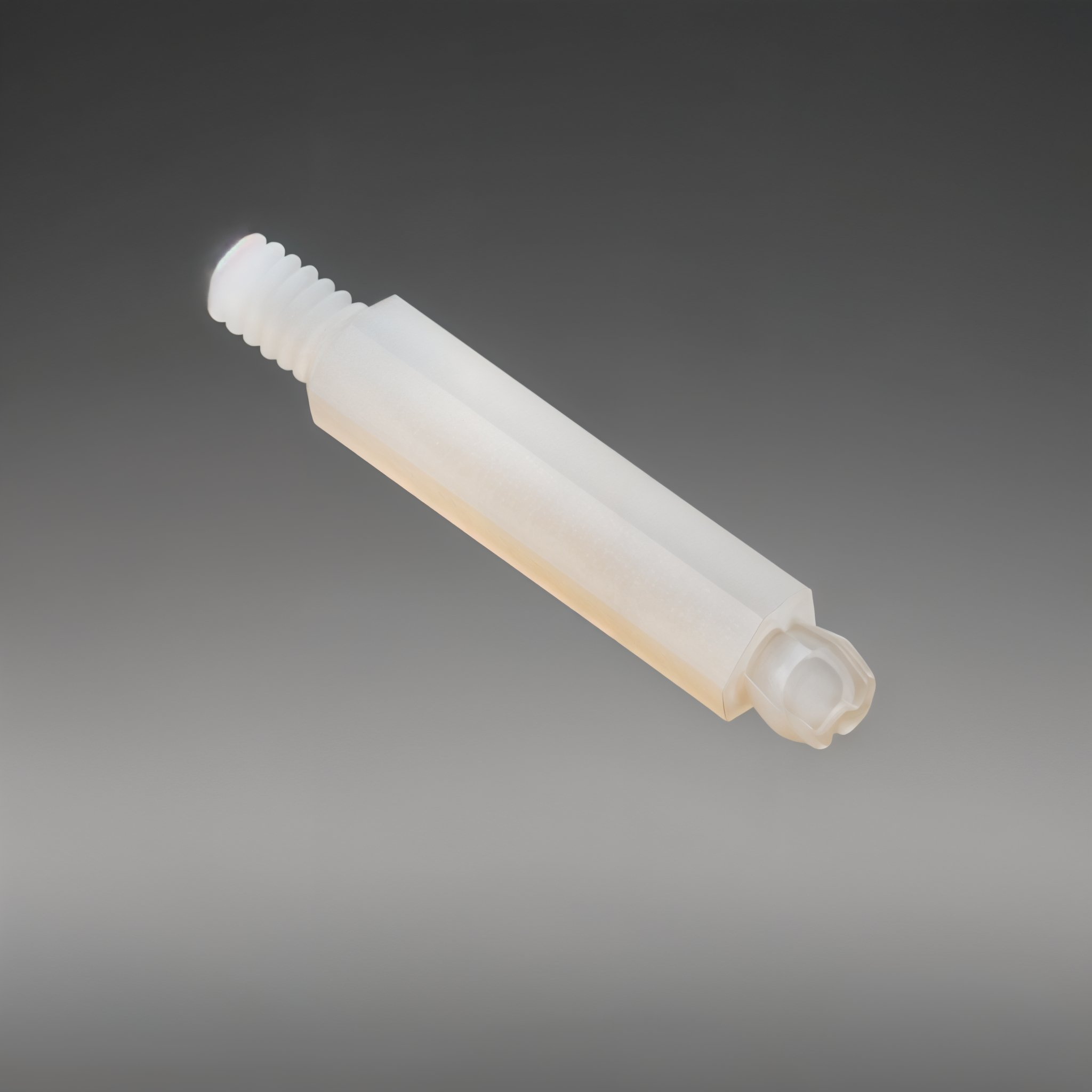

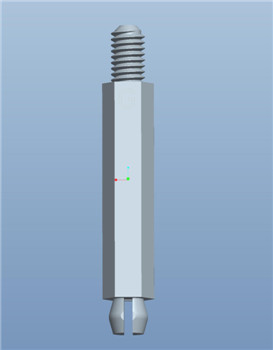

Preis auf Anfrage GSCBS 1 Series - Spacer - male thread, hexagonal, two-point without ratchet, 6-32, M3, M4
148.80 €
VAT excluded Änderungen und Preisirrtümer vorbehalten
Packaging and price unit: 1000

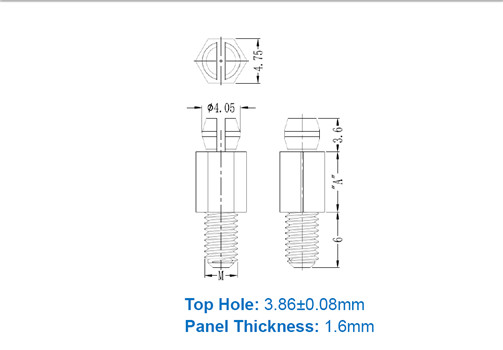

Plastic spacer / spacer bolt with M3 / M4 / (#6-32) thread
In lengths from 3.2 - 22.2 mm
PCB thickness: 1.6 mm
Ø hole ≙ 3.86 ± 0.08 mm
PCB Support - Spacer - Threaded Standoff, Screw Support, Hexagonal, Non Locking Two Prong, #6-32, M3, M4
| Part No. | Cross-Ref. | Material | Material Colour | A | FIG | Plate thickness | Thread | PU |
| GSCBS1-2-66 | HMSP-TM-2-01 | PA66 UL94V2 | Natural | 3,2 | 1 | 1,57 | #6-32 | 1000 |
| GSCBS1-2-V0 | HMSP-TM-2-19 | PA66 UL94V0 | Natural | 3,2 | 1 | 1,57 | #6-32 | 1000 |
| GSCBS1-3-66 | HMSP-TM-3-01 | PA66 UL94V2 | Natural | 4,8 | 1 | 1,57 | #6-32 | 1000 |
| GSCBS1-3-V0 | HMSP-TM-3-19 | PA66 UL94V0 | Natural | 4,8 | 1 | 1,57 | #6-32 | 1000 |
| GSCBS1-4-66 | HMSP-TM-4-01 | PA66 UL94V2 | Natural | 6,4 | 1 | 1,57 | #6-32 | 1000 |
| GSCBS1-4-V0 | HMSP-TM-4-19 | PA66 UL94V0 | Natural | 6,4 | 1 | 1,57 | #6-32 | 1000 |
| GSCBS1-6-66 | HMSP-TM-6-01 | PA66 UL94V2 | Natural | 9,5 | 1 | 1,57 | #6-32 | 1000 |
| GSCBS1-6-V0 | HMSP-TM-6-19 | PA66 UL94V0 | Natural | 9,5 | 1 | 1,57 | #6-32 | 1000 |
| GSCBS1-8-66 | HMSP-TM-8-01 | PA66 UL94V2 | Natural | 12,7 | 1 | 1,57 | #6-32 | 1000 |
| GSCBS1-8-V0 | HMSP-TM-8-19 | PA66 UL94V0 | Natural | 12,7 | 1 | 1,57 | #6-32 | 1000 |
| GSCBS1-10-66 | HMSP-TM-10-01 | PA66 UL94V2 | Natural | 15,9 | 1 | 1,57 | #6-32 | 1000 |
| GSCBS1-10-V0 | HMSP-TM-10-19 | PA66 UL94V0 | Natural | 15,9 | 1 | 1,57 | #6-32 | 1000 |
| GSCBS1-12-66 | HMSP-TM-12-01 | PA66 UL94V2 | Natural | 19,1 | 1 | 1,57 | #6-32 | 1000 |
| GSCBS1-12-V0 | HMSP-TM-12-19 | PA66 UL94V0 | Natural | 19,1 | 1 | 1,57 | #6-32 | 1000 |
| GSCBS1-14-66 | HMSP-TM-14-01 | PA66 UL94V2 | Natural | 22,2 | 1 | 1,57 | #6-32 | 1000 |
| GSCBS1-14-V0 | HMSP-TM-14-19 | PA66 UL94V0 | Natural | 22,2 | 1 | 1,57 | #6-32 | 1000 |
| GSCBS1-M3-2-66 | HMSP-TM-M3-2-01 | PA66 UL94V2 | Natural | 3,2 | 1 | 1,57 | M3 | 1000 |
| GSCBS1-M3-2-V0 | HMSP-TM-M3-2-19 | PA66 UL94V0 | Natural | 3,2 | 1 | 1,57 | M3 | 1000 |
| GSCBS1-M3-3-66 | HMSP-TM-M3-3-01 | PA66 UL94V2 | Natural | 4,8 | 1 | 1,57 | M3 | 1000 |
| GSCBS1-M3-3-V0 | HMSP-TM-M3-3-19 | PA66 UL94V0 | Natural | 4,8 | 1 | 1,57 | M3 | 1000 |
| GSCBS1-M3-4-66 | HMSP-TM-M3-4-01 | PA66 UL94V2 | Natural | 6,4 | 1 | 1,57 | M3 | 1000 |
| GSCBS1-M3-4-V0 | HMSP-TM-M3-4-19 | PA66 UL94V0 | Natural | 6,4 | 1 | 1,57 | M3 | 1000 |
| GSCBS1-M3-6-66 | HMSP-TM-M3-6-01 | PA66 UL94V2 | Natural | 9,5 | 1 | 1,57 | M3 | 1000 |
| GSCBS1-M3-6-V0 | HMSP-TM-M3-6-19 | PA66 UL94V0 | Natural | 9,5 | 1 | 1,57 | M3 | 1000 |
| GSCBS1-M3-8-66 | HMSP-TM-M3-8-01 | PA66 UL94V2 | Natural | 12,7 | 1 | 1,57 | M3 | 1000 |
| GSCBS1-M3-8-V0 | HMSP-TM-M3-8-19 | PA66 UL94V0 | Natural | 12,7 | 1 | 1,57 | M3 | 1000 |
| GSCBS1-M3-10-66 | HMSP-TM-M3-10-01 | PA66 UL94V2 | Natural | 15,9 | 1 | 1,57 | M3 | 1000 |
| GSCBS1-M3-10-V0 | HMSP-TM-M3-10-19 | PA66 UL94V0 | Natural | 15,9 | 1 | 1,57 | M3 | 1000 |
| GSCBS1-M3-12-66 | HMSP-TM-M3-12-01 | PA66 UL94V2 | Natural | 19,1 | 1 | 1,57 | M3 | 1000 |
| GSCBS1-M3-12-V0 | HMSP-TM-M3-12-19 | PA66 UL94V0 | Natural | 19,1 | 1 | 1,57 | M3 | 1000 |
| GSCBS1-M3-14-66 | HMSP-TM-M3-14-01 | PA66 UL94V2 | Natural | 22,2 | 1 | 1,57 | M3 | 1000 |
| GSCBS1-M3-14-V0 | HMSP-TM-M3-14-19 | PA66 UL94V0 | Natural | 22,2 | 1 | 1,57 | M3 | 1000 |
| GSCBS1-M4-2-66 | HMSP-TM-M4-2-01 | PA66 UL94V2 | Natural | 3,2 | 1 | 1,57 | M4 | 1000 |
| GSCBS1-M4-2-V0 | HMSP-TM-M4-2-19 | PA66 UL94V0 | Natural | 3,2 | 1 | 1,57 | M4 | 1000 |
| GSCBS1-M4-3-66 | HMSP-TM-M4-3-01 | PA66 UL94V2 | Natural | 4,8 | 1 | 1,57 | M4 | 1000 |
| GSCBS1-M4-3-V0 | HMSP-TM-M4-3-19 | PA66 UL94V0 | Natural | 4,8 | 1 | 1,57 | M4 | 1000 |
| GSCBS1-M4-4-66 | HMSP-TM-M4-4-01 | PA66 UL94V2 | Natural | 6,4 | 1 | 1,57 | M4 | 1000 |
| GSCBS1-M4-4-V0 | HMSP-TM-M4-4-19 | PA66 UL94V0 | Natural | 6,4 | 1 | 1,57 | M4 | 1000 |
| GSCBS1-M4-6-66 | HMSP-TM-M4-6-01 | PA66 UL94V2 | Natural | 9,5 | 1 | 1,57 | M4 | 1000 |
| GSCBS1-M4-6-V0 | HMSP-TM-M4-6-19 | PA66 UL94V0 | Natural | 9,5 | 1 | 1,57 | M4 | 1000 |
| GSCBS1-M4-8-66 | HMSP-TM-M4-8-01 | PA66 UL94V2 | Natural | 12,7 | 1 | 1,57 | M4 | 1000 |
| GSCBS1-M4-8-V0 | HMSP-TM-M4-8-19 | PA66 UL94V0 | Natural | 12,7 | 1 | 1,57 | M4 | 1000 |
| GSCBS1-M4-10-66 | HMSP-TM-M4-10-01 | PA66 UL94V2 | Natural | 15,9 | 1 | 1,57 | M4 | 1000 |
| GSCBS1-M4-10-V0 | HMSP-TM-M4-10-19 | PA66 UL94V0 | Natural | 15,9 | 1 | 1,57 | M4 | 1000 |
| GSCBS1-M4-12-66 | HMSP-TM-M4-12-01 | PA66 UL94V2 | Natural | 19,1 | 1 | 1,57 | M4 | 1000 |
| GSCBS1-M4-12-V0 | HMSP-TM-M4-12-19 | PA66 UL94V0 | Natural | 19,1 | 1 | 1,57 | M4 | 1000 |
| GSCBS1-M4-14-66 | HMSP-TM-M4-14-01 | PA66 UL94V2 | Natural | 22,2 | 1 | 1,57 | M4 | 1000 |
| GSCBS1-M4-14-V0 | HMSP-TM-M4-14-19 | PA66 UL94V0 | Natural | 22,2 | 1 | 1,57 | M4 | 1000 |
- Identical to Richco / Essentra series
- HMSP-TM-x
- Packaging and price unit
- 1000
GSCBS1 Series
