GSCBS7 / LCBS-TM-M4 / Spacer with M4 thread | Gecko Fastener GmbH

GSCBS 7 Series - Locking Circuit Board Support Threaded

144.15 €

VAT excluded Änderungen und Preisirrtümer vorbehalten

Packaging and price unit: 1000

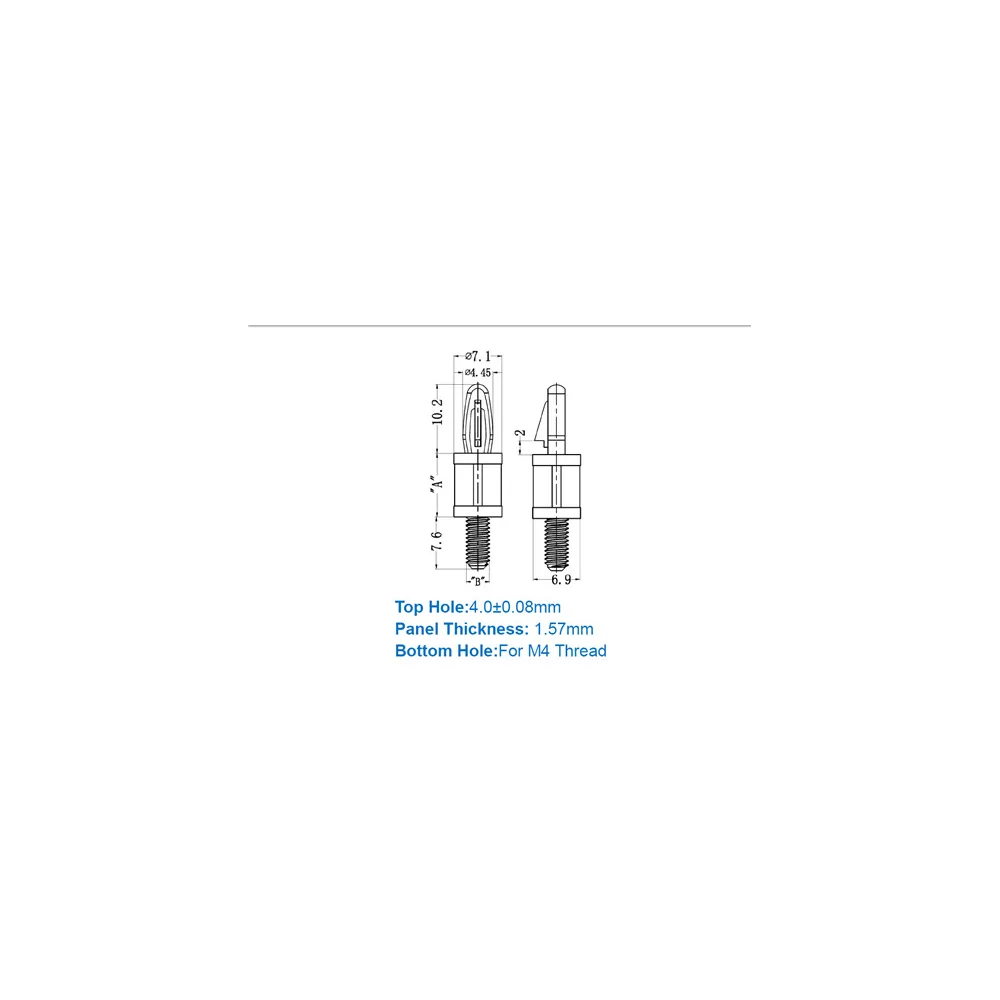

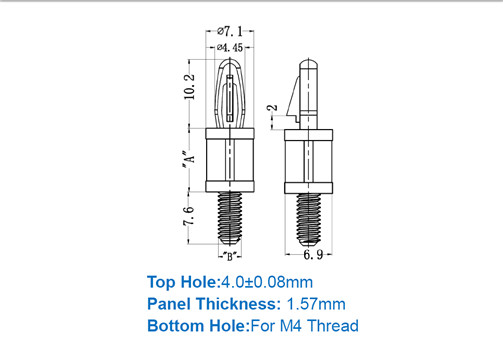

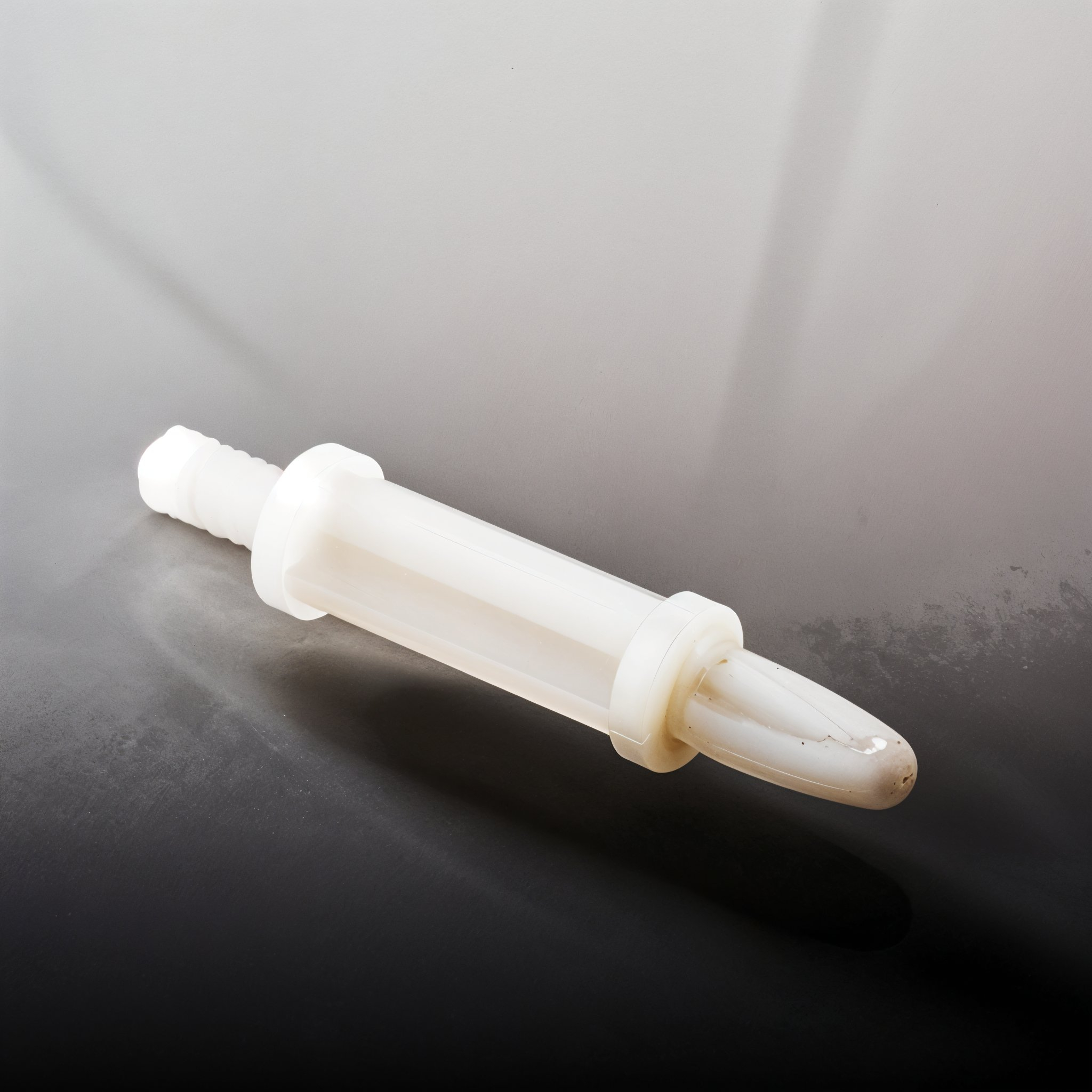

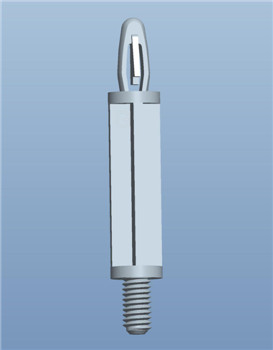

Plastic spacer / spacer bolt with M4 thread

In lengths from 6.4 - 25.4 mm
PCB thickness: 1.57 mm
Ø hole ≙ 4.0 ± 0.08 mm

GSCBS7 Series

Units	Discount	You will save	Price/unit
5	3%	21.62 €	139.83 €
10	6%	86.49 €	135.50 €
20	10%	288.30 €	129.74 €
30	15%	648.68 €	122.53 €

Add to watchlist

Note

Please contact us for small quantities, free samples and further technical details.

PCB Support - Spacer - Threaded Standoff, Screw Support, Hexagonal, Locking Bayonet

Article No.	Cross-ref.	Material	Material Colour	A	FIG	Hole top	Plate thickness top	Thread	PU
GSCBS7-4-66	LCBS-TM-M4-4-01	PA66 UL94V2	Natural	6,4	1	4.0 +/- 0.08	1,57	M4	1000
GSCBS7-4-V0	LCBS-TM-M4-4-19	PA66 UL94V0	Natural	6,4	1	4.0 +/- 0.08	1,57	M4	1000
GSCBS7-4-66B	LCBS-TM-M4-4-01BK	PA66 UL94V2	Black	6,4	1	4.0 +/- 0.08	1,57	M4	1000
GSCBS7-4-BV0	LCBS-TM-M4-4-19BK	PA66 UL94V0	Black	6,4	1	4.0 +/- 0.08	1,57	M4	1000
GSCBS7-6-66	LCBS-TM-M4-6-01	PA66 UL94V2	Natural	9,5	1	4.0 +/- 0.08	1,57	M4	1000
GSCBS7-6-V0	LCBS-TM-M4-6-19	PA66 UL94V0	Natural	9,5	1	4.0 +/- 0.08	1,57	M4	1000
GSCBS7-6-66B	LCBS-TM-M4-6-01BK	PA66 UL94V2	Black	9,5	1	4.0 +/- 0.08	1,57	M4	1000
GSCBS7-6-BV0	LCBS-TM-M4-6-19BK	PA66 UL94V0	Black	9,5	1	4.0 +/- 0.08	1,57	M4	1000
GSCBS7-8-66	LCBS-TM-M4-8-01	PA66 UL94V2	Natural	12,7	1	4.0 +/- 0.08	1,57	M4	1000
GSCBS7-8-V0	LCBS-TM-M4-8-19	PA66 UL94V0	Natural	12,7	1	4.0 +/- 0.08	1,57	M4	1000
GSCBS7-8-66B	LCBS-TM-M4-8-01BK	PA66 UL94V2	Black	12,7	1	4.0 +/- 0.08	1,57	M4	1000
GSCBS7-8-BV0	LCBS-TM-M4-8-19BK	PA66 UL94V0	Black	12,7	1	4.0 +/- 0.08	1,57	M4	1000
GSCBS7-10-66	LCBS-TM-M4-10-01	PA66 UL94V2	Natural	15,9	1	4.0 +/- 0.08	1,57	M4	1000
GSCBS7-10-V0	LCBS-TM-M4-10-19	PA66 UL94V0	Natural	15,9	1	4.0 +/- 0.08	1,57	M4	1000
GSCBS7-10-66B	LCBS-TM-M4-10-01BK	PA66 UL94V2	Black	15,9	1	4.0 +/- 0.08	1,57	M4	1000
GSCBS7-10-BV0	LCBS-TM-M4-10-19BK	PA66 UL94V0	Black	15,9	1	4.0 +/- 0.08	1,57	M4	1000
GSCBS7-12-66	LCBS-TM-M4-12-01	PA66 UL94V2	Natural	19,1	1	4.0 +/- 0.08	1,57	M4	1000
GSCBS7-12-V0	LCBS-TM-M4-12-19	PA66 UL94V0	Natural	19,1	1	4.0 +/- 0.08	1,57	M4	1000
GSCBS7-12-66B	LCBS-TM-M4-12-01BK	PA66 UL94V2	Black	19,1	1	4.0 +/- 0.08	1,57	M4	1000
GSCBS7-12-BV0	LCBS-TM-M4-12-19BK	PA66 UL94V0	Black	19,1	1	4.0 +/- 0.08	1,57	M4	1000
GSCBS7-14-66	LCBS-TM-M4-14-01	PA66 UL94V2	Natural	22,2	1	4.0 +/- 0.08	1,57	M4	1000
GSCBS7-14-V0	LCBS-TM-M4-14-19	PA66 UL94V0	Natural	22,2	1	4.0 +/- 0.08	1,57	M4	1000
GSCBS7-14-66B	LCBS-TM-M4-14-01BK	PA66 UL94V2	Black	22,2	1	4.0 +/- 0.08	1,57	M4	1000
GSCBS7-14-BV0	LCBS-TM-M4-14-19BK	PA66 UL94V0	Black	22,2	1	4.0 +/- 0.08	1,57	M4	1000
GSCBS7-16-66	LCBS-TM-M4-16-01	PA66 UL94V2	Natural	25,4	1	4.0 +/- 0.08	1,57	M4	1000
GSCBS7-16-V0	LCBS-TM-M4-16-19	PA66 UL94V0	Natural	25,4	1	4.0 +/- 0.08	1,57	M4	1000
GSCBS7-16-66B	LCBS-TM-M4-16-01BK	PA66 UL94V2	Black	25,4	1	4.0 +/- 0.08	1,57	M4	1000
GSCBS7-16-BV0	LCBS-TM-M4-16-19BK	PA66 UL94V0	Black	25,4	1	4.0 +/- 0.08	1,57	M4	1000

Identical to Richco / Essentra series: LCBS-TM-M4
Packaging and price unit: 1000
Functional dimension "A" or "L" (if available): 2 ≙ 3,2mm; 4 ≙ 6,4mm; 6 ≙ 9,5mm; 8 ≙ 12,7mm; 10 ≙ 15,9mm; 12 ≙ 19,1mm; 14 ≙ 22,2mm; 16 ≙ 25,4mm

Reference GSCBS7 Series

GSCBS6, GSCBS7

Download (404.62KB)
