GSCBS8 / SCBS / Spacer with thread | Gecko Fastener GmbH

GSCBS 8 Series - Locking Circuit Board Support Threaded #2

GSCBS 8 Series - Locking Circuit Board Support Threaded

144.15 €

VAT excluded Änderungen und Preisirrtümer vorbehalten

Packaging and price unit: 1000

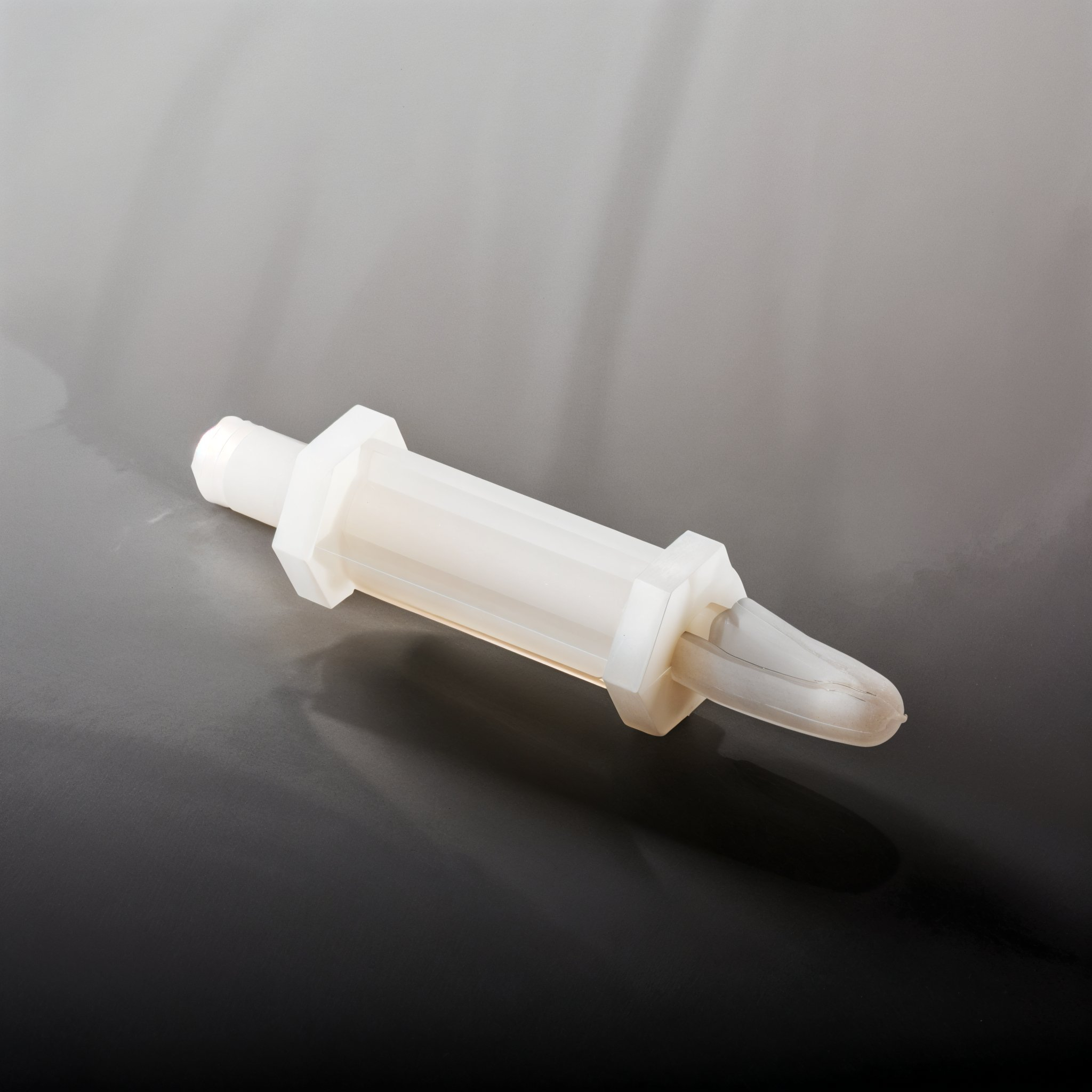

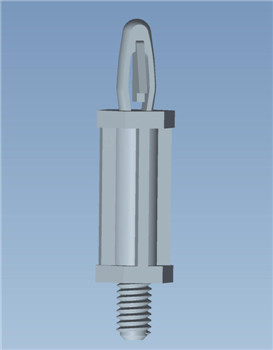

Plastic spacer / spacer bolt with M4 thread

In lengths from 6.4 - 35.7 mm
PCB thickness: 1.57 mm
Ø hole ≙ 4.0 ± 0.08 mm

GSCBS8 Series

Units	Discount	You will save	Price/unit
5	3%	21.62 €	139.83 €
10	6%	86.49 €	135.50 €
20	10%	288.30 €	129.74 €
30	15%	648.68 €	122.53 €

Add to watchlist

Note

Please contact us for small quantities, free samples and further technical details.

PCB Support - Spacer - Threaded Standoff, Screw Support, Hexagonal, Locking Bayonet

Article No.	Cross-ref.	Material	Material Colour	A	FIG	Plate thickness	Thread	PU
GSCBS8-4-66	SCBS-4-01 / 27LMTP00250	PA66 UL94V2	Natural	6,4	2	1,57	#8-32	1000
GSCBS8-4-V0	SCBS-4-19	PA66 UL94V0	Natural	6,4	2	1,57	#8-32	1000
GSCBS8-4-66B	SCBS-4-01BK	PA66 UL94V2	Black	6,4	2	1,57	#8-32	1000
GSCBS8-4-BV0	SCBS-4-19BK	PA66 UL94V0	Black	6,4	2	1,57	#8-32	1000
GSCBS8-6-66	SCBS-6-01 / 27LMTP00375	PA66 UL94V2	Natural	9,5	2	1,57	#8-32	1000
GSCBS8-6-V0	SCBS-6-19	PA66 UL94V0	Natural	9,5	2	1,57	#8-32	1000
GSCBS8-6-66B	SCBS-6-01BK	PA66 UL94V2	Black	9,5	2	1,57	#8-32	1000
GSCBS8-6-BV0	SCBS-6-19BK	PA66 UL94V0	Black	9,5	2	1,57	#8-32	1000
GSCBS8-8-66	SCBS-8-01 / 27LMTP00500	PA66 UL94V2	Natural	12,7	2	1,57	#8-32	1000
GSCBS8-8-V0	SCBS-8-19	PA66 UL94V0	Natural	12,7	2	1,57	#8-32	1000
GSCBS8-8-66B	SCBS-8-01BK	PA66 UL94V2	Black	12,7	2	1,57	#8-32	1000
GSCBS8-8-BV0	SCBS-8-19BK	PA66 UL94V0	Black	12,7	2	1,57	#8-32	1000
GSCBS8-10-66	SCBS-10-01 / 27LMTP00625	PA66 UL94V2	Natural	15,9	2	1,57	#8-32	1000
GSCBS8-10-V0	SCBS-10-19	PA66 UL94V0	Natural	15,9	2	1,57	#8-32	1000
GSCBS8-10-66B	SCBS-10-01BK	PA66 UL94V2	Black	15,9	2	1,57	#8-32	1000
GSCBS8-10-BV0	SCBS-10-19BK	PA66 UL94V0	Black	15,9	2	1,57	#8-32	1000
GSCBS8-12-66	SCBS-12-01 / 27LMTP00750	PA66 UL94V2	Natural	19,1	2	1,57	#8-32	1000
GSCBS8-12-V0	SCBS-12-19	PA66 UL94V0	Natural	19,1	2	1,57	#8-32	1000
GSCBS8-12-66B	SCBS-12-01BK	PA66 UL94V2	Black	19,1	2	1,57	#8-32	1000
GSCBS8-12-BV0	SCBS-12-19BK	PA66 UL94V0	Black	19,1	2	1,57	#8-32	1000
GSCBS8-13-66	SCBS-13-01 / 27LMTP00875	PA66 UL94V2	Natural	20,4	2	1,57	#8-32	1000
GSCBS8-13-V0	SCBS-13-19	PA66 UL94V0	Natural	20,4	2	1,57	#8-32	1000
GSCBS8-13-66B	SCBS-13-01BK	PA66 UL94V2	Black	20,4	2	1,57	#8-32	1000
GSCBS8-13-BV0	SCBS-13-19BK	PA66 UL94V0	Black	20,4	2	1,57	#8-32	1000
GSCBS8-14-66	SCBS-14-01 / 27LMTP01000	PA66 UL94V2	Natural	22,2	2	1,57	#8-32	1000
GSCBS8-14-V0	SCBS-14-19	PA66 UL94V0	Natural	22,2	2	1,57	#8-32	1000
GSCBS8-14-66B	SCBS-14-01BK	PA66 UL94V2	Black	22,2	2	1,57	#8-32	1000
GSCBS8-14-BV0	SCBS-14-19BK	PA66 UL94V0	Black	22,2	2	1,57	#8-32	1000
GSCBS8-16-66	SCBS-16-01 / 27LMTP01000	PA66 UL94V2	Natural	25,4	2	1,57	#8-32	1000
GSCBS8-16-V0	SCBS-16-19	PA66 UL94V0	Natural	25,4	2	1,57	#8-32	1000
GSCBS8-16-66B	SCBS-16-01BK	PA66 UL94V2	Black	25,4	2	1,57	#8-32	1000
GSCBS8-16-BV0	SCBS-16-19BK	PA66 UL94V0	Black	25,4	2	1,57	#8-32	1000
GSCBS8-18-66	SCBS-18-01 / 27LMTP01125	PA66 UL94V2	Natural	28,6	2	1,57	#8-32	1000
GSCBS8-18-V0	SCBS-18-19	PA66 UL94V0	Natural	28,6	2	1,57	#8-32	1000
GSCBS8-18-66B	SCBS-18-01BK	PA66 UL94V2	Black	28,6	2	1,57	#8-32	1000
GSCBS8-18-BV0	SCBS-18-19BK	PA66 UL94V0	Black	28,6	2	1,57	#8-32	1000
GSCBS8-22.5-66	SCBS-22.5-01	PA66 UL94V2	Natural	35,7	2	1,57	#8-32	1000
GSCBS8-22.5-V0	SCBS-22.5-19	PA66 UL94V0	Natural	35,7	2	1,57	#8-32	1000
GSCBS8-22.5-66B	SCBS-22.5-01BK	PA66 UL94V2	Black	35,7	2	1,57	#8-32	1000
GSCBS8-22.5-BV0	SCBS-22.5-19BK	PA66 UL94V0	Black	35,7	2	1,57	#8-32	1000

Identical to Richco / Essentra series: SCBS
Packaging and price unit: 1000
Functional dimension "A" or "L" (if available): 4 ≙ 6,4mm; 6 ≙ 9,5mm; 8 ≙ 12,7mm; 10 ≙ 15,9mm; 12 ≙ 19,1mm; 13 ≙ 20mm; 14 ≙ 22,2mm; 16 ≙ 25,4mm; 18 ≙ 28,6mm; 20 ≙ 31,7mm; 22.5 ≙ 35,7mm

Reference GSCBS8 Series

GSCBS8
