Distanciadores y accesorios para placas de circuito impreso
Precio a consultar Serie TCBS - Distanciador - rosca hembra, hexagonal
111,20 €
Impuestos excluidos Modificaciones y tarifas vigentes
Unidad de embalaje y precio: 1000
Si la longitud que desea no está disponible en la lista , solicite su oferta sin compromiso a
por correo electrónico o teléfono.

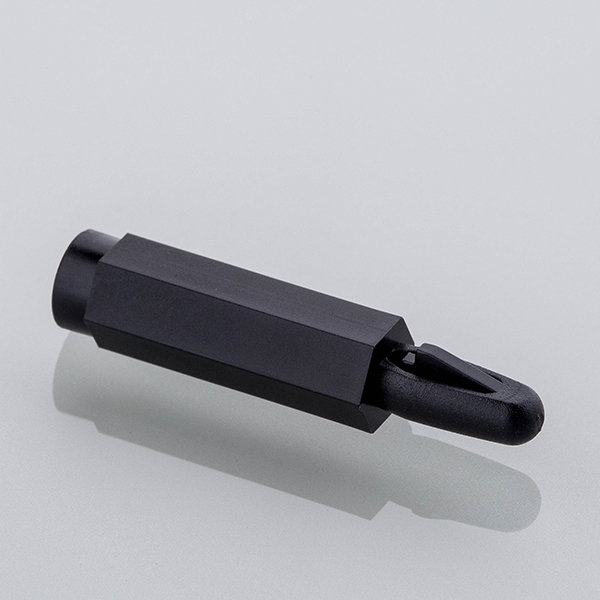

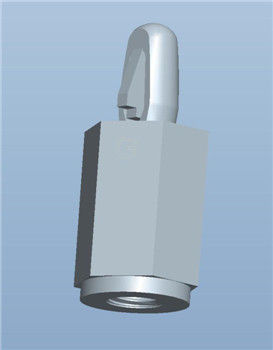

Espaciador para placas de circuito impreso con rosca métrica
Color: negro / Material: PA66 UL94V2
En longitudes de 8,0 - 14,0 mm M3 & M4
Grosor de la placa de circuito impreso: 1,6 mm (T1) / 2,0 mm (T2)
Ø agujero ≙ 4,0 ± 0,1 mm
Soporte PCB - Separador - Separador roscado, Soporte de tornillo, Hexagonal, Bayoneta de bloqueo, M3, M4

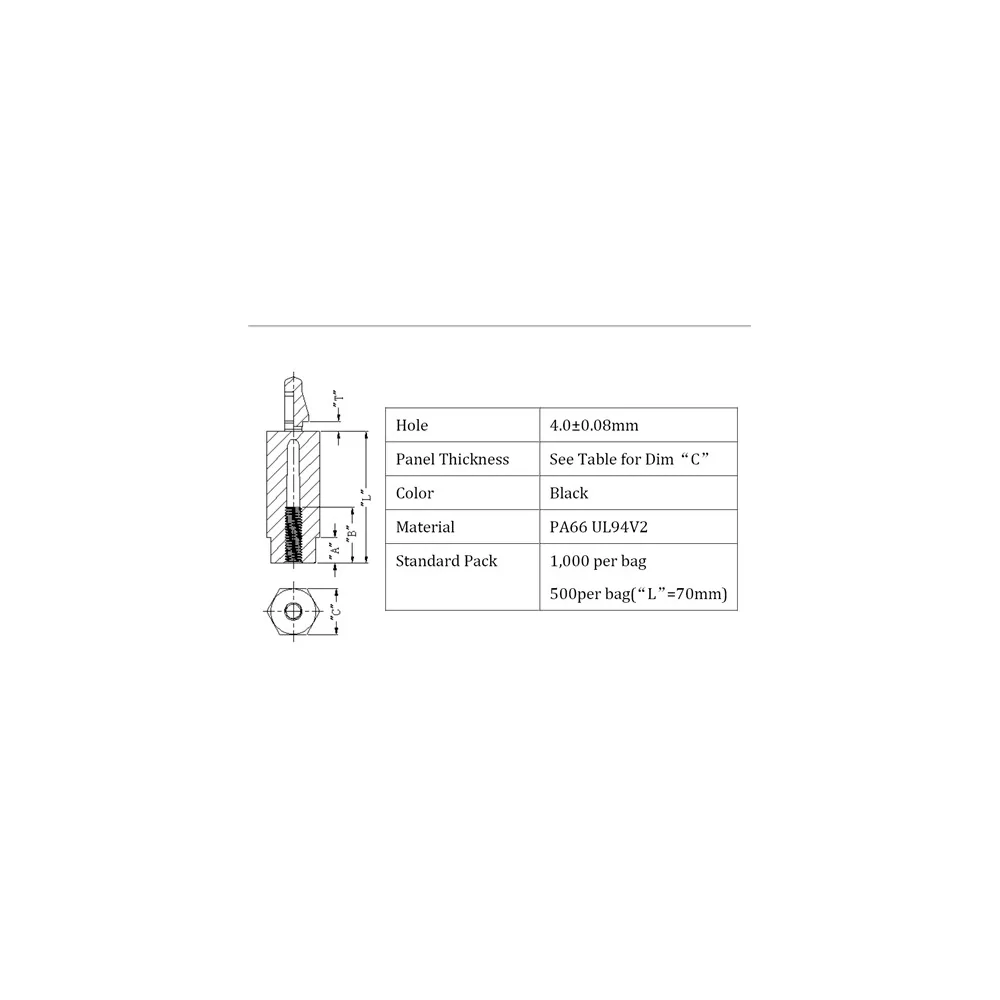

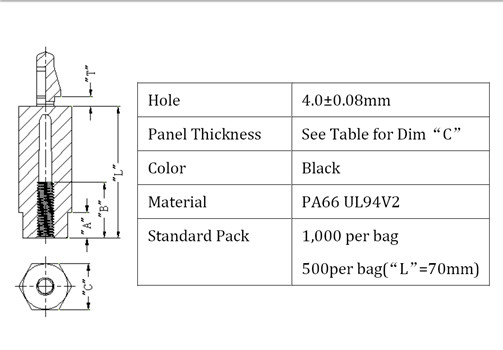

| Nº de artículo | Referencia cruzada. | Material | Color | A | B | C | L | T | Taladro | Espesor del panel | Hilo | PU |
| TCBS-M3-6-5-T1.7 | TCBN-T1-M3-6-5 | PA66 UL94V2 | Negro | 0,5 | 4,0 | 6,0 | 5,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M3 | 1000 |
| TCBS-M3-6-6-T1.7 | TCBN-T1-M3-6-6 / 310306659902 | PA66 UL94V2 | Negro | 0,5 | 4,0 | 6,0 | 6,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M3 | 1000 |
| TCBS-M3-6-6-T2.2 | TCBN-T2-M3-6-6 / 310306759902 | PA66 UL94V2 | Negro | 0,5 | 4,0 | 6,0 | 6,0 | 2,2 | 4.0 +/- 0.08 | 2.0-2.1 | M3 | 1000 |
| TCBS-M3-6-7-T1.7 | TCBN-T1-M3-6-7 | PA66 UL94V2 | Negro | 2,2 | 5,5 | 6,0 | 7,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M3 | 1000 |
| TCBS-M3-6-8-T2 | 310308659902 | PA66 UL94V2 | Negro | 1,5 | 6,0 | 6,0 | 8,0 | 2,0 | 4.0 +/- 0.08 | 1.8-1.9 | M3 | 1000 |
| TCBS-M3-6-8-T2.2 | TCBN-T2-M3-6-8 / 310308759902 | PA66 UL94V2 | Negro | 1,5 | 6,0 | 6,0 | 8,0 | 2,2 | 4.0 +/- 0.08 | 2.0-2.1 | M3 | 1000 |
| TCBS-M3-6-9-T1.7 | TCBN-T1-M3-6-9 | PA66 UL94V2 | Negro | 1,5 | 6,0 | 6,0 | 9,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M3 | 1000 |
| TCBS-M3-6-10-T1.7 | TCBN-T1-M3-6-10 / 310310659902 | PA66 UL94V2 | Negro | 1,5 | 8,0 | 6,0 | 10,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M3 | 1000 |
| TCBS-M3-6-10-T2.2 | TCBN-T2-M3-6-10 / 310310759902 | PA66 UL94V2 | Negro | 1,5 | 8,0 | 6,0 | 10,0 | 2,2 | 4.0 +/- 0.08 | 2.0-2.1 | M3 | 1000 |
| TCBS-M3-6-12-T1.7 | TCBN-T1-M3-6-12 / 310312659902 | PA66 UL94V2 | Negro | 1,35 | 10,0 | 6,0 | 12,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M3 | 1000 |
| TCBS-M3-6-12-T2 | 310312759902 | PA66 UL94V2 | Negro | 1,35 | 10,0 | 6,0 | 12,0 | 2,0 | 4.0 +/- 0.08 | 1.8-1.9 | M3 | 1000 |
| TCBS-M3-6-14-T2 | - | PA66 UL94V2 | Negro | 1,35 | 10,0 | 6,0 | 14,0 | 2,0 | 4.0 +/- 0.08 | 1.8-1.9 | M3 | 1000 |
| TCBS-M3-6-15-T2 | 310315759902 | PA66 UL94V2 | Negro | 1,35 | 10,0 | 6,0 | 15,0 | 2,0 | 4.0 +/- 0.08 | 1.8-1.9 | M3 | 1000 |
| TCBS-M3-6-15C-T1.7 | TCBN-T1-M3-6-15 / 310315659902 | PA66 UL94V2 | Negro | 1,35 | 7,6 | 6,0 | 15,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M3 | 1000 |
| TCBS-M3-6-15-T1.7 | - | PA66 UL94V2 | Negro | 2,2 | 7,6 | 6,0 | 15,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M3 | 1000 |
| TCBS-M3-6-17-T1.8 | TCBN-T1-M3-6-17 | PA66 UL94V2 | Negro | 2,2 | 10,0 | 6,0 | 17,0 | 1,8 | 4.0 +/- 0.08 | 1.6-1.7 | M3 | 1000 |
| TCBS-M3-6-18-T1.7 | TCBN-T1-M3-6-18 / 310318659902 | PA66 UL94V2 | Negro | 2,2 | 10,0 | 6,0 | 18,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M3 | 1000 |
| TCBS-M3-6-20-T1.8 | TCBN-T1-M3-6-20 / 310320659902 | PA66 UL94V2 | Negro | 2,2 | 10,0 | 6,0 | 20,0 | 1,8 | 4.0 +/- 0.08 | 1.6-1.7 | M3 | 1000 |
| TCBS-M3-6-22-T1.8 | TCBN-T1-M3-6-22 | PA66 UL94V2 | Negro | 2,2 | 10,0 | 6,0 | 22,0 | 1,8 | 4.0 +/- 0.08 | 1.6-1.7 | M3 | 1000 |
| TCBS-M3-6-25-T1.8 | TCBN-T1-M3-6-25 / 310325659902 | PA66 UL94V2 | Negro | 2,2 | 10,0 | 6,0 | 25,0 | 1,8 | 4.0 +/- 0.08 | 1.6-1.7 | M3 | 1000 |
| TCBS-M3-6-25-T2.2 | TCBN-T2-M3-6-25 / 310325759902 | PA66 UL94V2 | Negro | 2,2 | 10,0 | 6,0 | 25,0 | 2,2 | 4.0 +/- 0.08 | 2.0-2.1 | M3 | 1000 |
| TCBS-M3-6-30-T1.7 | TCBN-T1-M3-6-30 / 310330659902 | PA66 UL94V2 | Negro | 2,2 | 10,0 | 6,0 | 30,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M3 | 1000 |
| TCBS-M3-6-31-T1.7 | TCBN-T1-M3-6-31 | PA66 UL94V2 | Negro | 2,2 | 10,0 | 6,0 | 31,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M3 | 1000 |
| TCBS-M3-6-35-T1.7 | TCBN-T1-M3-6-35 / 310335659902 | PA66 UL94V2 | Negro | 2,2 | 10,0 | 6,0 | 35,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M3 | 1000 |
| TCBS-M3-6-40-T1.7 | TCBN-T1-M3-6-40 / 310340659902 | PA66 UL94V2 | Negro | 2,2 | 10,0 | 6,0 | 40,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M3 | 1000 |
| TCBS-M3-6-45-T1.7 | TCBN-T1-M3-6-45 / 310345659902 | PA66 UL94V2 | Negro | 2,2 | 10,0 | 6,0 | 45,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M3 | 1000 |
| TCBS-M3-6-50-T2.2 | TCBN-T2-M3-6-50 / 310350759902 | PA66 UL94V2 | Negro | 2,2 | 10,0 | 6,0 | 50,0 | 2,2 | 4.0 +/- 0.08 | 2.0-2.1 | M3 | 1000 |
| TCBS-M3-8-5-T1.7 | TCBN-T1-M3-8-5 | PA66 UL94V2 | Negro | 1,0 | 3,0 | 8,0 | 5,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M3 | 1000 |
| TCBS-M3-8-7-T1.7 | TCBN-T1-M3-8-7 | PA66 UL94V2 | Negro | 1,0 | 4,0 | 8,0 | 7,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M3 | 1000 |
| TCBS-M3-8-8-T1.7 | TCBN-T1-M3-8-8 | PA66 UL94V2 | Negro | 1,5 | 6,0 | 8,0 | 8,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M3 | 1000 |
| TCBS-M3-8-8-T2.2 | TCBN-T2-M3-8-8 | PA66 UL94V2 | Negro | 1,5 | 6,0 | 8,0 | 8,0 | 2,2 | 4.0 +/- 0.08 | 2.0-2.1 | M3 | 1000 |
| TCBS-M3-8-10-T1.7 | TCBN-T1-M3-8-10 | PA66 UL94V2 | Negro | 1,5 | 8,0 | 8,0 | 10,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M3 | 1000 |
| TCBS-M3-8-12-T1.7 | TCBN-T1-M3-8-12 | PA66 UL94V2 | Negro | 1,5 | 10,0 | 8,0 | 12,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M3 | 1000 |
| TCBS-M3-8-12-T2.2 | TCBN-T2-M3-8-12 | PA66 UL94V2 | Negro | 1,5 | 10,0 | 8,0 | 12,0 | 2,2 | 4.0 +/- 0.08 | 2.0-2.1 | M3 | 1000 |
| TCBS-M3-8-23-T1.7 | TCBN-T1-M3-8-23 | PA66 UL94V2 | Negro | 4,5 | 10,0 | 8,0 | 23,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M3 | 1000 |
| TCBS-M4-8-5-T1.7 | TCBN-T1-M4-8-5 | PA66 UL94V2 | Negro | 1,2 | 4,0 | 8,0 | 5,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M4 | 1000 |
| TCBS-M4-8-6-T1.7 | TCBN-T1-M4-8-6 / 310406659902 | PA66 UL94V2 | Negro | 1,2 | 4,0 | 8,0 | 6,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M4 | 1000 |
| TCBS-M4-8-6-T2.2 | TCBN-T2-M4-8-6 | PA66 UL94V2 | Negro | 1,2 | 4,0 | 8,0 | 6,0 | 2,2 | 4.0 +/- 0.08 | 2.0-2.1 | M4 | 1000 |
| TCBS-M4-8-7-T1.7 | TCBN-T1-M4-8-7 | PA66 UL94V2 | Negro | 1,2 | 4,0 | 8,0 | 7,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M4 | 1000 |
| TCBS-M4-8-7-T2.2 | TCBN-T2-M4-8-7 | PA66 UL94V2 | Negro | 1,2 | 4,0 | 8,0 | 7,0 | 2,2 | 4.0 +/- 0.08 | 2.0-2.1 | M4 | 1000 |
| TCBS-M4-8-8-T1.7 | TCBN-T1-M4-8-8 / 310408659902 | PA66 UL94V2 | Negro | 1,4 | 6,0 | 8,0 | 8,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M4 | 1000 |
| TCBS-M4-8-8-T2.2 | TCBN-T2-M4-8-8 | PA66 UL94V2 | Negro | 1,4 | 6,0 | 8,0 | 8,0 | 2,2 | 4.0 +/- 0.08 | 2.0-2.1 | M4 | 1000 |
| TCBS-M4-8-9-T1.7 | TCBN-T1-M4-8-9 | PA66 UL94V2 | Negro | 2,2 | 7,0 | 8,0 | 9,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M4 | 1000 |
| TCBS-M4-8-9-T2.2 | TCBN-T2-M4-8-9 | PA66 UL94V2 | Negro | 2,2 | 7,0 | 8,0 | 9,0 | 2,2 | 4.0 +/- 0.08 | 2.0-2.1 | M4 | 1000 |
| TCBS-M4-8-10-T1.7 | TCBN-T1-M4-8-10 / 310410659902 | PA66 UL94V2 | Negro | 1,4 | 8,0 | 8,0 | 10,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M4 | 1000 |
| TCBS-M4-8-10-T2.2 | TCBN-T2-M4-8-10 | PA66 UL94V2 | Negro | 1,4 | 8,0 | 8,0 | 10,0 | 2,2 | 4.0 +/- 0.08 | 2.0-2.1 | M4 | 1000 |
| TCBS-M4-8-12-T1.8 | TCBN-T1-M4-8-12 / 310412659902 | PA66 UL94V2 | Negro | 1,4 | 10,0 | 8,0 | 12,0 | 1,8 | 4.0 +/- 0.08 | 1.6-1.7 | M4 | 1000 |
| TCBS-M4-8-12-T2.2 | TCBN-T2-M4-8-12 | PA66 UL94V2 | Negro | 1,4 | 10,0 | 8,0 | 12,0 | 2,2 | 4.0 +/- 0.08 | 2.0-2.1 | M4 | 1000 |
| TCBS-M4-8-13-T1.8 | TCBN-T1-M4-8-13 | PA66 UL94V2 | Negro | 1,4 | 10,0 | 8,0 | 13,0 | 1,8 | 4.0 +/- 0.08 | 1.6-1.7 | M4 | 1000 |
| TCBS-M4-8-14-T2.2 | TCBN-T2-M4-8-14 | PA66 UL94V2 | Negro | 1,4 | 10,0 | 8,0 | 14,0 | 2,2 | 4.0 +/- 0.08 | 2.0-2.1 | M4 | 1000 |
| TCBS-M4-8-15-T1.7 | TCBN-T1-M4-8-15 / 310415659902 | PA66 UL94V2 | Negro | 1,4 | 10,0 | 8,0 | 15,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M4 | 1000 |
| TCBS-M4-8-18-T1.7 | TCBN-T1-M4-8-18 / 310418659902 | PA66 UL94V2 | Negro | 2,2 | 10,0 | 8,0 | 18,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M4 | 1000 |
| TCBS-M4-8-18-T2.2 | TCBN-T2-M4-8-18 | PA66 UL94V2 | Negro | 2,2 | 10,0 | 8,0 | 18,0 | 2,2 | 4.0 +/- 0.08 | 2.0-2.1 | M4 | 1000 |
| TCBS-M4-8-20-T1.7 | TCBN-T1-M4-8-20 / 310420659902 | PA66 UL94V2 | Negro | 1,4 | 10,0 | 8,0 | 20,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M4 | 1000 |
| TCBS-M4-8-23-T1.8 | TCBN-T1-M4-8-23 | PA66 UL94V2 | Negro | 1,4 | 10,0 | 8,0 | 23,0 | 1,8 | 4.0 +/- 0.08 | 1.6-1.7 | M4 | 1000 |
| TCBS-M4-8-25-T1.7 | TCBN-T1-M4-8-25 / 310425659902 | PA66 UL94V2 | Negro | 1,4 | 10,0 | 8,0 | 25,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M4 | 1000 |
| TCBS-M4-8-25-T2.2 | TCBN-T2-M4-8-25 | PA66 UL94V2 | Negro | 1,4 | 10,0 | 8,0 | 25,0 | 2,2 | 4.0 +/- 0.08 | 2.0-2.1 | M4 | 1000 |
| TCBS-M4-8-30C-T1.7 | TCBN-T1-M4-8-30 | PA66 UL94V2 | Negro | 1,8 | 10,0 | 8,0 | 30,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M4 | 1000 |
| TCBS-M4-8-30-T1.7 | - | PA66 UL94V2 | Negro | 5,0 | 10,0 | 8,0 | 30,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M4 | 1000 |
| TCBS-M4-8-30-T1.8 | TCBN-T1-M4-8-30 / 310430659902 | PA66 UL94V2 | Negro | 5,0 | 10,0 | 8,0 | 30,0 | 1,8 | 4.0 +/- 0.08 | 1.6-1.7 | M4 | 1000 |
| TCBS-M4-8-30-T2.2 | TCBN-T2-M4-8-30 | PA66 UL94V2 | Negro | 5,0 | 10,0 | 8,0 | 30,0 | 2,2 | 4.0 +/- 0.08 | 2.0-2.1 | M4 | 1000 |
| TCBS-M4-8-35-T2.2 | TCBN-T2-M4-8-35 | PA66 UL94V2 | Negro | 5,0 | 10,0 | 8,0 | 35,0 | 2,2 | 4.0 +/- 0.08 | 2.0-2.1 | M4 | 1000 |
| TCBS-M4-8-40-T1.7 | TCBN-T1-M4-8-40 / 310440659902 | PA66 UL94V2 | Negro | 5,0 | 10,0 | 8,0 | 40,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M4 | 1000 |
| TCBS-M4-8-45-T1.7 | TCBN-T1-M4-8-45 / 310445659902 | PA66 UL94V2 | Negro | 2,5 | 10,0 | 8,0 | 45,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M4 | 1000 |
| TCBS-M4-8-45-T2.2 | TCBN-T2-M4-8-45 | PA66 UL94V2 | Negro | 2,5 | 10,0 | 8,0 | 45,0 | 2,2 | 4.0 +/- 0.08 | 2.0-2.1 | M4 | 1000 |
| TCBS-M4-8-50-T1.7 | - | PA66 UL94V2 | Negro | 5,0 | 10,0 | 8,0 | 50,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M4 | 1000 |
| TCBS-M4-8-50C-T1.7 | TCBN-T1-M4-8-50 / 310450659902 | PA66 UL94V2 | Negro | 2,5 | 10,0 | 8,0 | 50,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M4 | 1000 |
| TCBS-M4-8-50-T2.2 | TCBN-T2-M4-8-50 | PA66 UL94V2 | Negro | 2,5 | 10,0 | 8,0 | 50,0 | 2,2 | 4.0 +/- 0.08 | 2.0-2.1 | M4 | 1000 |
| TCBS-M4-8-60-T1.7 | TCBN-T1-M4-8-60 | PA66 UL94V2 | Negro | 5,0 | 10,0 | 8,0 | 60,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M4 | 1000 |
| TCBS-M4-8-70-T1.7 | TCBN-T1-M4-8-70 | PA66 UL94V2 | Negro | 12,6 | 12,6 | 8,0 | 70,0 | 1,7 | 4.0 +/- 0.08 | 1.5-1.6 | M4 | 500 |
- Idéntica a la serie Richco / Essentra
- TCBN-T1/T2
- Unidad de embalaje y precio
- 1000
- Dimensión funcional "A" o "L" (si está disponible)
- "L" ≙ Längenangabe in mm.
- Catálogo
- 42951 42952 42961 42953 41287 42962 42954 42115 42963 42955 42271 42272 42273 42637 41284 43467 42956 41286 42554 42555 42964 42958 43458 43459 42959 42960 42965 42876 42966 40032 42968 43165 42967 42969 41285 42970 42609 42562 42971 42980 42972 42981 429
