Screw Mount Locking Circuit Board Support

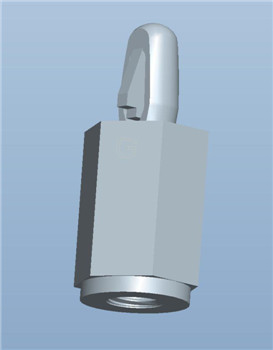

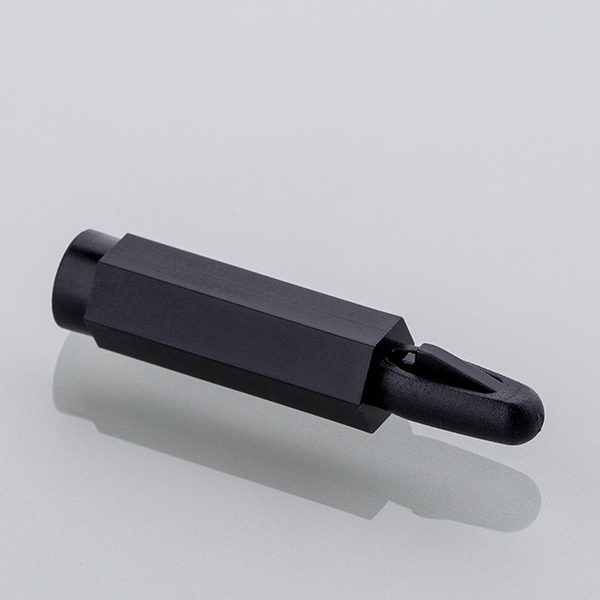

Serie TCBS - Distanziatore - filettatura femmina, esagonale

111,20 €

Tasse escluse Soggetto a modifiche ed errori di prezzo.

Unità di imballaggio e prezzo: 1000
Se la lunghezza desiderata non è disponibile nell'elenco, si prega di richiedere un'offerta non vincolante a
via e-mail o telefono.

Distanziatore per PCB con filettatura metrica

Colore: nero / Materiale: PA66 UL94V2
In lunghezze da 8,0 a 14,0 mm M3 e M4
Spessore PCB: 1,6 mm (T1) / 2,0 mm (T2)
Ø foro ≙ 4,0 ± 0,1 mm

TCBS Series

Unità	Sconti	Si risparmia	Prezzo/unità
5	3%	16,68 €	107,86 €
10	6%	66,72 €	104,53 €
20	10%	222,40 €	100,08 €
30	15%	500,40 €	94,52 €

Aggiungi alla lista di controllo

Nota

Vi preghiamo di contattarci per piccole quantità, campioni gratuiti e ulteriori dati tecnici.

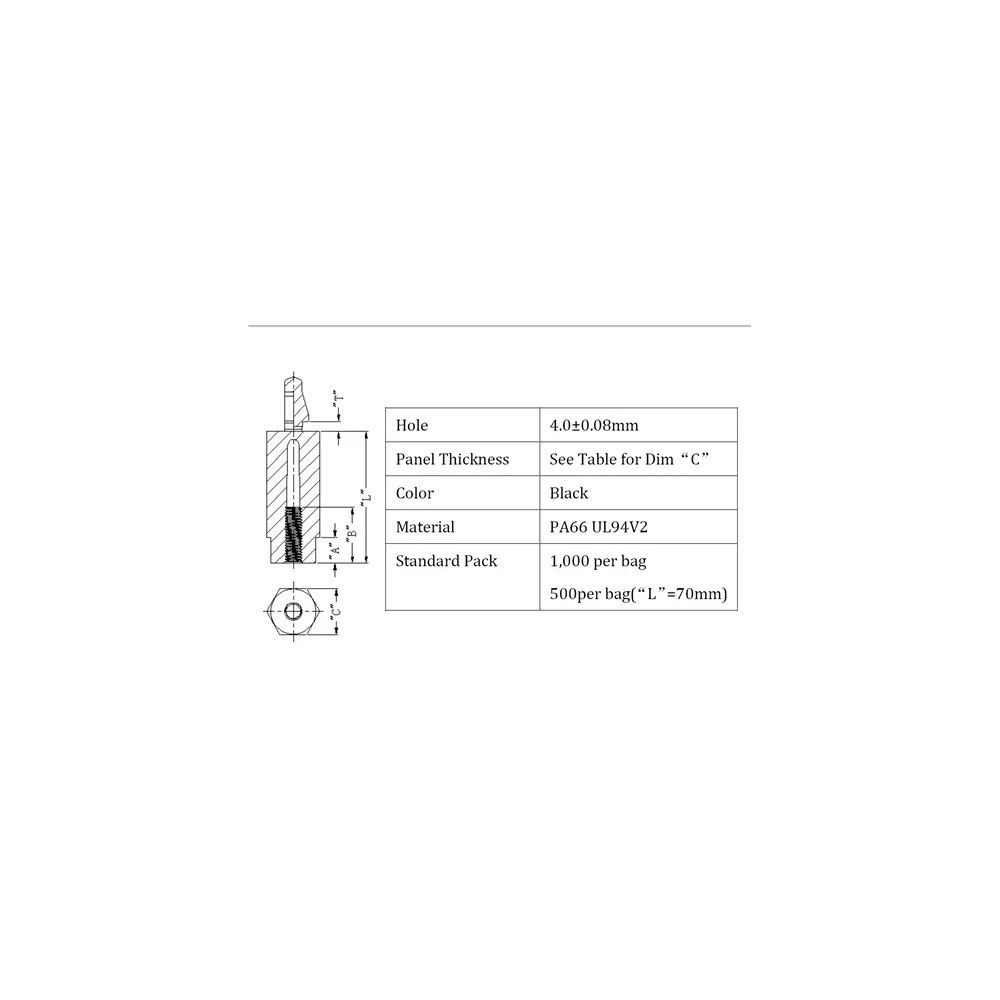

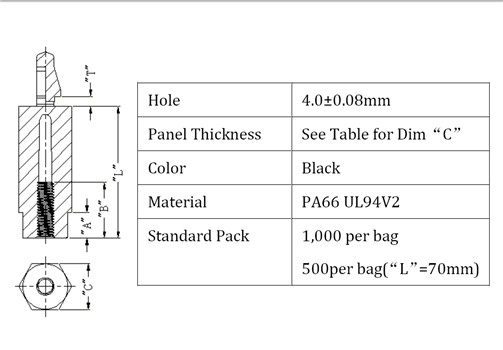

Supporto per PCB - Distanziatore - Distanziatore filettato, supporto a vite, esagonale, baionetta di bloccaggio, M3, M4

Articolo n.	Riferimento incrociato.	Materiale	Colore	A	B	C	L	T	Foro di perforazione	Spessore del pannello	Il filo	PU
TCBS-M3-6-5-T1.7	TCBN-T1-M3-6-5	PA66 UL94V2	Nero	0,5	4,0	6,0	5,0	1,7	4.0 +/- 0.08	1.5-1.6	M3	1000
TCBS-M3-6-6-T1.7	TCBN-T1-M3-6-6 / 310306659902	PA66 UL94V2	Nero	0,5	4,0	6,0	6,0	1,7	4.0 +/- 0.08	1.5-1.6	M3	1000
TCBS-M3-6-6-T2.2	TCBN-T2-M3-6-6 / 310306759902	PA66 UL94V2	Nero	0,5	4,0	6,0	6,0	2,2	4.0 +/- 0.08	2.0-2.1	M3	1000
TCBS-M3-6-7-T1.7	TCBN-T1-M3-6-7	PA66 UL94V2	Nero	2,2	5,5	6,0	7,0	1,7	4.0 +/- 0.08	1.5-1.6	M3	1000
TCBS-M3-6-8-T2	310308659902	PA66 UL94V2	Nero	1,5	6,0	6,0	8,0	2,0	4.0 +/- 0.08	1.8-1.9	M3	1000
TCBS-M3-6-8-T2.2	TCBN-T2-M3-6-8 / 310308759902	PA66 UL94V2	Nero	1,5	6,0	6,0	8,0	2,2	4.0 +/- 0.08	2.0-2.1	M3	1000
TCBS-M3-6-9-T1.7	TCBN-T1-M3-6-9	PA66 UL94V2	Nero	1,5	6,0	6,0	9,0	1,7	4.0 +/- 0.08	1.5-1.6	M3	1000
TCBS-M3-6-10-T1.7	TCBN-T1-M3-6-10 / 310310659902	PA66 UL94V2	Nero	1,5	8,0	6,0	10,0	1,7	4.0 +/- 0.08	1.5-1.6	M3	1000
TCBS-M3-6-10-T2.2	TCBN-T2-M3-6-10 / 310310759902	PA66 UL94V2	Nero	1,5	8,0	6,0	10,0	2,2	4.0 +/- 0.08	2.0-2.1	M3	1000
TCBS-M3-6-12-T1.7	TCBN-T1-M3-6-12 / 310312659902	PA66 UL94V2	Nero	1,35	10,0	6,0	12,0	1,7	4.0 +/- 0.08	1.5-1.6	M3	1000
TCBS-M3-6-12-T2	310312759902	PA66 UL94V2	Nero	1,35	10,0	6,0	12,0	2,0	4.0 +/- 0.08	1.8-1.9	M3	1000
TCBS-M3-6-14-T2	-	PA66 UL94V2	Nero	1,35	10,0	6,0	14,0	2,0	4.0 +/- 0.08	1.8-1.9	M3	1000
TCBS-M3-6-15-T2	310315759902	PA66 UL94V2	Nero	1,35	10,0	6,0	15,0	2,0	4.0 +/- 0.08	1.8-1.9	M3	1000
TCBS-M3-6-15C-T1.7	TCBN-T1-M3-6-15 / 310315659902	PA66 UL94V2	Nero	1,35	7,6	6,0	15,0	1,7	4.0 +/- 0.08	1.5-1.6	M3	1000
TCBS-M3-6-15-T1.7	-	PA66 UL94V2	Nero	2,2	7,6	6,0	15,0	1,7	4.0 +/- 0.08	1.5-1.6	M3	1000
TCBS-M3-6-17-T1.8	TCBN-T1-M3-6-17	PA66 UL94V2	Nero	2,2	10,0	6,0	17,0	1,8	4.0 +/- 0.08	1.6-1.7	M3	1000
TCBS-M3-6-18-T1.7	TCBN-T1-M3-6-18 / 310318659902	PA66 UL94V2	Nero	2,2	10,0	6,0	18,0	1,7	4.0 +/- 0.08	1.5-1.6	M3	1000
TCBS-M3-6-20-T1.8	TCBN-T1-M3-6-20 / 310320659902	PA66 UL94V2	Nero	2,2	10,0	6,0	20,0	1,8	4.0 +/- 0.08	1.6-1.7	M3	1000
TCBS-M3-6-22-T1.8	TCBN-T1-M3-6-22	PA66 UL94V2	Nero	2,2	10,0	6,0	22,0	1,8	4.0 +/- 0.08	1.6-1.7	M3	1000
TCBS-M3-6-25-T1.8	TCBN-T1-M3-6-25 / 310325659902	PA66 UL94V2	Nero	2,2	10,0	6,0	25,0	1,8	4.0 +/- 0.08	1.6-1.7	M3	1000
TCBS-M3-6-25-T2.2	TCBN-T2-M3-6-25 / 310325759902	PA66 UL94V2	Nero	2,2	10,0	6,0	25,0	2,2	4.0 +/- 0.08	2.0-2.1	M3	1000
TCBS-M3-6-30-T1.7	TCBN-T1-M3-6-30 / 310330659902	PA66 UL94V2	Nero	2,2	10,0	6,0	30,0	1,7	4.0 +/- 0.08	1.5-1.6	M3	1000
TCBS-M3-6-31-T1.7	TCBN-T1-M3-6-31	PA66 UL94V2	Nero	2,2	10,0	6,0	31,0	1,7	4.0 +/- 0.08	1.5-1.6	M3	1000
TCBS-M3-6-35-T1.7	TCBN-T1-M3-6-35 / 310335659902	PA66 UL94V2	Nero	2,2	10,0	6,0	35,0	1,7	4.0 +/- 0.08	1.5-1.6	M3	1000
TCBS-M3-6-40-T1.7	TCBN-T1-M3-6-40 / 310340659902	PA66 UL94V2	Nero	2,2	10,0	6,0	40,0	1,7	4.0 +/- 0.08	1.5-1.6	M3	1000
TCBS-M3-6-45-T1.7	TCBN-T1-M3-6-45 / 310345659902	PA66 UL94V2	Nero	2,2	10,0	6,0	45,0	1,7	4.0 +/- 0.08	1.5-1.6	M3	1000
TCBS-M3-6-50-T2.2	TCBN-T2-M3-6-50 / 310350759902	PA66 UL94V2	Nero	2,2	10,0	6,0	50,0	2,2	4.0 +/- 0.08	2.0-2.1	M3	1000
TCBS-M3-8-5-T1.7	TCBN-T1-M3-8-5	PA66 UL94V2	Nero	1,0	3,0	8,0	5,0	1,7	4.0 +/- 0.08	1.5-1.6	M3	1000
TCBS-M3-8-7-T1.7	TCBN-T1-M3-8-7	PA66 UL94V2	Nero	1,0	4,0	8,0	7,0	1,7	4.0 +/- 0.08	1.5-1.6	M3	1000
TCBS-M3-8-8-T1.7	TCBN-T1-M3-8-8	PA66 UL94V2	Nero	1,5	6,0	8,0	8,0	1,7	4.0 +/- 0.08	1.5-1.6	M3	1000
TCBS-M3-8-8-T2.2	TCBN-T2-M3-8-8	PA66 UL94V2	Nero	1,5	6,0	8,0	8,0	2,2	4.0 +/- 0.08	2.0-2.1	M3	1000
TCBS-M3-8-10-T1.7	TCBN-T1-M3-8-10	PA66 UL94V2	Nero	1,5	8,0	8,0	10,0	1,7	4.0 +/- 0.08	1.5-1.6	M3	1000
TCBS-M3-8-12-T1.7	TCBN-T1-M3-8-12	PA66 UL94V2	Nero	1,5	10,0	8,0	12,0	1,7	4.0 +/- 0.08	1.5-1.6	M3	1000
TCBS-M3-8-12-T2.2	TCBN-T2-M3-8-12	PA66 UL94V2	Nero	1,5	10,0	8,0	12,0	2,2	4.0 +/- 0.08	2.0-2.1	M3	1000
TCBS-M3-8-23-T1.7	TCBN-T1-M3-8-23	PA66 UL94V2	Nero	4,5	10,0	8,0	23,0	1,7	4.0 +/- 0.08	1.5-1.6	M3	1000
TCBS-M4-8-5-T1.7	TCBN-T1-M4-8-5	PA66 UL94V2	Nero	1,2	4,0	8,0	5,0	1,7	4.0 +/- 0.08	1.5-1.6	M4	1000
TCBS-M4-8-6-T1.7	TCBN-T1-M4-8-6 / 310406659902	PA66 UL94V2	Nero	1,2	4,0	8,0	6,0	1,7	4.0 +/- 0.08	1.5-1.6	M4	1000
TCBS-M4-8-6-T2.2	TCBN-T2-M4-8-6	PA66 UL94V2	Nero	1,2	4,0	8,0	6,0	2,2	4.0 +/- 0.08	2.0-2.1	M4	1000
TCBS-M4-8-7-T1.7	TCBN-T1-M4-8-7	PA66 UL94V2	Nero	1,2	4,0	8,0	7,0	1,7	4.0 +/- 0.08	1.5-1.6	M4	1000
TCBS-M4-8-7-T2.2	TCBN-T2-M4-8-7	PA66 UL94V2	Nero	1,2	4,0	8,0	7,0	2,2	4.0 +/- 0.08	2.0-2.1	M4	1000
TCBS-M4-8-8-T1.7	TCBN-T1-M4-8-8 / 310408659902	PA66 UL94V2	Nero	1,4	6,0	8,0	8,0	1,7	4.0 +/- 0.08	1.5-1.6	M4	1000
TCBS-M4-8-8-T2.2	TCBN-T2-M4-8-8	PA66 UL94V2	Nero	1,4	6,0	8,0	8,0	2,2	4.0 +/- 0.08	2.0-2.1	M4	1000
TCBS-M4-8-9-T1.7	TCBN-T1-M4-8-9	PA66 UL94V2	Nero	2,2	7,0	8,0	9,0	1,7	4.0 +/- 0.08	1.5-1.6	M4	1000
TCBS-M4-8-9-T2.2	TCBN-T2-M4-8-9	PA66 UL94V2	Nero	2,2	7,0	8,0	9,0	2,2	4.0 +/- 0.08	2.0-2.1	M4	1000
TCBS-M4-8-10-T1.7	TCBN-T1-M4-8-10 / 310410659902	PA66 UL94V2	Nero	1,4	8,0	8,0	10,0	1,7	4.0 +/- 0.08	1.5-1.6	M4	1000
TCBS-M4-8-10-T2.2	TCBN-T2-M4-8-10	PA66 UL94V2	Nero	1,4	8,0	8,0	10,0	2,2	4.0 +/- 0.08	2.0-2.1	M4	1000
TCBS-M4-8-12-T1.8	TCBN-T1-M4-8-12 / 310412659902	PA66 UL94V2	Nero	1,4	10,0	8,0	12,0	1,8	4.0 +/- 0.08	1.6-1.7	M4	1000
TCBS-M4-8-12-T2.2	TCBN-T2-M4-8-12	PA66 UL94V2	Nero	1,4	10,0	8,0	12,0	2,2	4.0 +/- 0.08	2.0-2.1	M4	1000
TCBS-M4-8-13-T1.8	TCBN-T1-M4-8-13	PA66 UL94V2	Nero	1,4	10,0	8,0	13,0	1,8	4.0 +/- 0.08	1.6-1.7	M4	1000
TCBS-M4-8-14-T2.2	TCBN-T2-M4-8-14	PA66 UL94V2	Nero	1,4	10,0	8,0	14,0	2,2	4.0 +/- 0.08	2.0-2.1	M4	1000
TCBS-M4-8-15-T1.7	TCBN-T1-M4-8-15 / 310415659902	PA66 UL94V2	Nero	1,4	10,0	8,0	15,0	1,7	4.0 +/- 0.08	1.5-1.6	M4	1000
TCBS-M4-8-18-T1.7	TCBN-T1-M4-8-18 / 310418659902	PA66 UL94V2	Nero	2,2	10,0	8,0	18,0	1,7	4.0 +/- 0.08	1.5-1.6	M4	1000
TCBS-M4-8-18-T2.2	TCBN-T2-M4-8-18	PA66 UL94V2	Nero	2,2	10,0	8,0	18,0	2,2	4.0 +/- 0.08	2.0-2.1	M4	1000
TCBS-M4-8-20-T1.7	TCBN-T1-M4-8-20 / 310420659902	PA66 UL94V2	Nero	1,4	10,0	8,0	20,0	1,7	4.0 +/- 0.08	1.5-1.6	M4	1000
TCBS-M4-8-23-T1.8	TCBN-T1-M4-8-23	PA66 UL94V2	Nero	1,4	10,0	8,0	23,0	1,8	4.0 +/- 0.08	1.6-1.7	M4	1000
TCBS-M4-8-25-T1.7	TCBN-T1-M4-8-25 / 310425659902	PA66 UL94V2	Nero	1,4	10,0	8,0	25,0	1,7	4.0 +/- 0.08	1.5-1.6	M4	1000
TCBS-M4-8-25-T2.2	TCBN-T2-M4-8-25	PA66 UL94V2	Nero	1,4	10,0	8,0	25,0	2,2	4.0 +/- 0.08	2.0-2.1	M4	1000
TCBS-M4-8-30C-T1.7	TCBN-T1-M4-8-30	PA66 UL94V2	Nero	1,8	10,0	8,0	30,0	1,7	4.0 +/- 0.08	1.5-1.6	M4	1000
TCBS-M4-8-30-T1.7	-	PA66 UL94V2	Nero	5,0	10,0	8,0	30,0	1,7	4.0 +/- 0.08	1.5-1.6	M4	1000
TCBS-M4-8-30-T1.8	TCBN-T1-M4-8-30 / 310430659902	PA66 UL94V2	Nero	5,0	10,0	8,0	30,0	1,8	4.0 +/- 0.08	1.6-1.7	M4	1000
TCBS-M4-8-30-T2.2	TCBN-T2-M4-8-30	PA66 UL94V2	Nero	5,0	10,0	8,0	30,0	2,2	4.0 +/- 0.08	2.0-2.1	M4	1000
TCBS-M4-8-35-T2.2	TCBN-T2-M4-8-35	PA66 UL94V2	Nero	5,0	10,0	8,0	35,0	2,2	4.0 +/- 0.08	2.0-2.1	M4	1000
TCBS-M4-8-40-T1.7	TCBN-T1-M4-8-40 / 310440659902	PA66 UL94V2	Nero	5,0	10,0	8,0	40,0	1,7	4.0 +/- 0.08	1.5-1.6	M4	1000
TCBS-M4-8-45-T1.7	TCBN-T1-M4-8-45 / 310445659902	PA66 UL94V2	Nero	2,5	10,0	8,0	45,0	1,7	4.0 +/- 0.08	1.5-1.6	M4	1000
TCBS-M4-8-45-T2.2	TCBN-T2-M4-8-45	PA66 UL94V2	Nero	2,5	10,0	8,0	45,0	2,2	4.0 +/- 0.08	2.0-2.1	M4	1000
TCBS-M4-8-50-T1.7	-	PA66 UL94V2	Nero	5,0	10,0	8,0	50,0	1,7	4.0 +/- 0.08	1.5-1.6	M4	1000
TCBS-M4-8-50C-T1.7	TCBN-T1-M4-8-50 / 310450659902	PA66 UL94V2	Nero	2,5	10,0	8,0	50,0	1,7	4.0 +/- 0.08	1.5-1.6	M4	1000
TCBS-M4-8-50-T2.2	TCBN-T2-M4-8-50	PA66 UL94V2	Nero	2,5	10,0	8,0	50,0	2,2	4.0 +/- 0.08	2.0-2.1	M4	1000
TCBS-M4-8-60-T1.7	TCBN-T1-M4-8-60	PA66 UL94V2	Nero	5,0	10,0	8,0	60,0	1,7	4.0 +/- 0.08	1.5-1.6	M4	1000
TCBS-M4-8-70-T1.7	TCBN-T1-M4-8-70	PA66 UL94V2	Nero	12,6	12,6	8,0	70,0	1,7	4.0 +/- 0.08	1.5-1.6	M4	500

Identico alla serie Richco / Essentra: TCBN-T1/T2
Imballaggio e unità di prezzo: 1000
Dimensione funzionale "A" o "L" (se disponibile): "L" ≙ Längenangabe in mm.
