GCRS-7045 | Plastic screws | Gecko Fastener GmbH

GCRS-7045 Series - Flat head, cross recess, machine screw

36.75 €

VAT excluded Änderungen und Preisirrtümer vorbehalten

Packaging and price unit: 1000

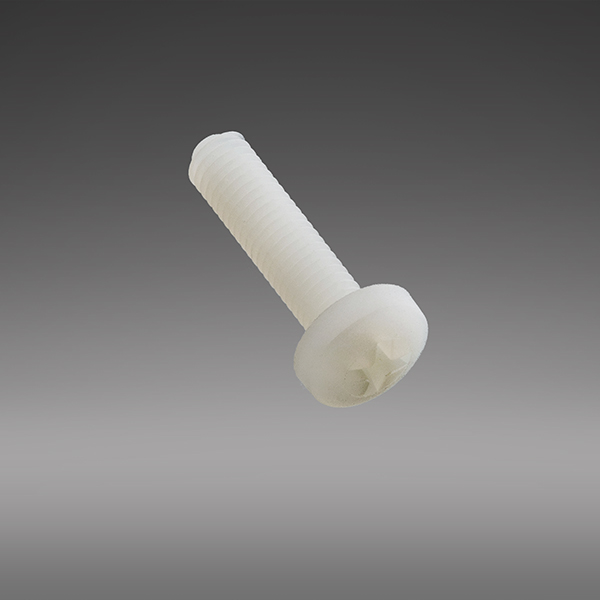

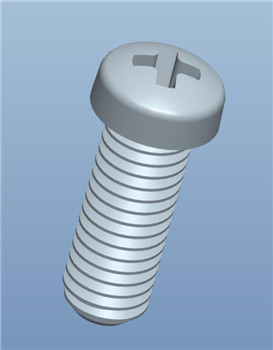

Plastic screw (cross recess)

Colour: natural
Material: PA66 UL 94 V2

GCRS-7045 Series

Units	Discount	You will save	Price/unit
5	3%	5.51 €	35.65 €
10	6%	22.05 €	34.55 €
20	10%	73.50 €	33.08 €
30	15%	165.38 €	31.24 €

Add to watchlist

Note

Please contact us for small quantities, free samples and further technical details.

Pan Phillips Machine Screw, Crossed, M2, M2.5, M3, M4, M5, M6, M8, M10

Article no.	Cross-Ref.	Material	Colour	A	B	C	L	Thread	PU
GCRS-7045-M2-4	50M020040P004	PA66 UL94V2	Natural	1,6	4.0	1,9	4,0	M2	1000
GCRS-7045-M2-5	50M020040P005	PA66 UL94V2	Natural	1,6	4.0	1,9	5,0	M2	1000
GCRS-7045-M2-6	50M020040P006	PA66 UL94V2	Natural	1,6	4.0	1,9	6,0	M2	1000
GCRS-7045-M2-8	50M020040P008	PA66 UL94V2	Natural	1,6	4.0	1,9	8,0	M2	1000
GCRS-7045-M2-10	50M020040P010	PA66 UL94V2	Natural	1,6	4.0	1,9	10,0	M2	1000
GCRS-7045-M2-12	50M020040P012	PA66 UL94V2	Natural	1,6	4.0	1,9	12,0	M2	1000
GCRS-7045-M2-12-PP	-	PP UL94HB	Natural	1,6	4.0	1,9	12,0	M2	1000
GCRS-7045-M2-16	50M020040P016	PA66 UL94V2	Natural	1,6	4.0	1,9	16,0	M2	1000
GCRS-7045-M2-20	50M020040P020	PA66 UL94V2	Natural	1,6	4.0	1,9	20,0	M2	1000
GCRS-7045-M2-25	50M020040P025	PA66 UL94V2	Natural	1,6	4.0	1,9	25,0	M2	1000
GCRS-7045-M2.5-4	-	PA66 UL94V2	Natural	2,1	5.0	2,7	4,0	M2.5	1000
GCRS-7045-M2.5-4.5	-	PA66 UL94V2	Natural	2,1	5.0	2,7	4,5	M2.5	1000
GCRS-7045-M2.5-5	-	PA66 UL94V2	Natural	2,1	5.0	2,7	5,0	M2.5	1000
GCRS-7045-M2.5-6	50M025045P006	PA66 UL94V2	Natural	2,1	5.0	2,7	6,0	M2.5	1000
GCRS-7045-M2.5-8	50M020040P008	PA66 UL94V2	Natural	2,1	5.0	2,7	8,0	M2.5	1000
GCRS-7045-M2.5-10	50M020040P010	PA66 UL94V2	Natural	2,1	5.0	2,7	10,0	M2.5	1000
GCRS-7045-M2.5-12	50M020040P012	PA66 UL94V2	Natural	2,1	5.0	2,7	12,0	M2.5	1000
GCRS-7045-M2.5-16	50M020040P016	PA66 UL94V2	Natural	2,1	5.0	2,7	16,0	M2.5	1000
GCRS-7045-M2.5-20	50M020040P020	PA66 UL94V2	Natural	2,1	5.0	2,7	20,0	M2.5	1000
GCRS-7045-M2.5-25	50M020040P025	PA66 UL94V2	Natural	2,1	5.0	2,7	25,0	M2.5	1000
GCRS-7045-M3-4	50M030050P004	PA66 UL94V2	Natural	2,4	5,6	3,0	4,0	M3	1000
GCRS-7045-M3-5	50M030050P005	PA66 UL94V2	Natural	2,4	5,6	3,0	5,0	M3	1000
GCRS-7045-M3-6	NMS-306 / 50M030050P006	PA66 UL94V2	Natural	2,4	5,6	3,0	6,0	M3	1000
GCRS-7045-M3-8	NMS-308 / 50M030050P008	PA66 UL94V2	Natural	2,4	5,6	3,0	8,0	M3	1000
GCRS-7045-M3-8B	-	PA66 UL94V2	Black	2,4	5,6	3,0	8,0	M3	1000
GCRS-7045-M3-10	NMS-310 / 50M030050P010	PA66 UL94V2	Natural	2,4	5,6	3,0	10,0	M3	1000
GCRS-7045-M3-12	NMS-312 / 50M030050P012	PA66 UL94V2	Natural	2,4	5,6	3,0	12,0	M3	1000
GCRS-7045-M3-16	50M030050P016	PA66 UL94V2	Natural	2,4	5,6	3,0	16,0	M3	1000
GCRS-7045-M3-16N-TW	-	PA66 UL94V2	Tan	2,4	5,6	3,0	16,0	M3	1000
GCRS-7045-M3-20	50M030050P020	PA66 UL94V2	Natural	2,4	5,6	3,0	20,0	M3	1000
GCRS-7045-M3-25	50M030050P025	PA66 UL94V2	Natural	2,4	5,6	3,0	25,0	M3	1000
GCRS-7045-M3-30	50M030050P030	PA66 UL94V2	Natural	2,4	5,6	3,0	30,0	M3	1000
GCRS-7045-M3-35	50M030050P035	PA66 UL94V2	Natural	2,4	5,6	3,0	35,0	M3	1000
GCRS-7045-M3-40	-	PA66 UL94V2	Natural	2,4	5,6	3,0	40,0	M3	1000
GCRS-7045-M4-4	-	PA66 UL94V2	Natural	3,1	8.0	4,4	4,0	M4	1000
GCRS-7045-M4-6	NMS-406 / 50M040070P006	PA66 UL94V2	Natural	3,1	8.0	4,4	6,0	M4	1000
GCRS-7045-M4-8	NMS-408 / 50M040070P008	PA66 UL94V2	Natural	3,1	8.0	4,4	8,0	M4	1000
GCRS-7045-M4-10	NMS-410 / 50M040070P010	PA66 UL94V2	Natural	3,1	8.0	4,4	10,0	M4	1000
GCRS-7045-M4-12	NMS-412 / 50M040070P012	PA66 UL94V2	Natural	3,1	8.0	4,4	12,0	M4	1000
GCRS-7045-M4-15	-	PA66 UL94V2	Natural	3,1	8.0	4,4	15,0	M4	1000
GCRS-7045-M4-16	NMS-416 / 50M040070P016	PA66 UL94V2	Natural	3,1	8.0	4,4	16,0	M4	1000
GCRS-7045-M4-20	50M040070P020	PA66 UL94V2	Natural	3,1	8.0	4,4	20,0	M4	1000
GCRS-7045-M4-25	50M040070P025	PA66 UL94V2	Natural	3,1	8.0	4,4	25,0	M4	1000
GCRS-7045-M4-30	50M040070P030	PA66 UL94V2	Natural	3,1	8.0	4,4	30,0	M4	1000
GCRS-7045-M4-40	50M040070P040	PA66 UL94V2	Natural	3,1	8.0	4,4	40,0	M4	1000
GCRS-7045-M5-6	50M050080P006	PA66 UL94V2	Natural	3,7	9,5	4,9	6,0	M5	1000
GCRS-7045-M5-8	50M050080P008	PA66 UL94V2	Natural	3,7	9,5	4,9	8,0	M5	1000
GCRS-7045-M5-10	50M050080P010	PA66 UL94V2	Natural	3,7	9,5	4,9	10,0	M5	1000
GCRS-7045-M5-12	50M050080P012	PA66 UL94V2	Natural	3,7	9,5	4,9	12,0	M5	1000
GCRS-7045-M5-16	50M050080P016	PA66 UL94V2	Natural	3,7	9,5	4,9	16,0	M5	1000
GCRS-7045-M5-20	50M050080P020	PA66 UL94V2	Natural	3,7	9,5	4,9	20,0	M5	1000
GCRS-7045-M5-25	50M050080P025	PA66 UL94V2	Natural	3,7	9,5	4,9	25,0	M5	1000
GCRS-7045-M5-30	50M050080P030	PA66 UL94V2	Natural	3,7	9,5	4,9	30,0	M5	1000
GCRS-7045-M5-40	50M050080P040	PA66 UL94V2	Natural	3,7	9,5	4,9	40,0	M5	1000
GCRS-7045-M5-50	-	PA66 UL94V2	Natural	3,7	9,5	4,9	50,0	M5	1000
GCRS-7045-M6-5	50M060100P005	PA66 UL94V2	Natural	4,6	12.0	6,9	5,0	M6	1000
GCRS-7045-M6-6	-	PA66 UL94V2	Natural	4,6	12.0	6,9	6,0	M6	1000
GCRS-7045-M6-6.5	-	PA66 UL94V2	Natural	4,6	12.0	6,9	6,5	M6	1000
GCRS-7045-M6-8	50M060100P008	PA66 UL94V2	Natural	4,6	12.0	6,9	8,0	M6	1000
GCRS-7045-M6-10	50M060100P010	PA66 UL94V2	Natural	4,6	12.0	6,9	10,0	M6	1000
GCRS-7045-M6-12	50M060100P012	PA66 UL94V2	Natural	4,6	12.0	6,9	12,0	M6	1000
GCRS-7045-M6-16	50M060100P016	PA66 UL94V2	Natural	4,6	12.0	6,9	16,0	M6	1000
GCRS-7045-M6-20	50M060100P020	PA66 UL94V2	Natural	4,6	12.0	6,9	20,0	M6	1000
GCRS-7045-M6-22	50M060100P022	PA66 UL94V2	Natural	4,6	12.0	6,9	22,0	M6	1000
GCRS-7045-M6-25	50M060100P025	PA66 UL94V2	Natural	4,6	12.0	6,9	25,0	M6	1000
GCRS-7045-M6-30	50M060100P030	PA66 UL94V2	Natural	4,6	12.0	6,9	30,0	M6	1000
GCRS-7045-M6-40	50M060100P040	PA66 UL94V2	Natural	4,6	12.0	6,9	40,0	M6	1000
GCRS-7045-M6-50	50M060100P050	PA66 UL94V2	Natural	4,6	12.0	6,9	50,0	M6	1000
GCRS-7045-M6-60	50M060100P060	PA66 UL94V2	Natural	4,6	12.0	6,9	60,0	M6	1000
GCRS-7045-M8-8	-	PA66 UL94V2	Natural	5,8	16.0	9,0	8,0	M8	1000
GCRS-7045-M8-10	50M080125P010	PA66 UL94V2	Natural	5,8	16.0	9,0	10,0	M8	1000
GCRS-7045-M8-12	-	PA66 UL94V2	Natural	5,8	16.0	9,0	12,0	M8	1000
GCRS-7045-M8-16	50M080125P016	PA66 UL94V2	Natural	5,8	16.0	9,0	16,0	M8	1000
GCRS-7045-M8-20	50M080125P020	PA66 UL94V2	Natural	5,8	16.0	9,0	20,0	M8	1000
GCRS-7045-M8-25	50M080125P025	PA66 UL94V2	Natural	5,8	16.0	9,0	25,0	M8	1000
GCRS-7045-M8-30	50M080125P030	PA66 UL94V2	Natural	5,8	16.0	9,0	30,0	M8	1000
GCRS-7045-M8-35	50M080125P035	PA66 UL94V2	Natural	5,8	16.0	9,0	35,0	M8	1000
GCRS-7045-M8-40	-	PA66 UL94V2	Natural	5,8	16.0	9,0	40,0	M8	500
GCRS-7045-M8-45	-	PA66 UL94V2	Natural	5,8	16.0	9,0	45,0	M8	500
GCRS-7045-M8-50	50M080125P050	PA66 UL94V2	Natural	5,8	16.0	9,0	50,0	M8	500
GCRS-7045-M8-8B	-	PA66 UL94V2	Black	5,8	16.0	9,0	8,0	M8	1000
GCRS-7045-M8-10B	-	PA66 UL94V2	Black	5,8	16.0	9,0	10,0	M8	1000
GCRS-7045-M8-12B	-	PA66 UL94V2	Black	5,8	16.0	9,0	12,0	M8	1000
GCRS-7045-M8-16B	-	PA66 UL94V2	Black	5,8	16.0	9,0	16,0	M8	1000
GCRS-7045-M8-20B	-	PA66 UL94V2	Black	5,8	16.0	9,0	20,0	M8	1000
GCRS-7045-M8-25B	-	PA66 UL94V2	Black	5,8	16.0	9,0	25,0	M8	1000
GCRS-7045-M8-30B	-	PA66 UL94V2	Black	5,8	16.0	9,0	30,0	M8	1000
GCRS-7045-M8-35B	-	PA66 UL94V2	Black	5,8	16.0	9,0	35,0	M8	1000
GCRS-7045-M8-40B	-	PA66 UL94V2	Black	5,8	16.0	9,0	40,0	M8	1000
GCRS-7045-M8-45B	-	PA66 UL94V2	Black	5,8	16.0	9,0	45,0	M8	500
GCRS-7045-M8-50B	-	PA66 UL94V2	Black	5,8	16.0	9,0	50,0	M8	500
GCRS-7045-M10-16	50M100150P016	PA66 UL94V2	Natural	7,5	20.0	10,1	16,0	M10	500
GCRS-7045-M10-20	50M100150P020	PA66 UL94V2	Natural	7,5	20.0	10,1	20,0	M10	500
GCRS-7045-M10-25	50M100150P025	PA66 UL94V2	Natural	7,5	20.0	10,1	25,0	M10	500
GCRS-7045-M10-30	50M100150P030	PA66 UL94V2	Natural	7,5	20.0	10,1	30,0	M10	500

Identical to Richco / Essentra series: NMS
Packaging and price unit: 1000

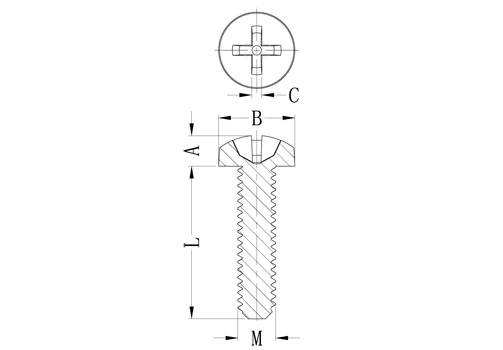

Functional dimension "A" or "L" (if available): "L" mm ≙ - M2 (A≙1.6 / B≙4.0mm) / M2.5 (A≙2.1 / B≙5.0mm) / M3 (A≙2.4 / B≙5.6mm) / M4 (A≙3.1 / B≙8.0mm) / M5 (A≙3.7 / B≙9.5mm) / M6 (A≙4.6 / B≙12.0mm) / M8 (A≙5.8 / B≙16mm) / M6 (A≙7.5 / B≙20mm)

Reference GCRS-7045 Series

GCRS-7045-L
