    GLSP 8 Series - Locking Circuit Board Support II #3 GLSP 8 Series - Locking Circuit Board Support II #2 GLSP 8 Series - Locking Circuit Board Support II

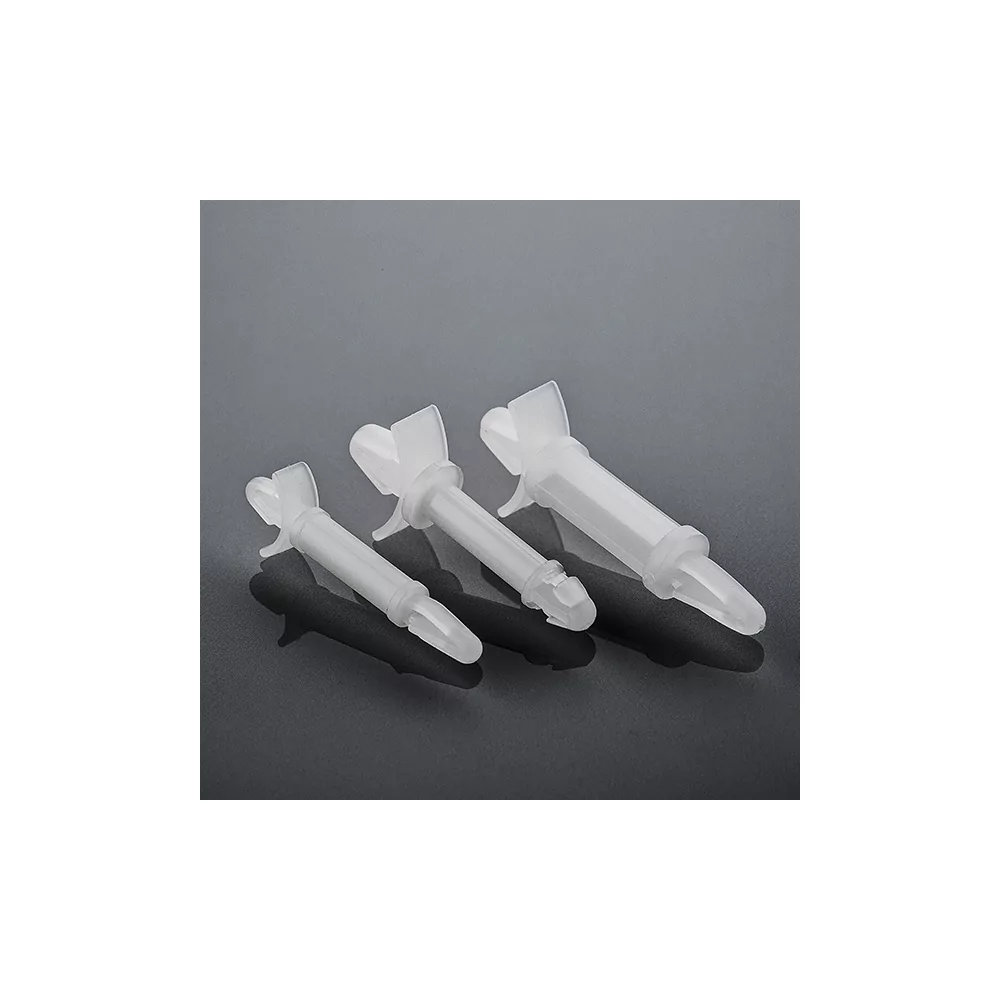

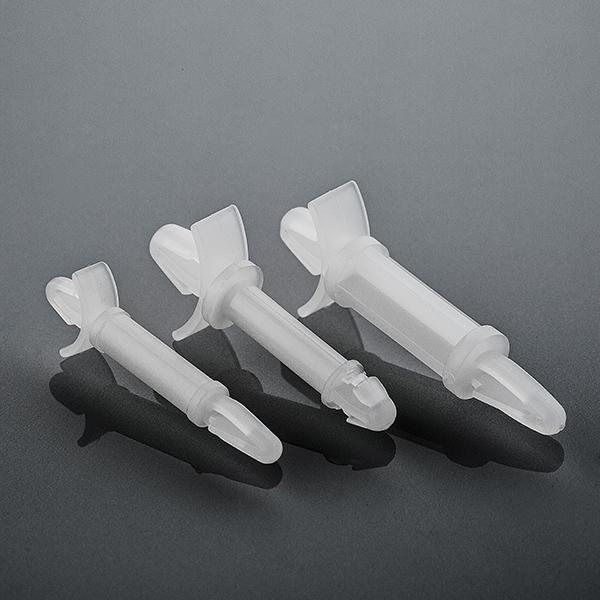

    GLSP 8 Series - Locking Circuit Board Support II

    108.50 €
    VAT excluded Änderungen und Preisirrtümer vorbehalten

    Packaging and price unit: 1000 Fastening technology for printed circuit boards / spacers

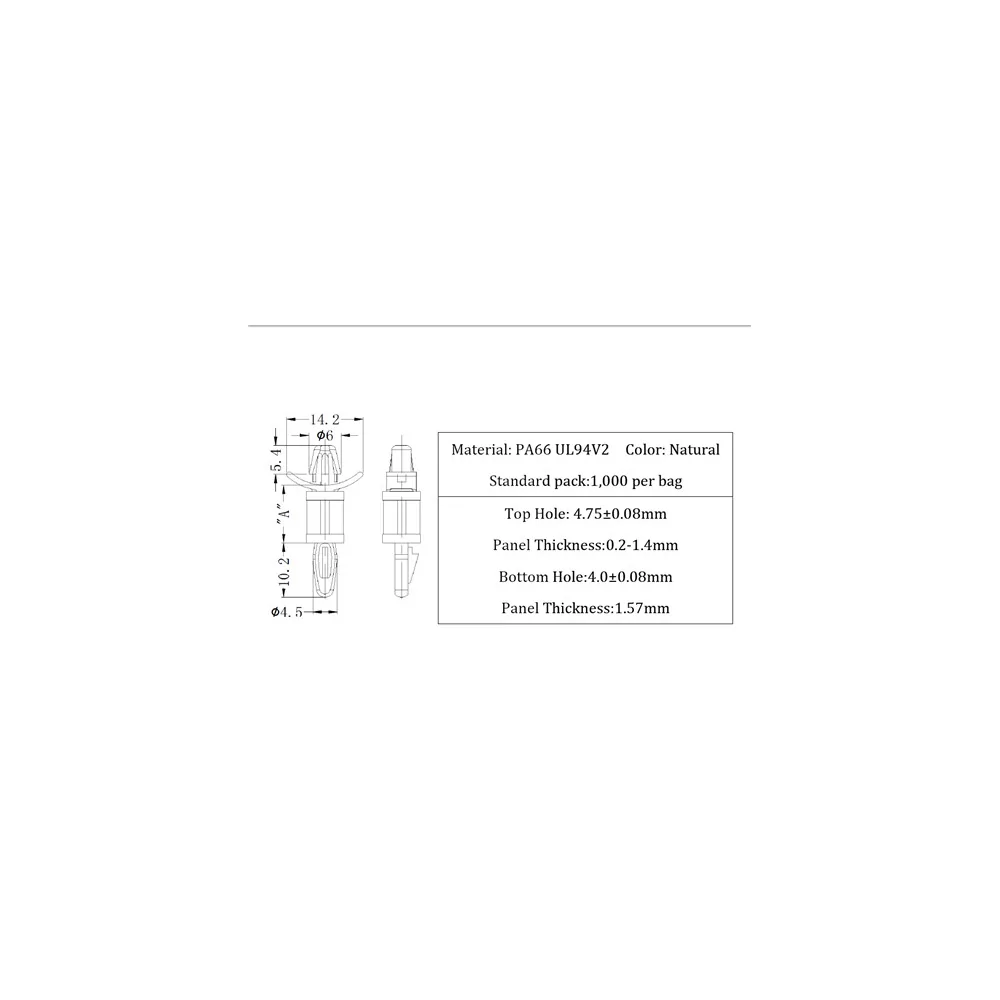

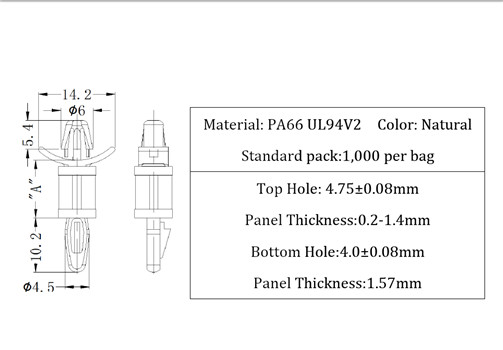

    In lengths from 4.8 - 34.9mm (others on request)
    PCB thickness ≙ 0.2 - 1.4 (top) & 1.57mm (bottom)
    Ø hole ≙ 4.75±0.08mm (top) & 4.0±0.08mm (bottom)
    Colour: Natural - Material: PA66 UL 94V2 or V0

    GLSP8 Series
    UnitsDiscountYou will savePrice/unit
    53%16.28 €105.25 €
    106%65.10 €101.99 €
    2010%217.00 €97.65 €
    3015%488.25 €92.23 €
    Note

    Please contact us for small quantities, free samples and further technical details.

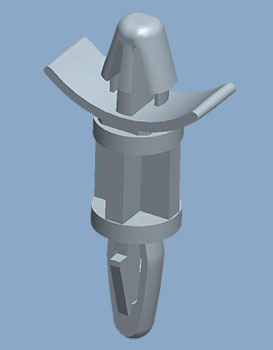

    PCB Support - Spacer - Locking Bayonet with Locking Arrowhead

    Article No.Cross-Ref.MaterialColourAFIGHole topDrill hole bottomPanel thickness topPlate thickness bottomPU
    GLSP8-3-66LCBS-8-3-01PA66 UL94V2Natural4,824.75 +/- 0.084.0 +/- 0.080.2-1.41,571000
    GLSP8-3-V0LCBS-8-3-19PA66 UL94V0Natural4,824.75 +/- 0.084.0 +/- 0.080.2-1.41,571000
    GLSP8-4-66LCBS-8-4-01PA66 UL94V2Natural6,424.75 +/- 0.084.0 +/- 0.080.2-1.41,571000
    GLSP8-4-V0LCBS-8-4-19PA66 UL94V0Natural6,424.75 +/- 0.084.0 +/- 0.080.2-1.41,571000
    GLSP8-5-66LCBS-8-5-01PA66 UL94V2Natural7,924.75 +/- 0.084.0 +/- 0.080.2-1.41,571000
    GLSP8-5-V0LCBS-8-5-19PA66 UL94V0Natural7,924.75 +/- 0.084.0 +/- 0.080.2-1.41,571000
    GLSP8-6-66LCBS-8-6-01PA66 UL94V2Natural9,524.75 +/- 0.084.0 +/- 0.080.2-1.41,571000
    GLSP8-6-V0LCBS-8-6-19PA66 UL94V0Natural9,524.75 +/- 0.084.0 +/- 0.080.2-1.41,571000
    GLSP8-7-66LCBS-8-7-01PA66 UL94V2Natural11,124.75 +/- 0.084.0 +/- 0.080.2-1.41,571000
    GLSP8-7-V0LCBS-8-7-19PA66 UL94V0Natural11,124.75 +/- 0.084.0 +/- 0.080.2-1.41,571000
    GLSP8-8-66LCBS-8-8-01PA66 UL94V2Natural12,724.75 +/- 0.084.0 +/- 0.080.2-1.41,571000
    GLSP8-8-V0LCBS-8-8-19PA66 UL94V0Natural12,724.75 +/- 0.084.0 +/- 0.080.2-1.41,571000
    GLSP8-10-66LCBS-8-10-01PA66 UL94V2Natural15,924.75 +/- 0.084.0 +/- 0.080.2-1.41,571000
    GLSP8-10-V0LCBS-8-10-19PA66 UL94V0Natural15,924.75 +/- 0.084.0 +/- 0.080.2-1.41,571000
    GLSP8-12-66LCBS-8-12-01PA66 UL94V2Natural19,124.75 +/- 0.084.0 +/- 0.080.2-1.41,571000
    GLSP8-12-V0LCBS-8-12-19PA66 UL94V0Natural19,124.75 +/- 0.084.0 +/- 0.080.2-1.41,571000
    GLSP8-14-66LCBS-8-14-01PA66 UL94V2Natural22,224.75 +/- 0.084.0 +/- 0.080.2-1.41,571000
    GLSP8-14-V0LCBS-8-14-19PA66 UL94V0Natural22,224.75 +/- 0.084.0 +/- 0.080.2-1.41,571000
    GLSP8-16-66LCBS-8-16-01PA66 UL94V2Natural25,424.75 +/- 0.084.0 +/- 0.080.2-1.41,571000
    GLSP8-16-V0LCBS-8-16-19PA66 UL94V0Natural25,424.75 +/- 0.084.0 +/- 0.080.2-1.41,571000
    GLSP8-18-66LCBS-8-18-01PA66 UL94V2Natural28,624.75 +/- 0.084.0 +/- 0.080.2-1.41,571000
    GLSP8-18-V0LCBS-8-18-19PA66 UL94V0Natural28,624.75 +/- 0.084.0 +/- 0.080.2-1.41,571000
    GLSP8-20-66LCBS-8-20-01PA66 UL94V2Natural31,724.75 +/- 0.084.0 +/- 0.080.2-1.41,571000
    GLSP8-20-V0LCBS-8-20-19PA66 UL94V0Natural31,724.75 +/- 0.084.0 +/- 0.080.2-1.41,571000
    GLSP8-22-66LCBS-8-22-01PA66 UL94V2Natural34,924.75 +/- 0.084.0 +/- 0.080.2-1.41,571000
    GLSP8-22-V0LCBS-8-22-19PA66 UL94V0Natural34,924.75 +/- 0.084.0 +/- 0.080.2-1.41,571000
    Identical to Richco / Essentra series
    LCBS-8-x
    Packaging and price unit
    1000
    Functional dimension "A" or "L" (if available)
    3 ≙ 4,8mm; 4 ≙ 6,4mm; 5 ≙ 7,9mm; 6 ≙ 9,5mm; 7 ≙ 11,1mm; 8 ≙ 12,7mm; 9 ≙ 14,3mm; 10 ≙ 15,9mm; 12 ≙ 19,1mm; 14 ≙ 22,2mm; 16 ≙ 25,4mm; 18 ≙ 28,6mm; 20 ≙ 31,7mm; 22 ≙ 34,9mm
    Cross-reference
    LCBS-8-3-01 LCBS-8-4-01 LCBS-8-5-01 LCBS-8-6-01 LCBS-8-7-01 LCBS-8-8-01 LCBS-8-6-01 LCBS-8-8-01 LCBS-8-10-01 LCBS-8-12-01 LCBS-8-14-01 LCBS-8-16-01 LCBS-8-10-01 LCBS-8-12-01 LCBS-8-14-01 LCBS-8-16-01 LCBS-8-18-01 LCBS-8-20-01 LCBS-8-22-01
