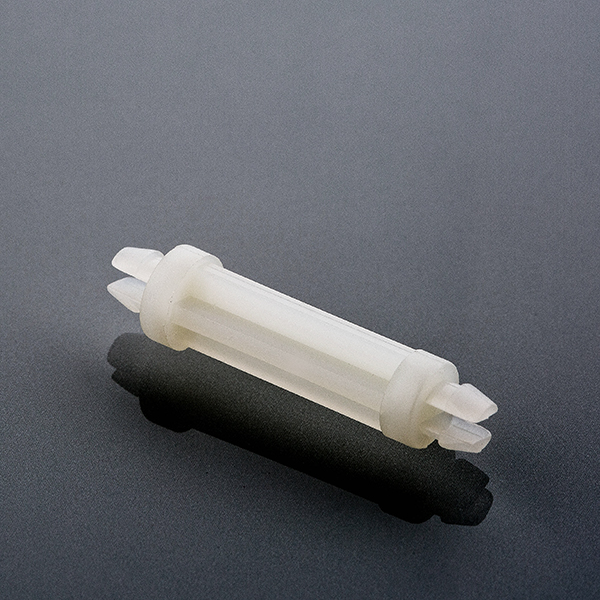

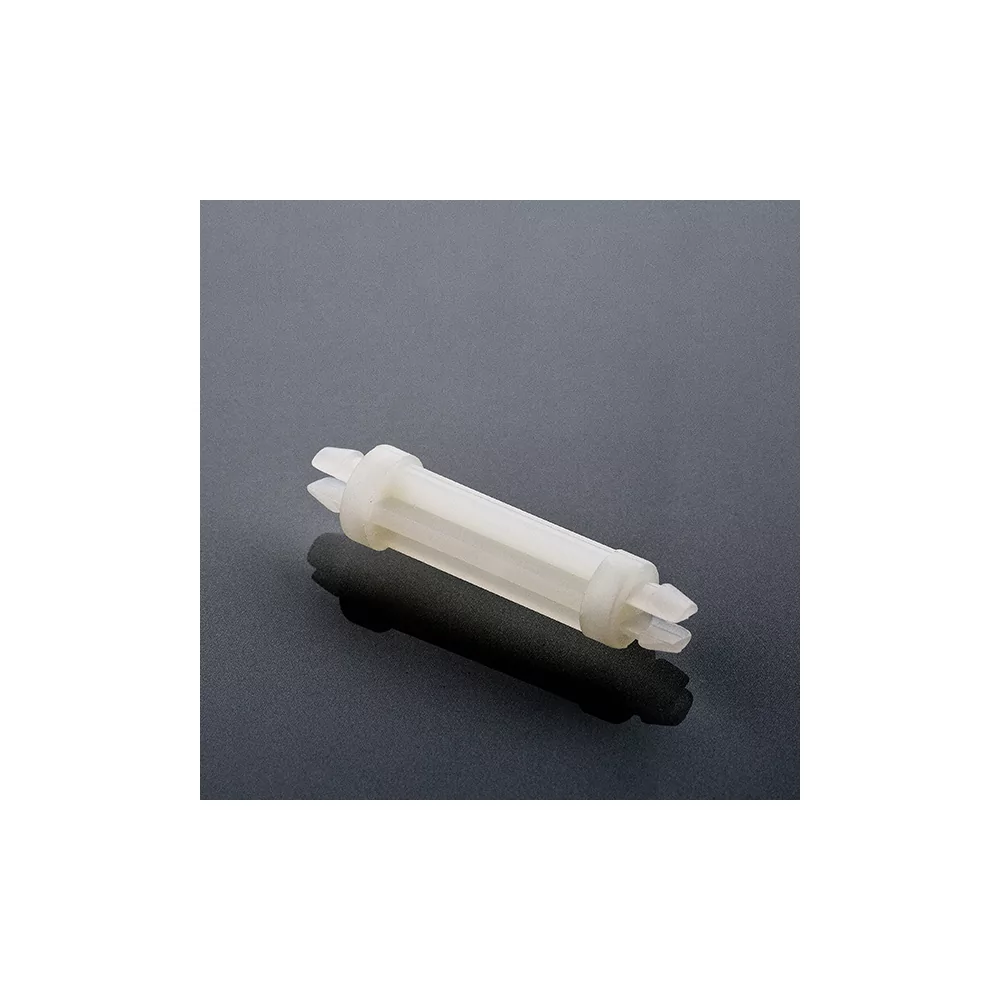

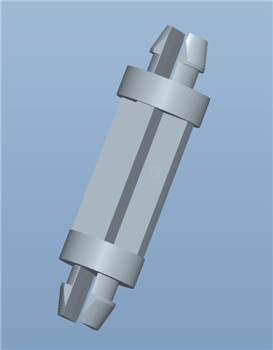

GSP 3 Series - Snap-lock bracket with two-point lock
120.90 €
VAT excluded Änderungen und Preisirrtümer vorbehalten
Packaging and price unit: 1000
Miniature spacer
Available in lengths from: 4.8 - 25.4mm
PCB thickness: 1.57mm

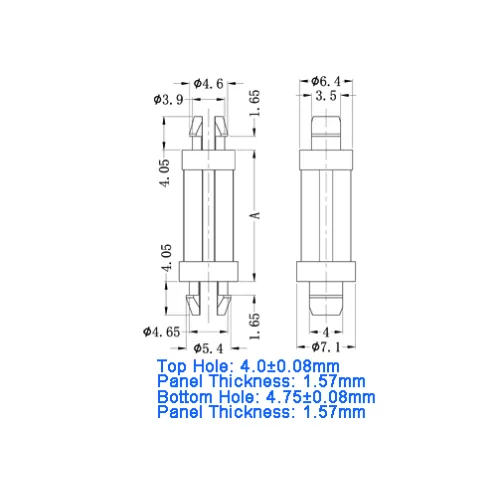

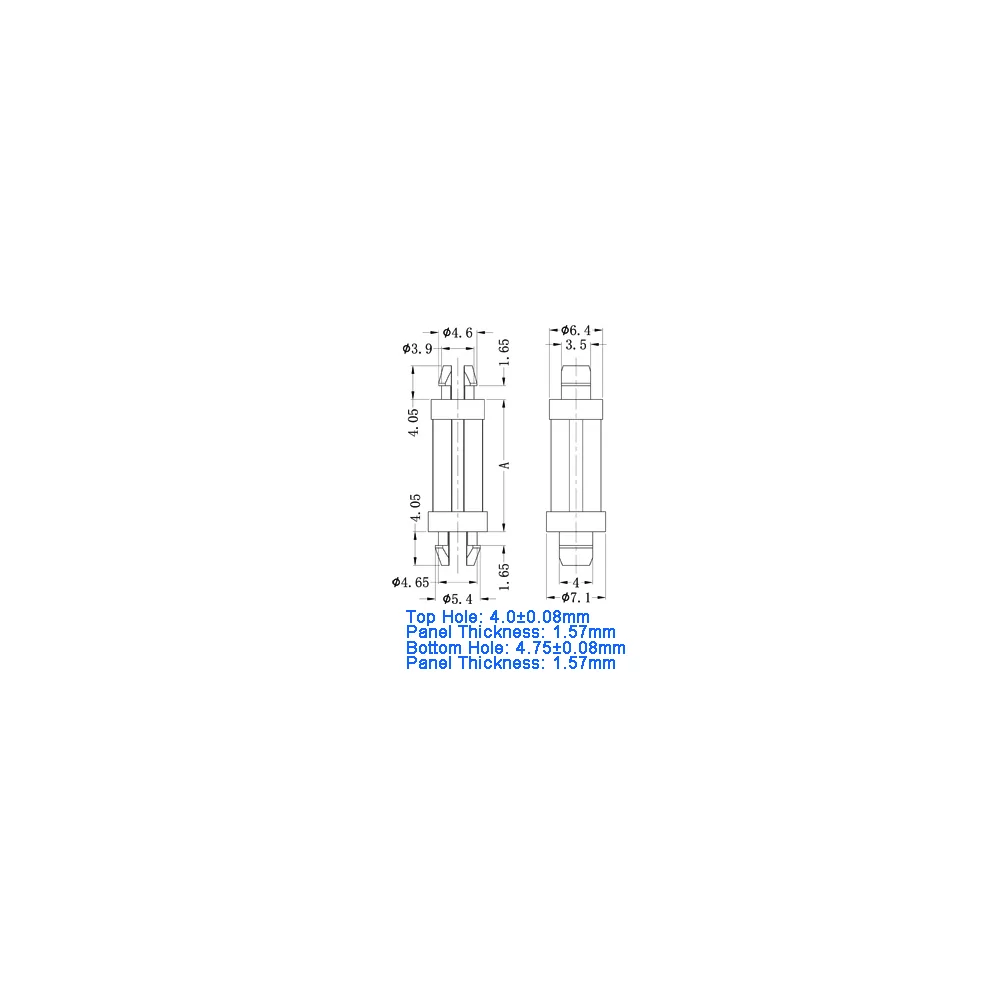

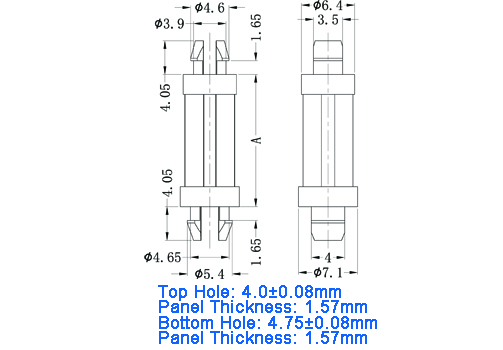

Ø hole ≙ 4.0 ± 0.08 mm (top) & 4.75 ± 0.08 mm (bottom)
PCB Support - Spacer - with Locking Two Prong
| Article No. | Cross-Ref. | Material | Colour | A | FIG | Hole top | Drill hole bottom | Panel thickness top | Plate thickness bottom | PU |
| GSP3-3-66 | SP3-3-01 | PA66 UL94V2 | Natural | 4,8 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-3-V0 | SP3-3-19 | PA66 UL94V0 | Natural | 4,8 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-3-66B | SP3-3-01BK | PA66 UL94V2 | Black | 4,8 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-3-BV0 | SP3-3-19BK | PA66 UL94V0 | Black | 4,8 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-4-66 | SP3-4-01 | PA66 UL94V2 | Natural | 6,4 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-4-V0 | SP3-4-19 | PA66 UL94V0 | Natural | 6,4 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-4-66B | SP3-4-01BK | PA66 UL94V2 | Black | 6,4 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-4-BV0 | SP3-4-19BK | PA66 UL94V0 | Black | 6,4 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-5-66 | SP3-5-01 | PA66 UL94V2 | Natural | 7,9 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-5-V0 | SP3-5-19 | PA66 UL94V0 | Natural | 7,9 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-5-66B | SP3-5-01BK | PA66 UL94V2 | Black | 7,9 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-5-BV0 | SP3-5-19BK | PA66 UL94V0 | Black | 7,9 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-6-66 | SP3-6-01 | PA66 UL94V2 | Natural | 9,5 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-6-V0 | SP3-6-19 | PA66 UL94V0 | Natural | 9,5 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-6-66B | SP3-6-01BK | PA66 UL94V2 | Black | 9,5 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-6-BV0 | SP3-6-19BK | PA66 UL94V0 | Black | 9,5 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-7-66 | SP3-7-01 | PA66 UL94V2 | Natural | 11,1 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-7-V0 | SP3-7-19 | PA66 UL94V0 | Natural | 11,1 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-7-66B | SP3-7-01BK | PA66 UL94V2 | Black | 11,1 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-7-BV0 | SP3-7-19BK | PA66 UL94V0 | Black | 11,1 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-8-66 | SP3-8-01 | PA66 UL94V2 | Natural | 12,7 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-8-V0 | SP3-8-19 | PA66 UL94V0 | Natural | 12,7 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-8-66B | SP3-8-01BK | PA66 UL94V2 | Black | 12,7 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-8-BV0 | SP3-8-19BK | PA66 UL94V0 | Black | 12,7 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-9-66 | SP3-9-01 | PA66 UL94V2 | Natural | 14,3 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-9-V0 | SP3-9-19 | PA66 UL94V0 | Natural | 14,3 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-9-66B | SP3-9-01BK | PA66 UL94V2 | Black | 14,3 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-9-BV0 | SP3-9-19BK | PA66 UL94V0 | Black | 14,3 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-10-66 | SP3-10-01 | PA66 UL94V2 | Natural | 15,9 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-10-V0 | SP3-10-19 | PA66 UL94V0 | Natural | 15,9 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-10-66B | SP3-10-01BK | PA66 UL94V2 | Black | 15,9 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-10-BV0 | SP3-10-19BK | PA66 UL94V0 | Black | 15,9 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-12-66 | SP3-12-01 | PA66 UL94V2 | Natural | 19,1 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-12-V0 | SP3-12-19 | PA66 UL94V0 | Natural | 19,1 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-12-66B | SP3-12-01BK | PA66 UL94V2 | Black | 19,1 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-12-BV0 | SP3-12-19BK | PA66 UL94V0 | Black | 19,1 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-14-66 | SP3-14-01 | PA66 UL94V2 | Natural | 22,2 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-14-V0 | SP3-14-19 | PA66 UL94V0 | Natural | 22,2 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-14-66B | SP3-14-01BK | PA66 UL94V2 | Black | 22,2 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-14-BV0 | SP3-14-19BK | PA66 UL94V0 | Black | 22,2 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-16-66 | SP3-16-01 | PA66 UL94V2 | Natural | 25,4 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-16-66B | SP3-16-01BK | PA66 UL94V2 | Black | 25,4 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-16-V0 | SP3-16-19 | PA66 UL94V0 | Natural | 25,4 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
| GSP3-16-BV0 | SP3-16-19BK | PA66 UL94V0 | Black | 25,4 | 3 | 4.0 +/- 0.08 | 4.75 +/- 0.08 | 1,57 | 1,57 | 1000 |
- Identical to Richco / Essentra series
- SP3
- Packaging and price unit
- 1000
- Functional dimension "A" or "L" (if available)
- 3 ≙ 4,8mm; 4 ≙ 6,4mm; 5 ≙ 7,9mm; 6 ≙ 9,5mm; 7 ≙ 11,1mm; 8 ≙ 12,7mm; 9 ≙ 14,3mm; 10 ≙ 15,9mm; 12 ≙ 19,1mm; 14 ≙ 22,2mm; 16 ≙ 25,4mm
