    GRT 40x Series - Mounting Buttons Removable #3 GRT 40x Series - Mounting Buttons Removable #2 GRT 40x Series - Mounting Buttons Removable

    GRT 40x Series - Mounting Buttons Removable

    207.70 €
    VAT excluded Änderungen und Preisirrtümer vorbehalten

    Packaging and price unit: 1000

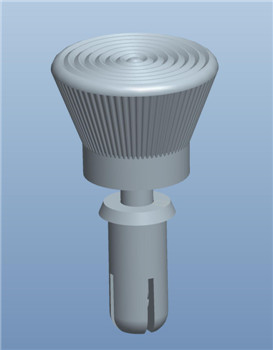

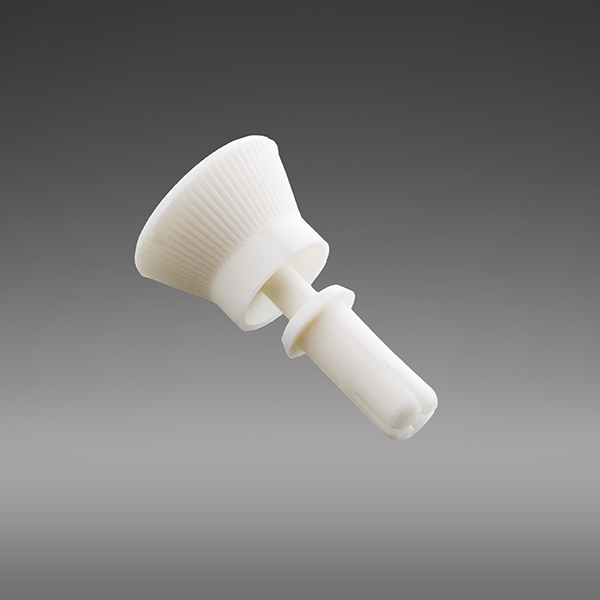

    Detachable expanding fastener with handle

    Colour: black (B) or white (W) / Material: PA6 UL94V2
    PCB thickness: 2.5-8.5mm (different variants)
    Ø hole ≙ 4.1-4.2mm

    GRT40x Series
    UnitsDiscountYou will savePrice/unit
    53%31.16 €201.47 €
    106%124.62 €195.24 €
    2010%415.40 €186.93 €
    3015%934.65 €176.55 €
    Note

    Please contact us for small quantities, free samples and further technical details.



    Snap Push-In Rivet, Releasable, Knob, PA6 UL94V2

    Article no.Cross-ref.MaterialColourABCDEFGFIGPU
    GRT4050BSRT-4050BPA6 UL94V2Black12.08.05.04.07,62.5-3.54.1-4.221000
    GRT4050WSRT-4050WPA6 UL94V2White12.08.05.04.07,62.5-3.54.1-4.221000
    GRT4060BSRT-4060BPA6 UL94V2Black12.08.06.04.07,63.5-4.54.1-4.221000
    GRT4060WSRT-4060WPA6 UL94V2White12.08.06.04.07,63.5-4.54.1-4.221000
    GRT4070BSRT-4070BPA6 UL94V2Black12.08.07.04.011,24.5-5.54.1-4.221000
    GRT4070WSRT-4070WPA6 UL94V2White12.08.07.04.011,24.5-5.54.1-4.221000
    GRT4080BSRT-4080BPA6 UL94V2Black12.08.08.04.011,25.5-6.54.1-4.221000
    GRT4080WSRT-4080WPA6 UL94V2White12.08.08.04.011,25.5-6.54.1-4.221000
    GRT4090BSRT-4090BPA6 UL94V2Black12.08.09.04.011,26.5-7.54.1-4.221000
    GRT4090WSRT-4090WPA6 UL94V2White12.08.09.04.011,26.5-7.54.1-4.221000
    GRT4100BSRT-4100BPA6 UL94V2Black12.08.010.04.011,27.5-8.54.1-4.221000
    GRT4100WSRT-4100WPA6 UL94V2White12.08.010.04.011,27.5-8.54.1-4.221000
    GRT4365B-PA6 UL94V2Black12.08.06.54.38,54.0-4.94.4-4-921000
    GRT4365W-PA6 UL94V2White12.08.06.54.38,54.0-4.94.4-4-921000
    Identical to Richco / Essentra series
    SRT
    Packaging and price unit
    1000

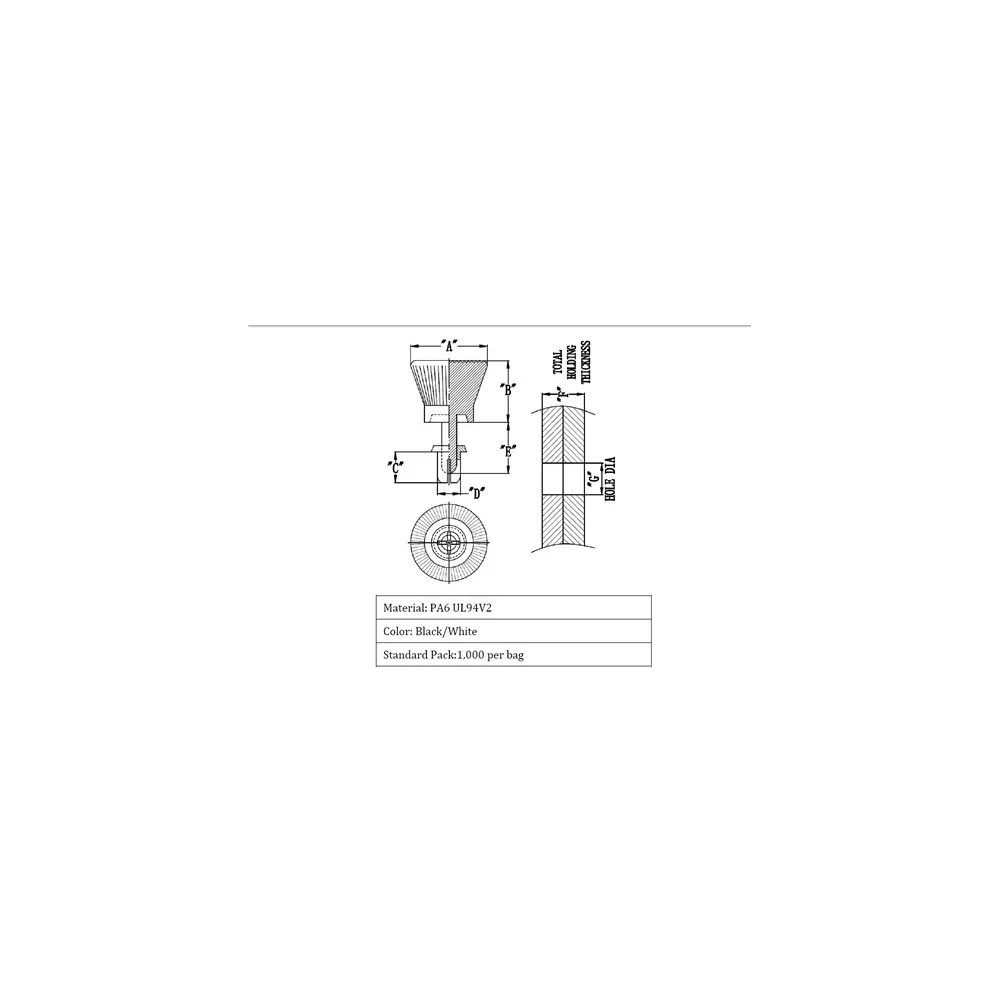

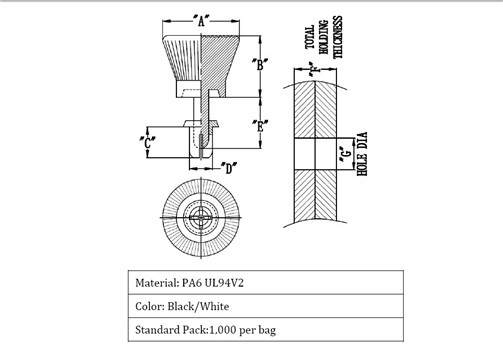

    Functional dimension "A" or "L" (if available)
    "A": GRT4050 bis GRT4100B (Fig. 2) ≙ 12.0mm
    GRT4050B
