    Blind Hole Circuit Board Support Blind Hole Circuit Board Support

    GBHDF Series - Blind Hole Circuit Board Support

    92.30 €
    VAT excluded Änderungen und Preisirrtümer vorbehalten

    Packaging and price unit: 1000

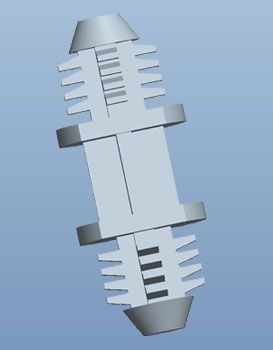

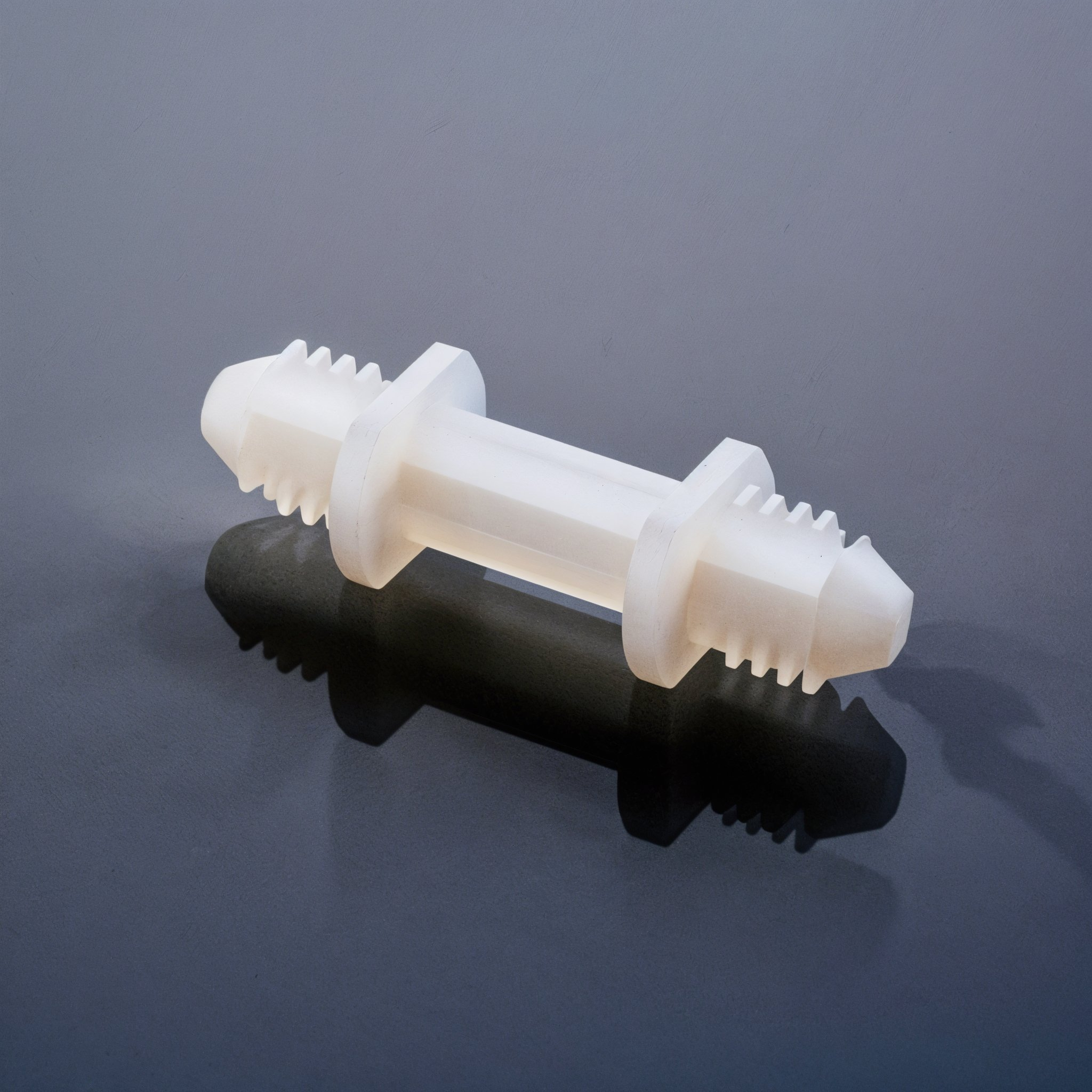

    Spacer for double blind hole mounting

    In lengths from 8.0 - 20.0mm
    PCB thickness: 6.35mm ± 0.08mm
    Ø hole ≙ 7.92mm ± 0.08mm

    GBHDF Series
    UnitsDiscountYou will savePrice/unit
    53%13.85 €89.53 €
    106%55.38 €86.76 €
    2010%184.60 €83.07 €
    3015%415.35 €78.46 €
    Note

    Please contact us for small quantities, free samples and further technical details.



    PCB Support, Spacer, Fir Tree Mount

    Article no.Cross-ref.MaterialColourADrill holePlate thicknessPU
    GBHDF-3M-66BHDF-3M-01PA66 UL94V2Natural3.07.92 +/- 0.086.35 +/- 0.08 (min)1000
    GBHDF-3M-V0BHDF-3M-19PA66 UL94V0Natural3.07.92 +/- 0.086.35 +/- 0.08 (min)1000
    GBHDF-4M-66BHDF-4M-01PA66 UL94V2Natural4.07.92 +/- 0.086.35 +/- 0.08 (min)1000
    GBHDF-4M-V0BHDF-4M-19PA66 UL94V0Natural4.07.92 +/- 0.086.35 +/- 0.08 (min)1000
    GBHDF-6M-66BHDF-6M-01PA66 UL94V2Natural6.07.92 +/- 0.086.35 +/- 0.08 (min)1000
    GBHDF-6M-V0BHDF-6M-19PA66 UL94V0Natural6.07.92 +/- 0.086.35 +/- 0.08 (min)1000
    GBHDF-8M-66BHDF-8M-01PA66 UL94V2Natural8.07.92 +/- 0.086.35 +/- 0.08 (min)1000
    GBHDF-8M-V0BHDF-8M-19PA66 UL94V0Natural8.07.92 +/- 0.086.35 +/- 0.08 (min)1000
    GBHDF-10M-66BHDF-10M-01PA66 UL94V2Natural10.07.92 +/- 0.086.35 +/- 0.08 (min)1000
    GBHDF-10M-V0BHDF-10M-19PA66 UL94V0Natural10.07.92 +/- 0.086.35 +/- 0.08 (min)1000
    GBHDF-12M-66BHDF-12M-01PA66 UL94V2Natural12.07.92 +/- 0.086.35 +/- 0.08 (min)1000
    GBHDF-12M-V0BHDF-12M-19PA66 UL94V0Natural12.07.92 +/- 0.086.35 +/- 0.08 (min)1000
    GBHDF-14M-66BHDF-14M-01PA66 UL94V2Natural14.07.92 +/- 0.086.35 +/- 0.08 (min)1000
    GBHDF-14M-V0BHDF-14M-19PA66 UL94V0Natural14.07.92 +/- 0.086.35 +/- 0.08 (min)1000
    GBHDF-16M-66BHDF-16M-01PA66 UL94V2Natural16.07.92 +/- 0.086.35 +/- 0.08 (min)1000
    GBHDF-16M-V0BHDF-16M-19PA66 UL94V0Natural16.07.92 +/- 0.086.35 +/- 0.08 (min)1000
    GBHDF-18M-66BHDF-18M-01PA66 UL94V2Natural18.07.92 +/- 0.086.35 +/- 0.08 (min)1000
    GBHDF-18M-V0BHDF-18M-19PA66 UL94V0Natural18.07.92 +/- 0.086.35 +/- 0.08 (min)1000
    GBHDF-20M-66BHDF-20M-01PA66 UL94V2Natural20.07.92 +/- 0.086.35 +/- 0.08 (min)1000
    GBHDF-20M-V0BHDF-20M-19PA66 UL94V0Natural20.07.92 +/- 0.086.35 +/- 0.08 (min)1000
    Identical to Richco / Essentra series
    BHDF
    Packaging and price unit
    1000

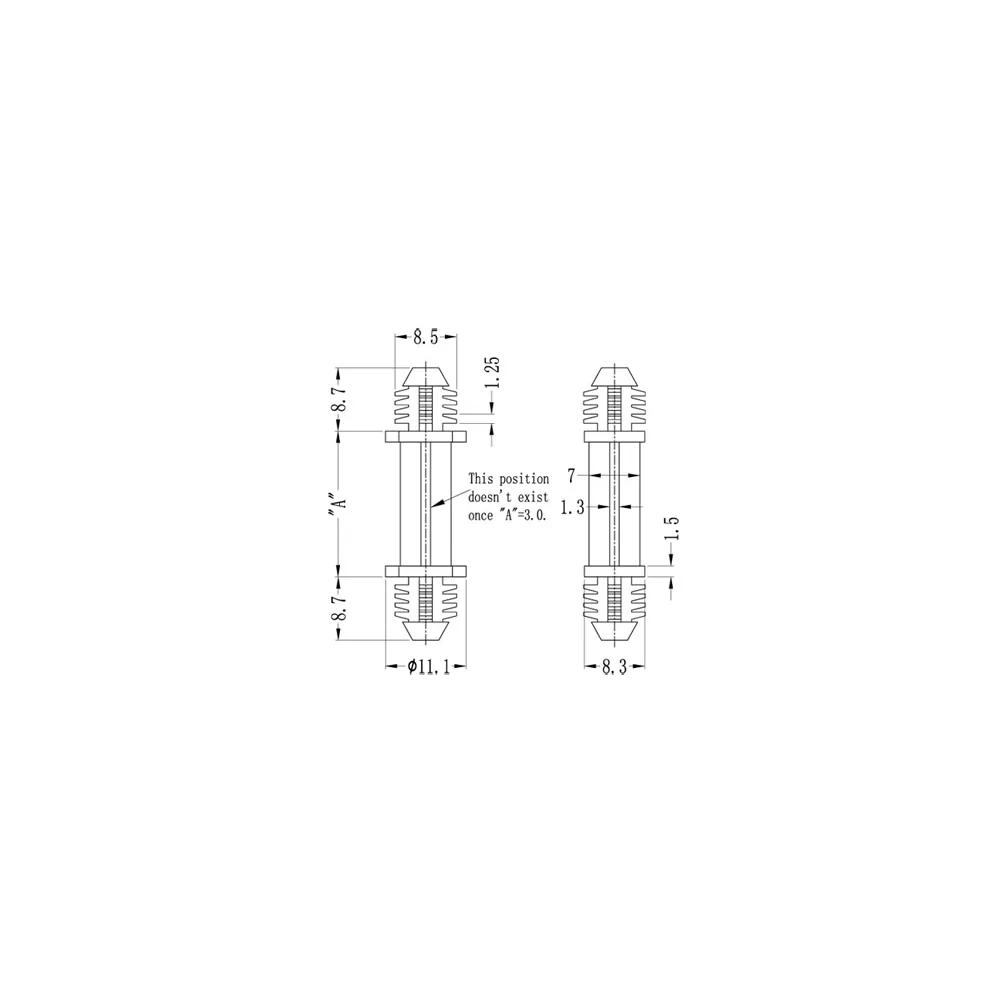

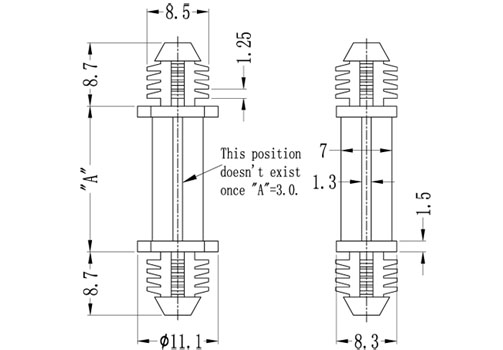

    Functional dimension "A" or "L" (if available)
    3M ≙ 3mm; 4M ≙ 4mm; 6M ≙ 6mm; 8M ≙ 8mm; 10M ≙ 10mm; 12M ≙ 12mm; 14M ≙ 14mm; 16M ≙ 16mm; 18M ≙ 18mm; 20M ≙ 20mm
    GBHDF-3M-01
