GCSOHSC-7047 | Plastic screws cross recess | Gecko Fastener GmbH

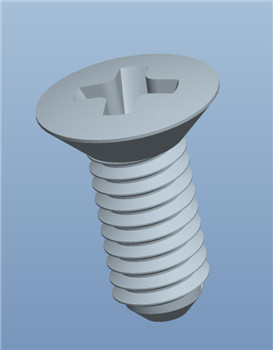

GCSOHSC-7047 Series - Countersunk head screw, domed with cross recess

38.75 €

VAT excluded Änderungen und Preisirrtümer vorbehalten

Packaging and price unit: 1000

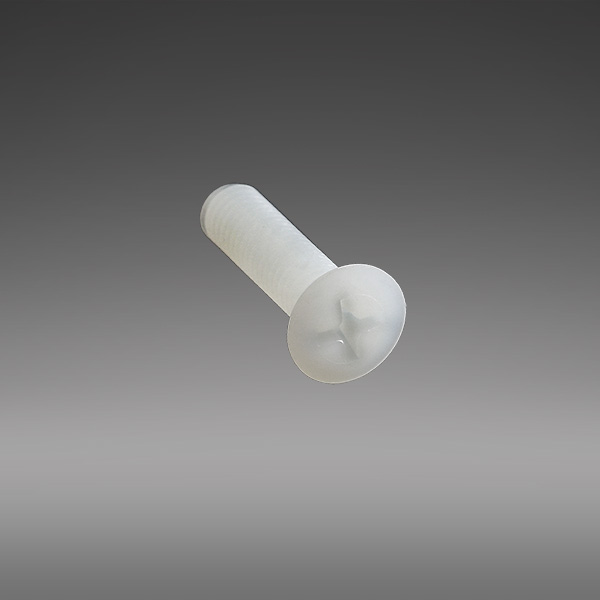

Plastic screw (cross recess)

Colour: natural
Material: PA66 UL 94 V2

GCSOHSC-7047 Series

Units	Discount	You will save	Price/unit
5	3%	5.81 €	37.59 €
10	6%	23.25 €	36.43 €
20	10%	77.50 €	34.88 €
30	15%	174.38 €	32.94 €

Add to watchlist

Note

Please contact us for small quantities, free samples and further technical details.

Countersunk Machine Screw, Raised, Crossed, M2, M2.5, M3, M4, M5, M6

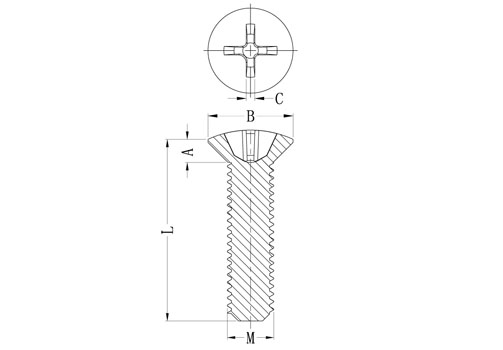

Article no.	Cross-Ref.	Material	Colour	A	B	C	L	Thread	PU
GCSOHSC-7047-M2-5	-	PA66 UL94V2	Natural	1,2	3,8	2,0	5,0	M2	1000
GCSOHSC-7047-M2-6	-	PA66 UL94V2	Natural	1,2	3,8	2,0	6,0	M2	1000
GCSOHSC-7047-M2-8	-	PA66 UL94V2	Natural	1,2	3,8	2,0	8,0	M2	1000
GCSOHSC-7047-M2-10	-	PA66 UL94V2	Natural	1,2	3,8	2,0	10,0	M2	1000
GCSOHSC-7047-M2-12	-	PA66 UL94V2	Natural	1,2	3,8	2,0	12,0	M2	1000
GCSOHSC-7047-M2-16	-	PA66 UL94V2	Natural	1,2	3,8	2,0	16,0	M2	1000
GCSOHSC-7047-M2-20	-	PA66 UL94V2	Natural	1,2	3,8	2,0	20,0	M2	1000
GCSOHSC-7047-M2-25	-	PA66 UL94V2	Natural	1,2	3,8	2,0	25,0	M2	1000
GCSOHSC-7047-M2.5-5	-	PA66 UL94V2	Natural	1,5	4,7	3,0	5,0	M2.5	1000
GCSOHSC-7047-M2.5-6	-	PA66 UL94V2	Natural	1,5	4,7	3,0	6,0	M2.5	1000
GCSOHSC-7047-M2.5-8	-	PA66 UL94V2	Natural	1,5	4,7	3,0	8,0	M2.5	1000
GCSOHSC-7047-M2.5-10	-	PA66 UL94V2	Natural	1,5	4,7	3,0	10,0	M2.5	1000
GCSOHSC-7047-M2.5-12	-	PA66 UL94V2	Natural	1,5	4,7	3,0	12,0	M2.5	1000
GCSOHSC-7047-M2.5-16	-	PA66 UL94V2	Natural	1,5	4,7	3,0	16,0	M2.5	1000
GCSOHSC-7047-M2.5-20	-	PA66 UL94V2	Natural	1,5	4,7	3,0	20,0	M2.5	1000
GCSOHSC-7047-M2.5-25	-	PA66 UL94V2	Natural	1,5	4,7	3,0	25,0	M2.5	1000
GCSOHSC-7047-M3-5	50M030050M005	PA66 UL94V2	Natural	1,65	5,5	3,4	5,0	M3	1000
GCSOHSC-7047-M3-6	50M030050M006	PA66 UL94V2	Natural	1,65	5,5	3,4	6,0	M3	1000
GCSOHSC-7047-M3-8	50M030050M008	PA66 UL94V2	Natural	1,65	5,5	3,4	8,0	M3	1000
GCSOHSC-7047-M3-10	50M030050M010	PA66 UL94V2	Natural	1,65	5,5	3,4	10,0	M3	1000
GCSOHSC-7047-M3-12	50M030050M012	PA66 UL94V2	Natural	1,65	5,5	3,4	12,0	M3	1000
GCSOHSC-7047-M3-16	50M030050M016	PA66 UL94V2	Natural	1,65	5,5	3,4	16,0	M3	1000
GCSOHSC-7047-M3-20	50M030050M020	PA66 UL94V2	Natural	1,65	5,5	3,4	20,0	M3	1000
GCSOHSC-7047-M3-25	50M030050M025	PA66 UL94V2	Natural	1,65	5,5	3,4	25,0	M3	1000
GCSOHSC-7047-M3-30	-	PA66 UL94V2	Natural	1,65	5,5	3,4	30,0	M3	1000
GCSOHSC-7047-M3-42	-	PA66 UL94V2	Natural	1,65	5,5	3,4	42,0	M3	1000
GCSOHSC-7047-M4-6	50M040070M006	PA66 UL94V2	Natural	2,7	8,4	5,2	6,0	M4	1000
GCSOHSC-7047-M4-8	50M040070M008	PA66 UL94V2	Natural	2,7	8,4	5,2	8,0	M4	1000
GCSOHSC-7047-M4-10	50M040070M010	PA66 UL94V2	Natural	2,7	8,4	5,2	10,0	M4	1000
GCSOHSC-7047-M4-12	50M040070M012	PA66 UL94V2	Natural	2,7	8,4	5,2	12,0	M4	1000
GCSOHSC-7047-M4-15	-	PA66 UL94V2	Natural	2,7	8,4	5,2	15,0	M4	1000
GCSOHSC-7047-M4-16	50M040070M016	PA66 UL94V2	Natural	2,7	8,4	5,2	16,0	M4	1000
GCSOHSC-7047-M4-20	50M040070M020	PA66 UL94V2	Natural	2,7	8,4	5,2	20,0	M4	1000
GCSOHSC-7047-M4-25	50M040070M025	PA66 UL94V2	Natural	2,7	8,4	5,2	25,0	M4	1000
GCSOHSC-7047-M4-30	-	PA66 UL94V2	Natural	2,7	8,4	5,2	30,0	M4	1000
GCSOHSC-7047-M4-35	-	PA66 UL94V2	Natural	2,7	8,4	5,2	35,0	M4	1000
GCSOHSC-7047-M5-6	-	PA66 UL94V2	Natural	2,7	9.0	5,4	6,0	M5	1000
GCSOHSC-7047-M5-7	-	PA66 UL94V2	Natural	2,7	9.0	5,4	7,0	M5	1000
GCSOHSC-7047-M5-8	50M050080M008	PA66 UL94V2	Natural	2,7	9.0	5,4	8,0	M5	1000
GCSOHSC-7047-M5-10	50M050080M010	PA66 UL94V2	Natural	2,7	9.0	5,4	10,0	M5	1000
GCSOHSC-7047-M5-12	50M050080M012	PA66 UL94V2	Natural	2,7	9.0	5,4	12,0	M5	1000
GCSOHSC-7047-M5-15	-	PA66 UL94V2	Natural	2,7	9.0	5,4	15,0	M5	1000
GCSOHSC-7047-M5-16	50M050080M016	PA66 UL94V2	Natural	2,7	9.0	5,4	16,0	M5	1000
GCSOHSC-7047-M5-18	-	PA66 UL94V2	Natural	2,7	9.0	5,4	18,0	M5	1000
GCSOHSC-7047-M5-20	50M050080M020	PA66 UL94V2	Natural	2,7	9.0	5,4	20,0	M5	1000
GCSOHSC-7047-M5-25	50M050080M025	PA66 UL94V2	Natural	2,7	9.0	5,4	25,0	M5	1000
GCSOHSC-7047-M5-30	50M050080M030	PA66 UL94V2	Natural	2,7	9.0	5,4	30,0	M5	1000
GCSOHSC-7047-M5-35	-	PA66 UL94V2	Natural	2,7	9.0	5,4	35,0	M5	1000
GCSOHSC-7047-M5-40	50M050080M040	PA66 UL94V2	Natural	2,7	9.0	5,4	40,0	M5	1000
GCSOHSC-7047-M6-8	50M060100M008	PA66 UL94V2	Natural	3,3	11.0	7,3	8,0	M6	1000
GCSOHSC-7047-M6-10	50M060100M010	PA66 UL94V2	Natural	3,3	11.0	7,3	10,0	M6	1000
GCSOHSC-7047-M6-12	50M060100M012	PA66 UL94V2	Natural	3,3	11.0	7,3	12,0	M6	1000
GCSOHSC-7047-M6-15	-	PA66 UL94V2	Natural	3,3	11.0	7,3	15,0	M6	1000
GCSOHSC-7047-M6-16	50M060100M016	PA66 UL94V2	Natural	3,3	11.0	7,3	16,0	M6	1000
GCSOHSC-7047-M6-20	50M060100M020	PA66 UL94V2	Natural	3,3	11.0	7,3	20,0	M6	1000
GCSOHSC-7047-M6-22	-	PA66 UL94V2	Natural	3,3	11.0	7,3	22,0	M6	1000
GCSOHSC-7047-M6-25	50M060100M025	PA66 UL94V2	Natural	3,3	11.0	7,3	25,0	M6	1000
GCSOHSC-7047-M6-30	-	PA66 UL94V2	Natural	3,3	11.0	7,3	30,0	M6	1000
GCSOHSC-7047-M6-40	-	PA66 UL94V2	Natural	3,3	11.0	7,3	40,0	M6	1000
GCSOHSC-7047-M6-50	-	PA66 UL94V2	Natural	3,3	11.0	7,3	50,0	M6	1000
GCSOHSC-7047-M6-60	-	PA66 UL94V2	Natural	3,3	11.0	7,3	60,0	M6	1000

Identical to Richco / Essentra series: -
Packaging and price unit: 1000
Functional dimension "A" or "L" (if available): "L" ≙mm - M3 (A≙1.65 / B≙5.5mm) / M4 (A≙2.8 / B≙7.6mm) / M5 (A≙3.5 / B≙9.0mm) / M6 (A≙4.2 / B≙11.0mm)

Reference GCSOHSC-7047 Series

GCSOHSC-7047-L

Download (258.19KB)
