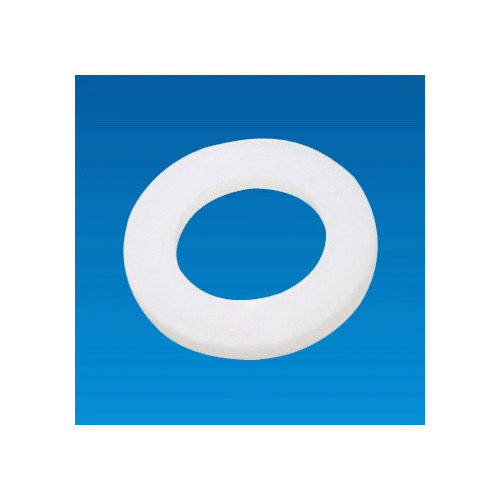

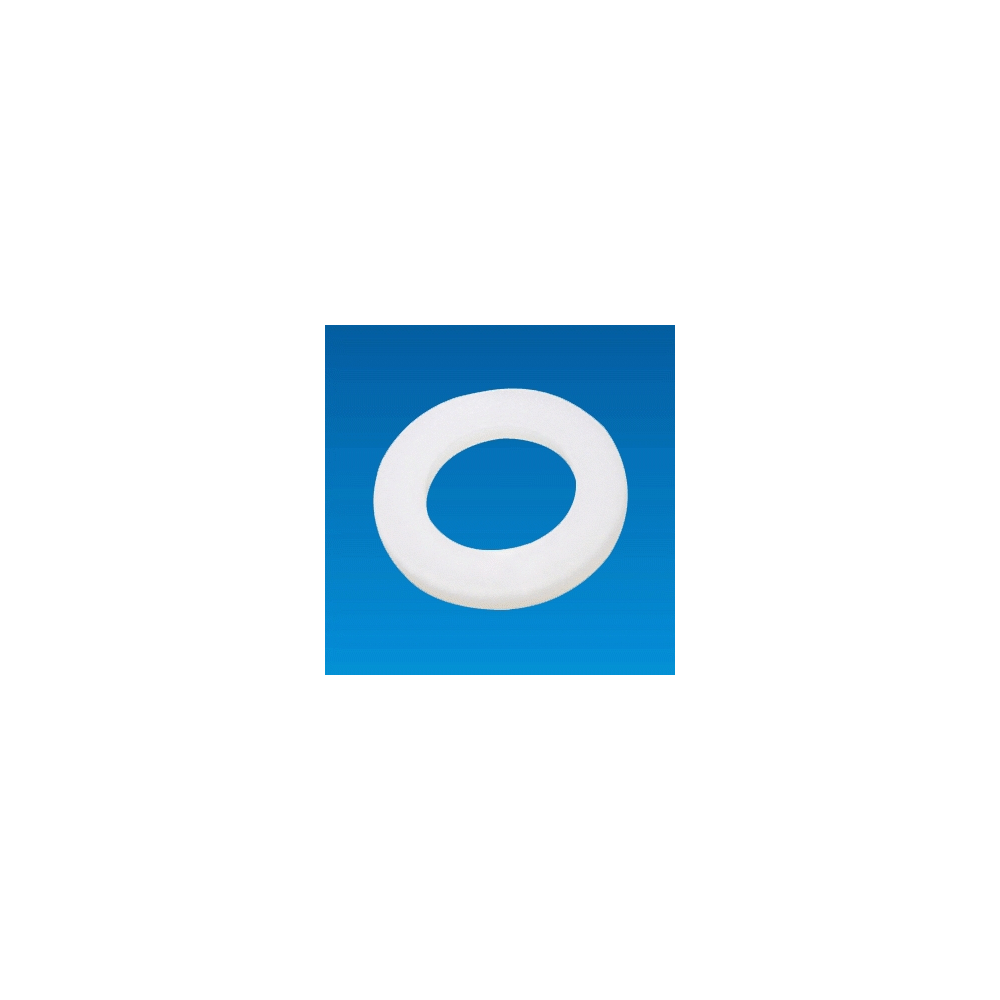

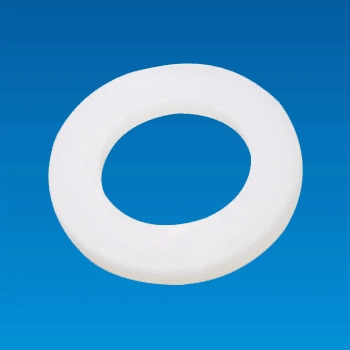

GWS-1BD - Unterlegscheibe

Name: GWS-1BD - Unterlegscheibe
Brand: Gecko Fastener GmbH
SKU: GWS-1BD
Availability: InStock

Marke: Gecko Fastener GmbH Preis auf Anfrage

Material: NYLON 66 (UL)
Brandschutzklasse: 94V-2
Farbe: NATUR

Zur Anfrage hinzufügen

Hinweis

Kontaktieren Sie uns bitte für Kleinmengen, kostenlose Muster und weitere technische Daten.

Beschreibung
Artikeldetails

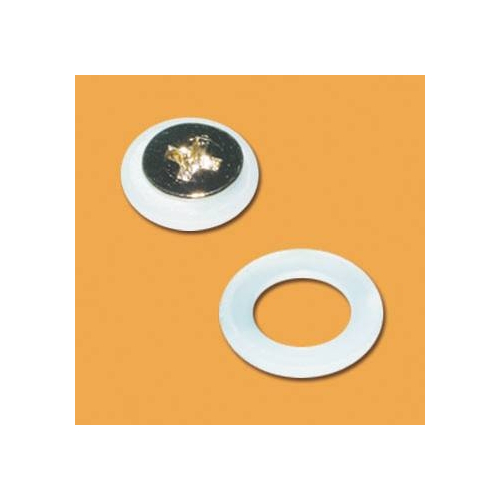

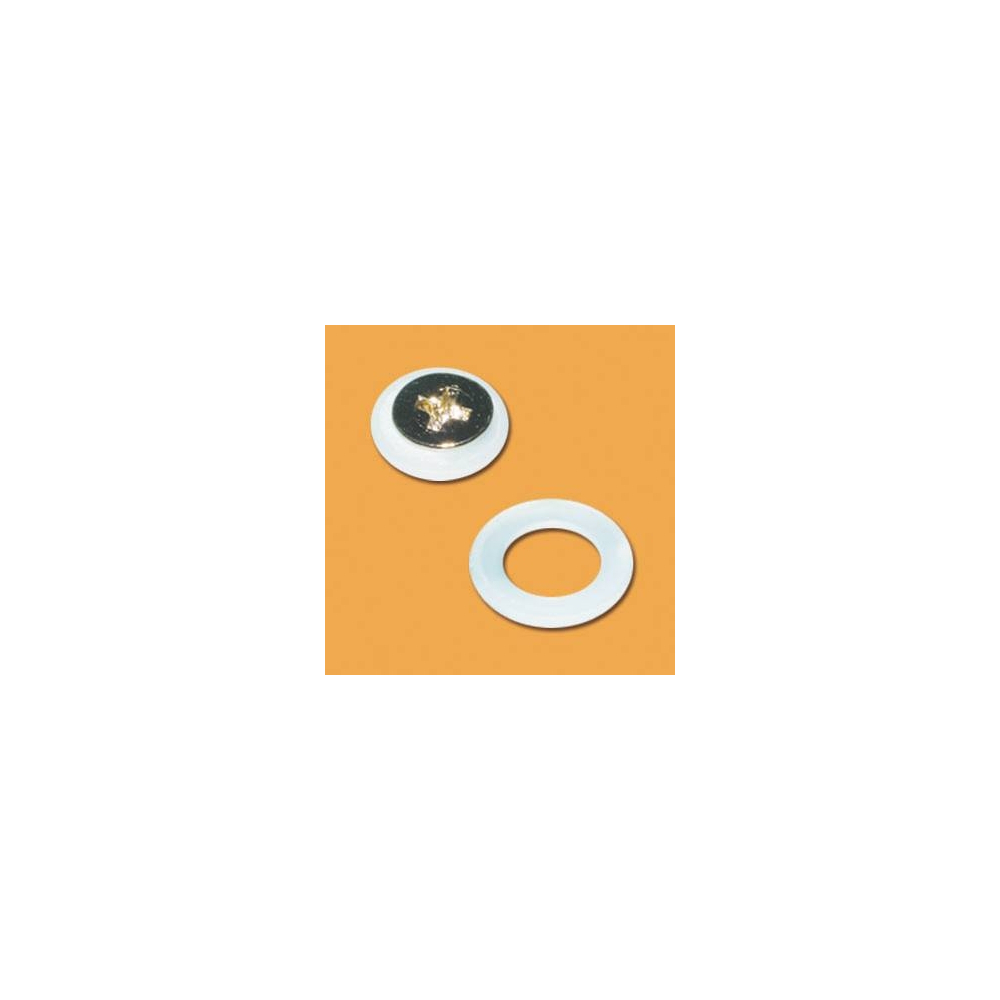

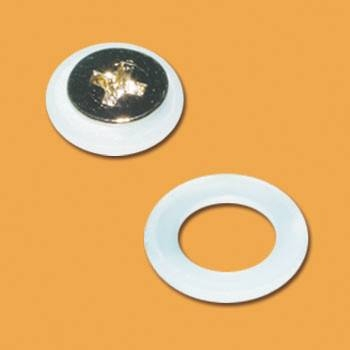

Die WS-Serie bietet in Verbindung mit Schrauben Verriegelung, Lösesicherung und stabiles Drehmoment sowie Schutz vor Beschädigung des verriegelten Produkts.

Katalog Nr.	Artikel Nr.	A	B	C	VPE
GWS-1BD	23821900	1.0	Ø3.2	Ø1.6	2000
GWS-01N	23821901	0.45	Ø3.9	Ø1.85	2000
GWS-2RK	23821902	1.0	Ø4.0	Ø2.0	2000
GWS-2HR	23821903	1.0	Ø4.1	Ø2.2	2000
GWS-0	23821904	0.4	Ø4.2	Ø2.5	2000
GWS-04C	23821905	0.5	Ø4.5	Ø2.5	2000
GWS-4KT	23821906	1.5	Ø4.9	Ø3.7	2000
GWS-1D	23821907	1.0	Ø5.0	Ø2.7	2000
GWS-1F	23821908	1.5	Ø5.0	Ø2.5	2000
GWS-2DC	23821909	1.8	Ø5.0	Ø3.1	2000
GWS-1B	23821910	0.5	Ø5.5	Ø2.5	2000
GWS-1C	23821911	0.5	Ø5.5	Ø3.0	2000
GWS-2FA	23821912	1.8	Ø5.5	Ø3.1	2000
GWS-3GK	23821913	1.0	Ø5.6	Ø3.0	2000
GWS-3A	23821914	1.4	Ø5.6	Ø2.9	2000
GWS-6NZ	23821915	0.5	Ø6.0	Ø4.3	2000
GWS-01L	23821916	0.8	Ø6.0	Ø3.1	2000
GWS-2K	23821917	1.0	Ø6.0	Ø2.7	2000
GWS-5HY	23821918	1.0	Ø6.2	Ø3.2	2000
GWS-06K	23821919	1.5	Ø6.35	Ø3.3	2000
GWS-06A	23821920	1.0	Ø6.5	Ø3.8	2000
GWS-06C	23821921	1.35	Ø6.8	Ø4.9	2000
GWS-07H	23821922	0.5	Ø7.0	Ø2.2	2000
GWS-1R	23821923	0.6	Ø7.0	Ø4.6	2000
GWS-1M	23821924	0.8	Ø7.0	Ø3.1	2000
GWS-02M	23821925	1.0	Ø7.0	Ø3.2	2000
GWS-3SB	23821926	1.0	Ø7.0	Ø3.5	2000
GWS-07F	23821927	0.65	Ø7.5	Ø4.3	2000
GWS-07C	23821928	1.55	Ø7.5	Ø5.1	2000
GWS-08F	23821929	0.9	Ø7.8	Ø4.1	2000
GWS-4	23821930	0.8	Ø7.9	Ø4.0	2000
GWS-9	23821931	0.5	Ø8.0	Ø5.1	2000
GWS-23	23821932	0.6	Ø8.0	Ø1.6	2000
GWS-1S	23821933	0.7	Ø8.0	Ø3.0	2000
GWS-8RM	23821934	0.8	Ø8.0	Ø3.2	2000
GWS-6FP	23821935	0.8	Ø8.0	Ø5.8	2000
GWS-1	23821936	1.0	Ø8.0	Ø3.2	2000
GWS-57	23821937	1.6	Ø8.0	Ø3.0	2000
GWS-9A	23821938	2.0	Ø8.0	Ø5.1	2000
GWS-2	23821939	1.7	Ø8.1	Ø3.2	2000
GWS-8MK	23821940	1.0	Ø8.2	Ø5.65	2000
GWS-24	23821941	0.8	Ø9.0	Ø4.0	2000
GWS-9RC	23821942	0.75	Ø9.0	Ø5.85	2000
GWS-9DK	23821943	0.75	Ø9.0	Ø6.25	2000
GWS-9KR	23821944	0.8	Ø9.0	Ø4.4	2000
GWS-4PS	23821945	1.0	Ø9.0	Ø4.5	2000
GWS-06M	23821946	1.5	Ø9.0	Ø5.5	2000
GWS-22	23821947	1.8	Ø9.0	Ø4.2	2000
GWS-5KL	23821948	1.0	Ø9.5	Ø5.0	2000
GWS-7DM	23821949	3.7	Ø9.6	Ø4.2	2000
GWS-5	23821950	3.0	Ø9.9	Ø4.0	2000
GWS-06D	23821951	0.8	Ø10.0	Ø6.7	2000
GWS-10C	23821952	1.0	Ø10.0	Ø3.1	2000
GWS-6	23821953	1.1	Ø10.0	Ø5.5	2000
GWS-3	23821954	1.2	Ø10.0	Ø4.2	2000
GWS-10F	23821955	2.65	Ø10.0	Ø6.6	2000
GWS-10AC	23821956	3.0	Ø10.0	Ø6.6	2000
GWS-7	23821957	3.5	Ø10.0	Ø6.0	2000
GWS-10	23821958	4.0	Ø10.0	Ø3.6	1000
GWS-10AH	23821959	0.4	Ø10.2	Ø6.5	2000
GWS-11F	23821960	1.0	Ø11.0	Ø4.1	2000
GWS-11MC	23821961	1.5	Ø11.1	Ø5.2	2000
GWS-11KY	23821962	2.0	Ø11.5	Ø4.5	2000
GWS-8	23821963	0.5	Ø12.0	Ø8.2	2000
GWS-12S	23821964	1.0	Ø12.0	Ø3.1	2000
GWS-12FG	23821965	1.0	Ø12.0	Ø7.4	2000
GWS-12A	23821966	1.5	Ø12.0	Ø4.5	2000
GWS-12	23821967	1.2	Ø12.1	Ø6.4	2000
GWS-13	23821968	3.8	Ø12.6	Ø6.4	1000
GWS-13A	23821969	4.2	Ø13.0	Ø3.6	1000
GWS-13C	23821970	1.0	Ø13.0	Ø10.0	2000
GWS-14	23821971	1.0	Ø14.0	Ø6.5	2000
GWS-14F	23821972	1.0	Ø14.0	Ø10.4	2000
GWS-56	23821973	1.6	Ø14.1	Ø8.2	2000
GWS-15	23821974	4.8	Ø14.7	Ø12.6	1000
GWS-16D	23821975	0.8	Ø16.0	Ø9.7	2000
GWS-16A	23821976	1.6	Ø16.0	Ø9.7	2000
GWS-16F	23821977	1.6	Ø16.0	Ø8.4	2000
GWS-17	23821978	1.5	Ø17.0	Ø13.5	2000
GWS-18	23821979	0.8	Ø18.0	Ø4.2	2000
GWS-18QT	23821980	1.4	Ø18.0	Ø8.1	2000
GWS-20	23821981	1.0	Ø20.0	Ø14.5	1000
GWS-20A	23821982	2.0	Ø20.0	Ø10.5	1000
GWS-21	23821983	1.0	Ø21.0	Ø14.1	1000
GWS-22PM	23821984	1.5	Ø22.0	Ø16.5	1000
GWS-26	23821985	1.5	Ø26.0	Ø20.5	1000

Material: NYLON 66 (UL)
Brandschutzklasse: 94V-2
Farbe: NATUR

Artikel-Nr. GWS-1BD
