    BHC Serie BHC Serie BHC Serie

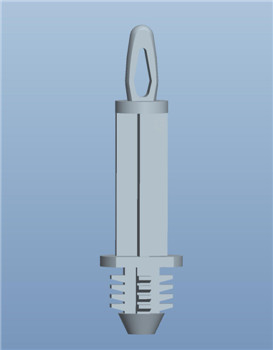

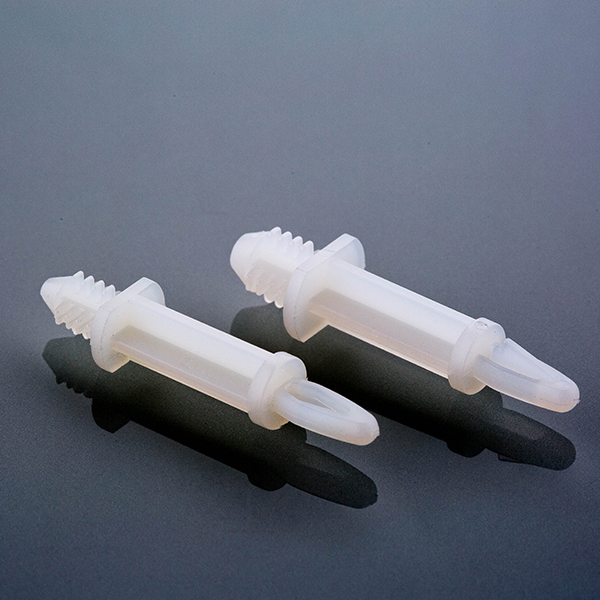

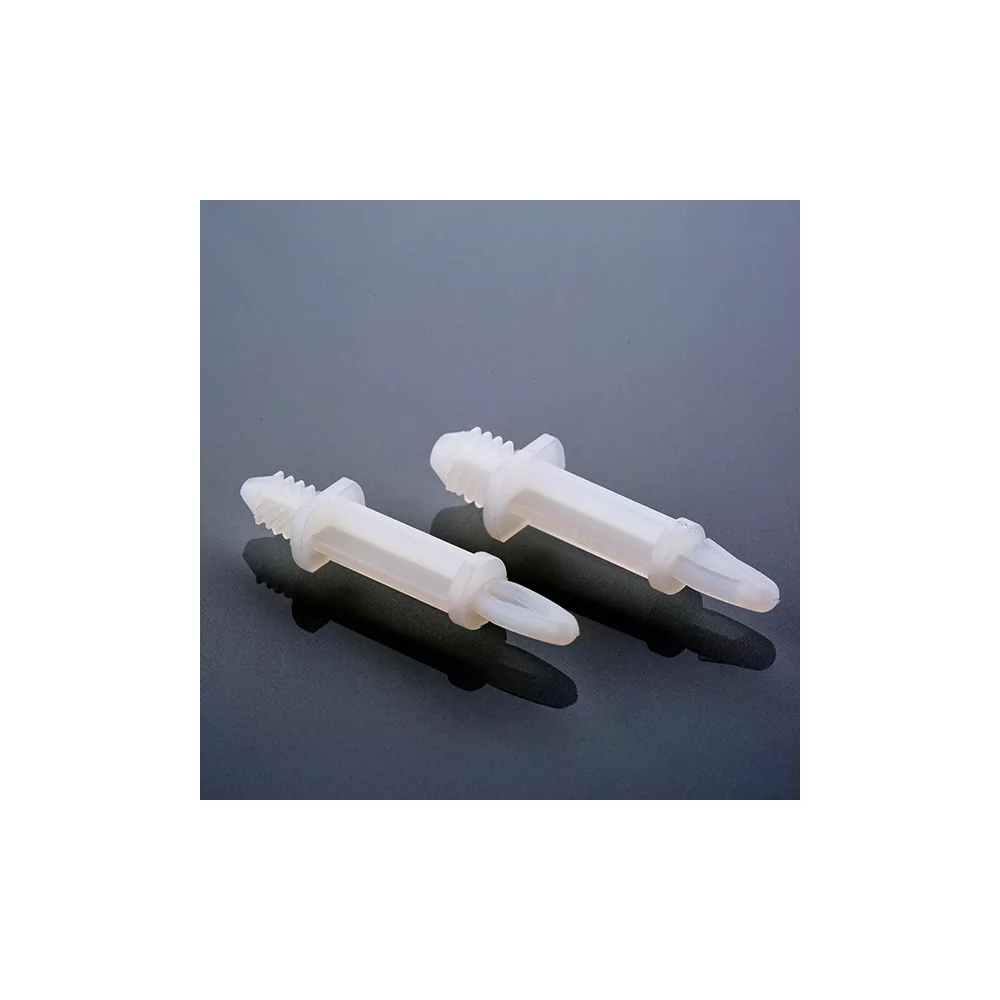

    GBS 5 Series - Blind Hole Circuit Board Support

    106.50 €
    VAT excluded Änderungen und Preisirrtümer vorbehalten

    Packaging and price unit: 1000 Spacers for blind hole mounting

    In lengths from 4.8 - 22.2mm (others on request)

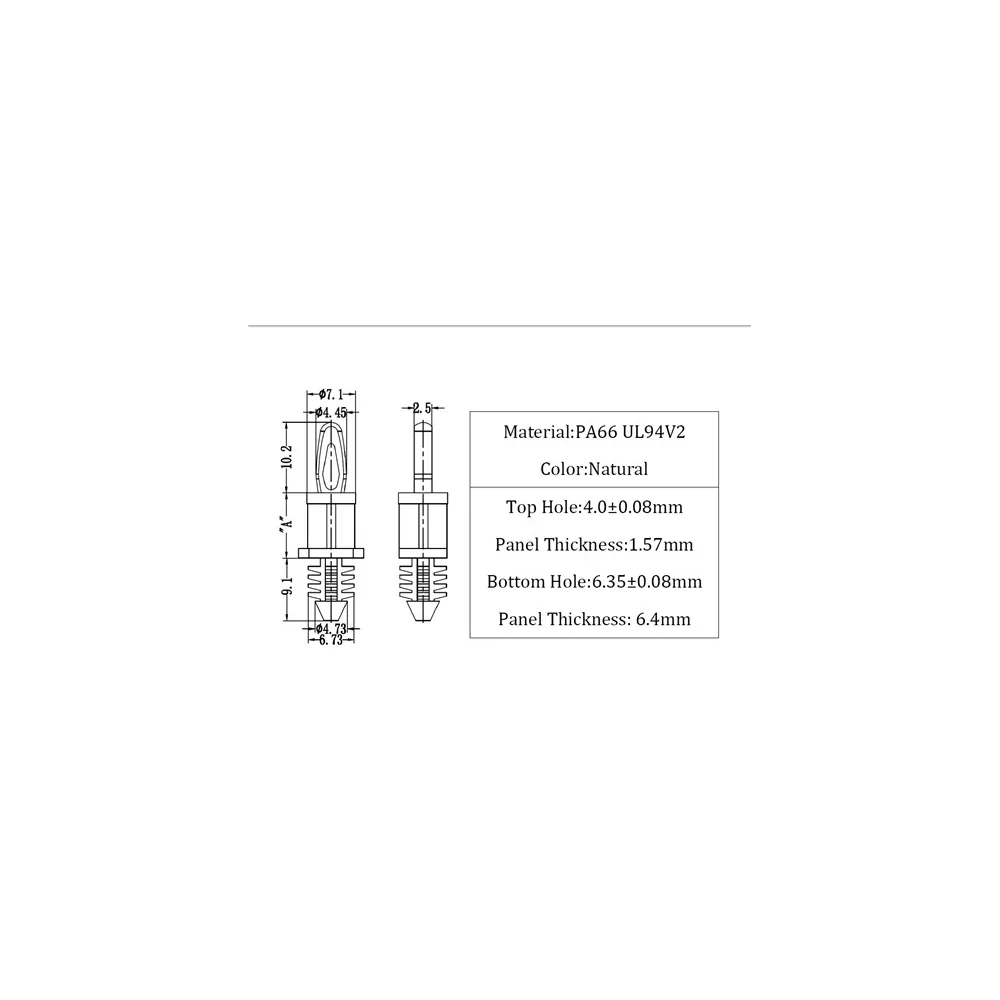

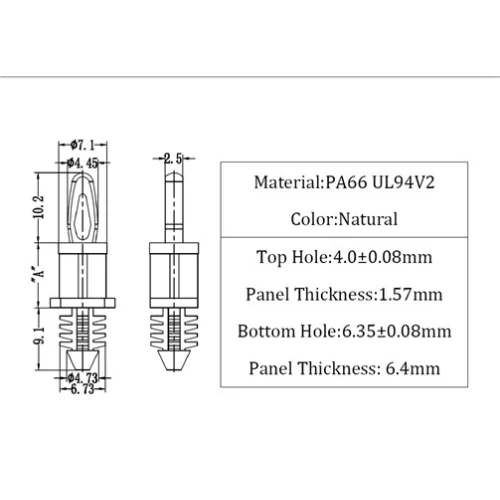

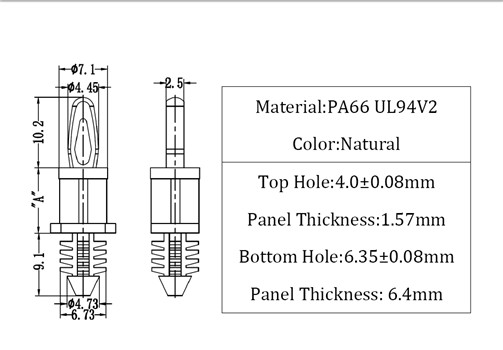

    PCB thickness ≙ 1.57mm (top) & 6.4mm (bottom)
    Ø hole ≙ 4.0±0.08mm (top) & 6.35±0.08mm (bottom)
    Colour: Natural - Material: PA66 UL 94V2

    GBS5 Series
    UnitsDiscountYou will savePrice/unit
    53%15.98 €103.31 €
    106%63.90 €100.11 €
    2010%213.00 €95.85 €
    3015%479.25 €90.53 €
    Note

    Please contact us for small quantities, free samples and further technical details.



    PCB Support - Spacer - Locking/Non Locking Bayonet with Fir Tree Mount

    Article No.Cross-Ref.MaterialColourAFIGHole topDrill hole bottomPanel thickness topPlate thickness bottomPU
    GBS5-3-66BHC1-3-01PA66 UL94V2Natural4,844.0 +/- 0.086.35 +/- 0.081,576.4 (min)1000
    GBS5-3-V0BHC1-3-19PA66 UL94V0Natural4,844.0 +/- 0.086.35 +/- 0.081,576.4 (min)1000
    GBS5-3-66BBHC1-3-01BKPA66 UL94V2Black4,844.0 +/- 0.086.35 +/- 0.081,576.4 (min)1000
    GBS5-3-BV0BHC1-3-19BKPA66 UL94V0Black4,844.0 +/- 0.086.35 +/- 0.081,576.4 (min)1000
    GBS5-4-66BHC1-4-01PA66 UL94V2Natural6,444.0 +/- 0.086.35 +/- 0.081,576.4 (min)1000
    GBS5-4-V0BHC1-4-19PA66 UL94V0Natural6,444.0 +/- 0.086.35 +/- 0.081,576.4 (min)1000
    GBS5-4-66BBHC1-4-01BKPA66 UL94V2Black6,444.0 +/- 0.086.35 +/- 0.081,576.4 (min)1000
    GBS5-4-BV0BHC1-4-19BKPA66 UL94V0Black6,444.0 +/- 0.086.35 +/- 0.081,576.4 (min)1000
    GBS5-6-66BHC1-6-01PA66 UL94V2Natural9,544.0 +/- 0.086.35 +/- 0.081,576.4 (min)1000
    GBS5-6-V0BHC1-6-19PA66 UL94V0Natural9,544.0 +/- 0.086.35 +/- 0.081,576.4 (min)1000
    GBS5-6-66BBHC1-6-01BKPA66 UL94V2Black9,544.0 +/- 0.086.35 +/- 0.081,576.4 (min)1000
    GBS5-6-BV0BHC1-6-19BKPA66 UL94V0Black9,544.0 +/- 0.086.35 +/- 0.081,576.4 (min)1000
    GBS5-7-66BHC1-7-01PA66 UL94V2Natural11,144.0 +/- 0.086.35 +/- 0.081,576.4 (min)1000
    GBS5-7-V0BHC1-7-19PA66 UL94V0Natural11,144.0 +/- 0.086.35 +/- 0.081,576.4 (min)1000
    GBS5-7-66BBHC1-7-01BKPA66 UL94V2Black11,144.0 +/- 0.086.35 +/- 0.081,576.4 (min)1000
    GBS5-7-BV0BHC1-7-19BKPA66 UL94V0Black11,144.0 +/- 0.086.35 +/- 0.081,576.4 (min)1000
    GBS5-8-66BHC1-8-01PA66 UL94V2Natural12,744.0 +/- 0.086.35 +/- 0.081,576.4 (min)1000
    GBS5-8-V0BHC1-8-19PA66 UL94V0Natural12,744.0 +/- 0.086.35 +/- 0.081,576.4 (min)1000
    GBS5-8-66BBHC1-8-01BKPA66 UL94V2Black12,744.0 +/- 0.086.35 +/- 0.081,576.4 (min)1000
    GBS5-8-BV0BHC1-8-19BKPA66 UL94V0Black12,744.0 +/- 0.086.35 +/- 0.081,576.4 (min)1000
    GBS5-10-66BHC1-10-01PA66 UL94V2Natural15,944.0 +/- 0.086.35 +/- 0.081,576.4 (min)1000
    GBS5-10-V0BHC1-10-19PA66 UL94V0Natural15,944.0 +/- 0.086.35 +/- 0.081,576.4 (min)1000
    GBS5-10-66BBHC1-10-01BKPA66 UL94V2Black15,944.0 +/- 0.086.35 +/- 0.081,576.4 (min)1000
    GBS5-10-BV0BHC1-10-19BKPA66 UL94V0Black15,944.0 +/- 0.086.35 +/- 0.081,576.4 (min)1000
    GBS5-12-66BHC1-12-01PA66 UL94V2Natural19,144.0 +/- 0.086.35 +/- 0.081,576.4 (min)1000
    GBS5-12-V0BHC1-12-19PA66 UL94V0Natural19,144.0 +/- 0.086.35 +/- 0.081,576.4 (min)1000
    GBS5-12-66BBHC1-12-01BKPA66 UL94V2Black19,144.0 +/- 0.086.35 +/- 0.081,576.4 (min)1000
    GBS5-12-BV0BHC1-12-19BKPA66 UL94V0Black19,144.0 +/- 0.086.35 +/- 0.081,576.4 (min)1000
    GBS5-14-66BHC1-14-01PA66 UL94V2Natural22,244.0 +/- 0.086.35 +/- 0.081,576.4 (min)1000
    GBS5-14-V0BHC1-14-19PA66 UL94V0Natural22,244.0 +/- 0.086.35 +/- 0.081,576.4 (min)1000
    GBS5-14-66BBHC1-14-01BKPA66 UL94V2Black22,244.0 +/- 0.086.35 +/- 0.081,576.4 (min)1000
    GBS5-14-BV0BHC1-14-19BKPA66 UL94V0Black22,244.0 +/- 0.086.35 +/- 0.081,576.4 (min)1000
    Identical to Richco / Essentra series
    BHC1
    Packaging and price unit
    1000
    Functional dimension "A" or "L" (if available)
    3 ≙ 4,8mm; 4 ≙ 6,4mm; 5 ≙ 7,9mm; 6 ≙ 9,5mm; 7 ≙ 11,1mm; 8 ≙ 12,7mm; 9 ≙ 14,3mm; 10 ≙ 15,9mm; 12 ≙ 19,1mm; 14 ≙ 22,2mm
    GBS5-3-66
